Wiring Diagrams & Fuse Box

The Lancia Technical Department issued the following Sketches containing the wiring diagram and an index to the components for various models. The Sketches are small, in black and white and many of them are of poor quality. Instead, I have replaced them with the coloured versions, which were part of the original driver’s instruction books.

Although 2 sketches were produced for the 6^th Series B20 & 3 Sketches for B24S cars, only a very minor change to the wiring of the sidelight warning lamp (see #10 & #15 on B20 diagrams and #10 & #16 on the B24 diagrams) seems to have occurred. The wiring diagrams depicted in Sketches 469, 471 & 472 are thus not included particularly as in later versions of the driver’s instruction books only one wiring diagram is given for cars from B20-3817, from B20S-1436 & from B24S-1182.

See below for notes about the differences including the fuse boards.

Car Model	Lancia Sketch No.	See Page for Wiring	See Page for Electrical Layout
B10 1001 to 3355 B21 1001 to 1038	121	08.2/04-05	08.2/02-03

B10 from 3356 to 4711; B10S 1001 to 1145 B21 from 1039 to 1875; B21S 1001 to 1090 B20 1001 to 1346 B50 1001 to 1484, B51 1001 to 1098	177	08.2/06-07	08.2/08

B10 from 4712; B10S from 1146 B21 from 1876; B21S from 1091 B20 from 1347 to 2231 B22 from 1001 B50 from 1585; B51 from 1099 B52 from 1001, B53 from 1001	188	08.2/10-11	08.2/08 Must be very similar

B12; B12S	343	08.2/12-13	08.2/14

B20 from 2232 to 2951 (3rd series)	340	08.2/16-17

B20 from 2952 to 3420 B20S 1001 to 1130 (early 4th series with Veglia instruments)	341	08.2/18-19

B20 3421 to 3816 B20S 1131 to 1435 (late 4th series & 5th series with Jaeger instruments)	342	08.2/22-23	08.2/21 B20-3421-3696 08.2/26 B20-3697 on

B20 3817 to 3971 B20S 1436 to 1740 (most of 6th series)	469	08.2/24-25	08.2/26

B20 from 3972 to 4011; B20S from 1741 to 1860 (late 6th series)	470	08.2/24-25	08.2/26

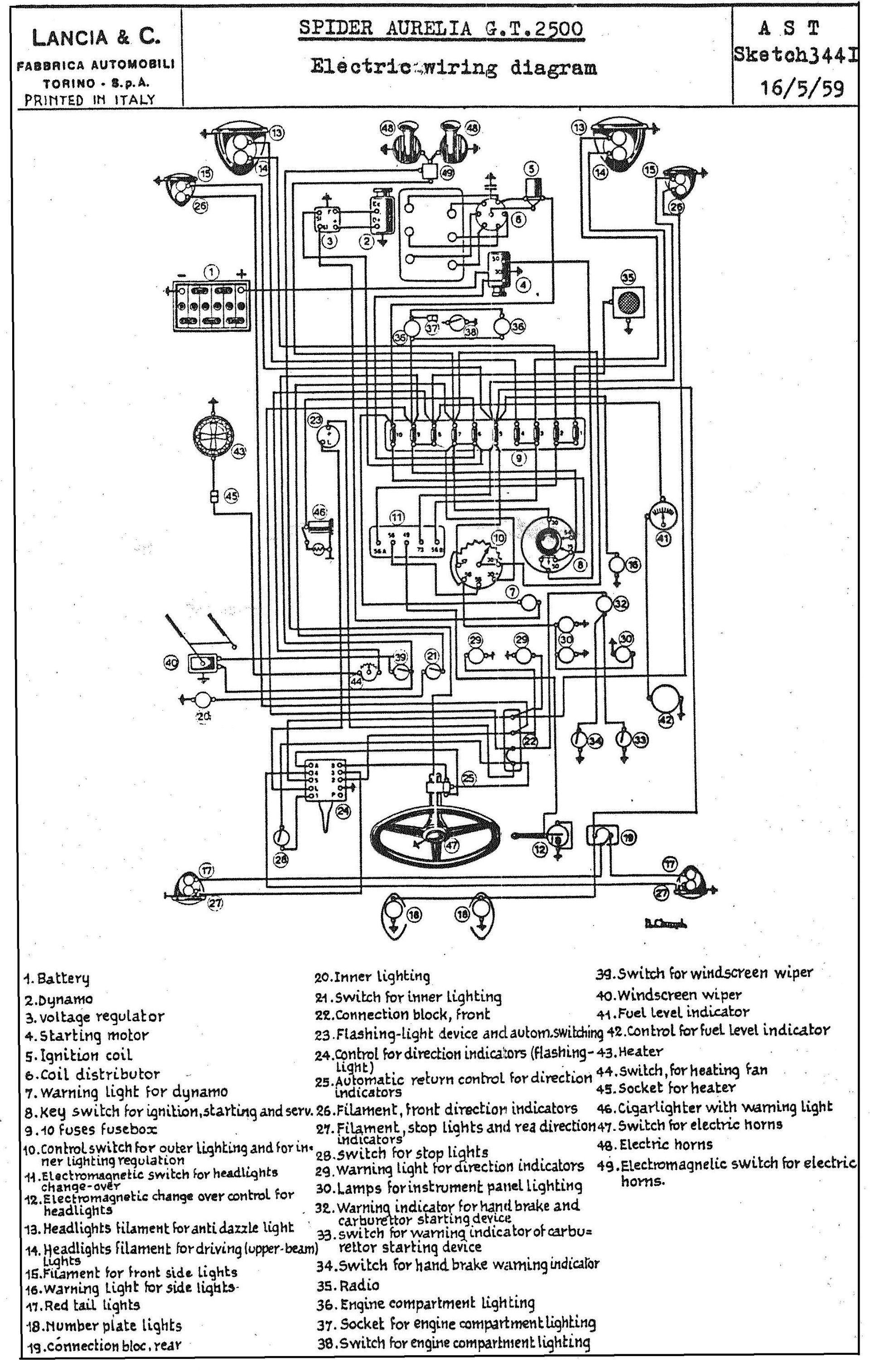

B24 Spider (~4th) 1001 to 1059 and B24S 1001 to 1181	344	08.2/22-23

B24S Convertible 1182 to 1331 (~5th)	471	08.2/28-29
B24S Convertible 1332 to 1570 (~early 6th)	472	08.2/28-29
B24S Convertible 1571 to 1702 (~late 6th)	473	08.2/28-29

General Notes:

1. All Aurelias had 10 fuses in the fuse-board although the wiring to, and devices supported by each fuse varied.

2. Cars from the start of the late 4th series B20, and late B24 Spider on, had Jaeger instruments and many detailed changes to the electrical equipment. The parts catalogue must be consulted for exact fittings including for individual cars.

B10 & other Series I cars

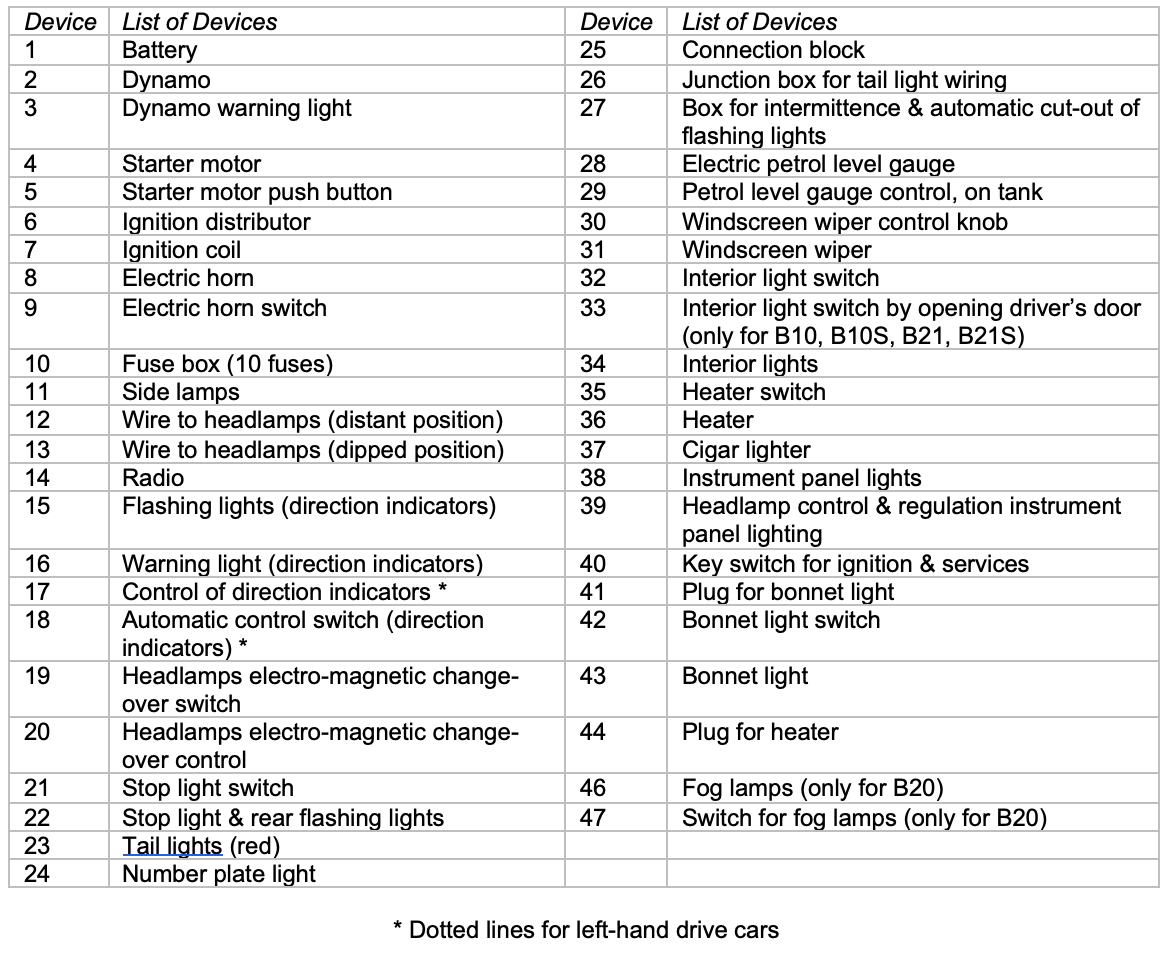

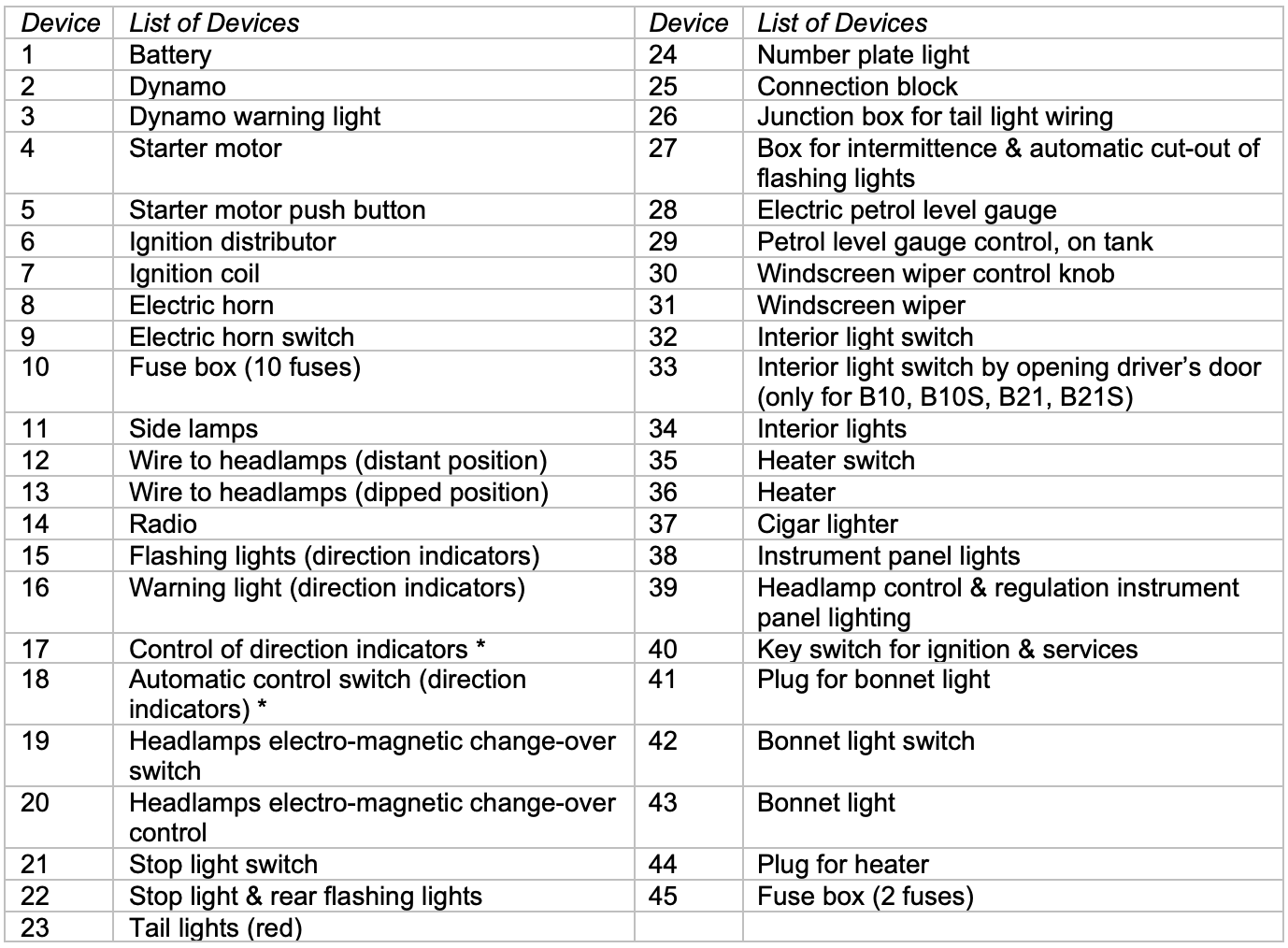

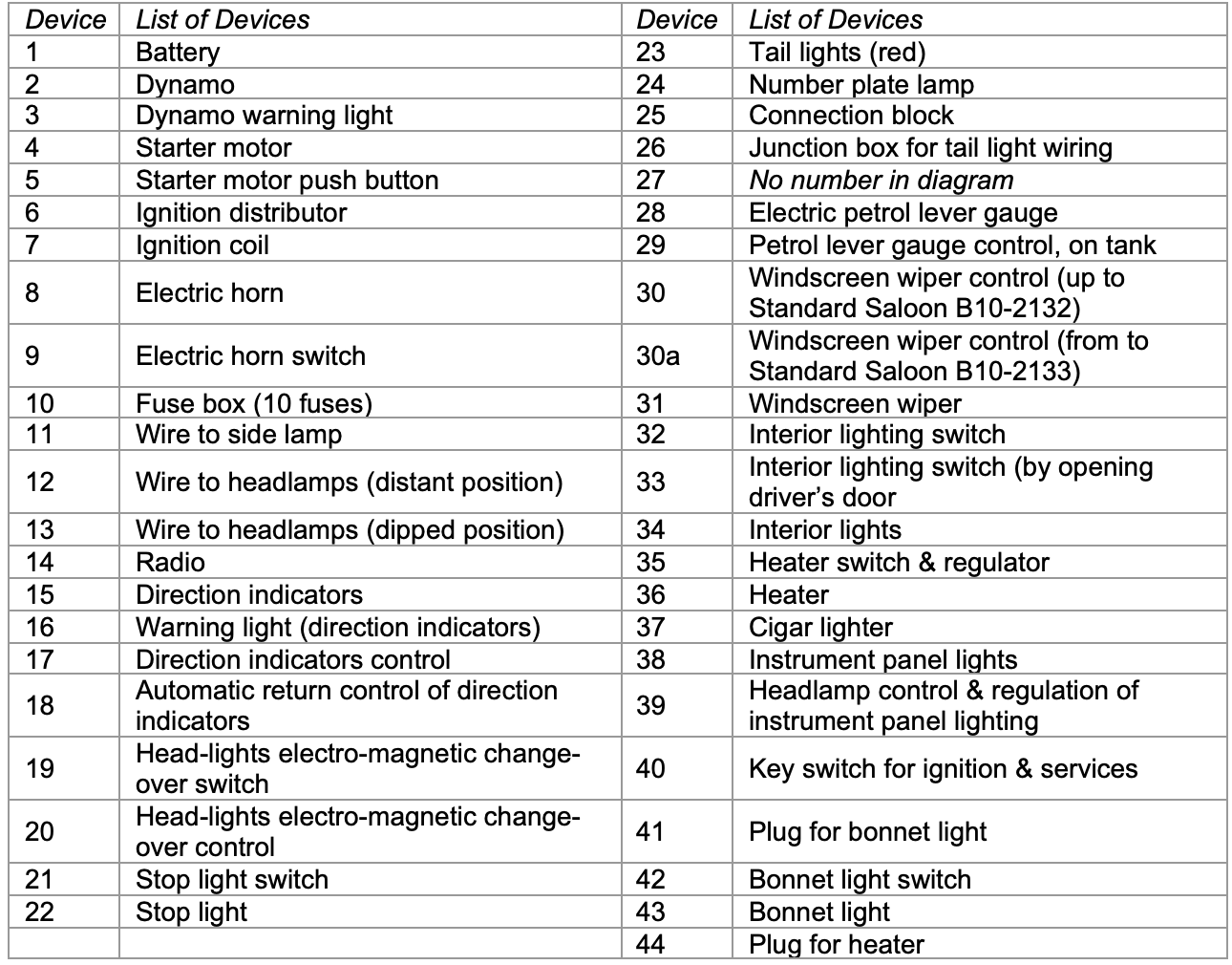

There are three different wiring diagrams for B10 and related cars as the table above reveals. The details of the scheme of electrical components are also different. The diagrams below come from the spare parts books, the driver’s instruction books and the Lancia C. AST Sketches. I have chosen the best quality where I have it

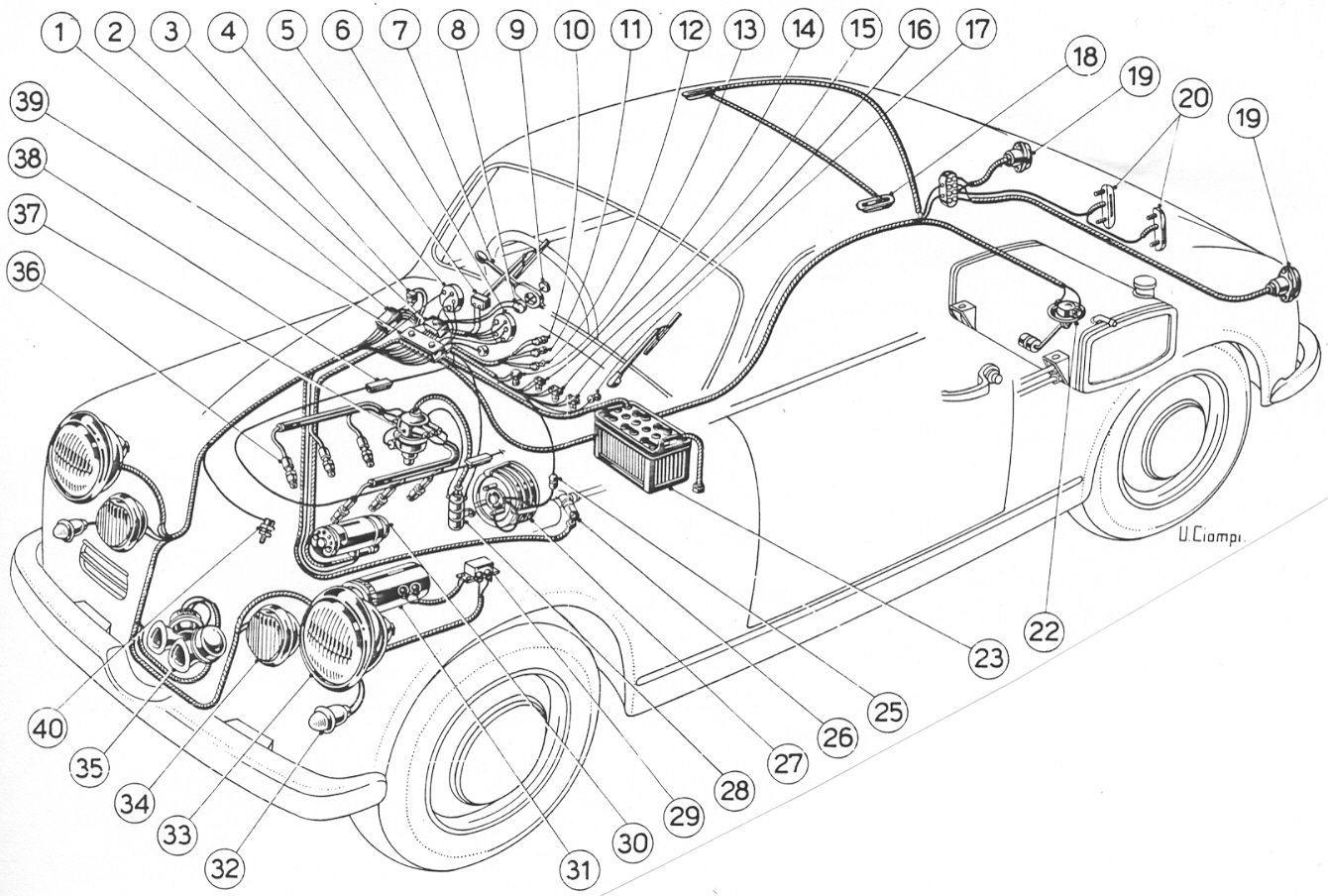

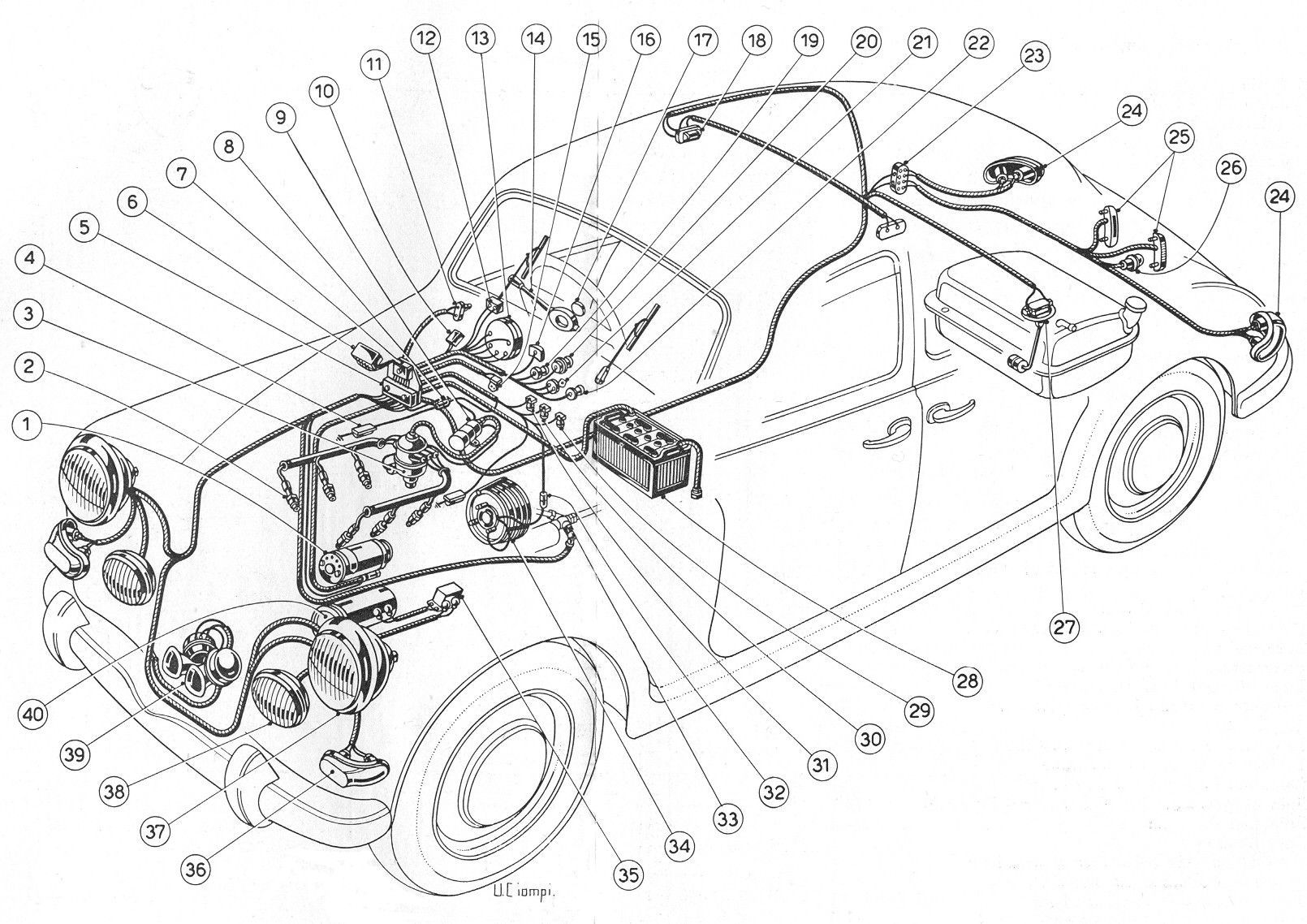

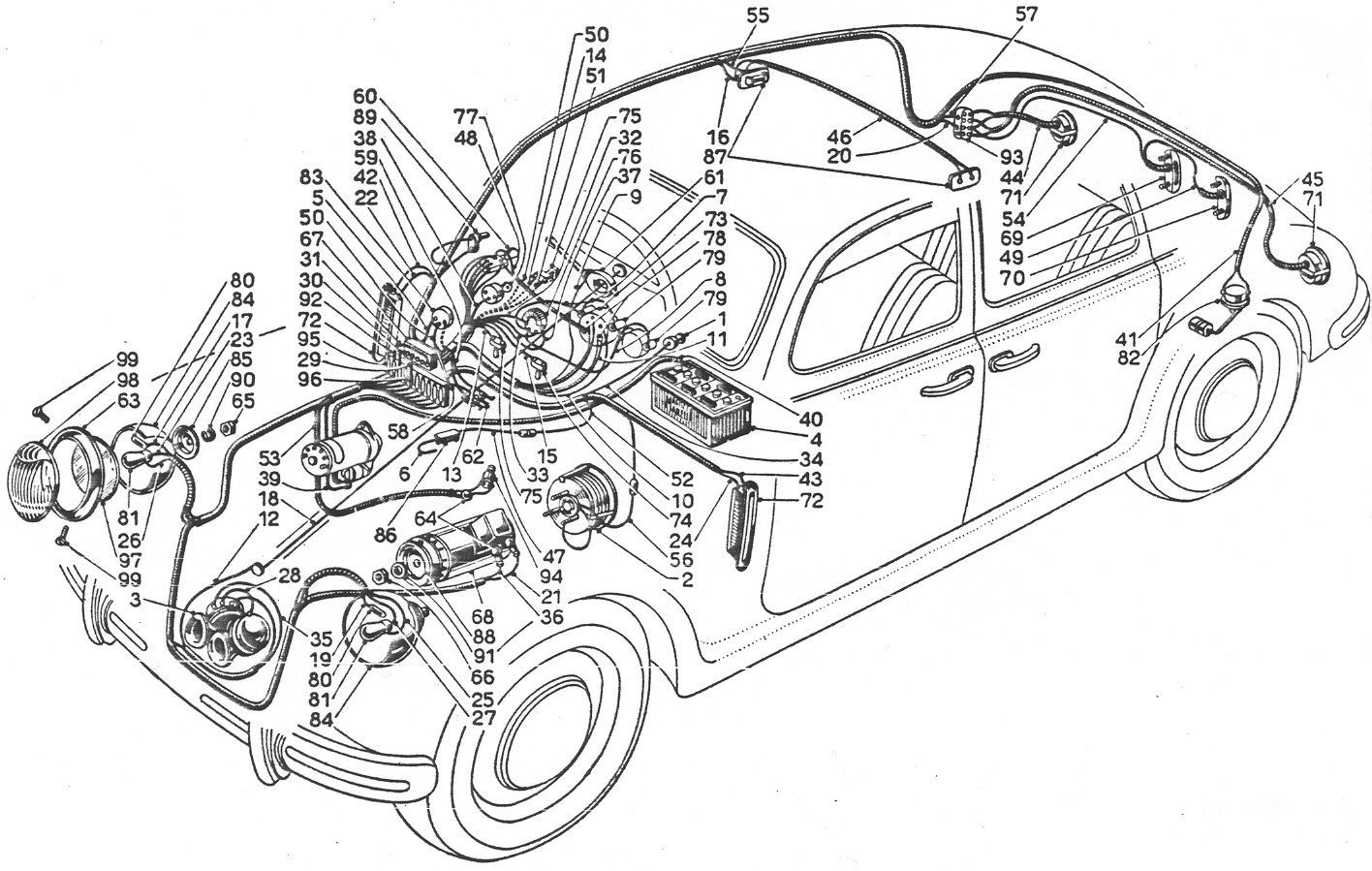

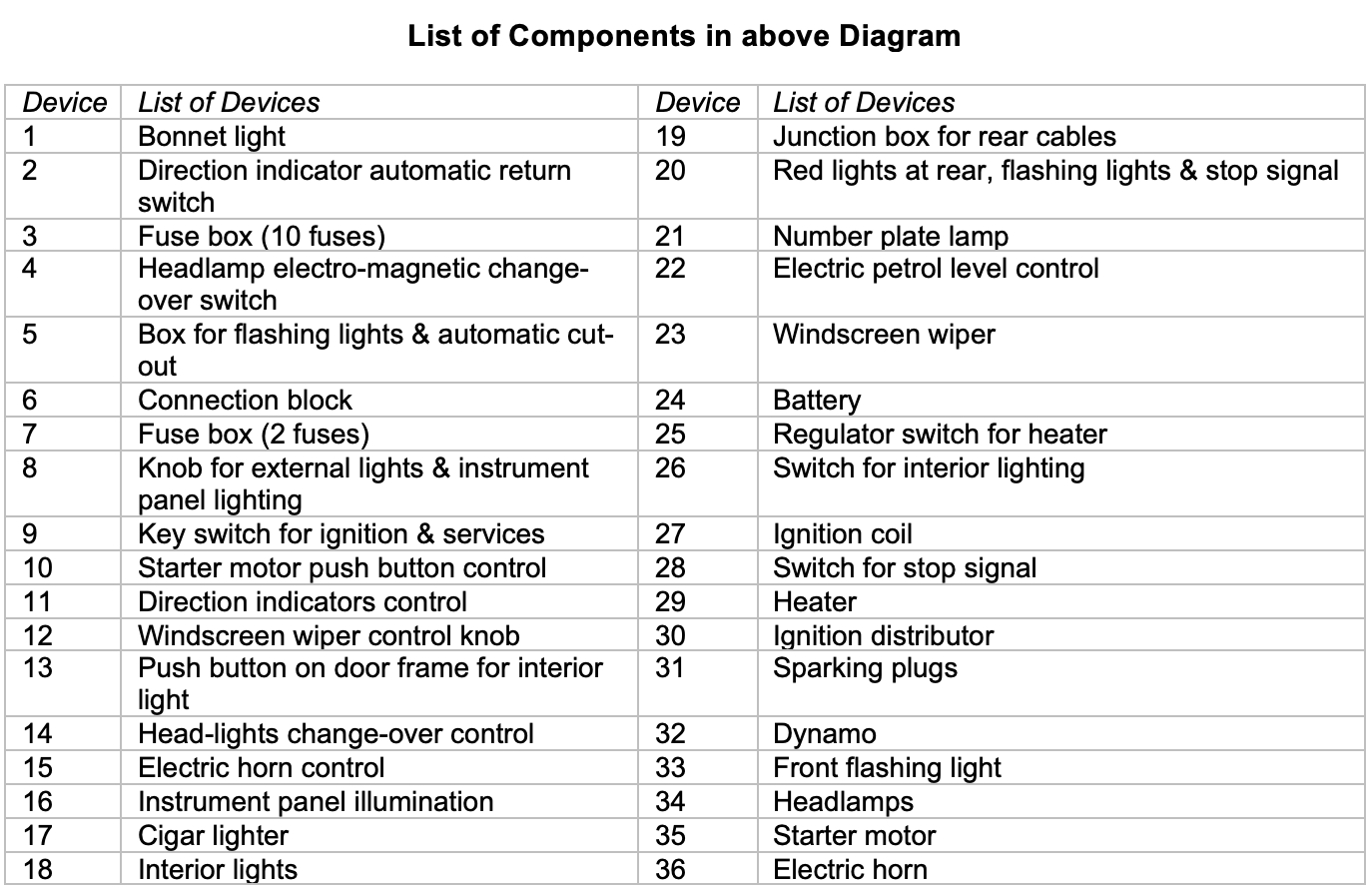

List of Components in Scheme diagram below for cars up to B10-3355 & B21-1038

Device	List of Devices
1	Cigar lighter
2	Heater
3	Horns
4	Battery
5 to 59	Cables
60	Indicators lever
61	Headlamp lever
62	Indicators self-cancelling
63	Headlight bezel
64	Cable sheathing protectors
65	Nut – Headlamp fixing
66	Nut for dynamo pulley
67	Headlights relay
68	Dynamo & Regulator
69	RH number plate light
70	LH number plate light
71	Rear light units
72	Direction indicators
73	Fuel level & oil pressure gauge
74	Internal light switch
75	Windscreen wiper & heater switch
76	Headlight switch & dashboard lamps rheostat

77	Starting switch & key
78	Dynamo & indicator warning lamp
79	Dashboard lights
80	Parking lights warning lamp
81	Head lamp warning lamp
82	Fuel gauge sender unit
83	Windscreen wiper motor
84	Headlight reflector
85	Headlight bulb holder
86	Engine compartment light
87	Internal lights
88	Dynamo pulley
89	Door switch for internal lights
90	Washer – headlight fixing
91	Washer for dynamo pulley
92	Fuse-board for 10 fuses
93	Rear junction box
94	Stop light switch
95	15A fuses – x9
96	40A fuse – x1
97	Headlight reflector glass
98	Outer headlight glass
99	Screw to secure headlight bezel

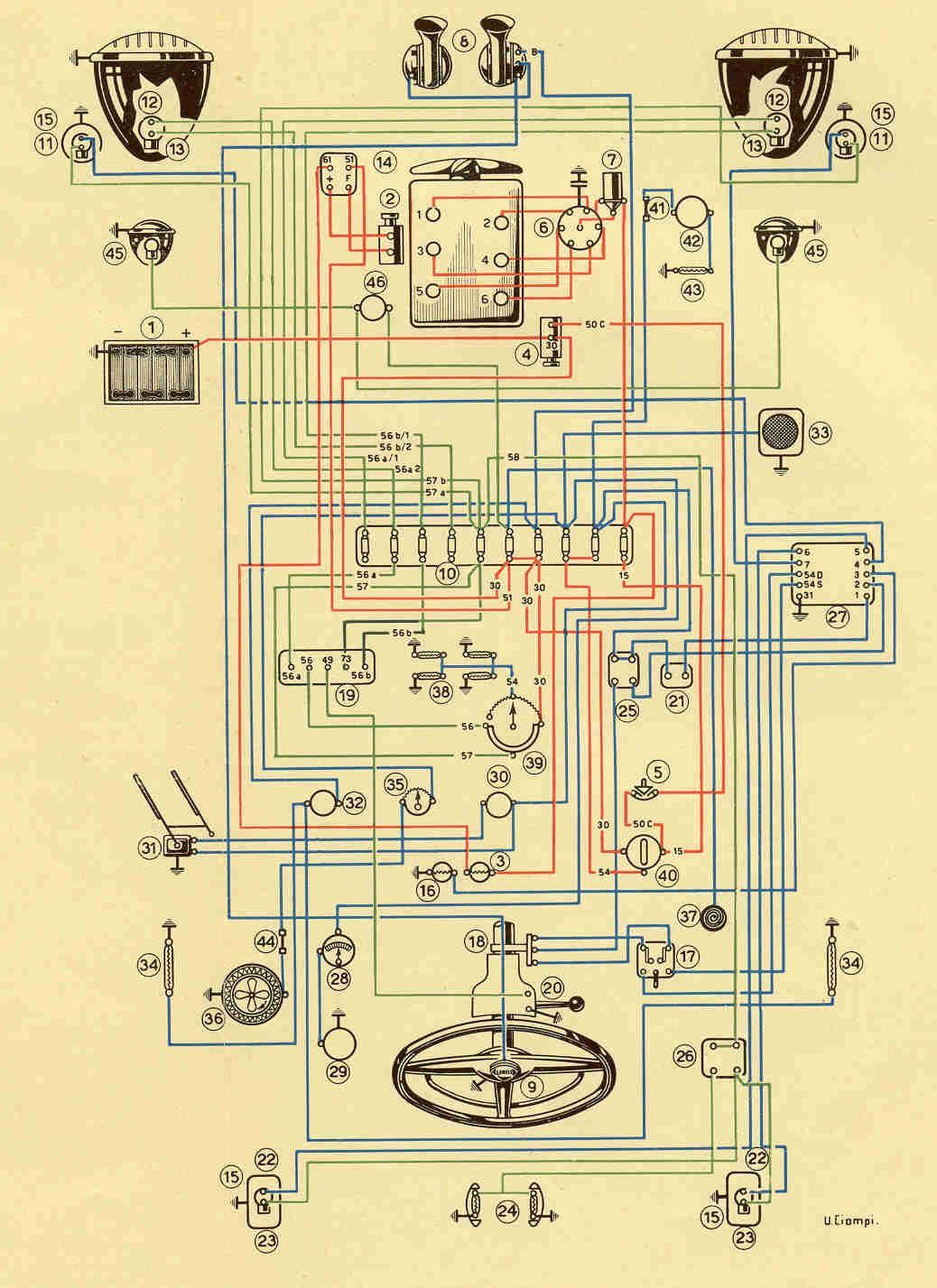

Device	List of Devices	Device	List of Devices
1	Battery	24	Number plate lamp
2	Dynamo	25	Junction block
3	Generator warning light	26	Tail lamp cable connection box
4	Starter motor	27	Direction Indicator flasher unit
5	Starter motor push-button switch	28	Fuel gauge
6	Ignition distributor	29	Fuel gauge sending unit
7	Ignition coil	30	Windscreen wiper control
8	Electric horn	31	Windscreen wiper
9	Electric horn control	32	Interior light switch
10	Fuse box (10 fuses)	33	Radio
11	Parking lamp bulb filament	34	Interior lights
12	Main beam filament	35	Heater blower motor switch
13	Low beam filament	36	Heater blower motor
14	Voltage regulator	37	Cigar lighter
15	Direction Indicators	38	Instrument panel lights
16	Direction Indicators warning light	39	Headlamp switch & instrument panel light rheostat
17	Direction Indicators control	40	Key switch for ignition & services
18	Direction Indicators self-cancellation switch	41	Engine compartment light connection
19	Headlamp relay	42	Engine compartment light switch
20	Headlamp flashing and dipping switch control	43	Engine compartment light
21	Stop light switch	44	Heater blower motor connection
22	Stop lights	45	Fog lamps
23	Rear parking lamps	46	Fog lamp switch

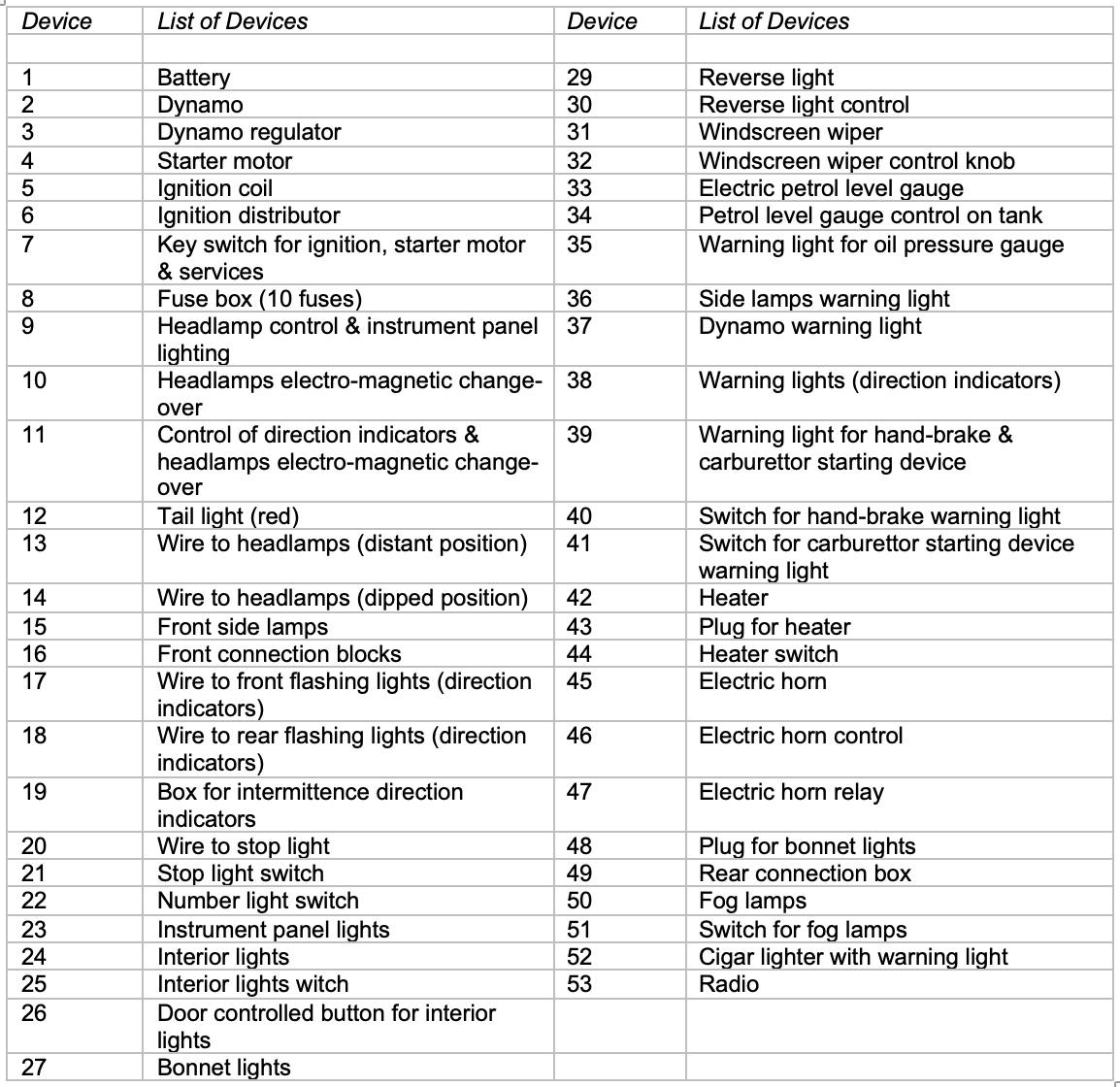

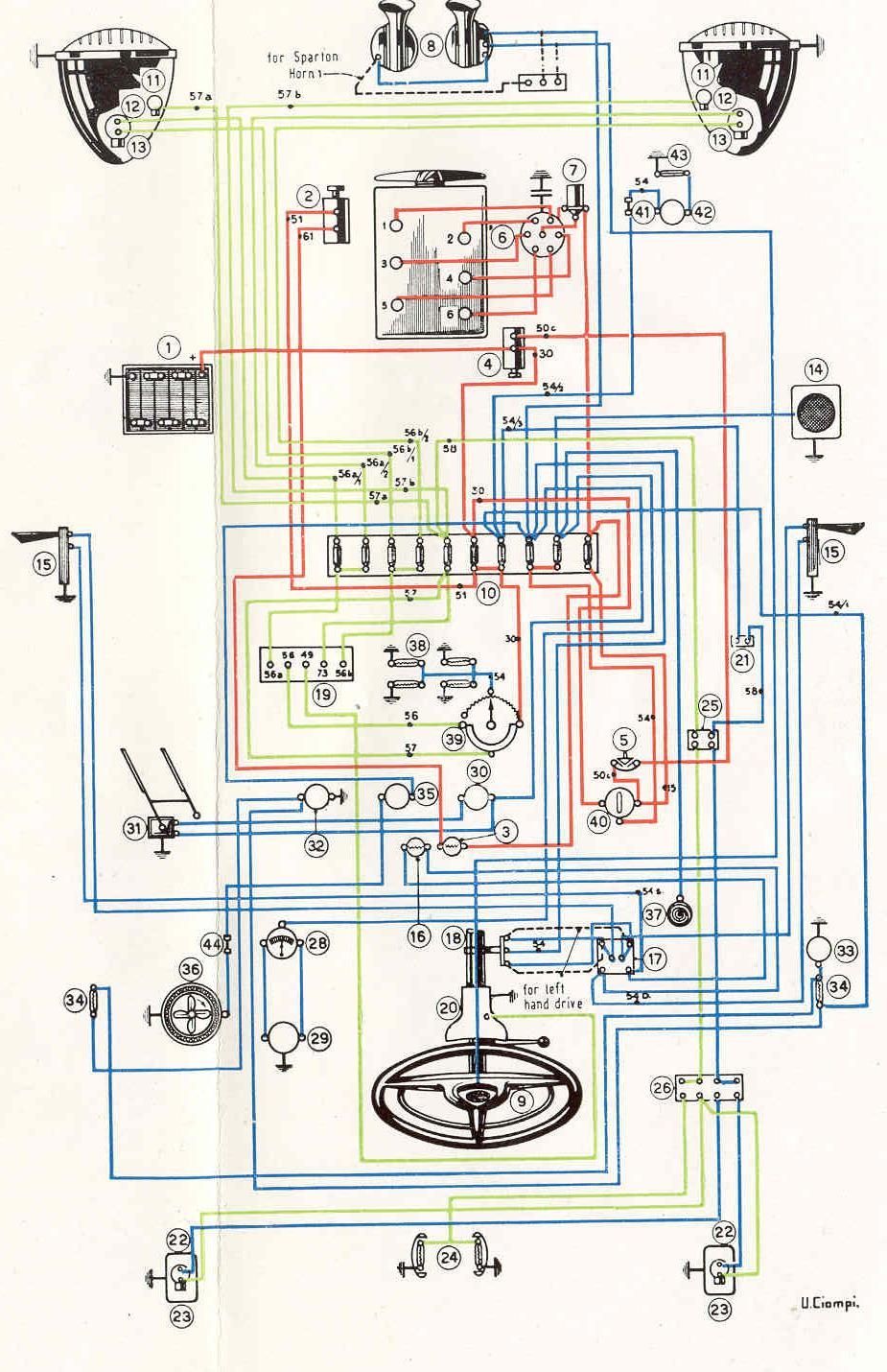

Device	List of Devices	Device	List of Devices
1	Battery	28	Bonnet light switch
2	Dynamo	29	Reverse light
3	Dynamo regulator	30	Reverse light control
4	Starter motor	31	Windscreen wiper
5	Ignition coil	32	Windscreen wiper control knob
6	Ignition distributor	33	Electric petrol lever gauge
7	Key switch for ignition & services	34	Petrol lever gauge control on tank
8	Fuse box (10 fuses)	35	Plug for petrol lever gauge
9	Tail light (red)	36	Side lamps warning light
10	Headlamp control & regulation of instrument panel lighting	37	Dynamo warning light
11	Headlamps electromagnetic changeover	38	Direction indicators warning lights
12	Control of direction indicators & headlamps electromagnetic changeover	39	Handbrake & carburettor starting device warning light
13	Wire to headlamps – distant position	40	Switch for handbrake warning light
14	Wire to headlamps – dipped position	41	Switch for carburettor starting device warning light
15	Front side lamps	42	Heater
16	Front connection block	43	Plug for heater
17	Wire to front flashing lights (direction indicators)	44	Heater switch
18	Starter motor push button	45	Electric horn
19	Box for intermittence & automatic cut-out of flashing lights	46	Electric horn control
20	Wire to rear flashing lights (direction indicators) & stop light	47	Electric horn relay
21	Stop light switch	48	Rear connection block
22	Number plate light	49	Cigar lighter with warning light
23	Instrument panel lights	50	Fog lamps
24	Interior lights	51	Switch for fog lamps
25	Interior light switch	52	Instrument panel lights fuse
26	Plug for bonnet lights	53	Radio
27	Bonnet light	54	Warning light for oil pressure gauge

The wiring & dashboard instruments for the early 4^th series are very similar to those on the 3^rd series, but they are different in detail. On the early 4^th there are more warning lamps & other controls – a low oil pressure lamp, right & left flashing indicator warning lamps instead of a single one, a warning lamp for the choke hand control & the handbrake lever together with earthed contacts at each control, a reversing light & its switch, side lights warning lamp, cigar lighter has a light.

Dashboard, Control & Instruments currently shows only one dashboard illustration for the 3^rd& early 4^th series cars.

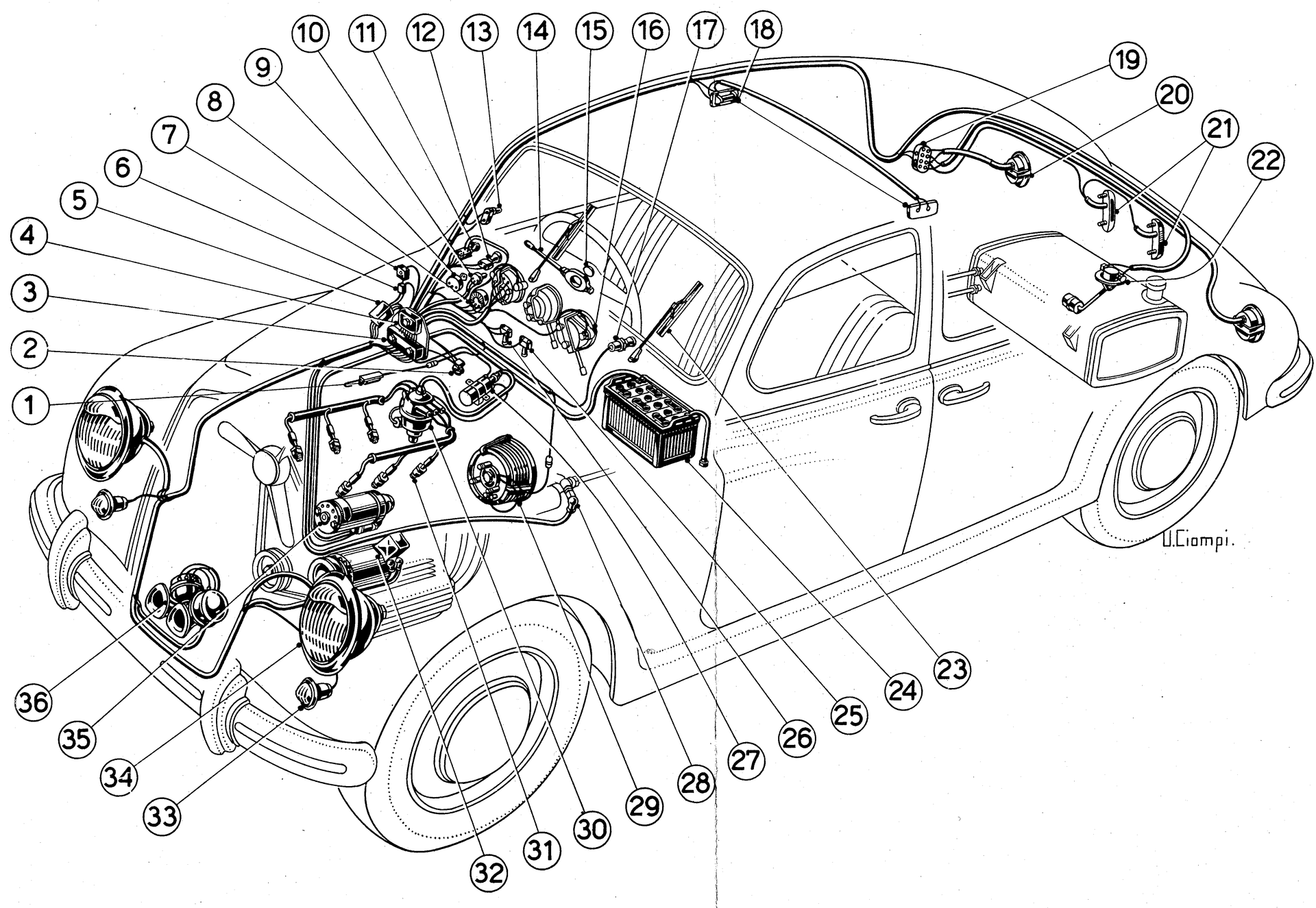

Device	List of Devices	Device	List of Devices
1	Box for flashing lights & automatic cut-out	21	Reversing light
2	Headlamp relay	22	Electric petrol level control
3	Connection block	23	Battery
4	Warning lights for hand brake, starting device, side lights & oil pressure gauge	24	Reverse light control
5	Windscreen wipers	25	Plug for heater
6	Electric petrol level gauge, warning lights for direction indicators & dynamo	26	Switch for stop signal
7	Light switch & direction indicators control	27	Heater
8	Direction indicators automatic return switch	28	Ignition coil
9	Electric horn control	29	Dynamo regulator
10	Starter motor push button	30	Starter motor
11	External & dashboard lighting control	31	Dynamo
12	Cigar lighter	32	Front flashing light & side lamps
13	Key switch for ignition & services	33	Headlamps
14	Switch for interior lighting	34	Fog lamps
15	Switch & regulator for fan heater	35	Electric horn
16	Fog lamp control	36	Sparking plugs
17	Windscreen wiper control knob	37	Ignition distributor
18	Junction box for rear cables	38	Bonnet light
19	Red lights at rear, flashing lights & stop signal	39	Fuse box - 10 fuses
20	Number plate lamp

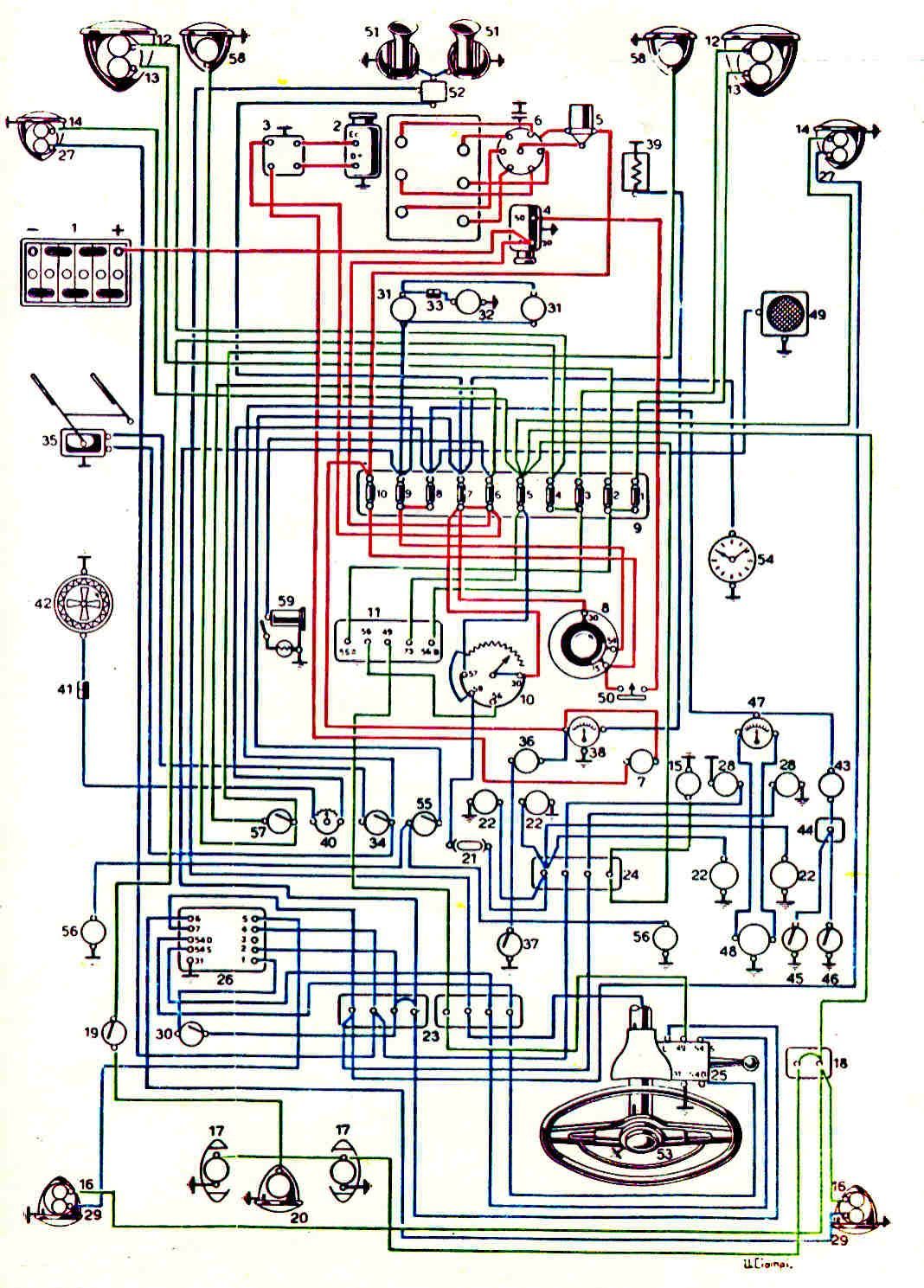

Device	List of Devices	Device	List of Devices
1	Battery	31	Engine compartment lights
2	Dynamo	32	Engine compartment lights auto-switch
3	Voltage regulator	33	Engine compartment lights socket
4	Starting motor	34	Windscreen wiper switch
5	Ignition coil	35	Windscreen wiper
6	Ignition distributor	36	Warning light for low oil pressure
7	Dynamo warning light	37	Sender for warning light for low oil pressure
8	Key switch for ignition, starting & services	38	Water thermometer
9	Fuse box – 10 fuses	39	Sender for water thermometer
10	Main light switch & panel lighting with rheostat	40	Heating fan switch with resistance
11	Relay switch for headlights dip to main	41	Heater socket
12	Headlight bulbs, low beam	42	Heater
13	Headlight bulbs, high beam	43	Handbrake & enrichment warning light
14	Front side light bulbs	44	Cable connection block for warning indicator control switch
15	Warning light for sidelights	45	Control switch for handbrake warning indicator
16	Red tail light bulbs	46	Switch for 45 above
17	Number plate light	47	Fuel level indicator
18	Connection block, rear	48	Control for fuel level indicator
19	Control switch for reversing light	49	Radio
20	Reversing light	50	Push button for starting
21	Fuse for panel lighting	51	Electric horns
22	Instrument panel lighting lamps	52	Relay switch for horns
23	Connection blocks, front	53	Horn control (on steering wheel)
24	Connection block for instrument panel lights	54	Clock
25	Switch for direction indicators & headlights dipping	55	Control switch for interior lights
26	Indicator light device	56	Interior lights
27	Front direction indicators bulb	57	Control switch for fog lights
28	Warning light for direction indicators	58	Fog lights
29	Stop lights & rear direction indicators bulbs	59	Cigar lighter with warning light

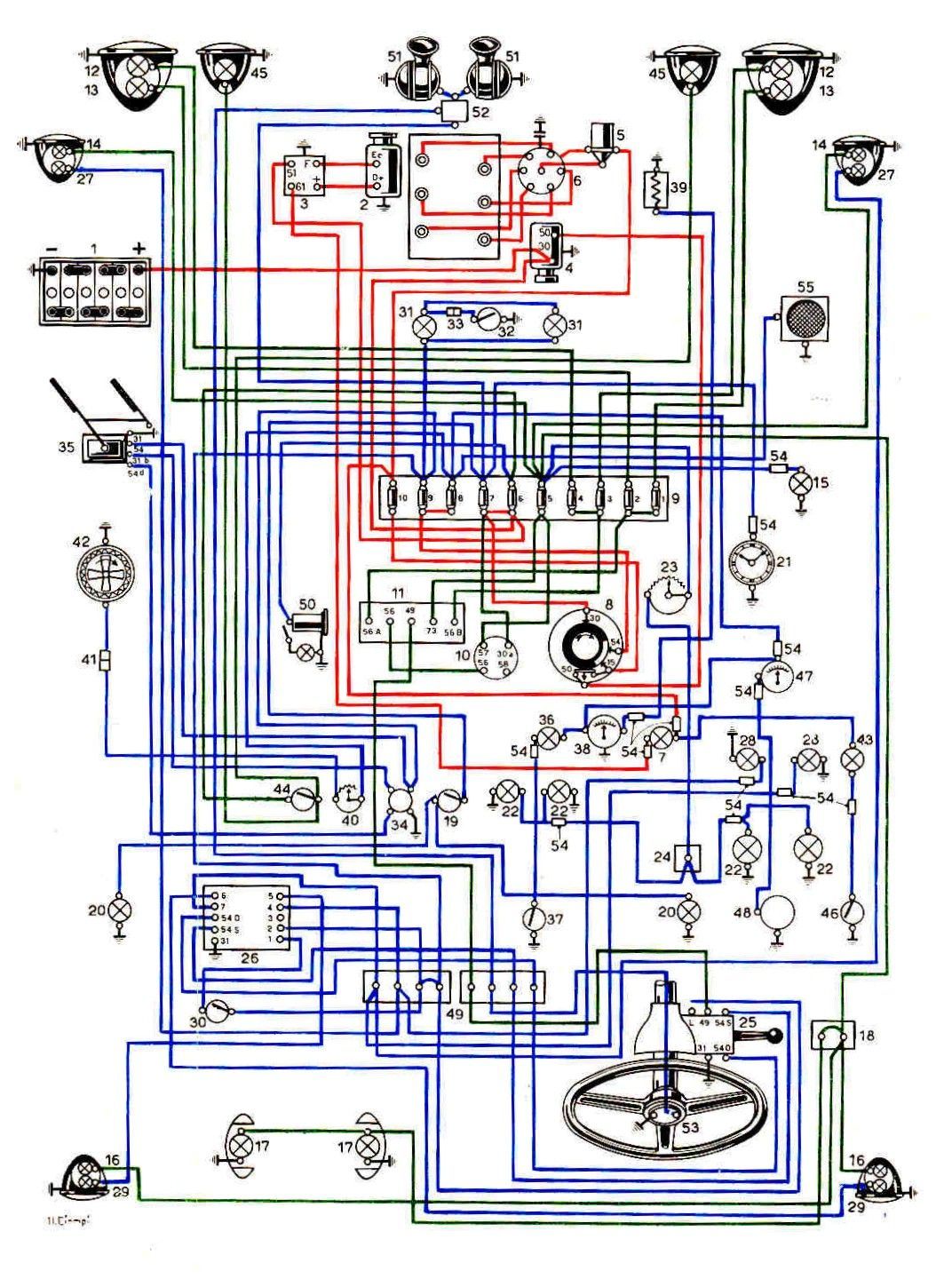

Device	List of Devices	Device	List of Devices
1	Battery	29	Wiring for stop lights & rear direction indicators
2	Dynamo	30	Switch for stop lights
3	Voltage regulator	31	Engine compartment lights
4	Starting motor	32	Auto-switch for engine compartment lights
5	Ignition coil	33	Socket for engine compartment lights
6	Ignition distributor	34	Switch for windscreen wiper
7	Dynamo warning light	35	Windscreen wiper
8	Key switch for ignition, starting & services	36	Warning light for low oil pressure
9	10 fuse fuse-box	37	Sender for warning light for low oil pressure
10	Main light switch	38	Water thermometer
11	Relay switch for headlights dip to main	39	Control for water thermometer
12	Headlight bulbs, low beam	40	Switch with resistance, for heater fan
13	Headlight bulbs, high beam	41	Socket for heater
14	Front side light bulbs	42	Heater
15	Warning light for sidelights	43	Warning light for carburettor starting device
16	Red tail light bulbs	44	Switch for fog lights
17	Number plate light	45	Fog lights
18	Connection block, rear	46	Switch for warning light for carburettor starting device
19	Control switch for inner lighting	47	Fuel level indicator
20	Inner lighting	48	Control for fuel level indicator
21	Clock	49	Connection blocks, front
22	Instrument panel lighting lamps	50	Cigar lighter with warning light
23	Switch for instrument panel lights	51	Electric horn
24	Connection block for instrument panel lights	52	Electro-magnetic switch with horns
25	Switch for direction indicators & headlights	53	Control for electric horns
26	Indicator lights device & automatic change-over	54	Wire sockets
27	Wiring for front direction indicators	55	Wireless
28	Warning light for direction indicators

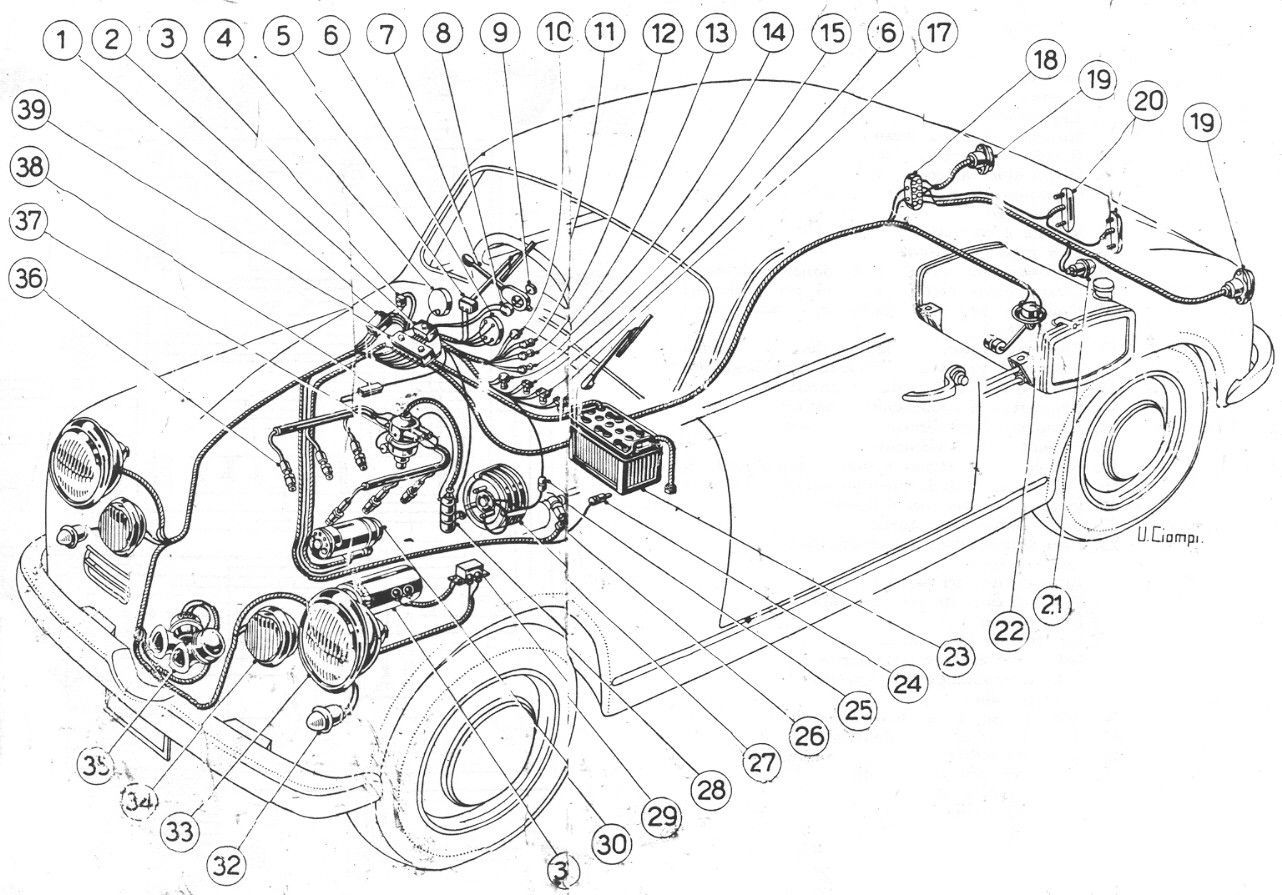

Device	List of Devices	Device	List of Devices
1	Box for flashing lights & automatic cut-out	21	Clock
2	Headlamp relay	22	Electric petrol level control
3	Connection block	23	Battery
4	Warning lights for dynamo, starting device, side lights	25	Plug for heater
5	Windscreen wipers	26	Switch for stop signal
6	Electric petrol level gauge, oil pressure gauge with warning light, water thermometer & warning lights for direction indicators	27	Heater
7	Change over & direction indicator control	28	Ignition coil
8	Direction indicators automatic return switch	29	Dynamo regulator
9	Electric horn control	30	Starter motor
10	External light control	31	Dynamo
11	Cigar lighter	32	Front flashing light & side lamps
12	Key switch for ignition, starter motor & services	33	Headlamps
13	Switch for interior lighting	34	Fog lamps
14	Switch & regulator switch for fan heater	35	Electric horn
15	Fog lamp control	36	Sparking plugs
16	Windscreen wiper control knob	37	Ignition distributor
17	Control for instruments light	38	Bonnet lights
18	Interior lights	39	Fuse box - 10 fuses
19	Red lights at rear, flashing lights & stop signal	40	Water thermometer
20	Number plate lamp

B20 Fuse-box – Early 6th series B20 3817 to 3971 & B20S 1436 to 1740

Fuse No / Devices protected by fuse

Right-hand head lamp, full beam
Left-hand head lamp, full beam
Right-hand head lamp, dipped beam
Left-hand head lamp, dipped beam
Sidelights, tail, number plate and dashboard lights (exc. sidelight warning, and oil pressure lamps)
Fog lamps and switch, cigar lighter and warning lamp
Horn and interior lights
Heater and switch, petrol gauge and sender, oil pressure warning light, thermostat & sender, radio
Indicators and switch, windscreen wipers & switch, stop lights and switch, under-bonnet lights
Dynamo and choke warning lights, ignition switch

B20 Fuse box – Late 6th series B20 3972 to 4011 & B20S 1741 to 1860

Fuse No / Devices protected by fuse

Right-hand head lamp, full beam
Left-hand head lamp, full beam
Right-hand head lamp, dipped beam
Left-hand head lamp, dipped beam
Sidelight warning light, dashboard lights, front & rear sidelights, number-plate lights
Fog lamps and switch, cigar lighter and warning lamp
Clock, horns and interior lights
Heater & heater switch, radio, petrol gauge and sender, oil pressure warning light & sender, thermostat & sender
Indicators and switch, windscreen wipers & switch, stop lights and switch, under-bonnet lights
Dynamo and choke warning lights, ignition switc

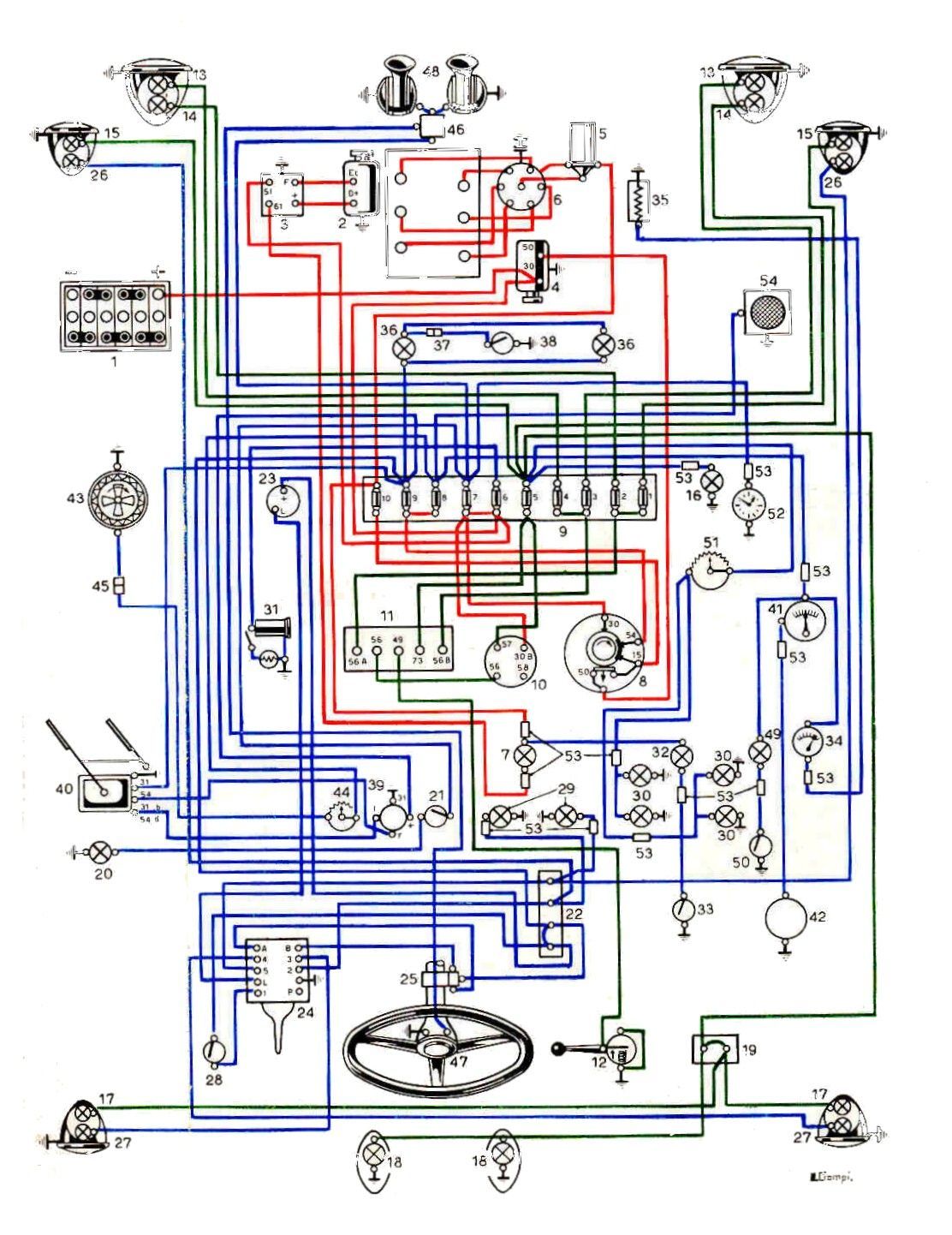

Device	List of Devices	Device	List of Devices
1	Battery	29	Warning light for direction indicators
2	Dynamo	30	Instrument panel lighting lamps
3	Voltage regulator	31	Cigar lighter with warning light
4	Starting motor	32	Carburettor starter warning light
5	Ignition coil	33	Carburettor starter warning light switch
6	Ignition distributor	34	Water temperature gauge
7	Warning light for dynamo	35	Water temperature sender
8	Key switch for ignition, starting & services	36	Engine compartment lights
9	Fuse box - 10 fuses	37	Engine compartment lights socket
10	Main light switch	38	Luggage compartment auto-switch
11	Relay for headlights switch	39	Windscreen wiper switch
12	Relay switch for headlights dip to main	40	Windscreen wiper
13	Headlight bulbs, low beam	41	Fuel level indicator
14	Headlight bulbs, high beam	42	Fuel level indicator control
15	Front side light bulbs	43	Heater
16	Warning light for sidelights	44	Heater fan socket
17	Red tail light bulbs	45	Heater socket
18	Number plate light	46	Horn relay
19	Connection block, rear	47	Horn switch
20	Inner lighting	48	Horns
21	Inner lighting control	49	Oil pressure warning light
22	Connector block, front	50	Oil pressure warning sender
23	Indicator light flashing device	51	Switch for instrument lights
24	Indicators control	52	Clock
25	Indicator lights device & automatic change-over	53	Wire sockets
26	Front direction indicators bulb	54	Wireless
27	Stop lights & rear direction indicators bulb
28	Stop lights switch

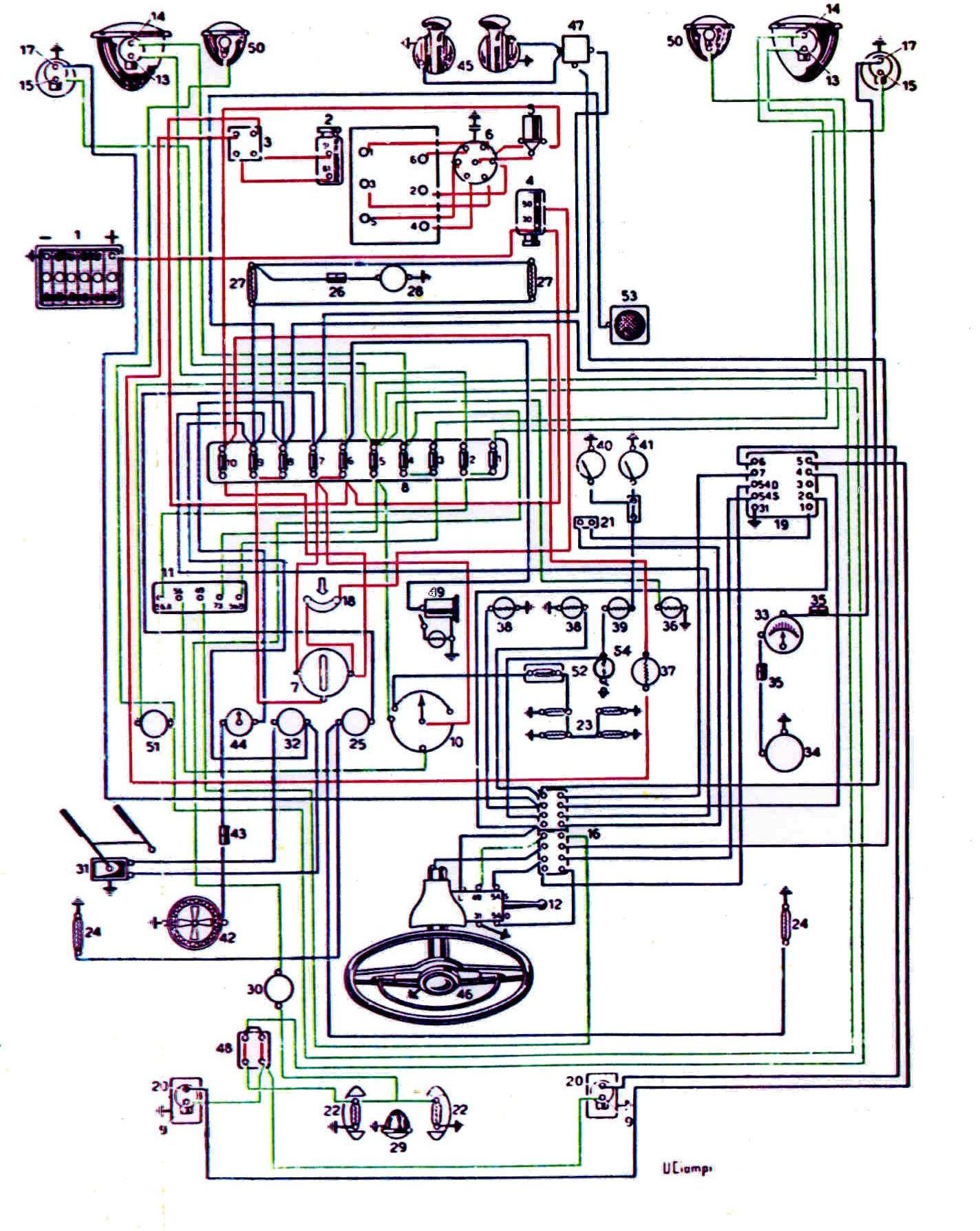

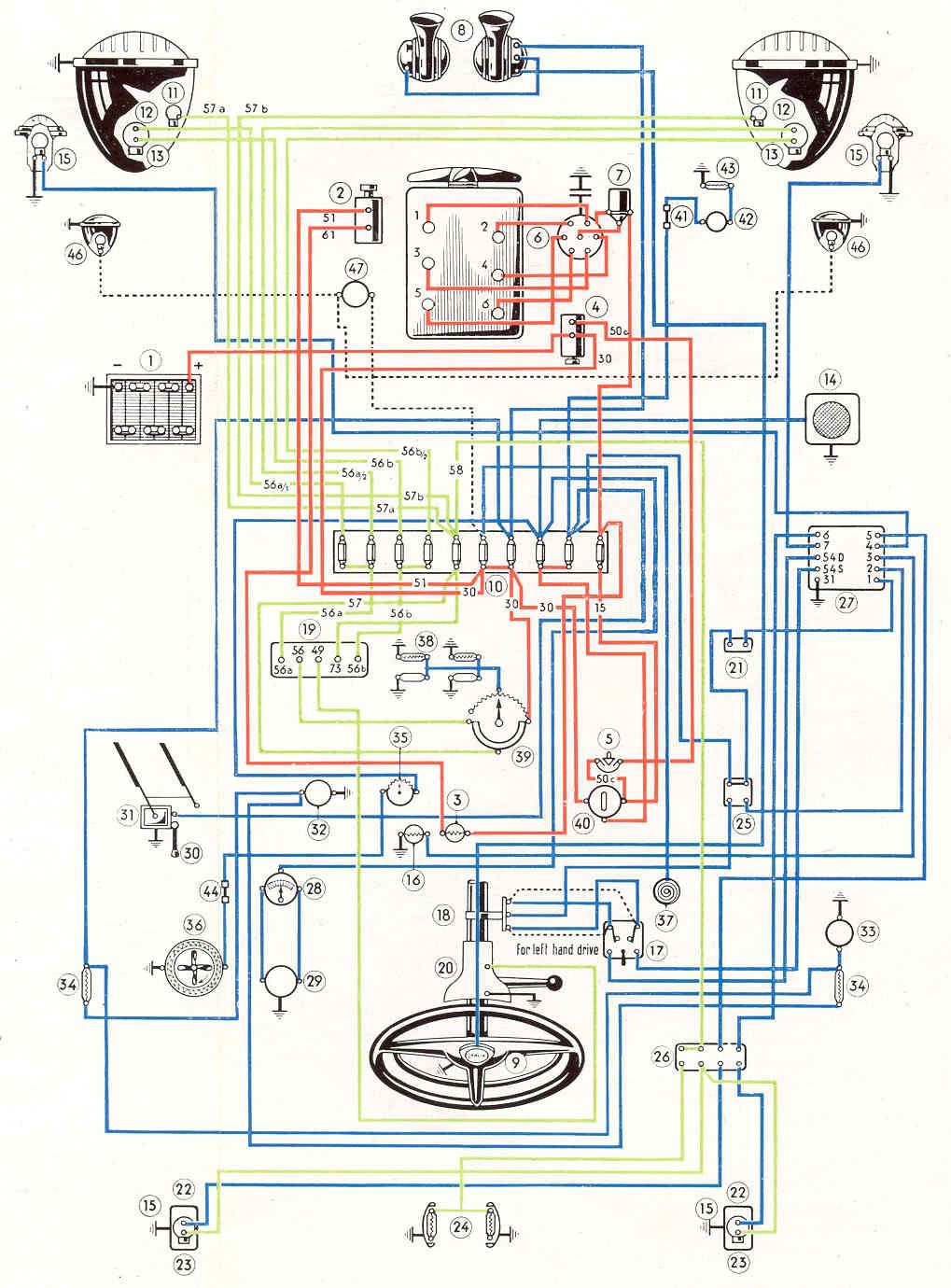

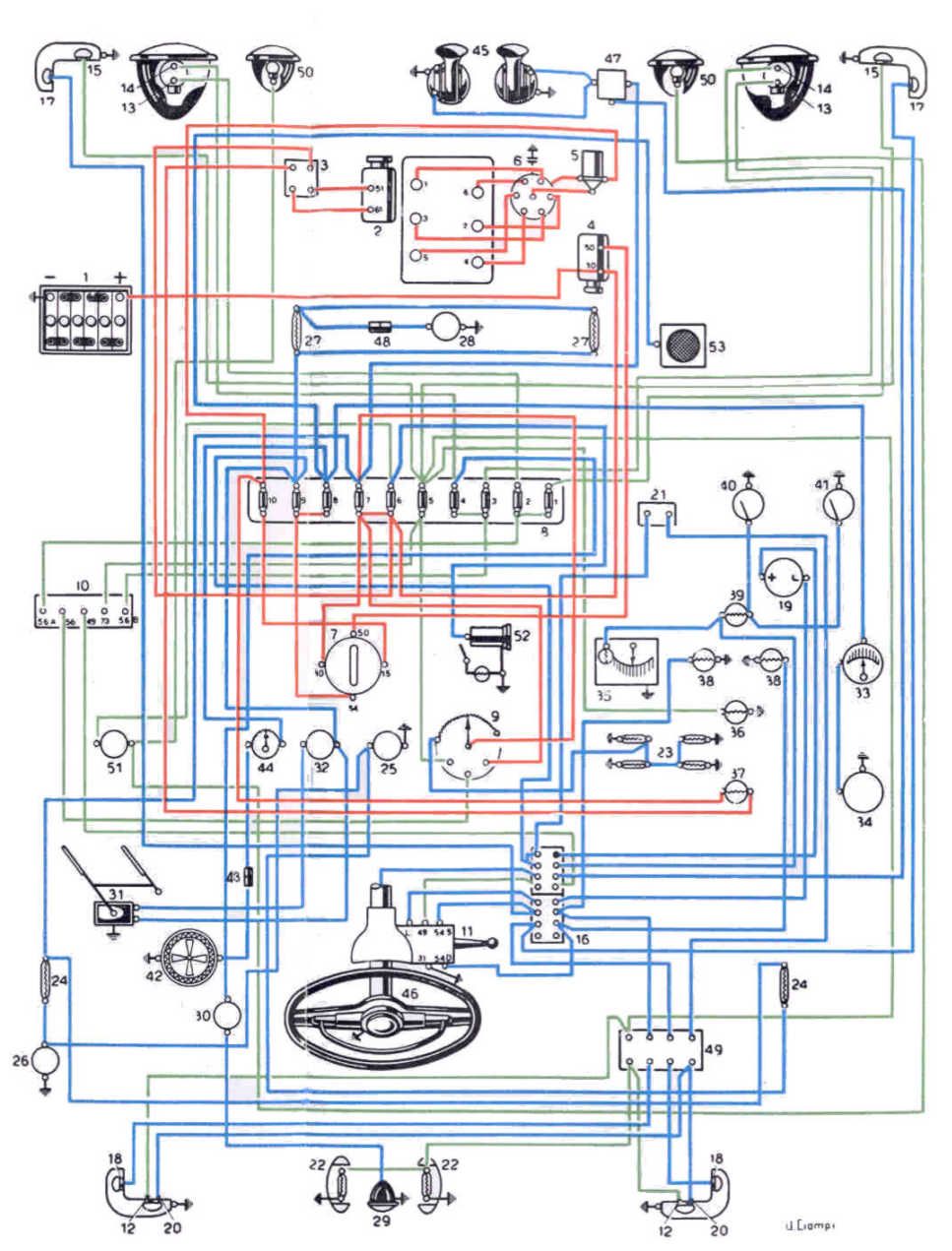

Although 3 wiring diagrams were issued as Lancia & C. AST Sketches, all these cars had the same number and numbering of components in the wiring diagrams. Differences are noted below

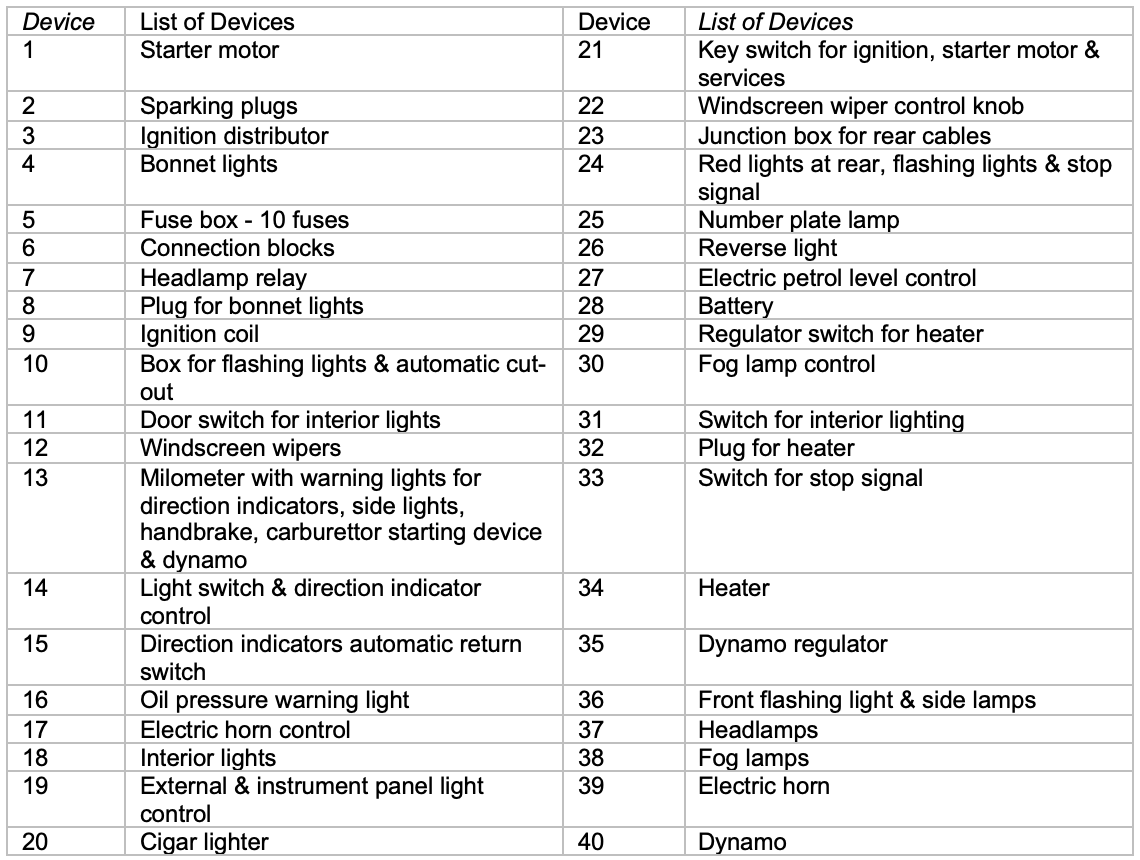

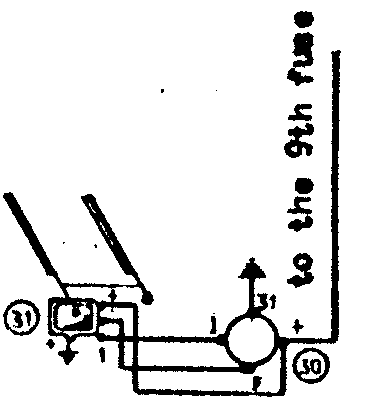

See section 8.7 for details on windscreen wiper motors. On the later cars Fuse 9 supported four wires one going directly to the wiper motor terminal 54 and another going to the + terminal of the wiper switch
Cars from B24S 1332 to 1570 differed from the later cars (as did their B20 counter-parts) in the wiring to the warning light for the side/parking lamps. On the earlier cars the warning light (16) is wired to terminal 58 of the main light switch (10), and the switch is supported by several fuses according to switch position. On the later cars the warning light is wired to Fuse 5 and thence to terminal 57 on the light switch (10). Terminal 58 is empty.

Get in touch
