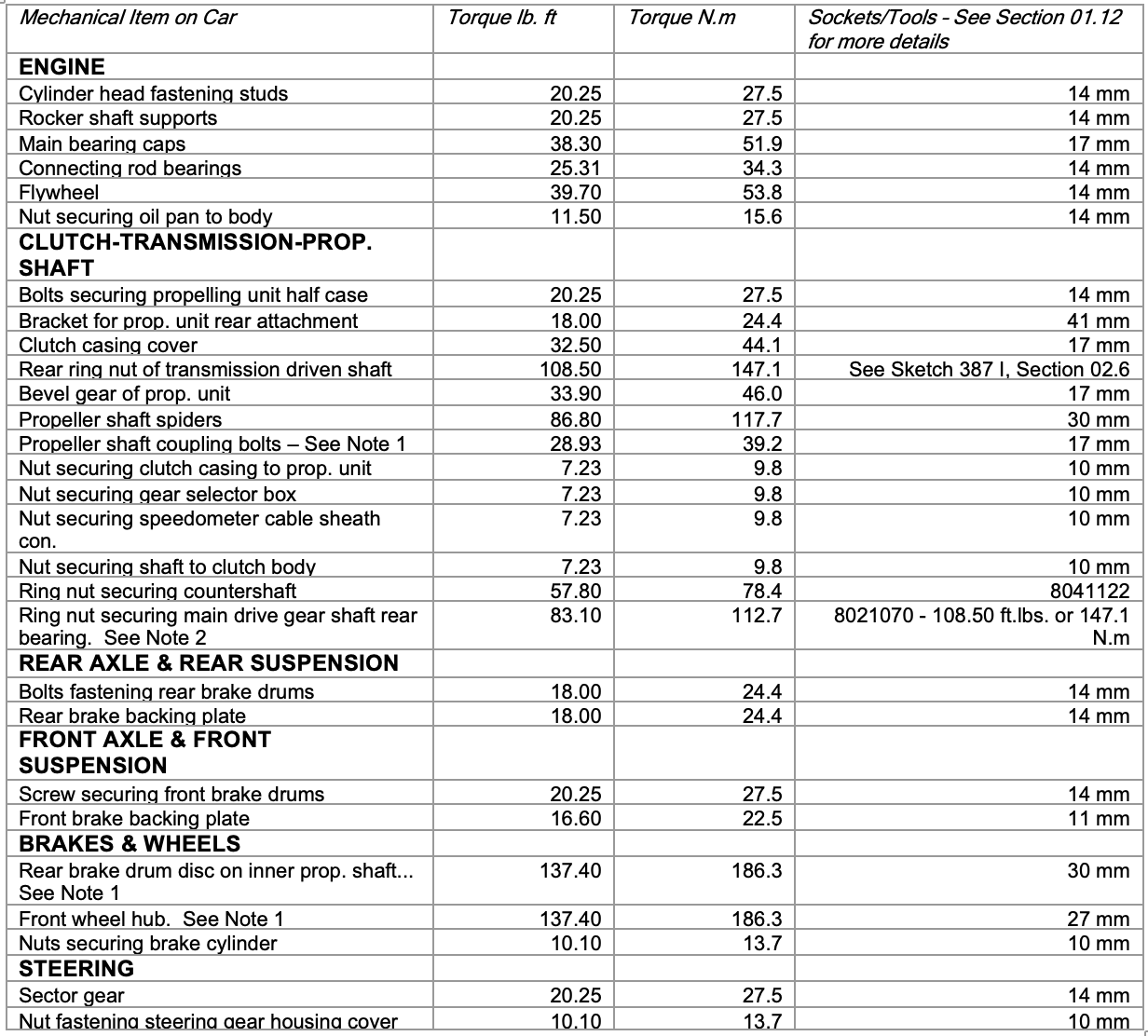

Tightening & Torque Data

The following data is taken from Lancia & C. AST Sketch 416 I dated 20/3/59

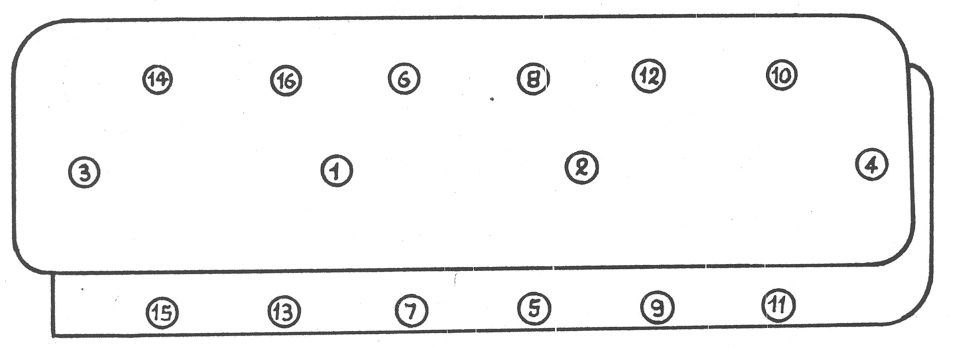

Cylinder Head Tightening Sequence
A black and white drawing of a table with numbers on it.
A black and white table with a lot of numbers on it.
