Tool Kit supplied with car

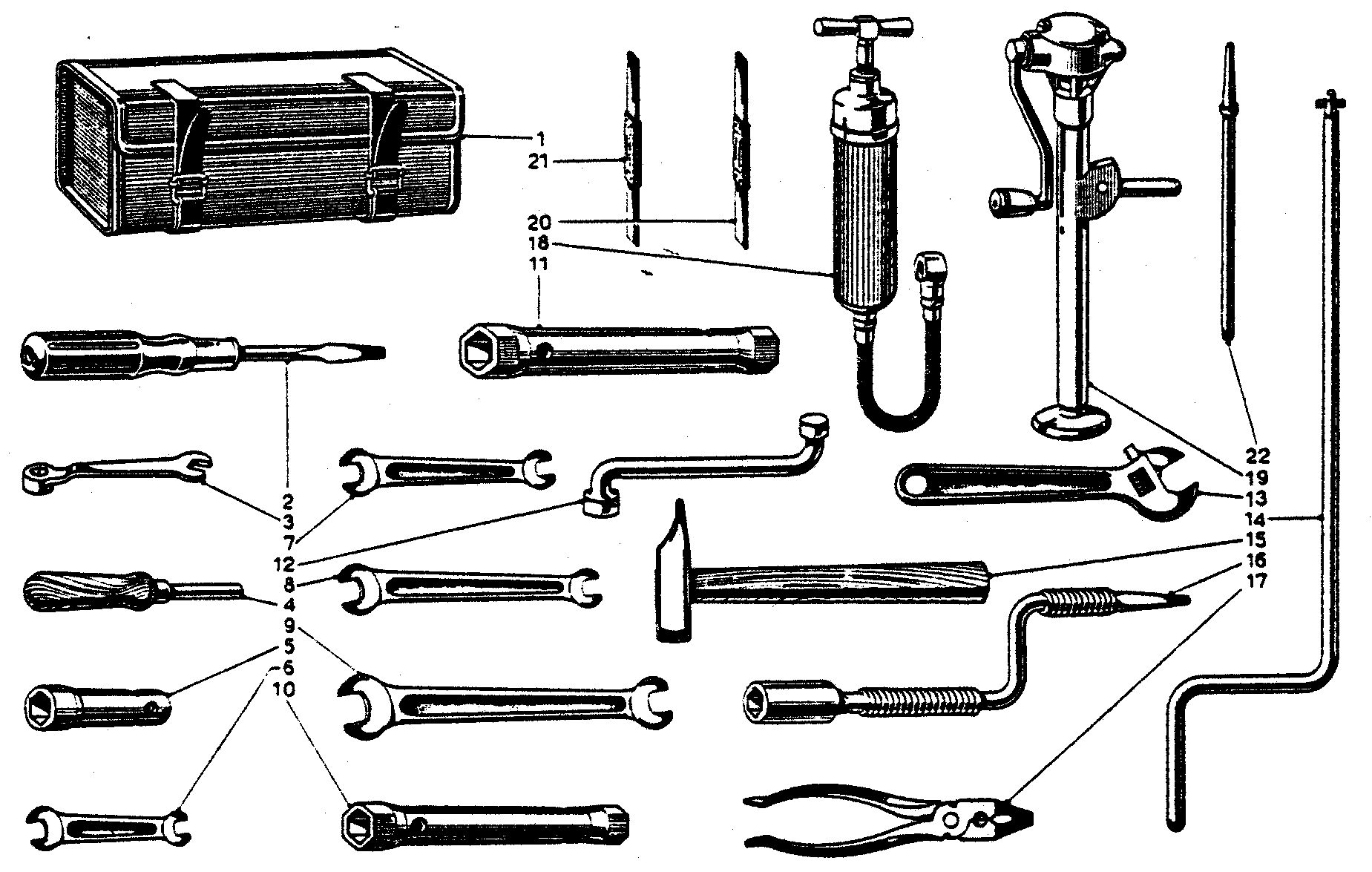

Below is illustrated the tools and bag supplied with the Aurelia cars. Most of the tools were the same for all Aurelia models. The variations are recorded in the table in the following section.

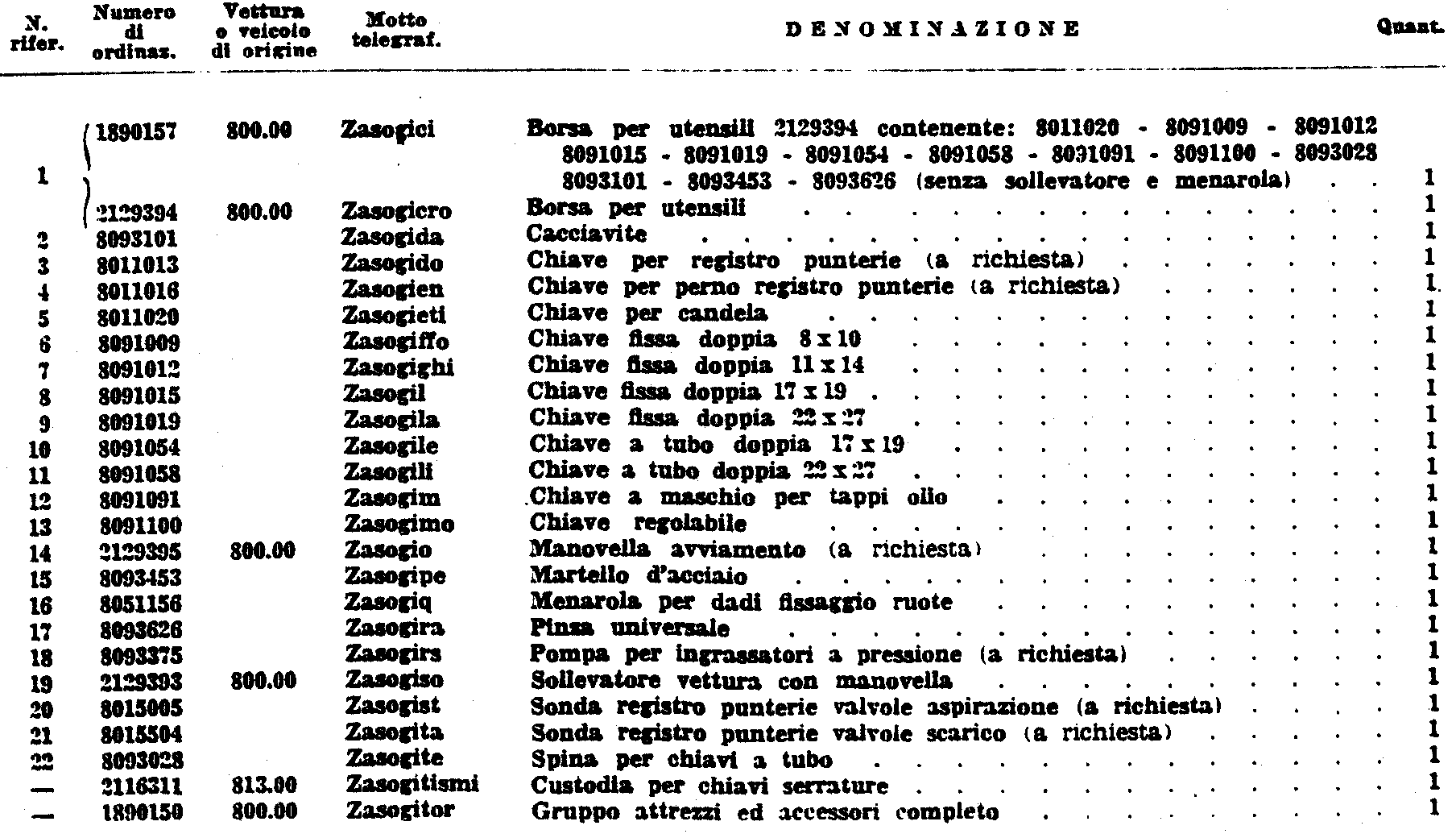

# - This is the number given in the Tav. 72 diagram for the B12 & others Series II cars. In Tav. 70 for the B10 etc. the numbering in the diagram is slightly different.


For those parts not given a diagram number, I have added one in the above table starting at #50 to help explanation.


The left-hand drive models such as B10S etc. are included with the right-hand model.

#

New part no

Old part no

Description of Tools & Accessories

Supplied to Aurelia model

#

It may be of interest concerning the numbering of tools and their originality to the car to know that prior to about 1958 Lancia tool part numbers were generally 6-figure numbers such as the 17x19 mm spanner 091.015.

New 7-figure numbers were introduced by 1959 and became such as 8091015. The tool numbers were exceptional in that other old part numbers generally had a prefix indicating the originating model, such as B10- (see-below).

On the 1st January 1972 most numbers became 8-figures with an 8 added to the front of the 7-figure number, thus 82284722 - the new number for a 17x19 Fulvia spanner.



It should also be noted that apparently identical spanners may have different pre-1958 numbers. For example, I have a 17x19 mm spanner marked 64-6531. For the Aprilia this spanner is A-1541

01

2129394

B10-91524

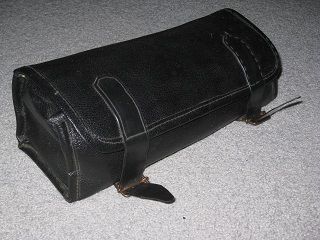

Tool bag empty - Original tool bag from a late 4th Series B20

All models


Aprilia bag is 238-91524

01

1890157

B10-0999/2R

Tool bag with tools, not containing jack #19 or wheel nut brace #16 -

2129393 containing #2, 5 to 13, 15, 17 & 22

B12, B20 Series 4 to 6, B24 & B24S


Aprilia equivalent is 438-0999/1R

02

8093101

093.101

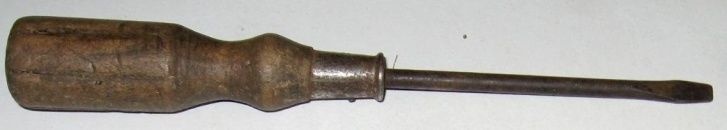

Screwdriver (photo probably an original style screwdriver)

All models

03

011.013

Tappet adjusting spanner (to be requested)

All models

04

8011016

011.016

Tappet adjusting spanner (to be requested)

All models

05

011.020

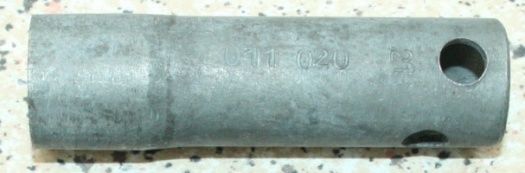

Spark plug spanner

All models

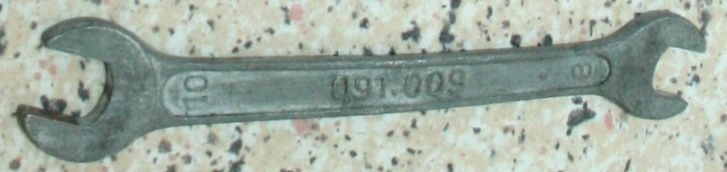

06

8091009

091.009

Open-end spanner 8 x 10 mm

All models

07

091.015

Open-end spanner 17 x 19 mm

All models



64-6531

08

8091019

091.019

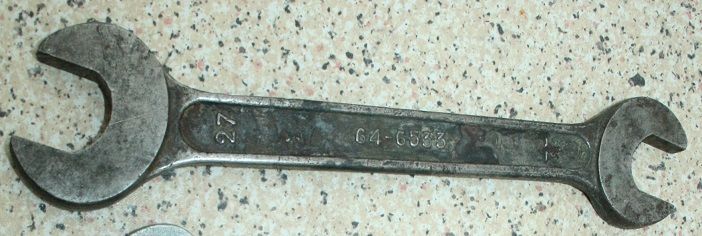

Open-end spanner 22 x 27 mm

22x27 mm 64-6533

All models


64-6533

09

091.054

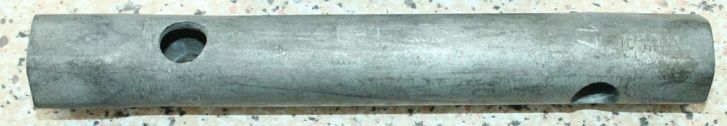

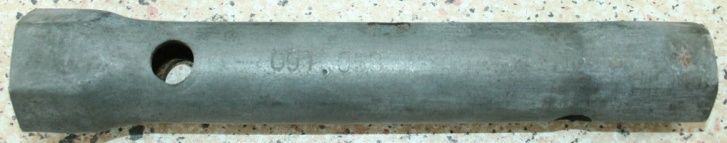

Tube or box spanner 17 x 19 mm

All models

10

8091058

091.058

Tube or box spanner 22 x 27 mm

All models

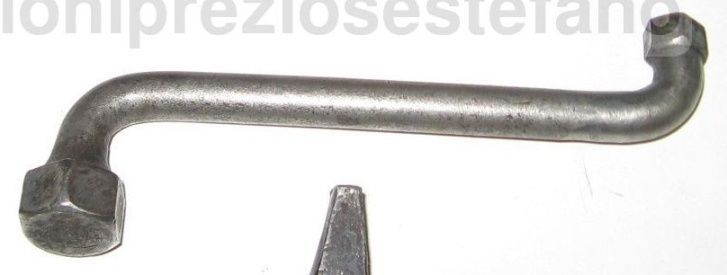

11

091.091

Oil drain plug spanner

All models

12

8091100

091.100

Adjustable spanner

All models

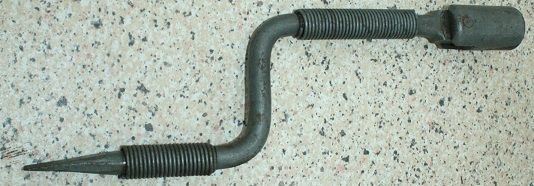

13

B10-91540

Starting handle (to be requested for B12)

B10, B15, B50, B51, B52, B53, B21, B22, B12

Aprilia equivalent is 238-91540

14

1800717

B20-0998R

Starting handle B20-91540/2134417 supplied with cover B20-91608/2131558 & screw bolt 2.5x3.5, 3626211. (To be requested for B20 Series 4 to 6, B24 & B24S)

B20 Series 1 to 3

B20 Series 4 to 6, B24 & B24S

15

091.012

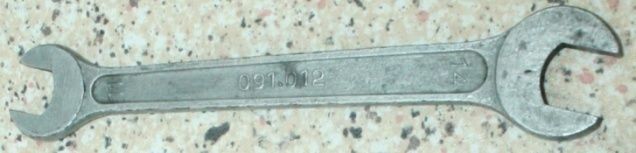

Open-end spanner 11 x 14 mm

All models

16

8093453

093.453

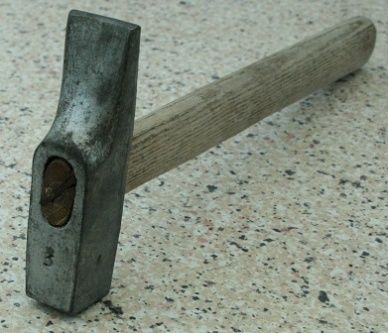

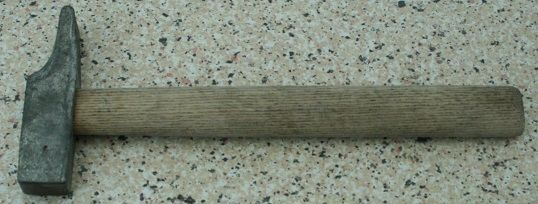

Steel Hammer

All models


Notes:

Got a hammer marked "3"

Aprilia one probably A1582


Aurelia seems to have a 300 gram hammer.


Brand new very similar examples are for sale in France etc.

17

051.156

Wheel nut brace (includes blade to help remove hubcap)

All models


Also similar without blade, probably for Aprilia

18

8093626

093.626

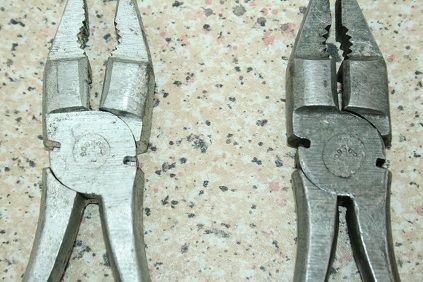

Pliers

All models

19

093.377

Grease pump or gun – spherical nipples

And for earlier cars with grease nipples fitting this pump. Tipo America

From B24S-1182

20

8093375

093.375

Grease pump or gun (to be requested) – hexagonal nipples

My one is in brass and marked "Tecalemit Type 41 Model 26 Reservoir

All models except from B24S-1182

21

B10-91522

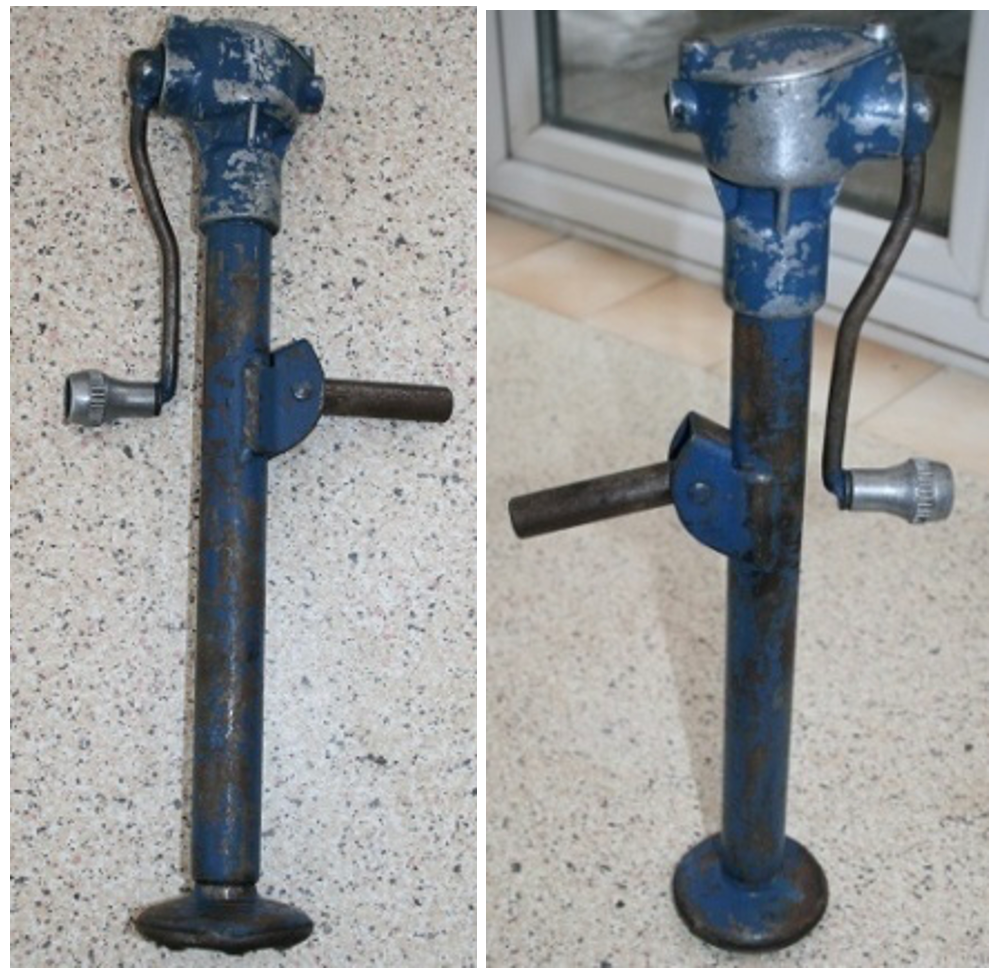

Jack to lift car

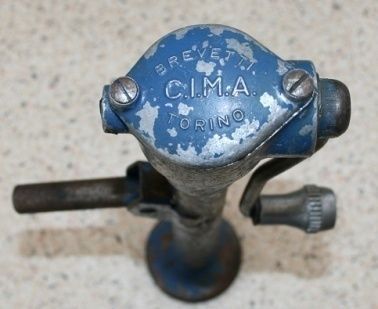

My one is marked "Brevetti C.I.M.A. Torino"

Note that the Aurelia jack has a round peg to go into the body, whereas the similar Flaminia jack peg is squarer, although there seem to be a number of variations.

All models except B20 Series 6 & from B24S-1332

22

2140446

Jack to lift car

B20 Series 6 & from B24S-1332

23

8015005

015.005

Gauge to adjust inlet valve clearance (to be requested)

All models

24

8015504

015.504

Gauge to adjust exhaust valve clearance (to be requested)

All models except B10

25

8093028

093.028

Bar for Tube or box spanners

All models

50

2116311

Protection for car keys

B12

51

1890150

B10-0999/1R

All tools & accessories

B12, B10, B15, B21, B22, B50, B51

52

B50-0999/1R

All tools & accessories except those at #53

B52, B53

53

All tools & accessories

B10, B21

54

1890151

B20-0999/1R

All tools & accessories

And up to B24S-1181, Tipo Europa only

B20 Series 1 to 4, B24

55

1800716

Tool to remove wheel trim hubcaps

B20 Series 5 & 6 & from B24S-1182

56

2133473

Spare key (to be requested)

B20 Series 4 to 6 & B24, B24S

57

1890152

All tools & accessories

B20 Series 5

58

1890153

All tools & accessories

B20 Series 6

59

1890154

All tools & accessories

B24 & up to B24S-1181, Tipo America only

60

2159684

Drawer to hold tool bag

From B24S-1182, left-hand drive only

61

1890155

All tools & accessories

From B24S-1182 to 1331, left-hand drive only

62

1890156

All tools & accessories

From B24S-1332, left-hand drive only

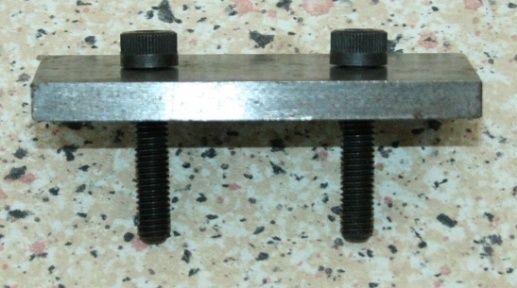

Tool for straightening radiator grille bars

Special

Tool for removing steering wheel

Modern Example

Special

Tool for removing brake drums

Special

Tool for removing brake drums

Special

Tool for removing hubs?

Special

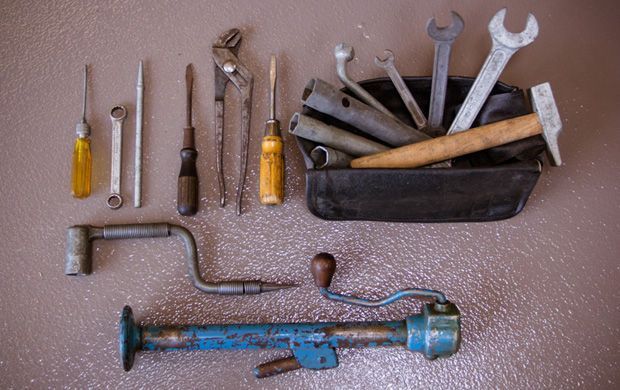

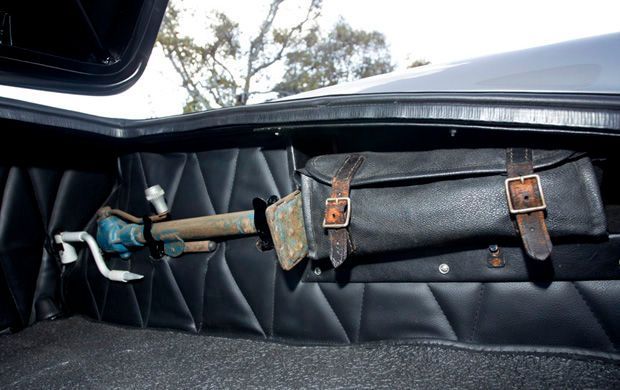

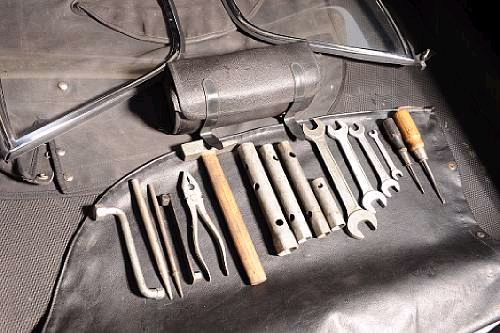

Some examples of tool kits from cars for sale recently

B24S-1148 in 2009 at a Bonham’s auction

Most of these tools are originals

B24S-1297 – A “barn find” in 2012 in the USA

Not all the tools here are originals

B24S-1205 in 2011

These are original items
