Workshop Manual
8. Electrical System
Battery & Starter Motor
Battery & Starter Motor

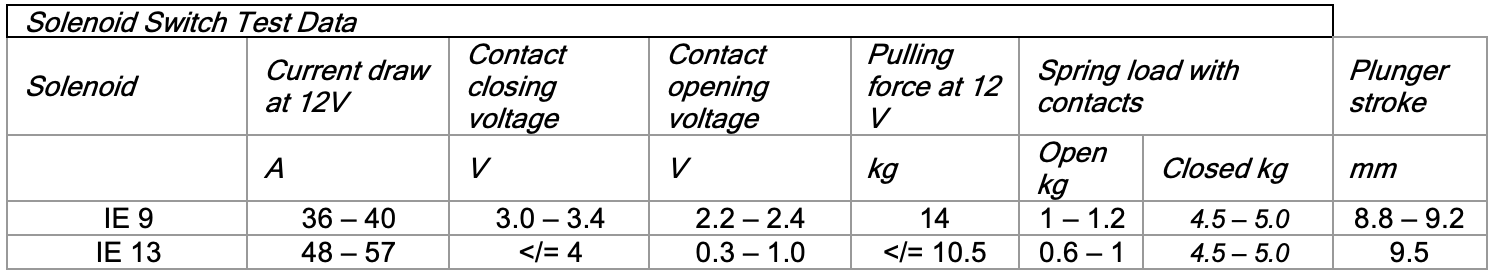

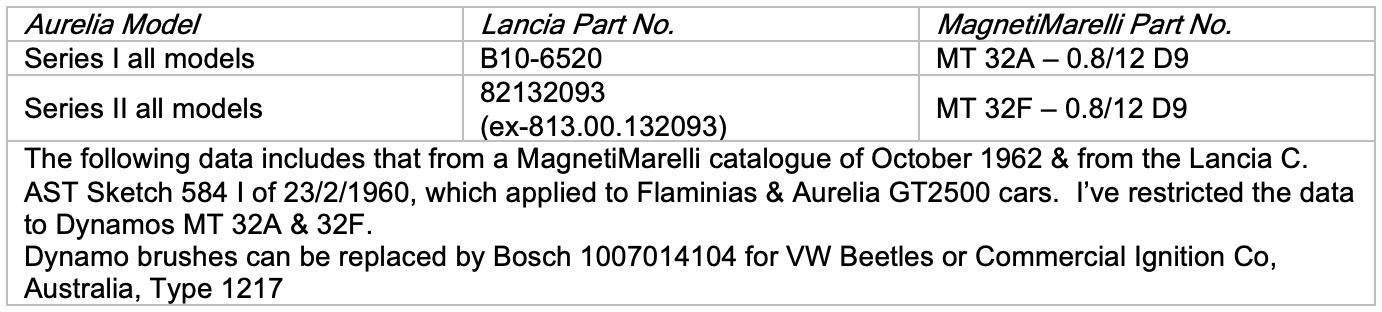

The following starters were fitted to Aurelias
Series II Layout for Starting & Ignition

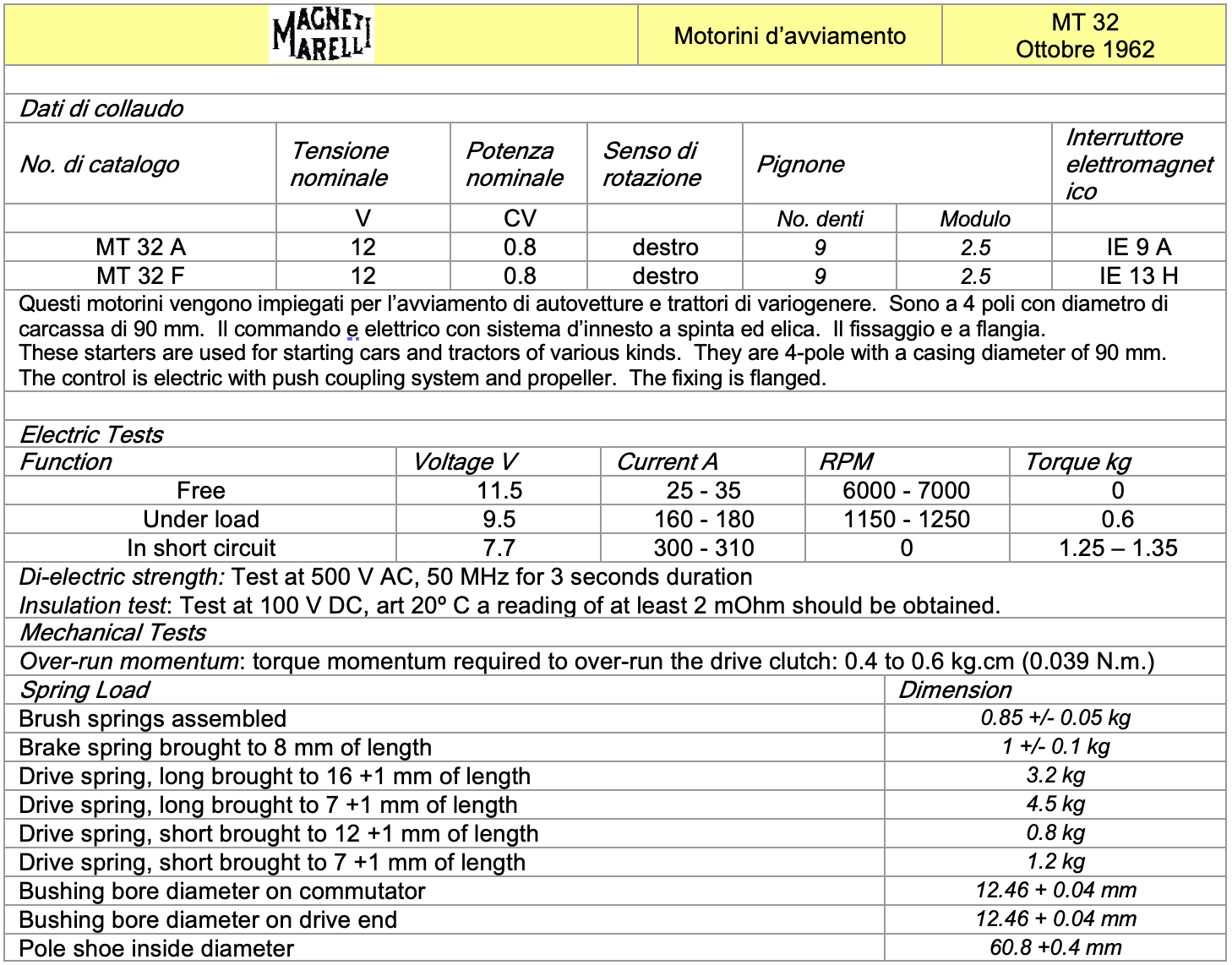

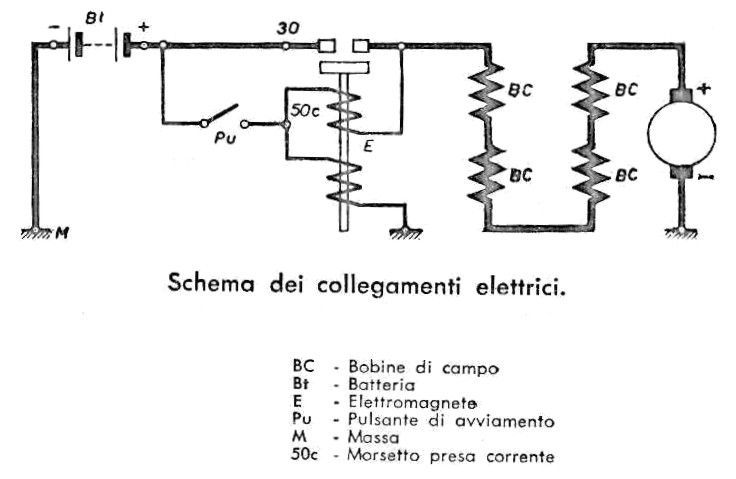

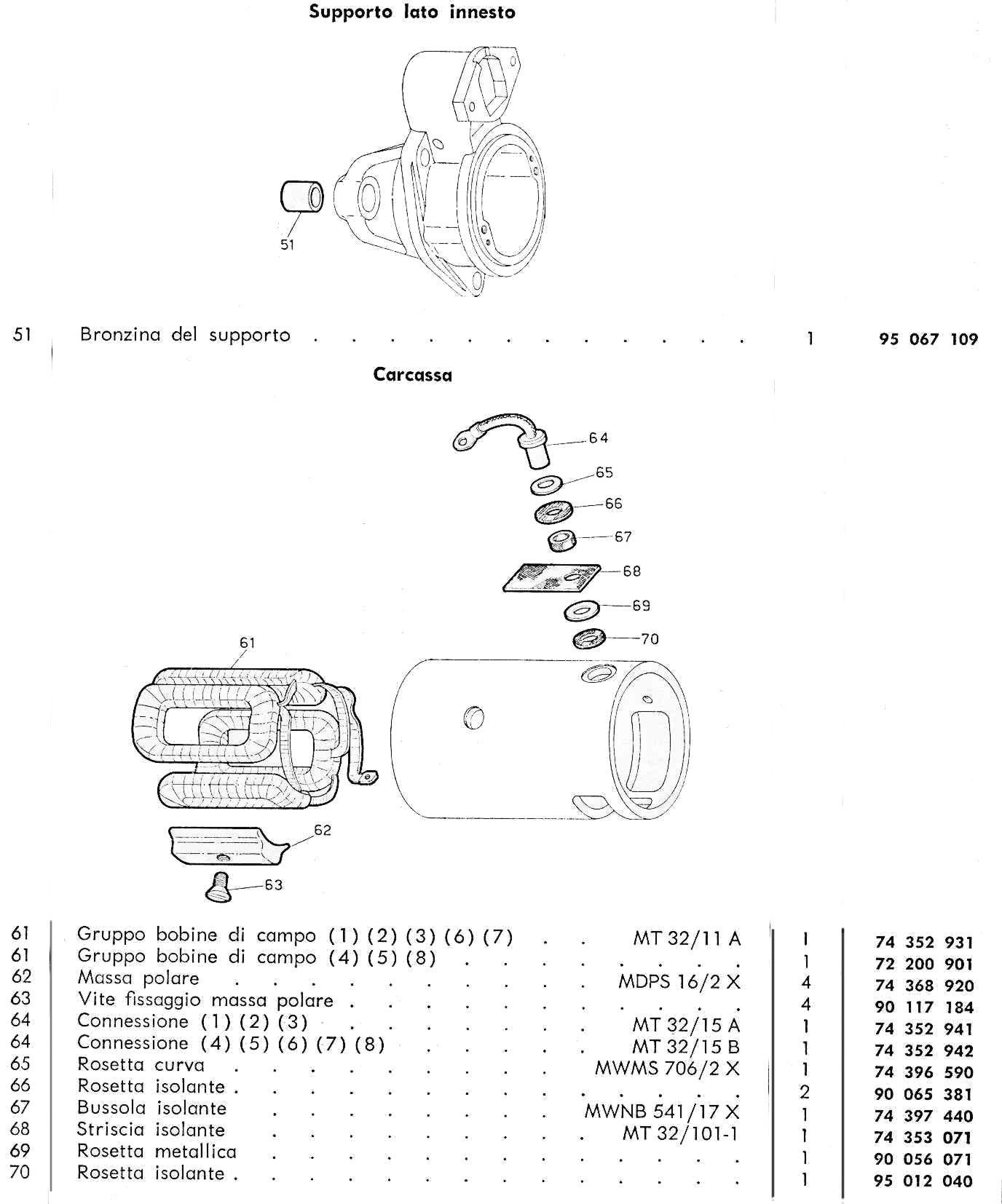

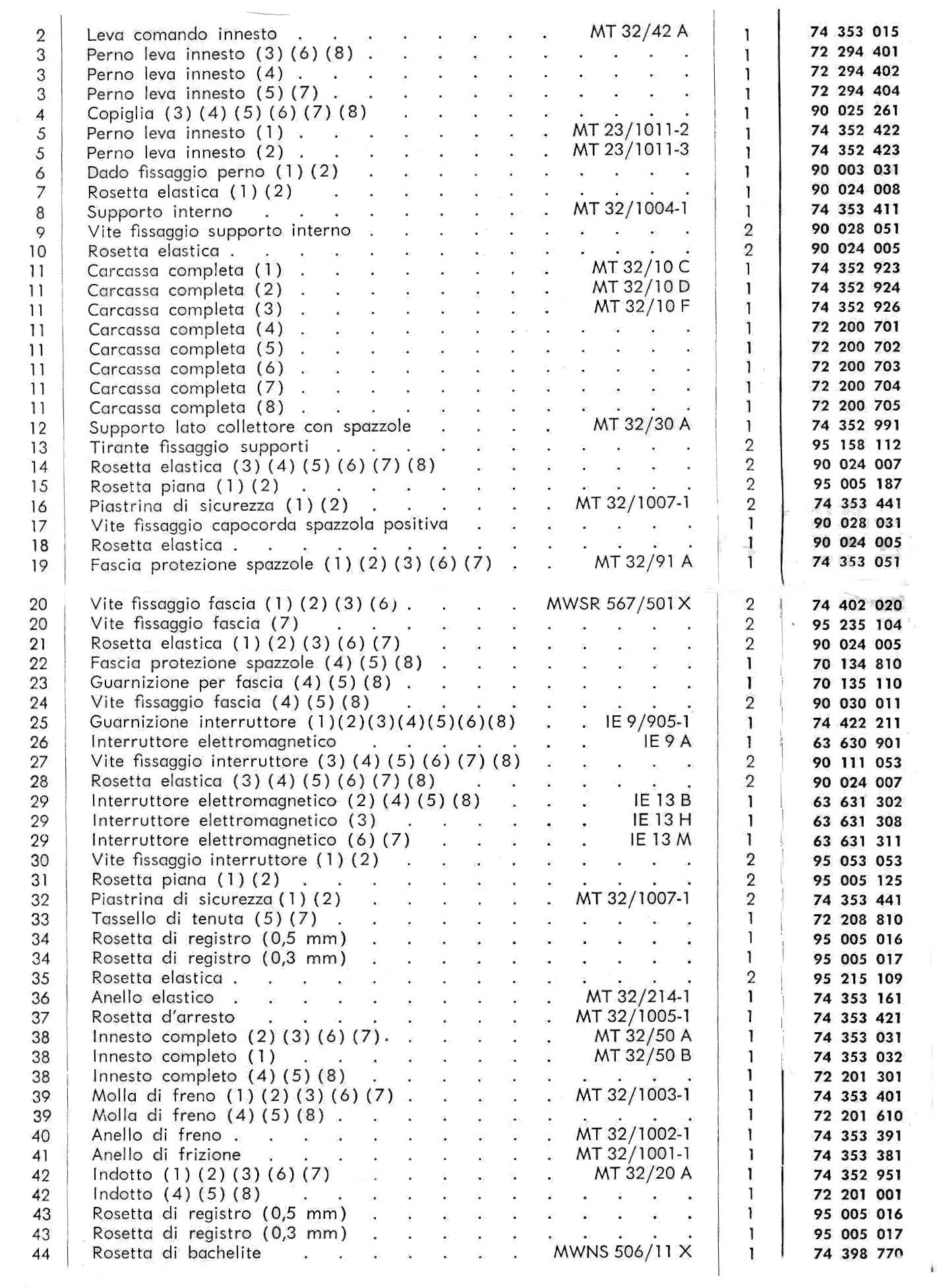

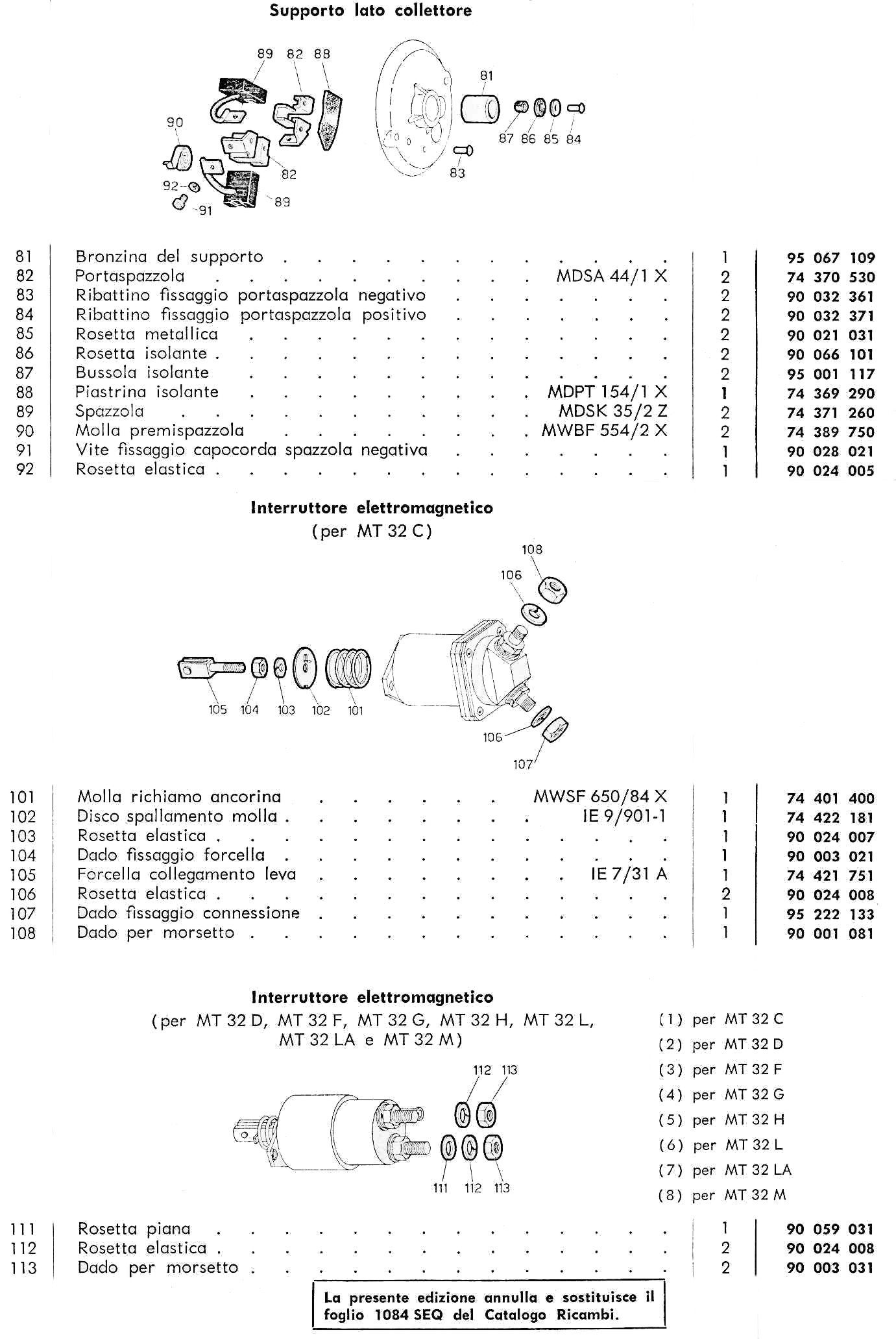

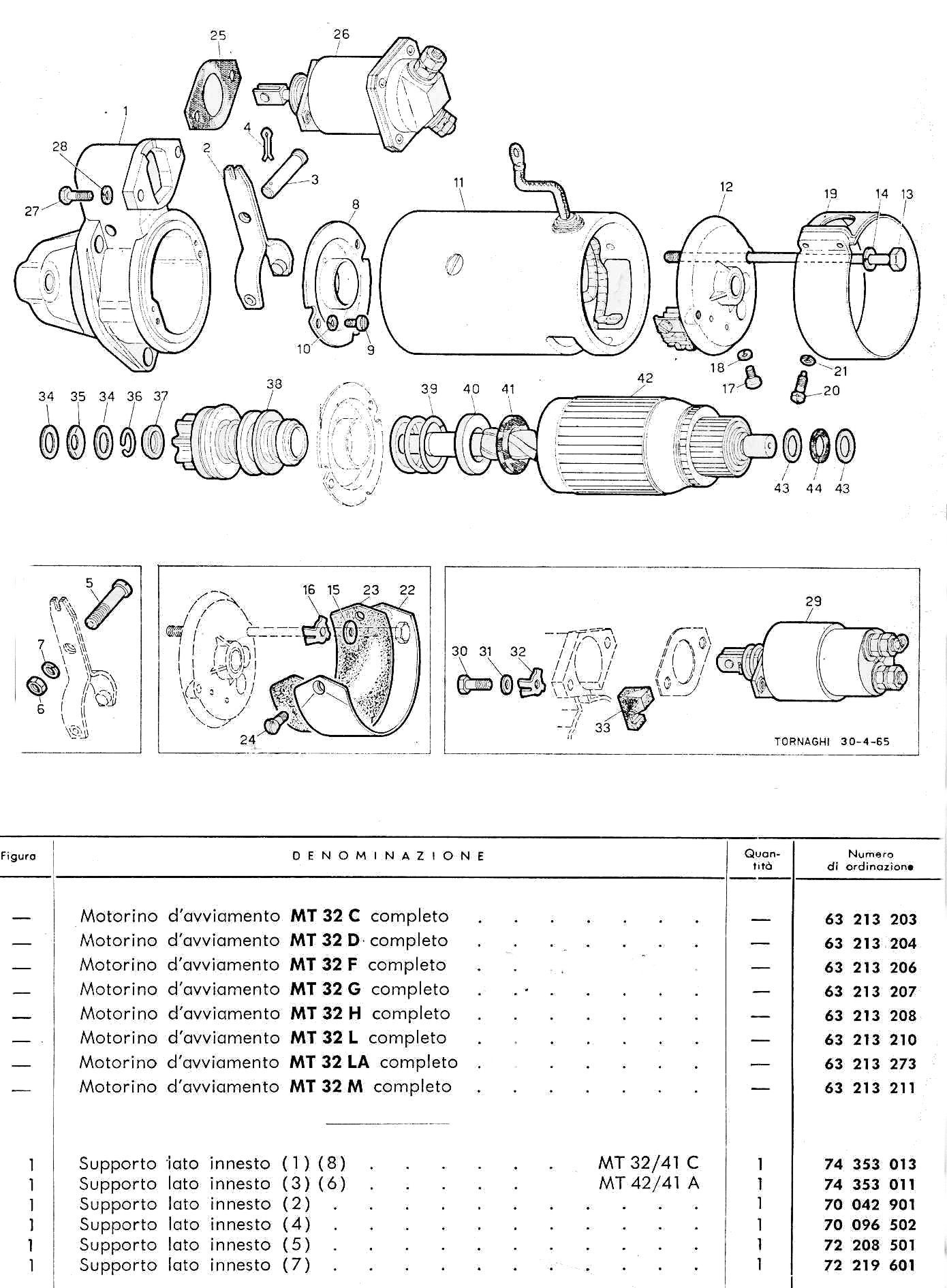

Circuit Diagram for Starter Motor MT 32
