General Description & Specifications

As the table below demonstrates, up to 1953-1954 right-hand drive cars predominated, which was in keeping with other contemporary high quality Italian cars. With the introduction of the Series II cars in 1954 an increasing proportion was fitted with left-hand drive so that by 1957-58 about 70% of B20s and 100% of B24s were left-hand drive. The production information is listed below:

Model Years Produced Number of Cars Produced Percentage Figures - rounded
Left-hand Right-hand Total Left-hand Right-hand
B10 1950-53 513 4938 5451 9% 91
B50 1950-51 0 485 485 0% 100%
B51 1950-51 0 99 99 0% 100%
B21 1951-53 530 3250 3780 14% 86%
B22 1952-53 197 877 1074 18% 82%
B52 1952-53 0 98 98 0% 100%
B53 1952 0 86 86 0% 100%
B15 1952-53 14 67 81 17% 83%
B12 1954-57 1020 1380 2400 42% 58%
B55/B56
B20 1st 1951-52 0 500 500 0% 100%
B20 2nd 1952-53 0 731 731 0% 100%
B20 3rd 1953-54 0 720 720 0% 100%
B20 4th 1954-55 255 745 1000 25% 75%
B20 5th 1955 180 120 300 60% 40%
B20 6th 1956-58 425 195 620 68% 32%
B24 Spider 1954 181 59 240 75% 25%
B24 Conv. 5th 1955 150 0 150 100% 0%
B24 Conv. 6th 1956-57 371 0 371 100% 0%
Totals 1950-58 3836 14350 18186 21% 79%

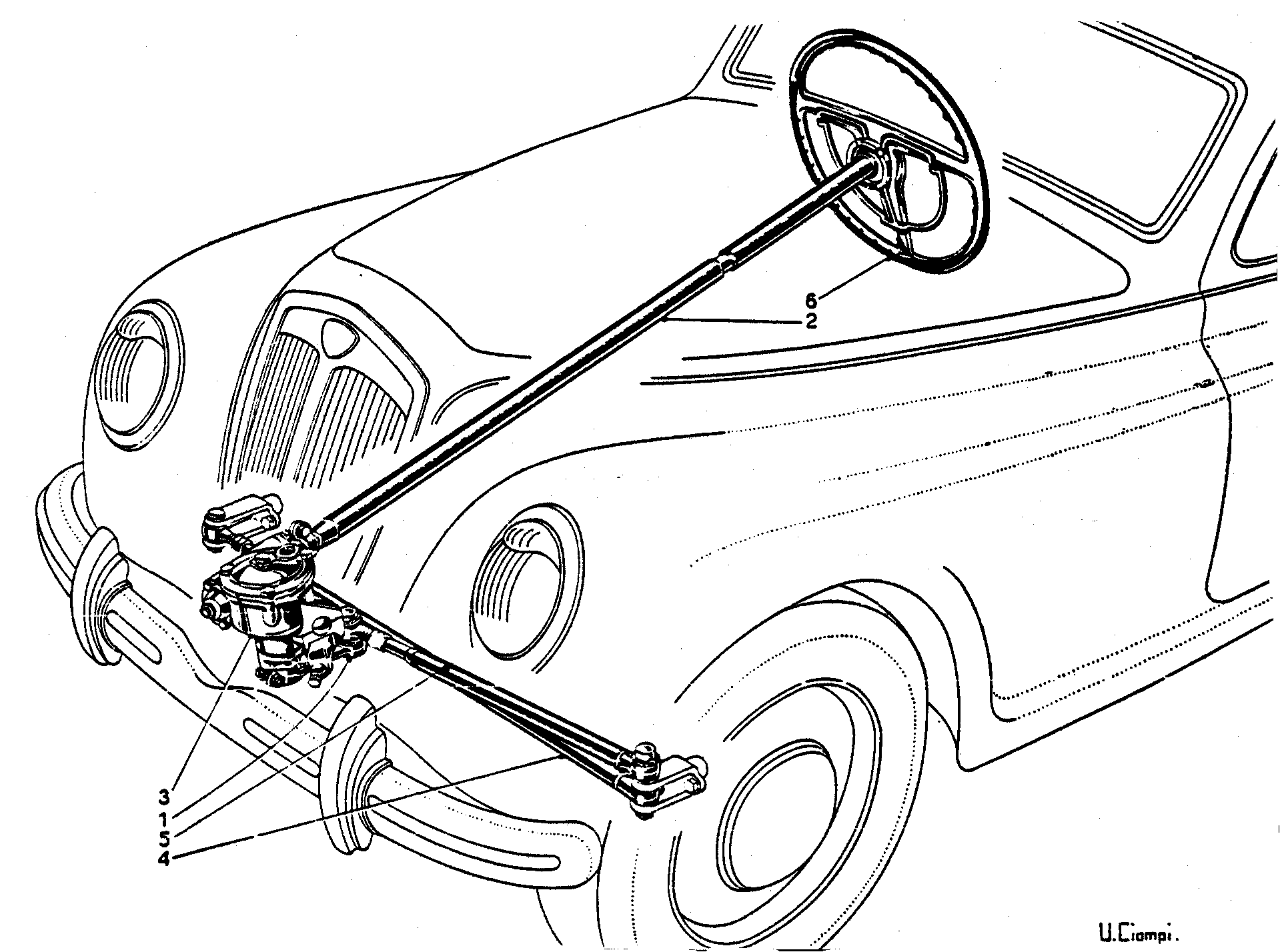

The general arrangement of the steering is shown in SI-Tav.44 below and was essentially the same for all Aurelias.
A black and white drawing of a car with a steering wheel.

Part No. : Notes on Parts in SI-Tav.44 (

  1. Drag-arm – splined lever from bottom of steering box to steering control rod
  2. Steering column
  3. Some variations for S1 Berlinas and different for B20s. B20 S1, S2 and S3 all the same: B20-0759R
    SII cars were different: B20-0759AR, later 1702324 but the same for B12s & B20s.
    B24s were different, with 2 types, 1702325 up to B24S-1181, & 1702326 from B24S-1182
  4. Steering box
    Some variations for S1 Berlinas and different for B20s. B20 S1, S2 and S3 all the same: B20-0441R later 1400055. This was also used on SII RHD B20s with part 1400056 for LHD.
    On B12s 1400053 was for RHD & 1400054 for LHD. The same parts were used on all B24s
  5. Track rod
  6. Steering control rod
  7. Steering wheel
