Front Springs

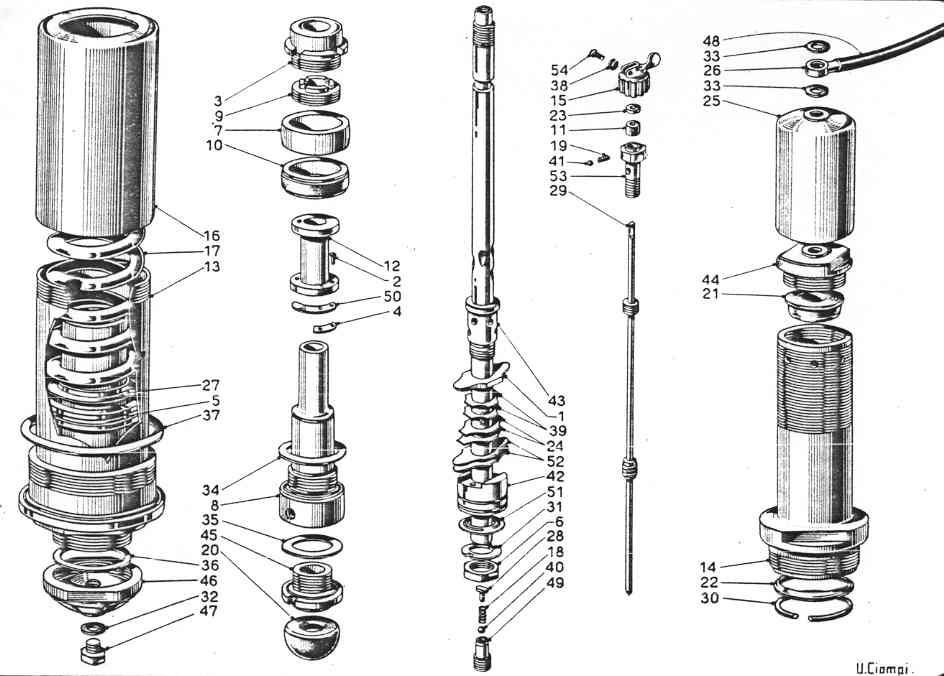

The B10 System is shown in Tav.S1-50 below

A black and white drawing of a flute with parts labeled

Data for Front Springs

Car Application Part No. Free Length mm Loaded Length mm At Load kg
B10-1001 to 3024 B21-1001 to 1028 B10-72501 332 220 320
B10-3025 to 5938 B21-1029 to 4250 B22, B50, B52 B50-72501 348 220 320
B15, B51, B53 B51-72501 337 220 350
B12, B55 B12-72501 356 +/-5 200 300 +/-10
B20-to 3816 B20S to 1435 B20-72501 317 +/-5 200 264 +/-10
B20 from 3817 B20S from 1436 B20-72501A 303 220 285 +/-15
B24, B24S B24-72501 307 +/-5 220 264 +/-10
From AST Sketches 128 I 9.11.65 & 283 I 23.3.59

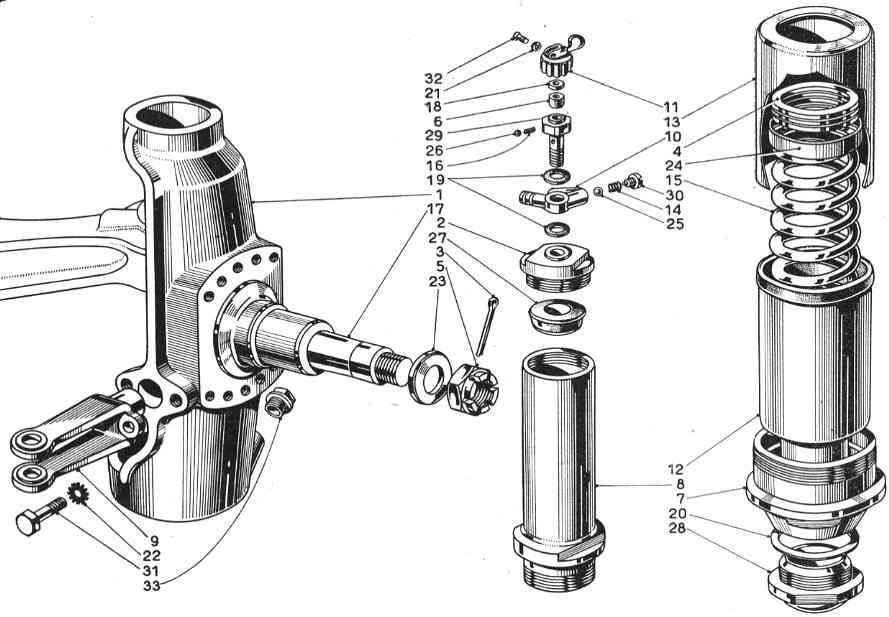

Tav. 50 Series II Cars

A black and white drawing of a piece of metal with numbers on it.

Notes on Front Springs

  1. When assembling springs place that with the higher load resistance (i.e. generally longer length) on the driver’s side of the car. The load is written with an electric pencil on the spring
  2. B20 6th series springs are 14mm shorter than on other B20s & 6th series thus ride somewhat lower at the front.
  3. Spring thrust bearings are RIV 6009a (Lancia part no. 48727)
    Dimensions are 68mm od, 52.5mm id, & 8mm wide. 2 required, one each side - see Parts SII-Tav50#4 &SI-Tav50#5 above
    Note that this bearing is located below the spring on SI cars & up to B20-2701, & above the spring on all later cars.
