General Description

The special Lancia-type front suspension includes in one unit, a coil spring, a telescopic damper & the means of rotation for the front wheels, mounted on the end of a beam axle.

This system, which was similar to that on the Morgan, was first introduced on the Lambda in 1921 & was fitted to all Lancia cars up to the early Flaminias when it was abandoned about 1961.

The following 4 diagrams from Ref.8 show variations in the system as applied to B20 Aurelias. Note the break in design late in the 3rd Series B20, after which there was no filler-plug for the bottom of the suspension unit until the 4th series started.

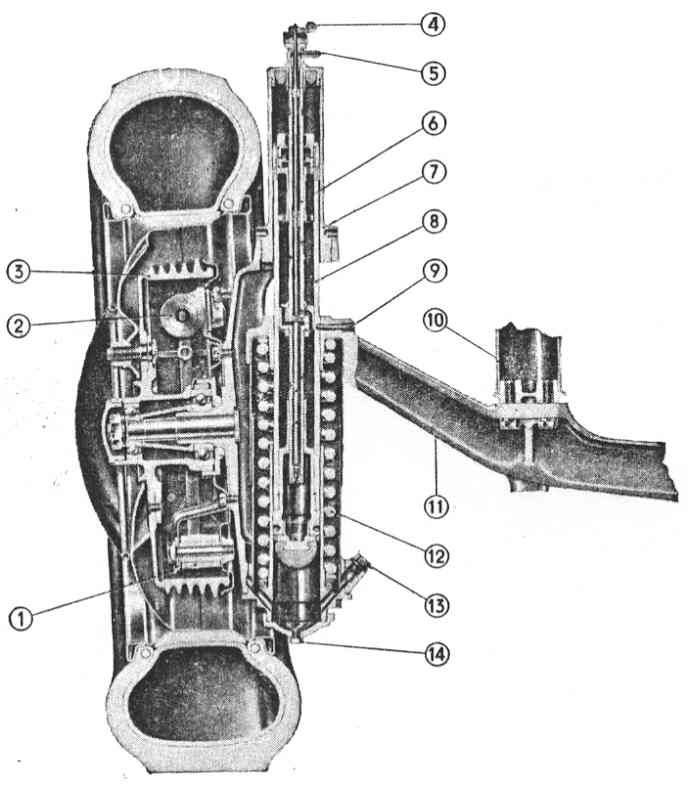

Cross-section of Front Suspension for B20 Cars from B20-1001 to 2701

1. Front brake shoe
2. Master cylinder
3. Front brake drum
4. Control lever for adjusting of shock absorber
5. Shock absorber oil filling union
6. Adjusting rod
7. Top guide of suspension
8. Suspension rod
9. Dowel retaining the suspension rod
10. Attachment of axle to bodywork
11. Front axle
12. Front spring
13. Lubricating plug
14. Plug for bottom guide

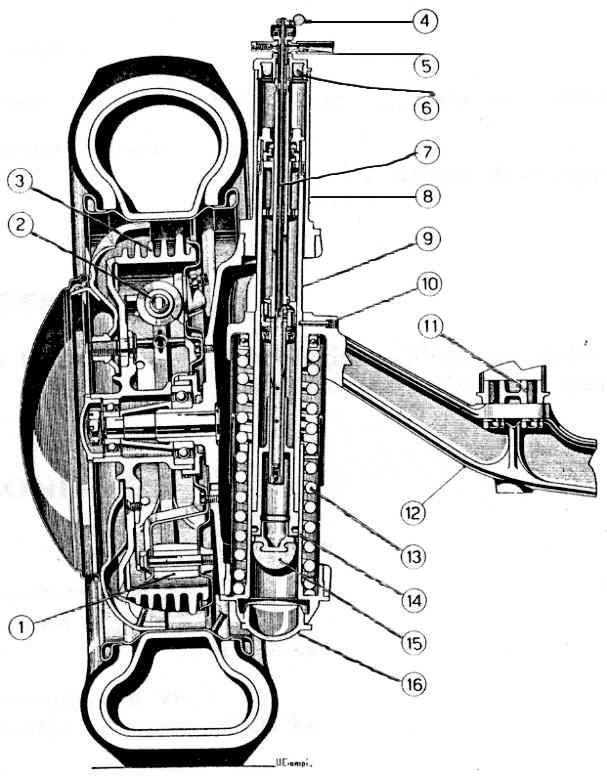

Cross-section of Front Suspension for B20 Cars from B20-2702 to 2951

1. Front brake shoe
2. Master cylinder
3. Front brake drum
4. Control lever for adjusting of shock absorber
5. Shock absorber oil filling union
6. Top damper
7. Adjusting rod
8. Top guide of suspension
9. Suspension rod
10. Dowel retaining the suspension rod
11. Attachment of axle to bodywork
12. Front axle
13. Front spring
14. Bottom suspension guide
15. Bottom damper
16. Plug for bottom guide

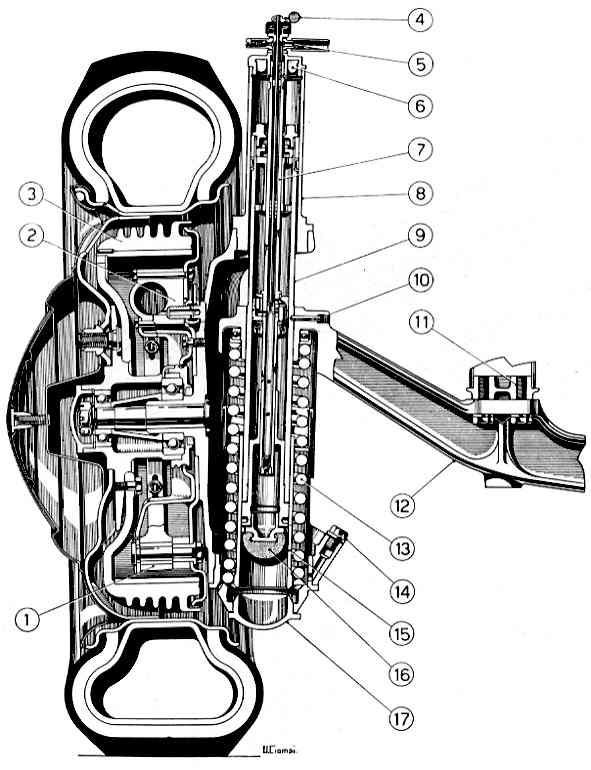

Cross section of Front Suspension for B20 Cars from B20-2952 to 3696, B20S-1001 to 1255, B24-1001 to 1059 & B24S-1001 to 1181

1.  Front brake shoe
2. Master cylinder
3. Front brake drum
4. Control lever for adjusting of shock absorber
5. Shock absorber oil filling union
6. Top damper
7. Adjusting rod
8. Top guide of suspension
9. Suspension rod
10. Dowel retaining the suspension rod
11. Attachment of axle to bodywork
12. Front axle
13. Front spring
14. Lubricating plug
15. Bottom suspension guide
16. Bottom damper
17. Plug for bottom guide

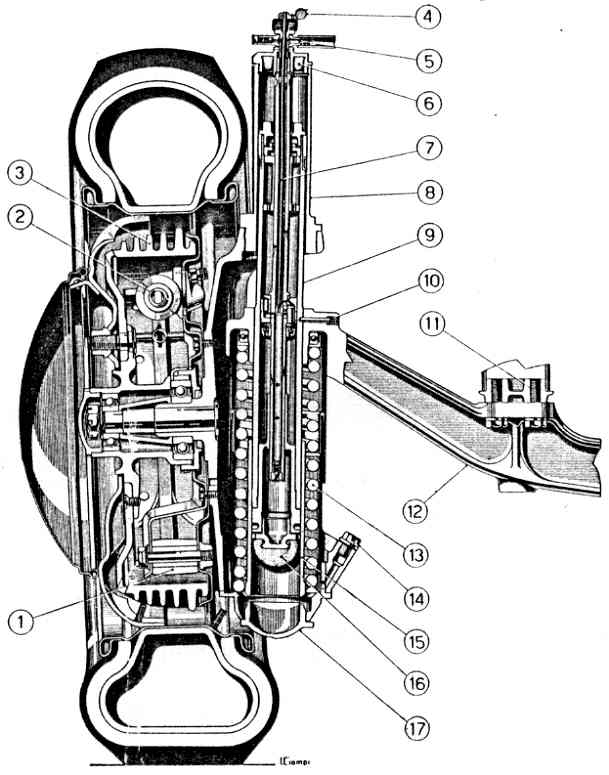

Cross-section of Front Suspension for B20 Cars from B20-3697, B20S-1256, & B24S-1182

1. Front brake shoe
2. Master cylinder
3. Front brake drum
4. Control lever for adjusting of shock absorber
5. Shock absorber oil filling union
6. Top damper
7. Adjusting rod
8. Top guide of suspension
9. Suspension rod
10. Dowel retaining the suspension rod
11. Attachment of axle to bodywork
12. Front axle
13. Front spring
14. Lubricating plug
15. Bottom suspension guide
16. Bottom damper
17. Plug for bottom guide
