4. Front Suspension / Tool List and Illustrations
A full list of tools & illustrations is available in the publication Repair Tool Catalogue for Repair Workshops, Lancia & C., Torino, SAT Stampato 8798851 - Quarta edizione (I-1961-2000) - not yet available on this website, which it will be at some point in the future.

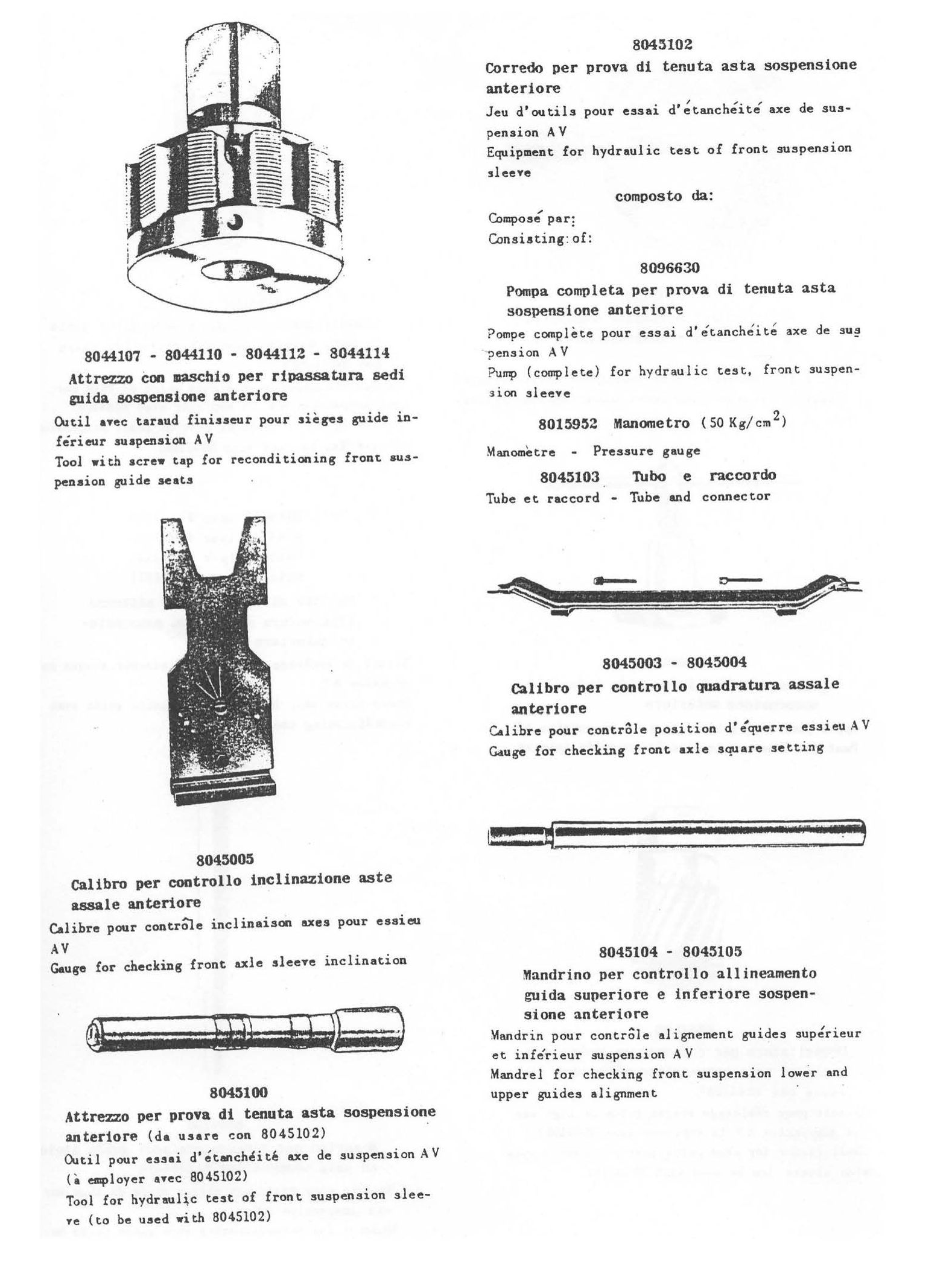

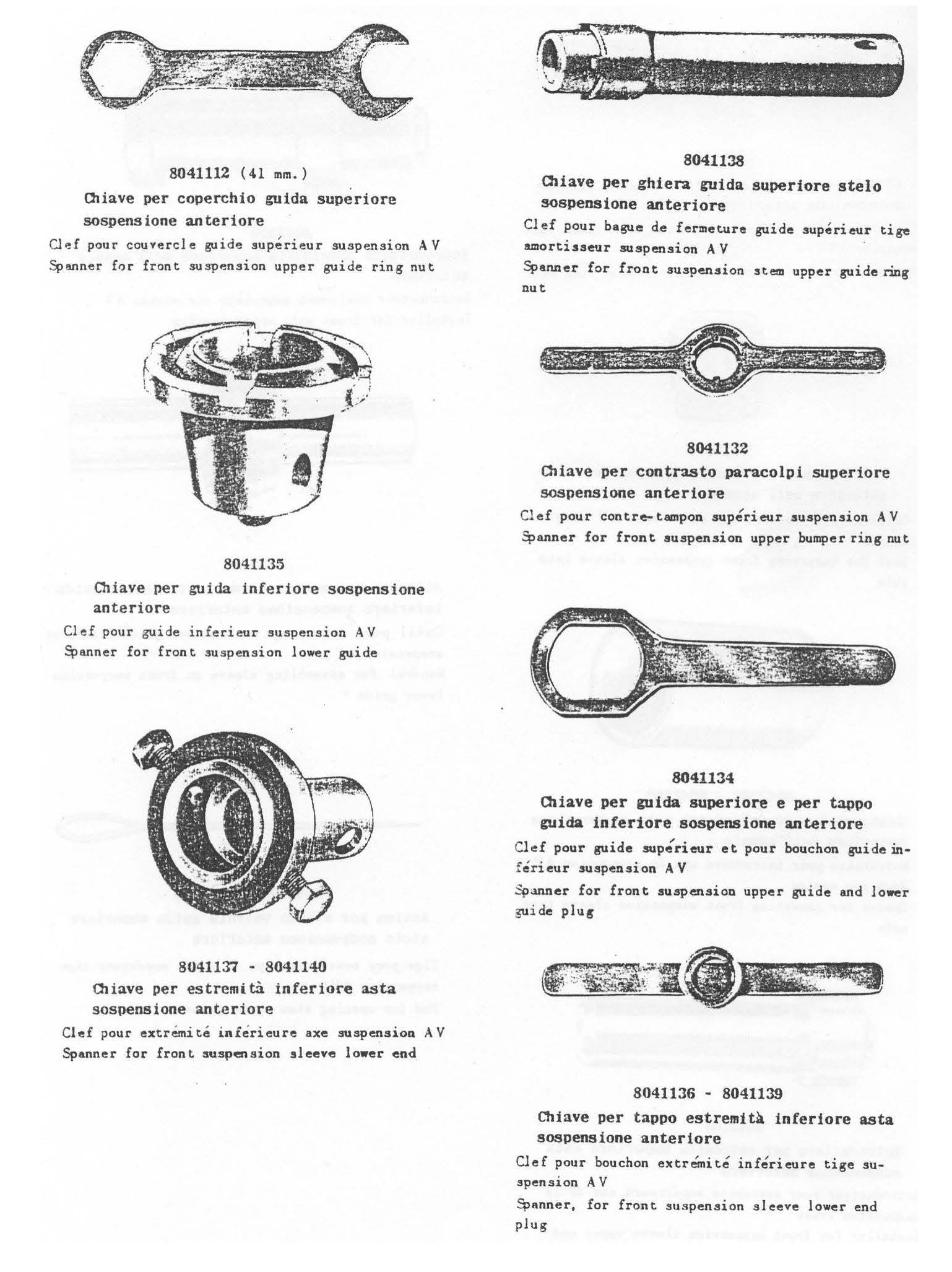

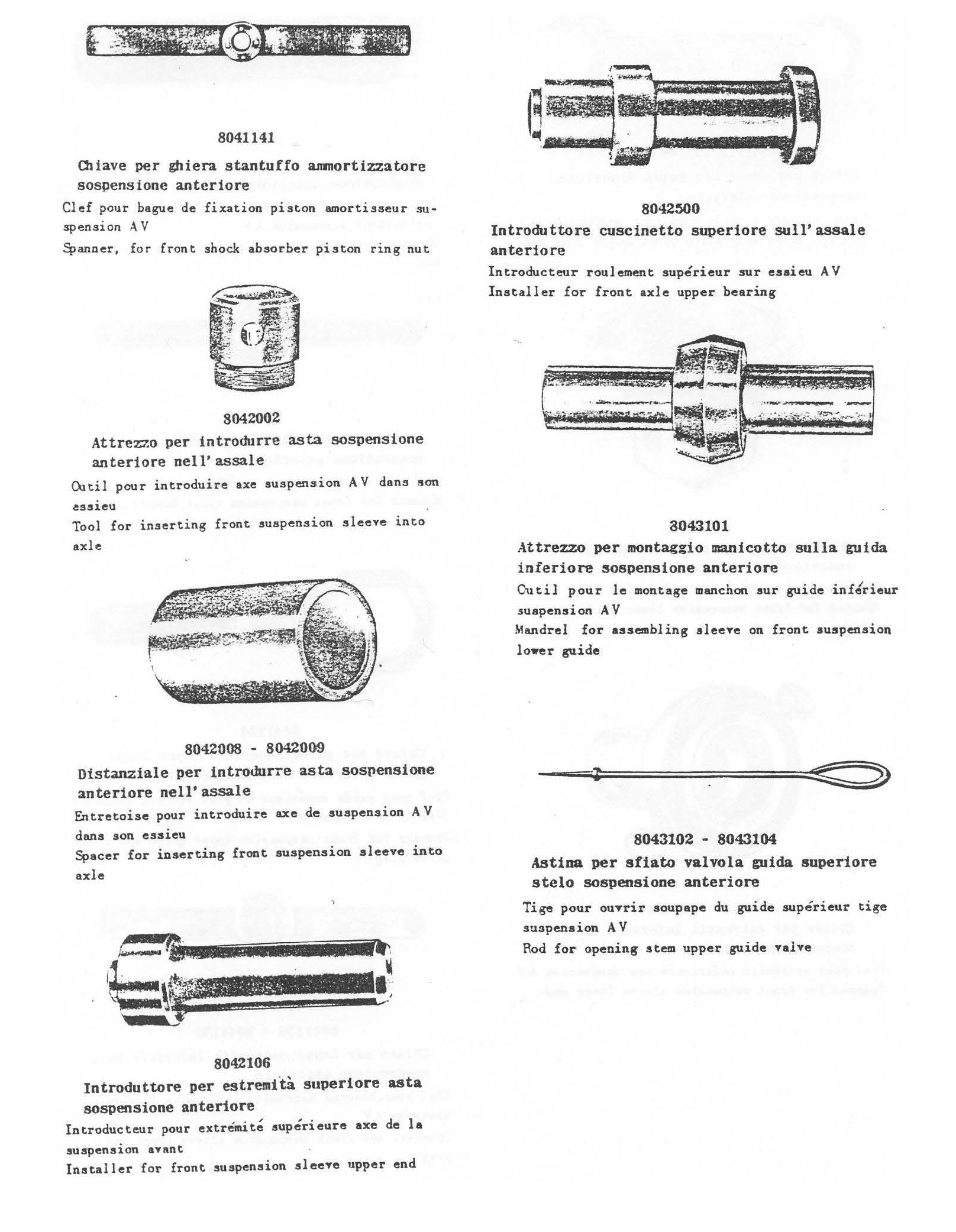

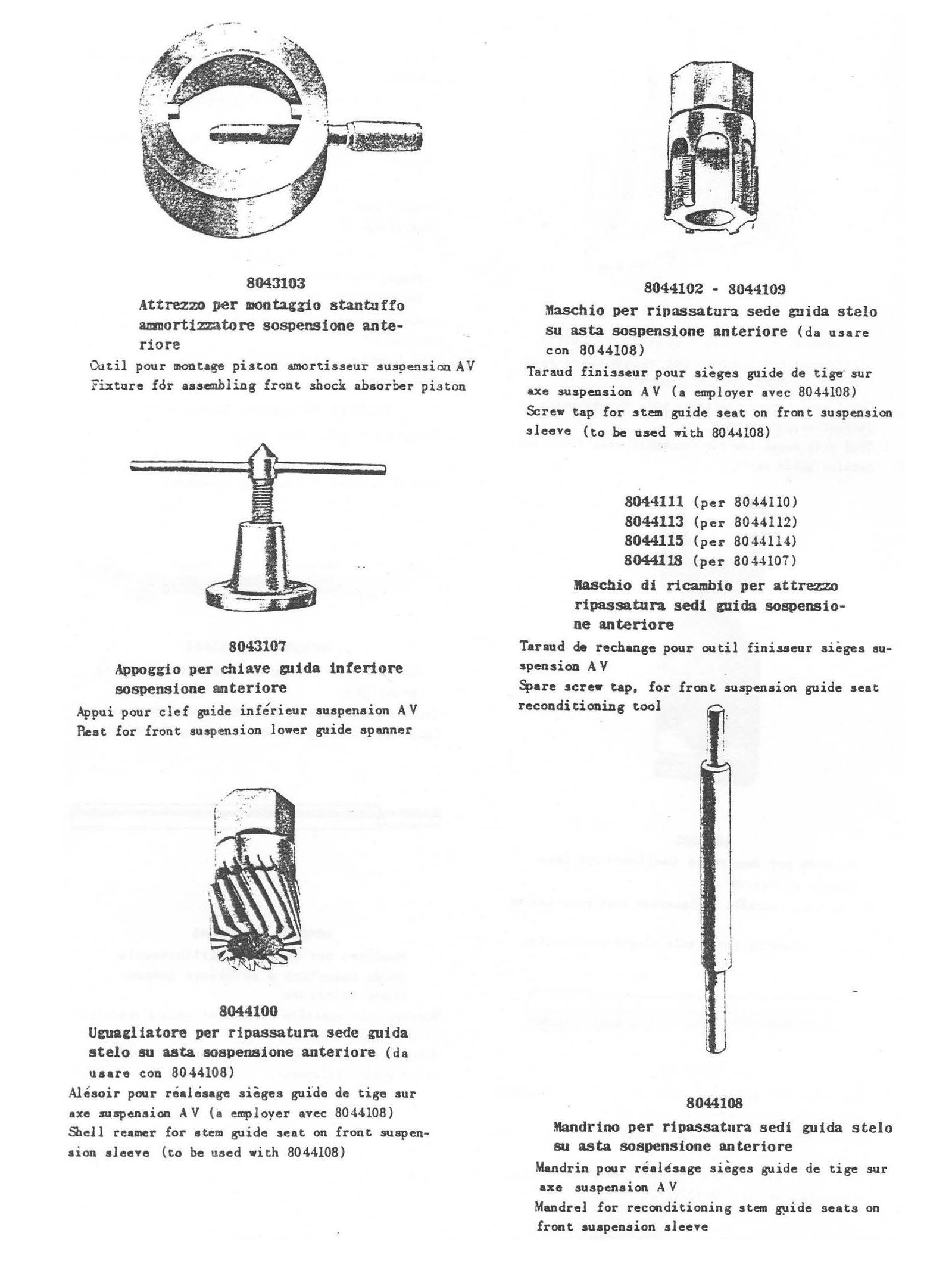

Below is a list of tools for Aurelia front suspension work from the tool catalogue above, followed by illustrations from the catalogue:
| Tool No. | Notes on Tool & Application. Lancia Sketch Reference | Reference & Section in Manual |
|---|---|---|
| 8015952 | Pressure gauge reading up to 50 kg/cm² | 01/04 |
| 8041112 | 41mm spanner for top suspension guide plug | 4 |
| 8041132 | Spanner for top front suspension buffer pad | 4 |
| 8041134 | Spanner for top front suspension guide | 4 |
| 8041135 | Spanner for bottom front suspension guide | 4 |
| 8041136 | Spanner for bottom front suspension column plug | 4 |
| 8041137 | Spanner bottom of front suspension column | 4 |
| 8041138 | Spanner top of front suspension piston rod guide ring | 4 |
| 8041141 | Series II cars for shock absorber piston fixing ring | 4 |
| 8042002 | Tool to insert front suspension column in axle | 4 |
| 8042008 | Distance piece to insert front suspension column in axle | 4 |
| 8042106 | Tool to assemble top of front suspension column | 4 |
| 8043101 | Mandrel for assembling sleeve on front suspension | 4 |
| 8043102 | Tool to bleed top front suspension piston rod guide valve | 4 |
| 8043103 | Tool to assemble front suspension shock absorber piston – For Series I cars & up to B20-2951 | 4 |
| 8043107 | Support for bottom front suspension guide spanner | 4 |
| 8044100 | Cutter to regrind piston-rod guide seatings in front suspension column | 4 |
| 8044102 | Tap to recondition top piston-rod guide seating in front suspension column | 4 |
| 8044108 | Mandrel to regrind piston rod guide seatings in front suspension column | 4 |
| 8044109 | Tap to recondition bottom piston-rod guide seatings in front suspension column | 4 |
| 8044110 | Tool with tap to recondition top front suspension guide seating | 4 |
| 8044111 | Spare screw tap for 8044110 | 4 |
| 8044112 | Tool with tap to recondition bottom front suspension guide seating | 4 |
| 8044113 | Spare screw tap for 8044112 | 4 |
| 8045003 | Gauge to check squareness of front axle | 4 |
| 8045005 | Gauge to check inclination of suspension columns on front axle | 4 |
| 8045100 | Tool for hydraulic test of front suspension columns | 4 |
| 8045102 | Hydraulic test apparatus for front suspension columns | 4 |
| 8045103 | Tube & connector | 4 |
| 8045104 | Mandrel for aligning top & bottom front suspension guides | 4 |
| 8061001 | Spanner for steering joint plugs | 05/04 |

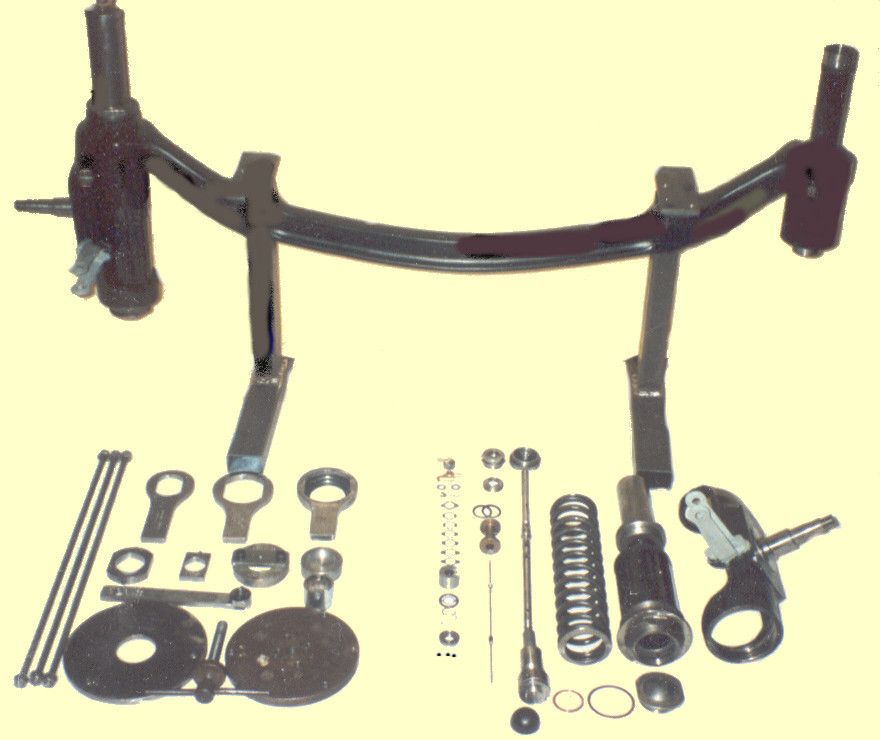

The photograph below shows a B20 4th Series front axle & dismantled suspension together with the tools required for disassembly/reassembly. The tools shown were specially made by a skilled owner. Due to the extreme scarcity of factory tools, the making or sharing of specially made tools is widespread in the Aurelia community.
