Factory Publications
Uso e Manutenzione - Use and Maintenance Books
B10 Uso e Manutenzione Aug 1952

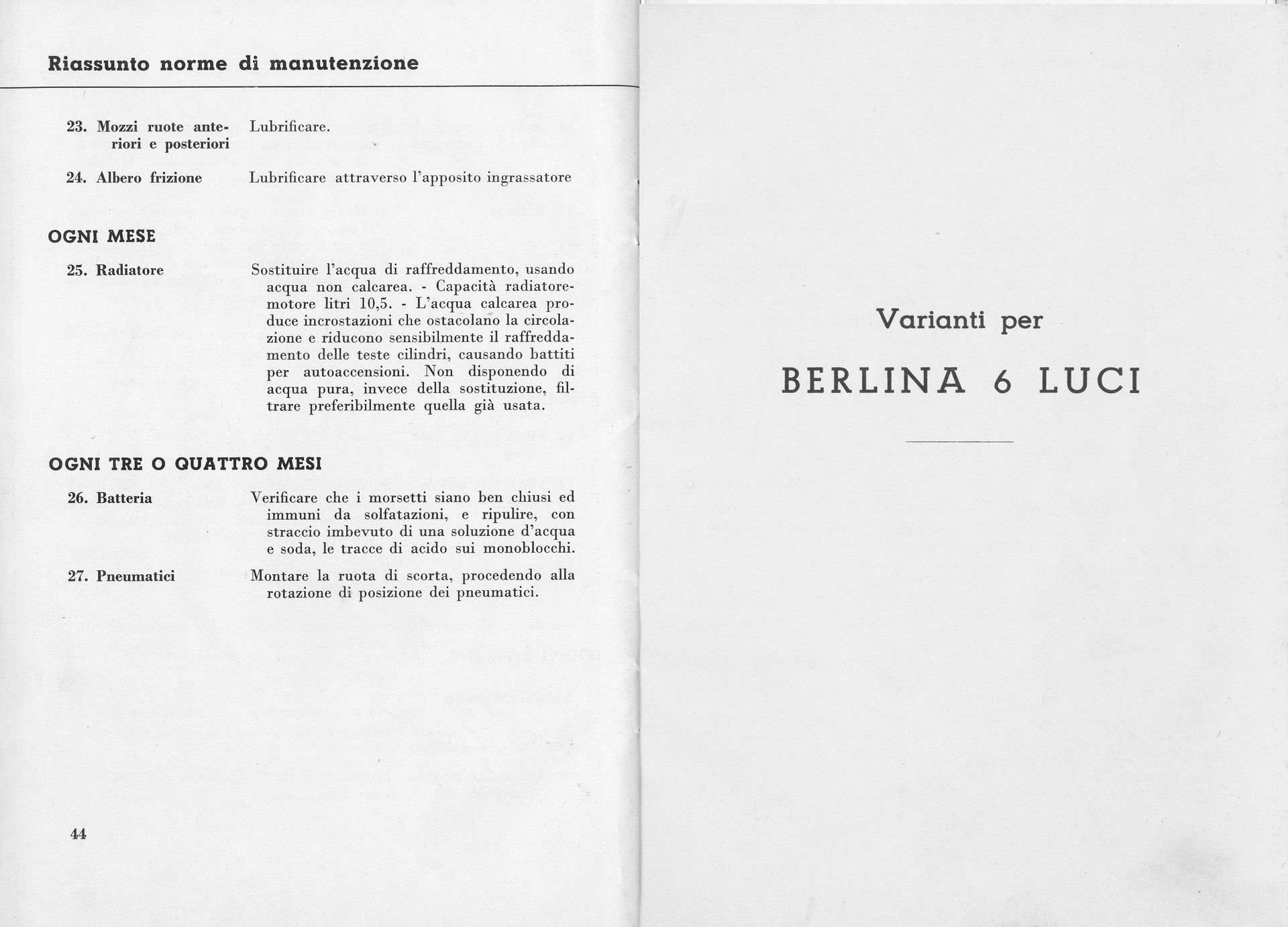

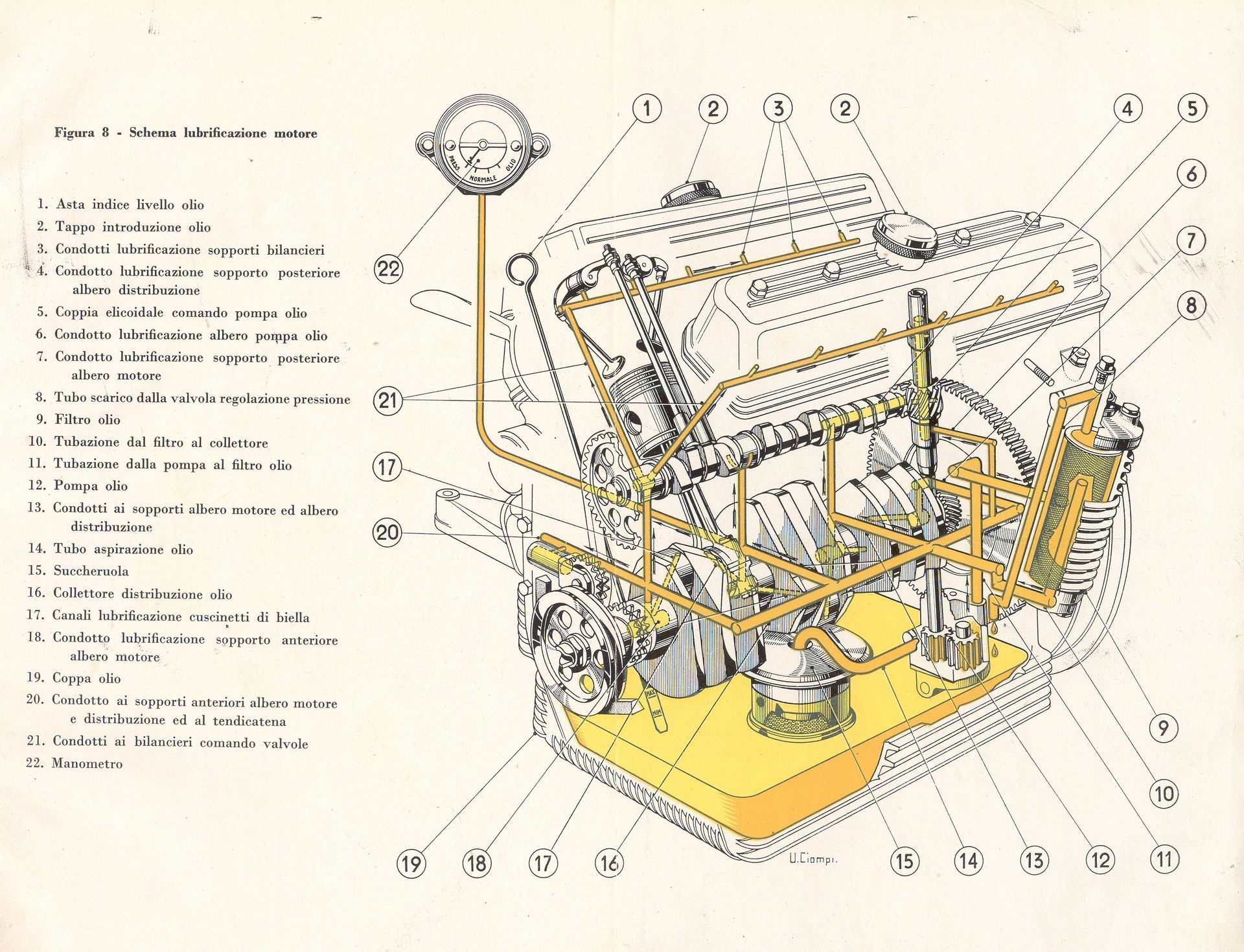

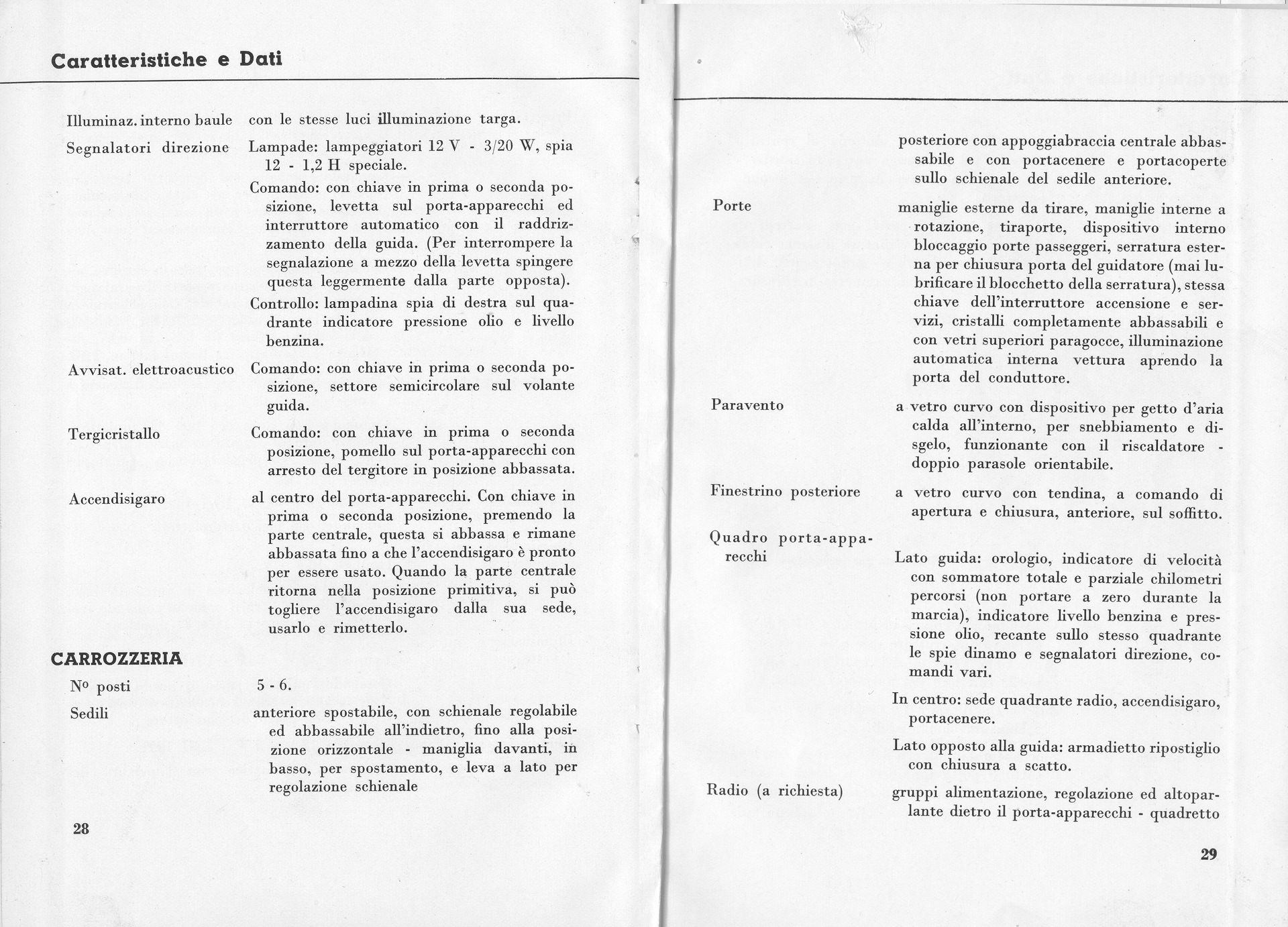

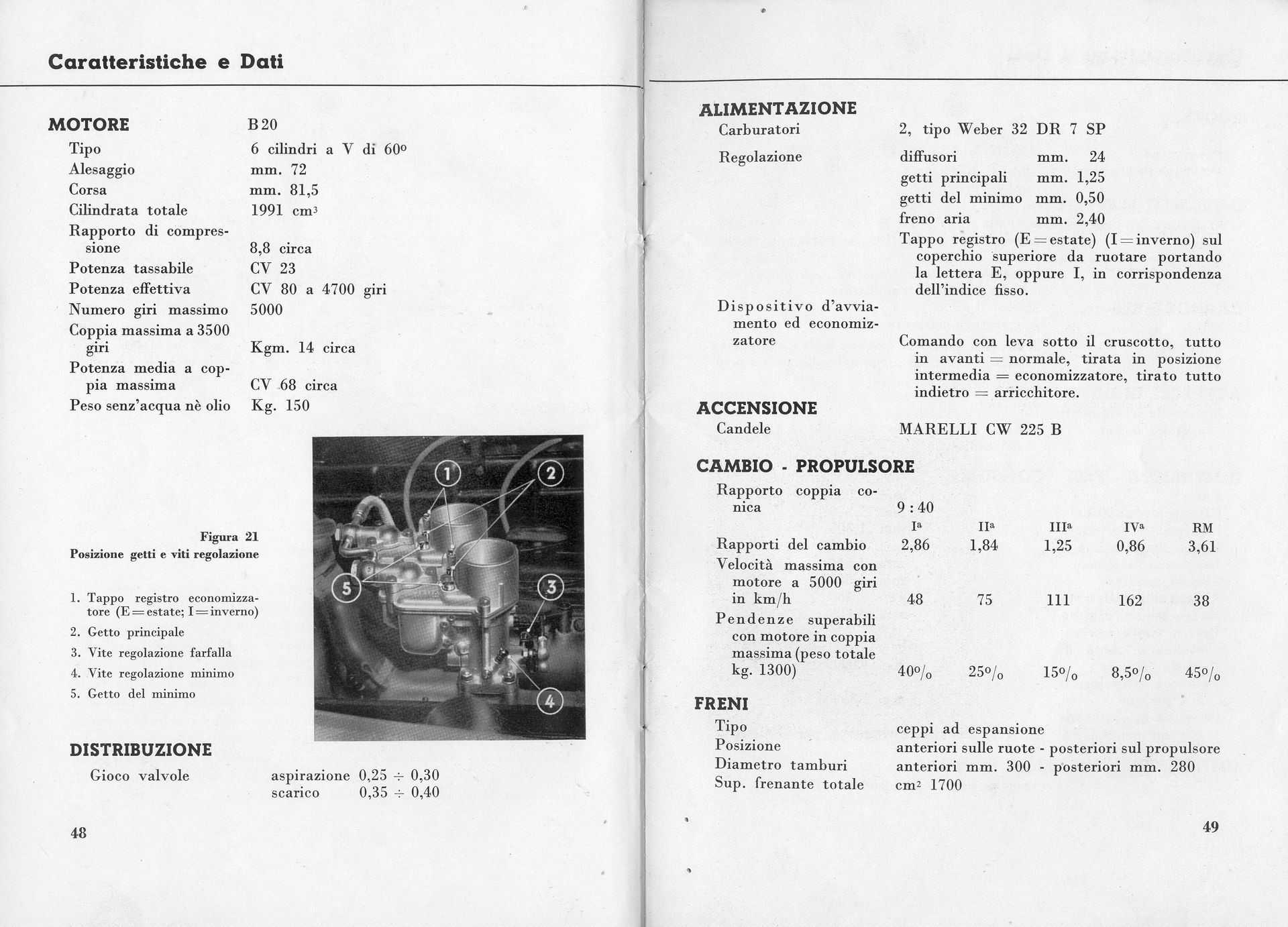

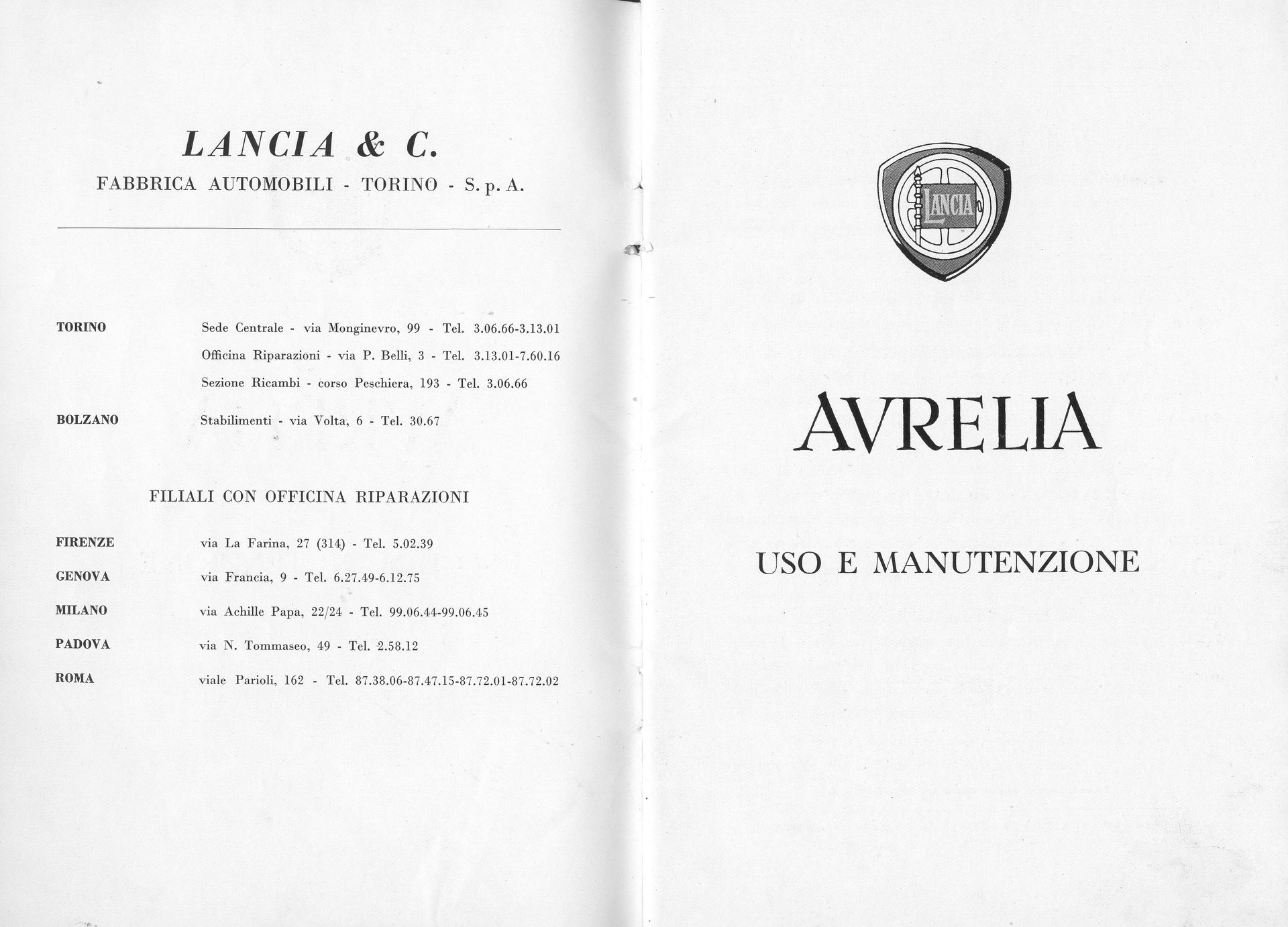

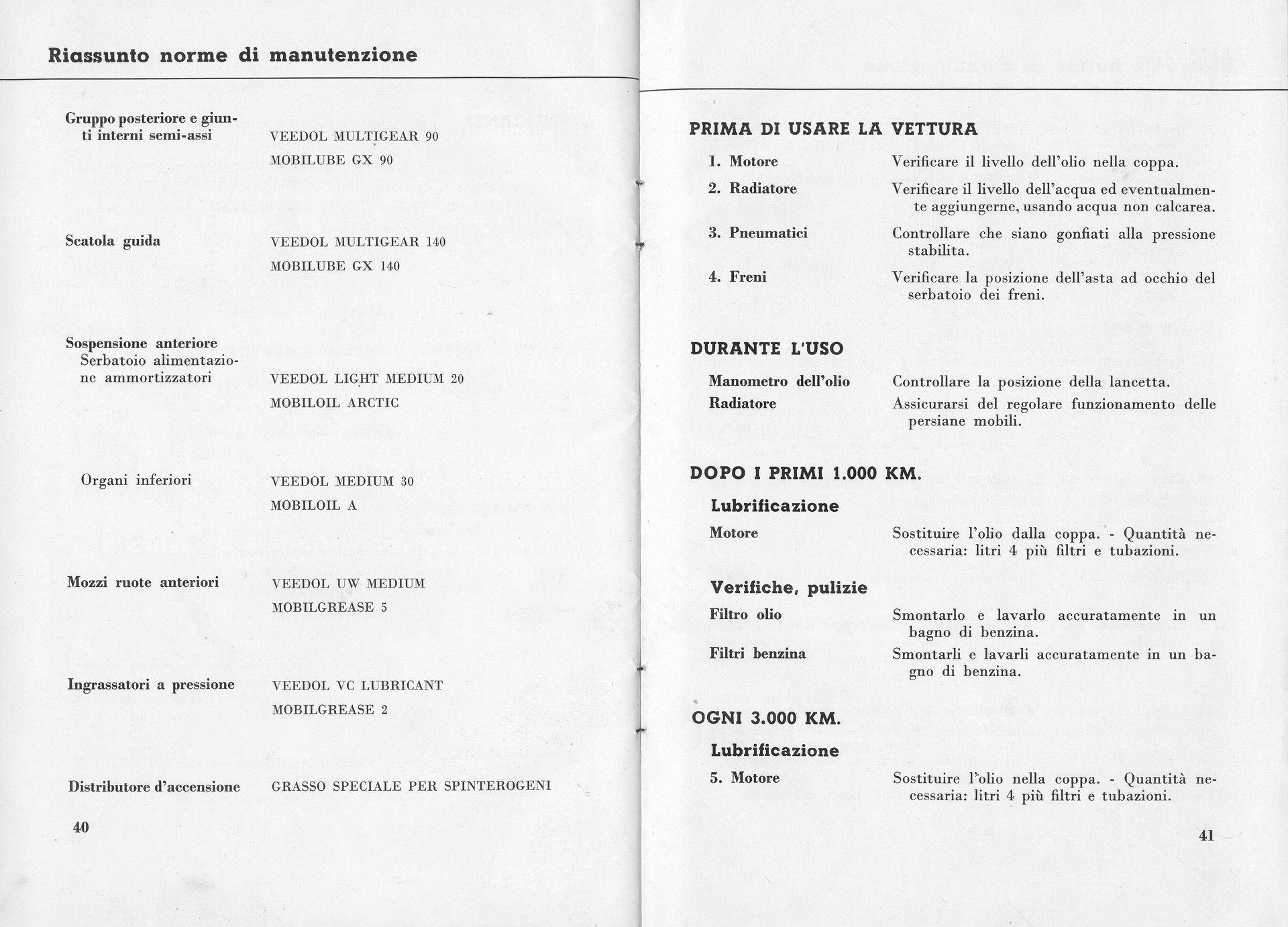

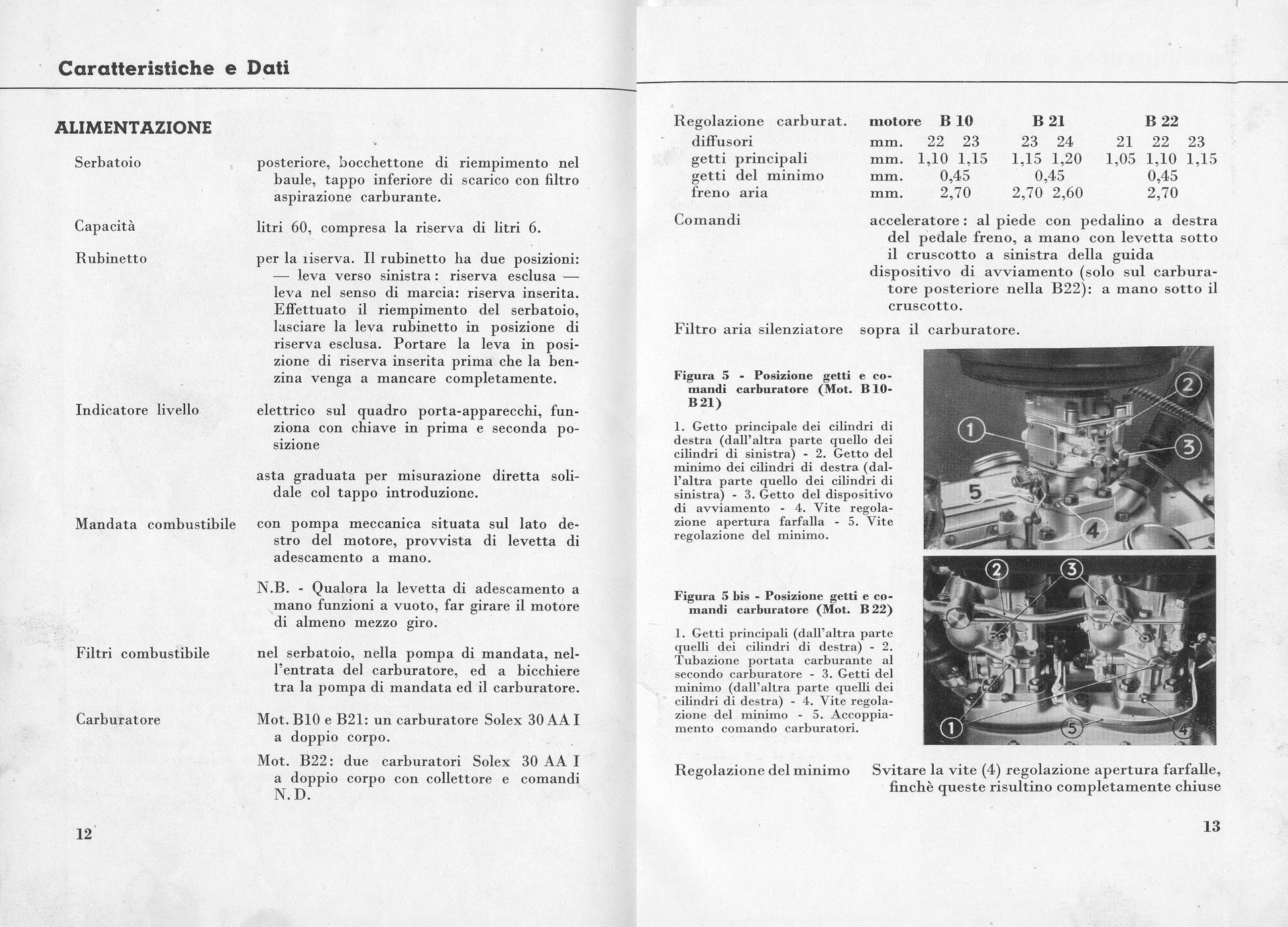

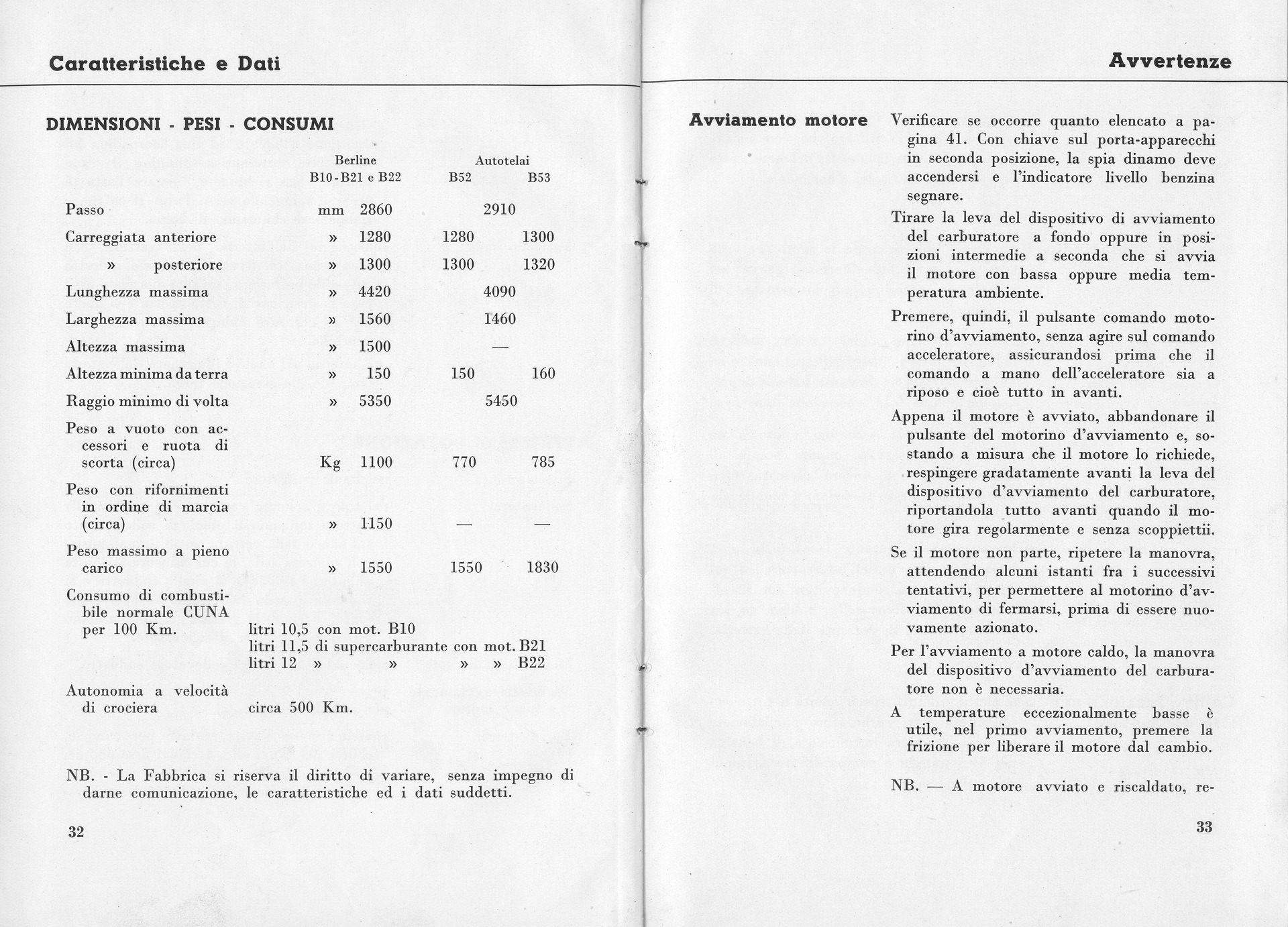

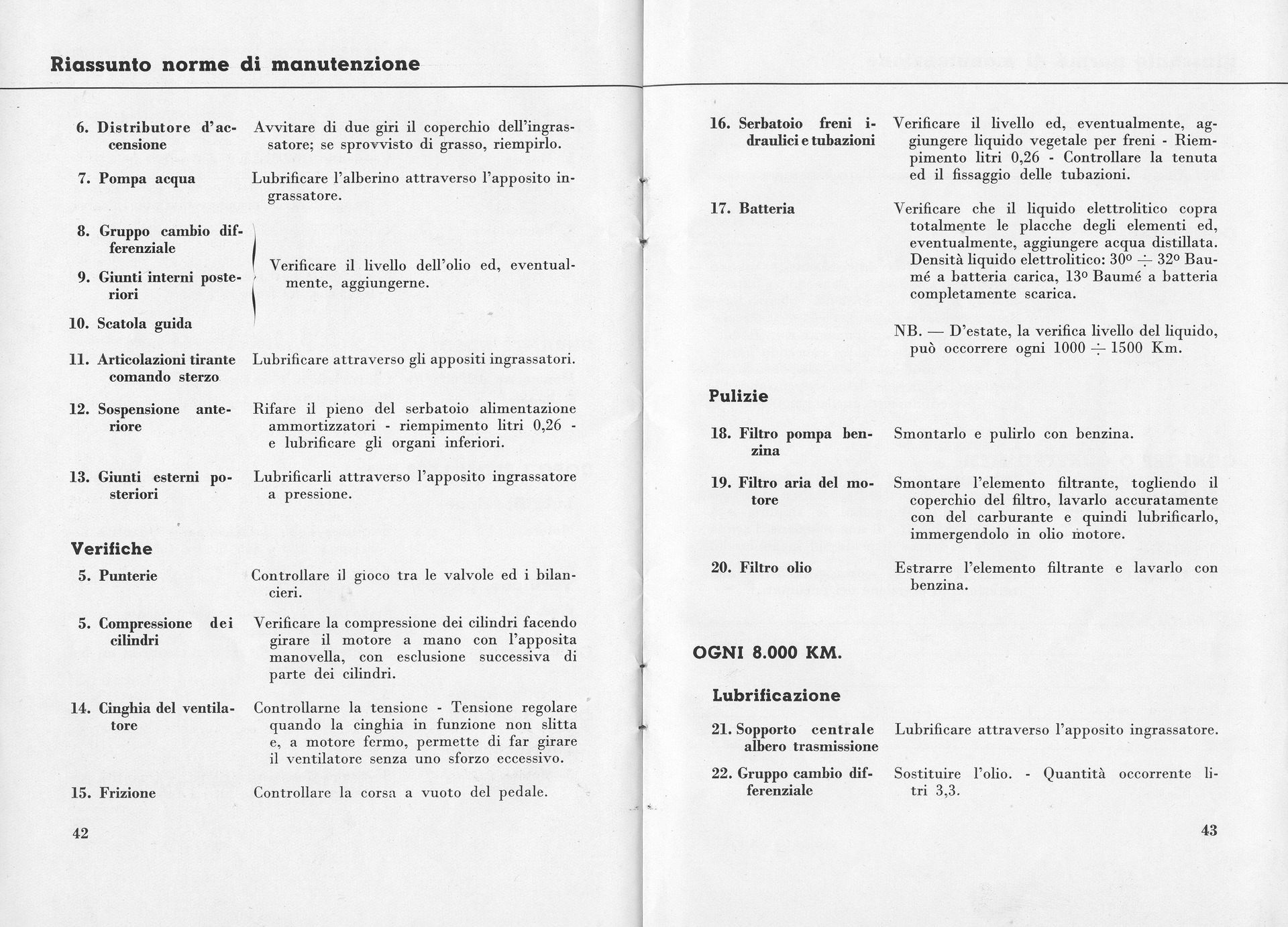

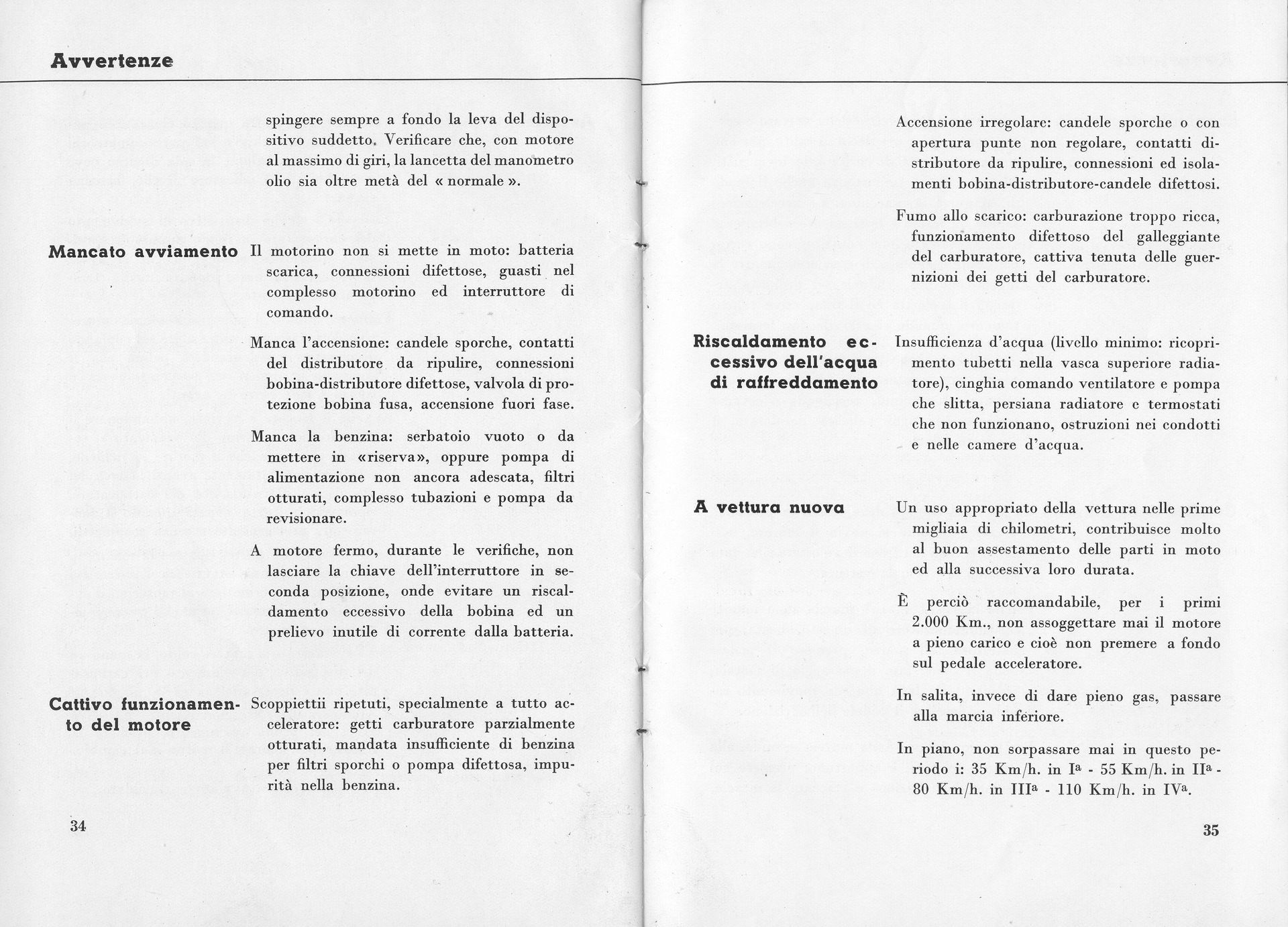

Aurelia Uso e Manutenzione - User Manual
5th Edition, August 1952
