Seats, Floor Coverings, Convertible Hood

Seats, Floor Coverings, Convertible Hood - Tav. 67 SI& Tav 68 SII
Diagram of a car interior with seats, steering wheel, and dashboard.

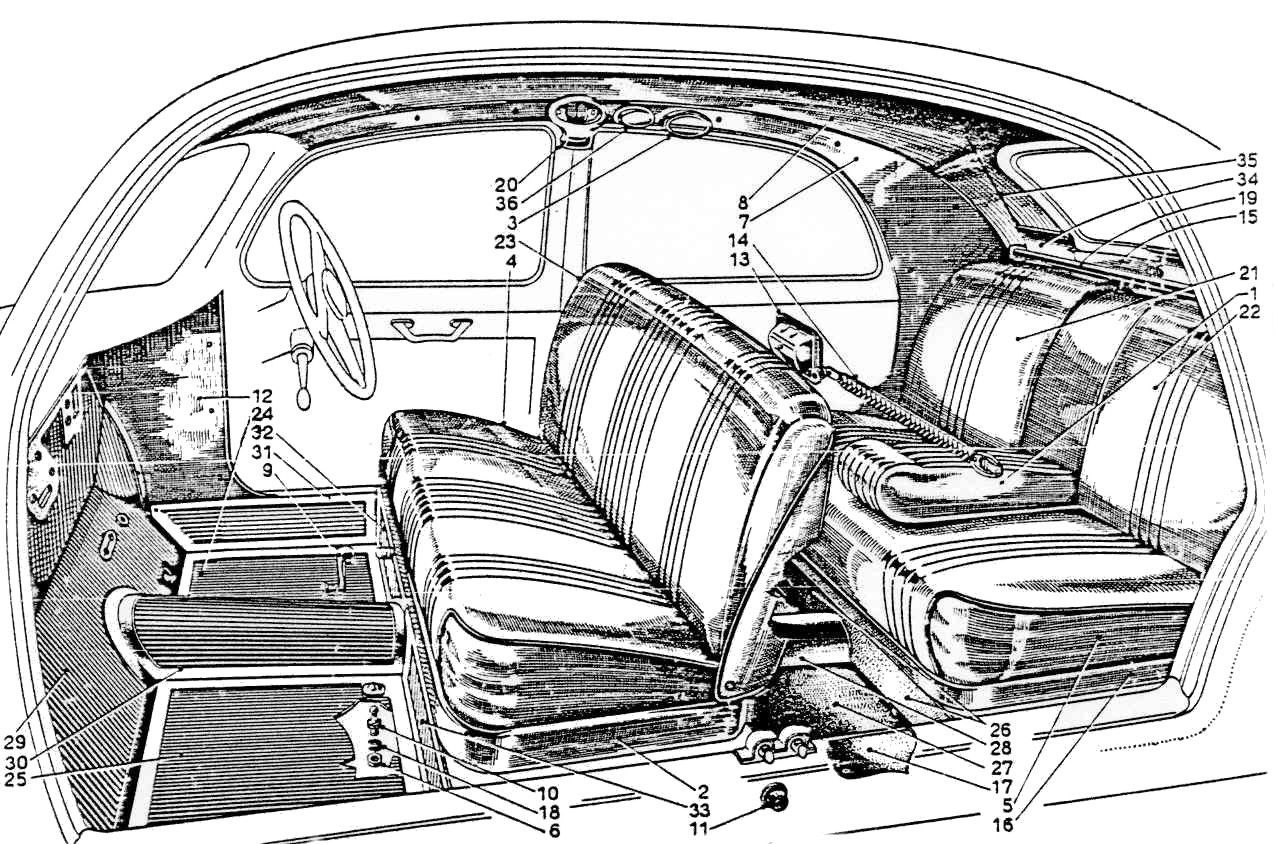

Series I B10 etc. Seats, Floor Coverings & Fittings [Tav.67 SI]

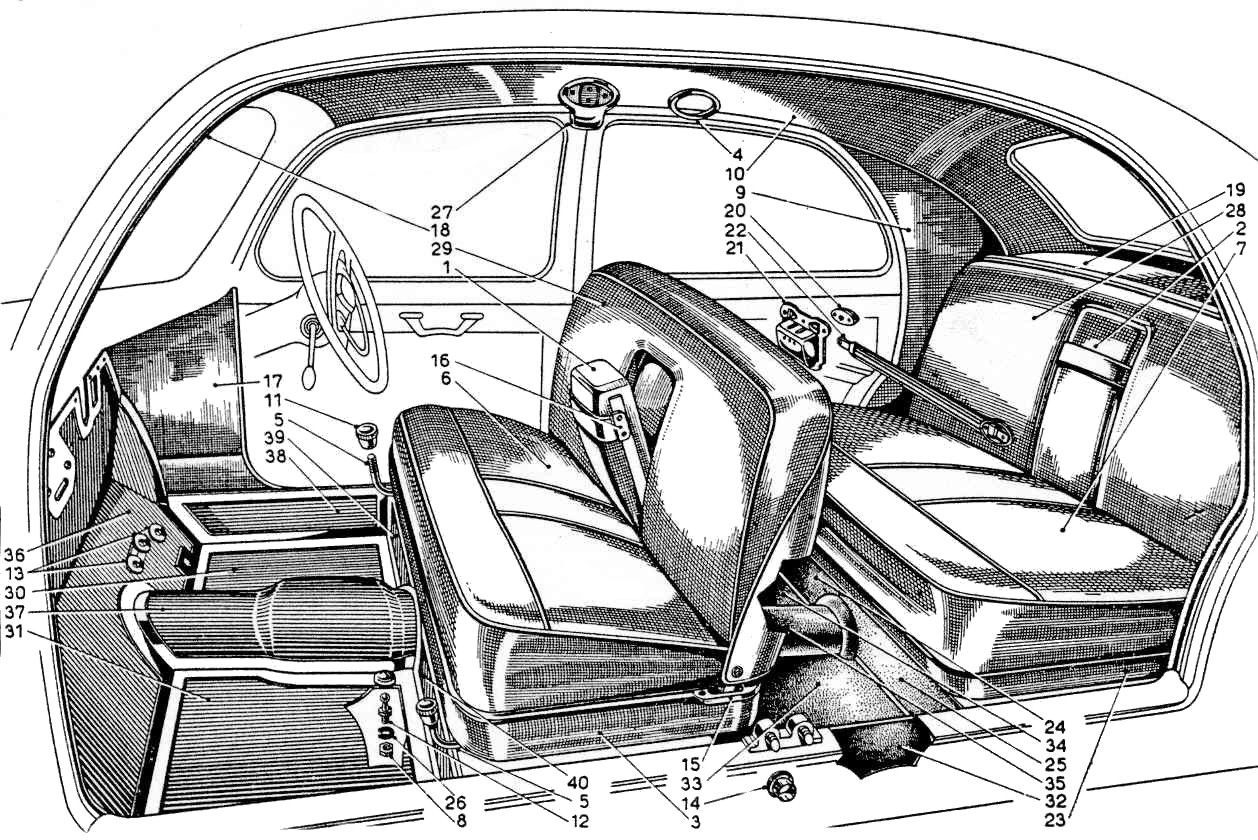

Cutaway diagram of a vintage car interior, showing seats, dashboard, and structural components.

Series II B12 etc. Seats, Floor Coverings & Fittings [Tav.68 SII]

Floor Coverings B20 - Tav. 67 SI& Tav 68 SII

The rubber floor mats can now be replaced with exact replicas manufactured in Italy by Cicognani see www.cigognaniguarnizioni.it/Lancia-132 where there are listed items for B10-B21-B22; B12; B20, B24 Convertible, B24 Spider America & for B50. Some pages from an earlier catalogue follow, but the current listing is very comprehensive & covers all the rubber coverings & seals. There are a few anomalies concerning the details for specific models.

Floor mat set for a vehicle, with numbered components in a diagram.

Cicognani - B20 Series 1 to 3

Diagram of car interior floor mats, with a classic car illustration.

Cicognani - B20 Series 4

Diagram of vehicle floor mats, numbered 1-7, showing where they fit.

Cicognani - B20 Series 5 & 6

The following photos are from a late 4th Series B20-3609


Thorough soundproofing below rubber mats or carpet is beneficial particularly on early cars, which were quite noisy. The insides of the doors and 3/4 panels and below the rear seats are other obvious areas for eliminating panel drumming. The bulkhead between the rear seats and the boot can also be made more soundproof. Originally a black bitumastic covering was applied to the floors & elsewhere.

Rear of Car

Pair of black rubber floor mats.

Rear floor mats

Front of Car

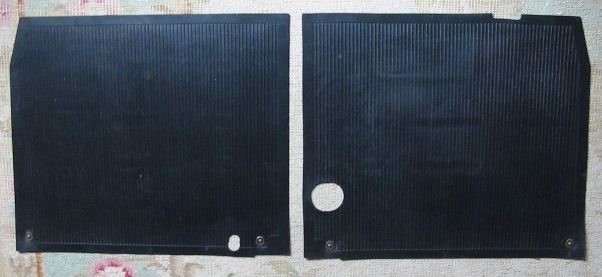

Two black rubber floor mats with vertical ribbed texture and a few holes.

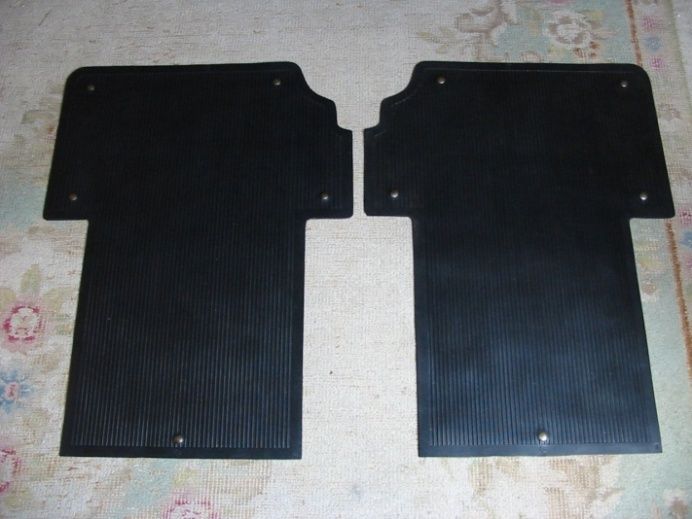

Front floor mats for a right-hand drive 4th Series B20 car - so you can see cut-out for accelerator pedal on right mat &the hole for floor gear-change, & on left mat hole for fuel reserve tap.

Front of Car

Two black, rectangular pieces with angled ends, possibly parts of something.

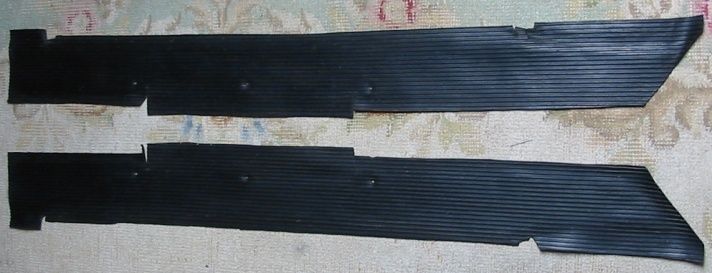

Floor matting for left & right sills

All the items shown on this section following come from B20-3609, a late, unrestored 4th Series

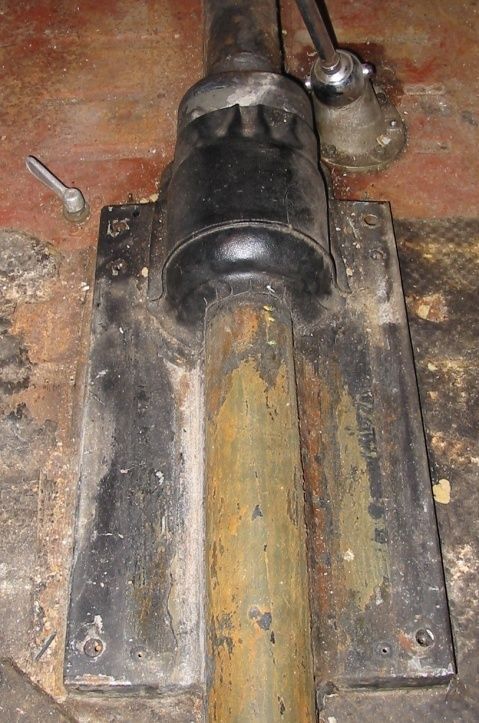

Black machinery base with a rusted metal pipe rising from it. A silver lever sits on the right.

Central prop-shaft tunnel with "leatherette" covering to central mounting

Two pieces of black leather on a light wood surface; one is rectangular, the other curved.

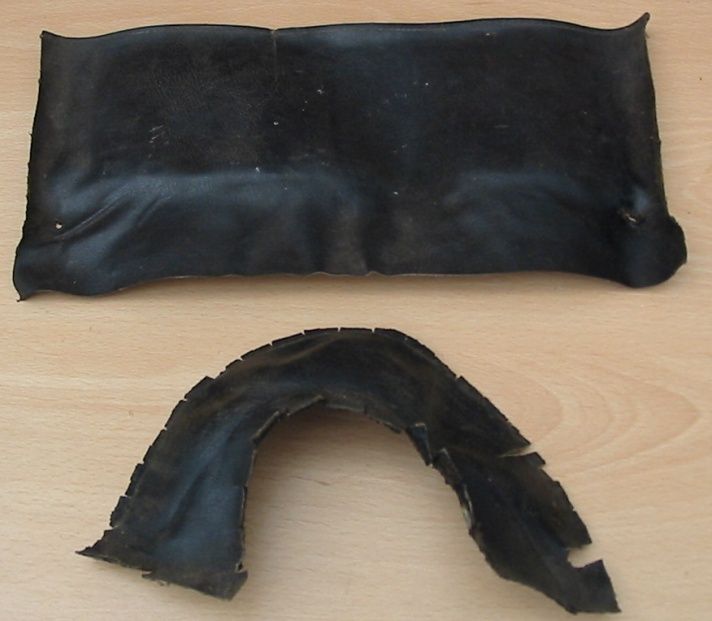

Central prop-shaft tunnel "leatherette" coverings removed

Black rubber plumbing boot sealed around a pipe, set in a rusty metal floor.

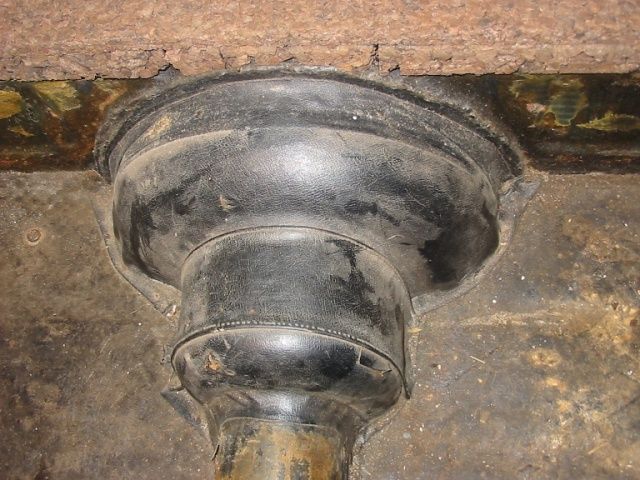

Rear end of prop-shaft tunnel at rear seat covered with "leatherette" sections.

Cork layer on rear seat added by owner to suppress noise.

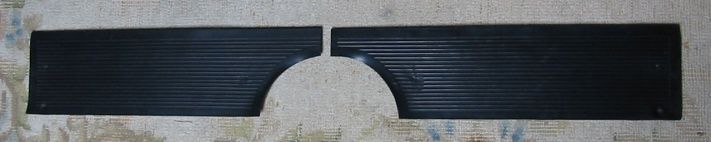

Two dark rectangular pieces, separated by a semi-circle cutout in the center.

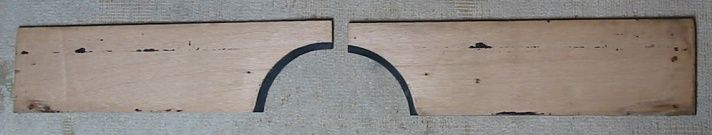

Floor matting on vertical section below rear seat mounted on plywood - possibly not originally.

Two rectangular wooden pieces, separated by a semi-circular cutout.
Black rubber elbow pipe joint on a wooden surface.

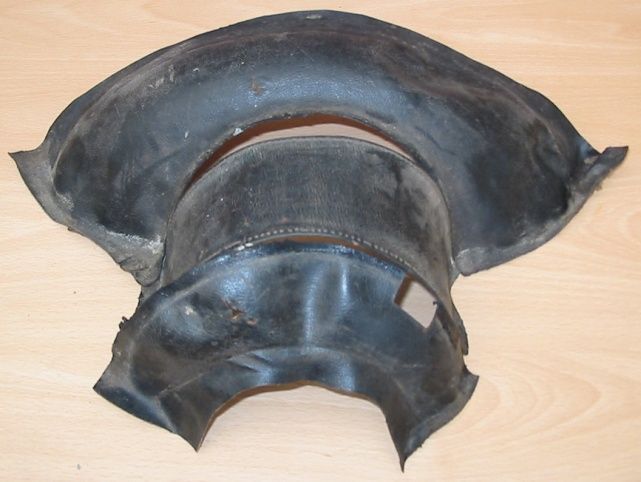

Three sections of "leatherette" at rear of tunnel

Brown, curved piece of leather with rounded edges, possibly a car part, on a beige surface.

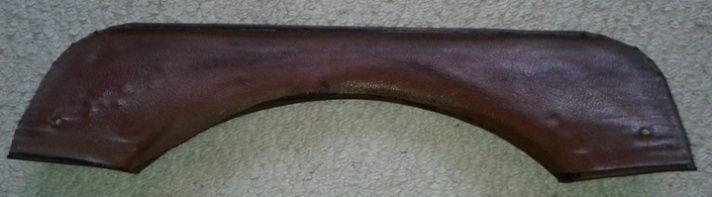

Central cover piece - leatherette glued to a shaped metal sheet. Outer face at top.

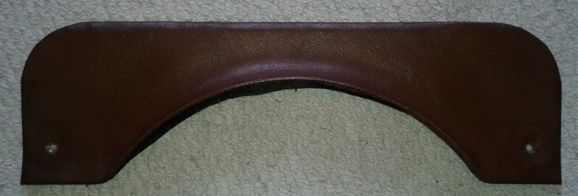

Dark brown, curved metal car fender.

Seats - B20 Models - Tav. 67 SI& Tav 68 SII

The seats of B20s were mainly covered in cloth (Panno) or in leather (Pelle) with the sides in leatherette.


The production records for each card show the type of covering & the colour. Most cars were fitted with two front bench seats with backs folding forward as most cars had a column gear-change.


Clearly there were special orders for coverings & for seats & for a floor gear-change.


The following illustrations are of the original, unrestored seats from a late 4th Series B20 - they are even marked faintly with the Pininfarina production number in yellow wax crayon.


Different seats were made for the 5th & for the 6th Series B20 cars - see next page.

Beige car seat, side view, on tan base with dark brown trim.

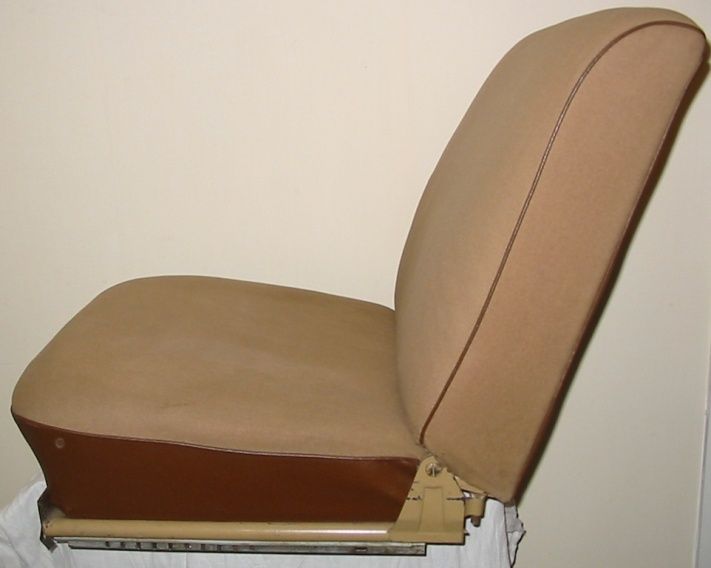

Left-hand front seat covered in cloth "Panno nocciola" with dark brown leatherette panels & piping, The seat frame has the original paint.

Tan and brown car seat with raised back section, resting on a beige surface, against a light wall.

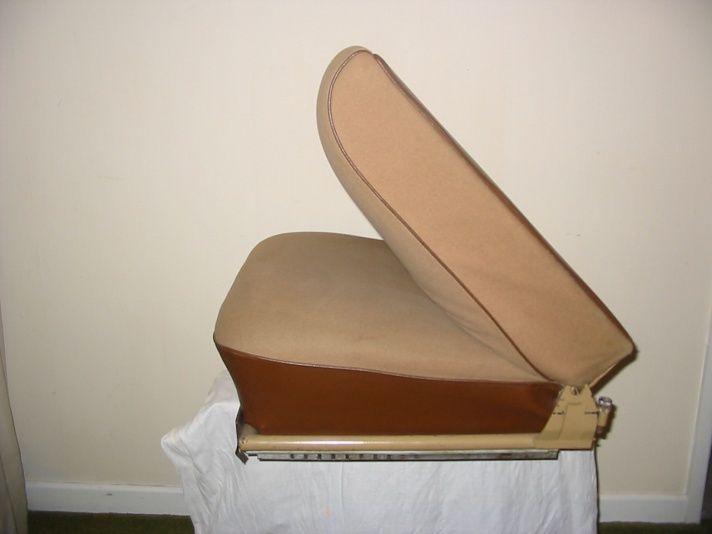

Left-hand front seat with back folded forward - there is no locking device, but there are adjusters for the vertical setting of the seat back - see below.

The arm-rest is on the other side.

Brown and tan car seat back.

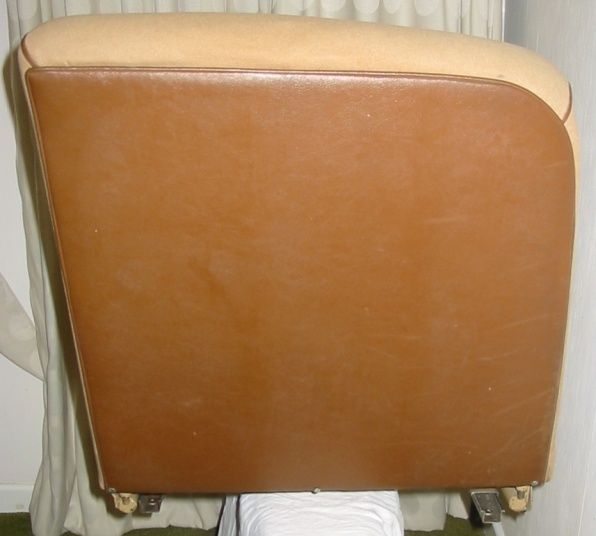

Rear of Right-hand seat showing leatherette-covered rear panel.

Tan car seat back with metal frame, showing wear.

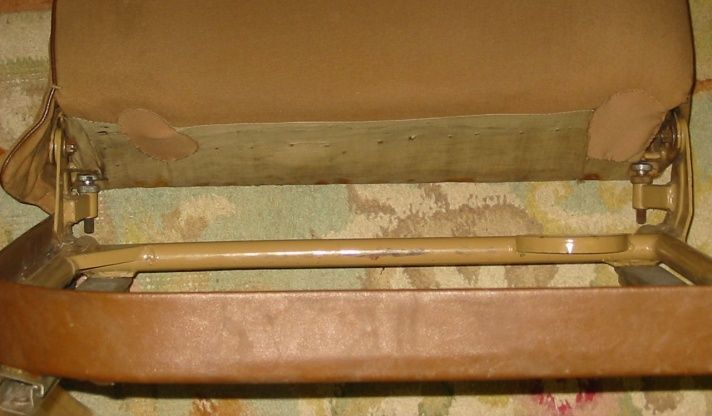

Right-hand seat from front showing painted frame, rails fixing seat to floor, chromed seat adjusters, hinges for seat back & leatherette covering to front edge of frame.

Close-up of a tan metal bracket with bolts and a threaded knob, attaching to a tan fabric object.

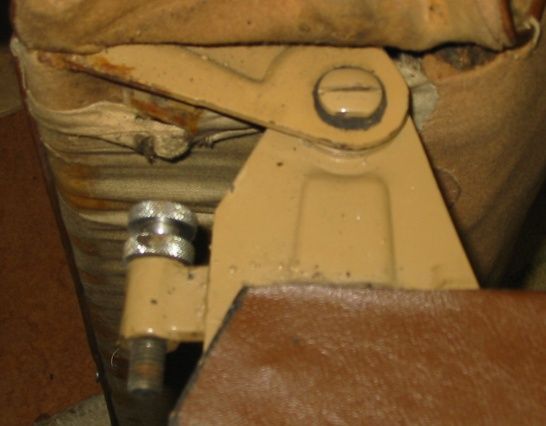

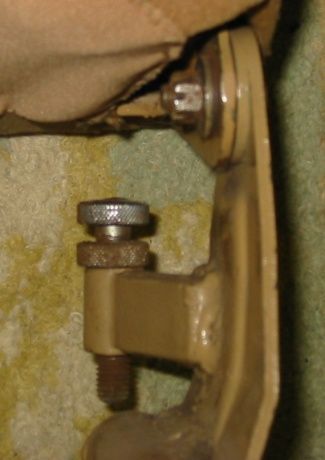

Seat adjuster & hinge close-up

Tan metal bracket with a screw and a silver knob, connected to tan and brown surfaces.

Seat adjuster & hinge close-up

B20 5th Series Front & Rear Seats
Interior of an old, red coupe, showing weathered black and tan seats, steering wheel, and dashboard.

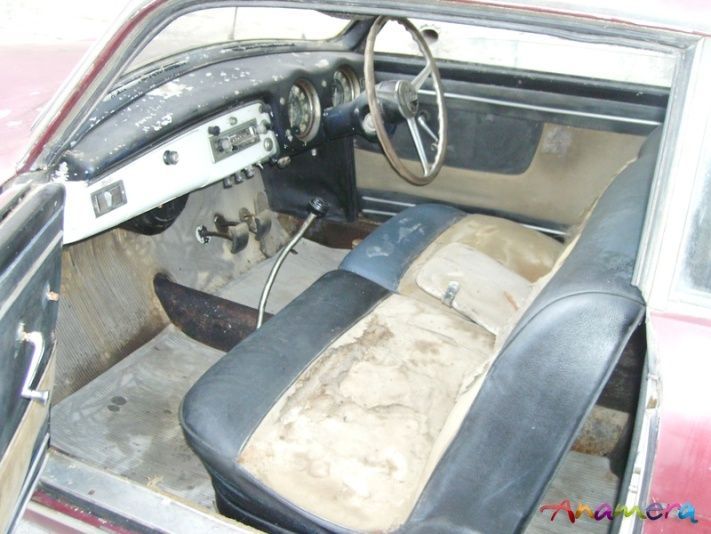

B20-3701 seats unrestored in 2008

Interior car view, showing blue and tan upholstery on front and back seats, near a window.

B20-3701 seats restored in 2014 - note arm-rest in front seats "appoggiabraccia"

Interior of a classic car: tan and brown leather seats.

B20-3800 in 2011, probably restored

Interior car back seat; gray and blue upholstery.

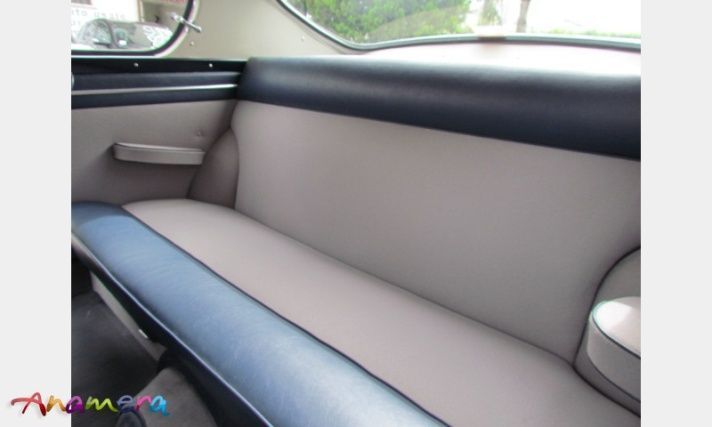

B20-3811 in 2014 show arm-rest in rear side panel.

B20 6th Series Front & Rear Seats
Tan interior of a classic car with wooden accents, pale blue dashboard and steering wheel, beige seats.

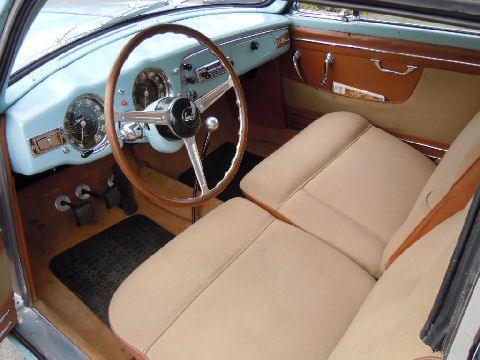

B20S-1580 in 2011 - note different stitching

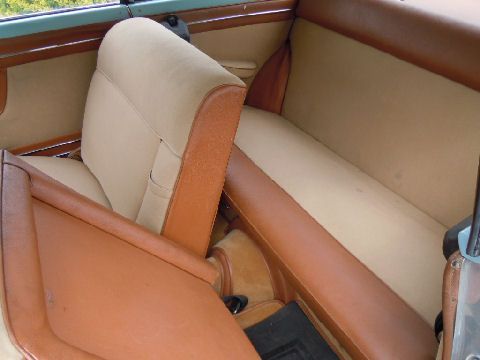

Tan and brown vintage car interior; two rows of seats.

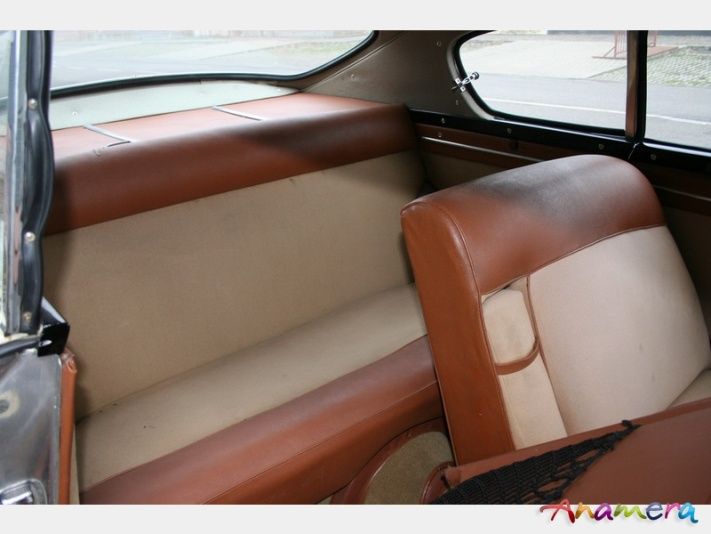

B20S-1580 in 2011 - note different rear to front seat - recessed, unlike 4th & 5th Series

Blue car seat with a white seat next to it, set in a car.

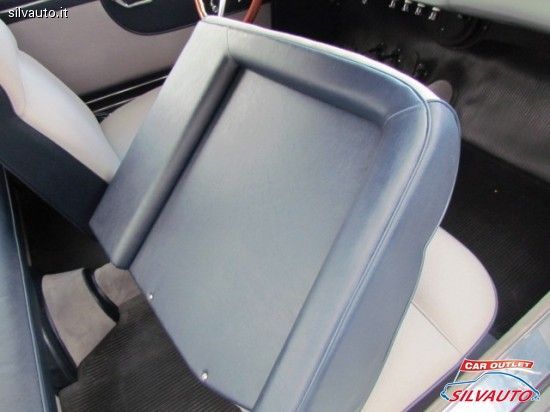

A good view of a 6th Series seat back

Rear Seat

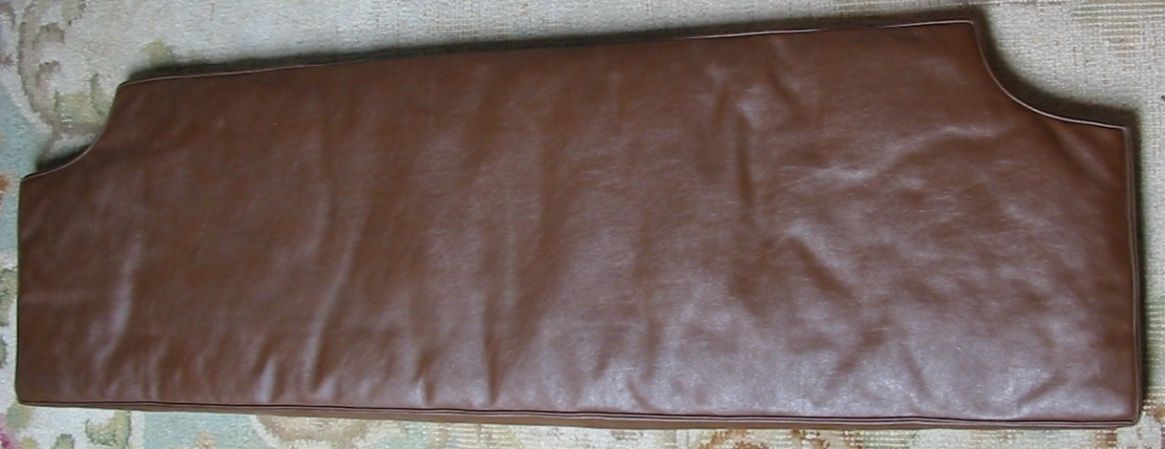

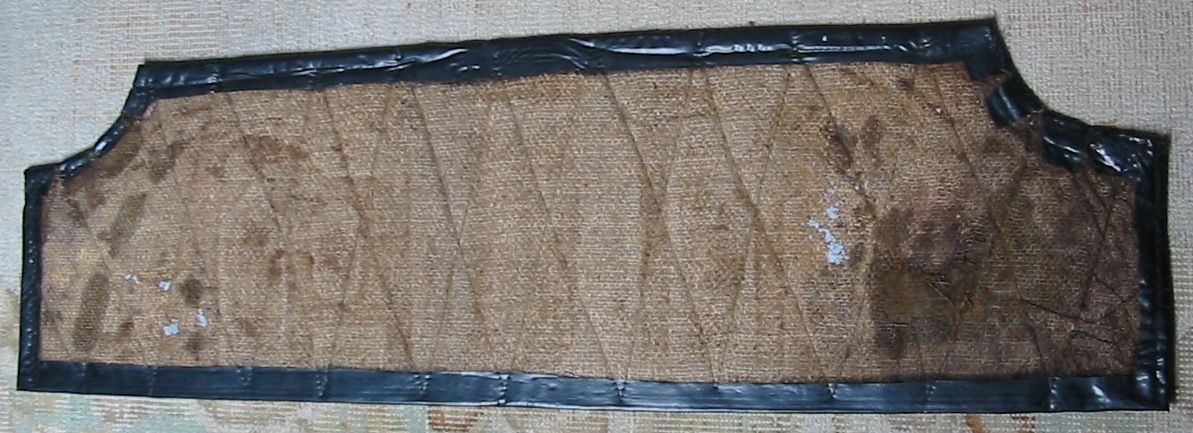

The rear seat on the B20 up to & including the 4th Series is a minimal cushion covered in leatherette with an underlay of stitched black plastic over hessian in the same style as that covering the interior of the boot sides. No rear seat is listed for the 4th Series; in fact it is suppressed in the parts book. However a seat & back is listed for the 5th & 6th Series B20

Brown leather piece with stitched edges; possibly a car part.

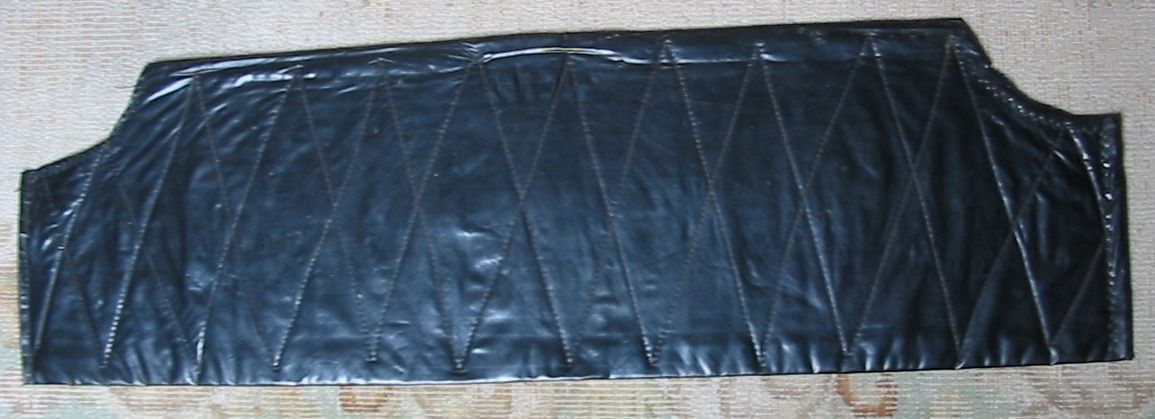

Black padded headboard with stitched diamond pattern.
A brown rectangular object with a black border.
Blue and white vintage car interior with bench seat and backrest.

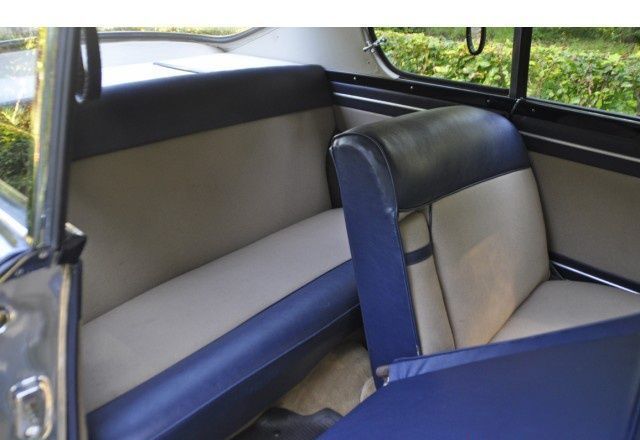

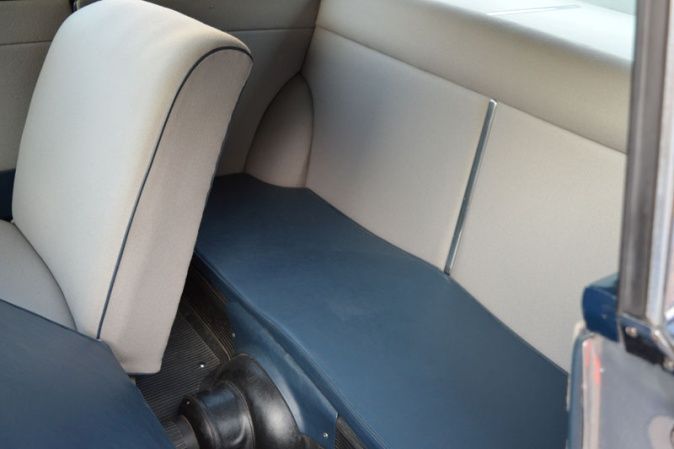

B20-3423 from 2015 - restored but correctly, showing shallow rear seat in leatherette & cloth-covered seat back with one vertical alloy strip.

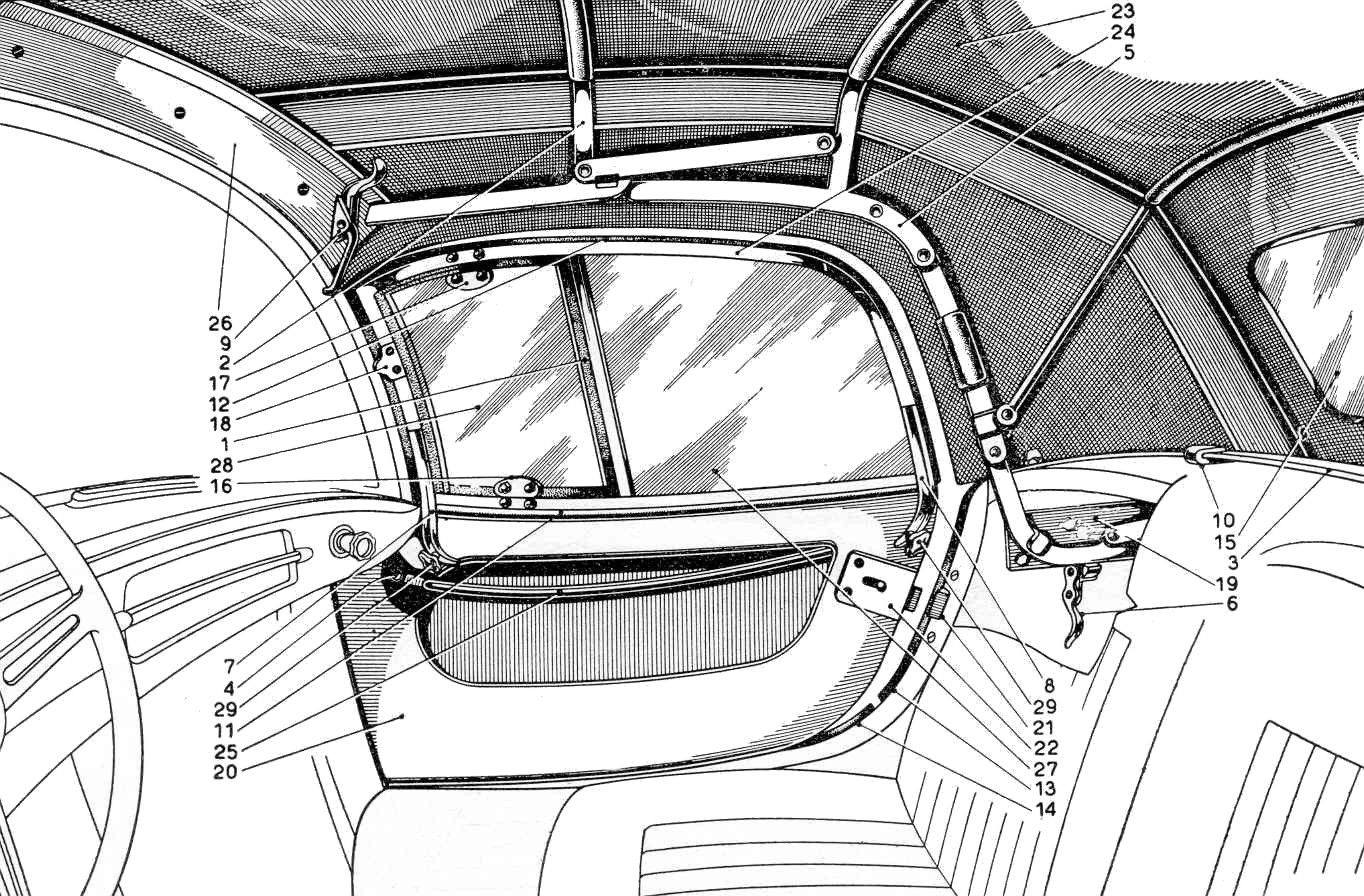

B24 Door & Convertible Hood

Detailed line drawing of a car's interior, showing a window frame, roof support, and detailing of fabric and trim.
B24 Spider & Early B24S Convertible Petrol Tank Covering & Seats

Ref: Tav.68


The following notes were contributed by Sebastien Simon, Switzerland in 2013 regarding his family's B24S-12xx


The cover for the fuel tank of B24 spider, and early B24 convertible (5th series), before the tank was put under the floor, is made of Resinflex. This company still exists (2013) at http://www.resinflex.com/Resinflex Srl, Via Reis Romoli, 256, 10148 Torino, ITALY. Tel: +39.011.2280.711 Fax: +39.011.22.64876; E-mail: info@resinflex.com


This fully original early 5th series convertible was subject to some restoration recently & the following photos show this part of the car with comments.

An Italian specialist of B24 spiders said that there were some variants for the tank cover on the spiders, so it is important to know what B24 one is talking about.

Interior of a convertible car, showing a black tonneau cover and tan upholstery.

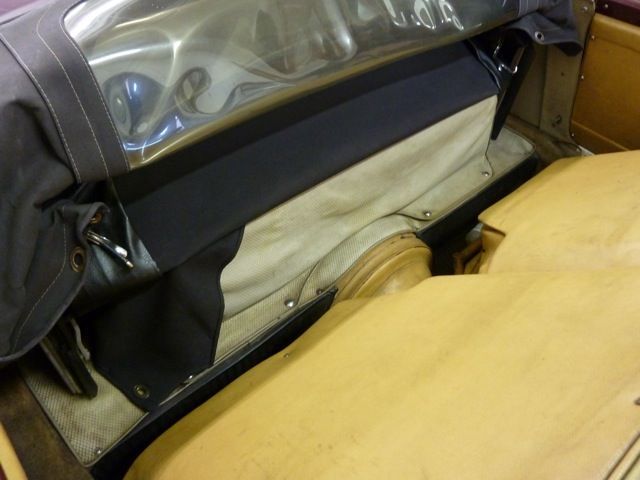

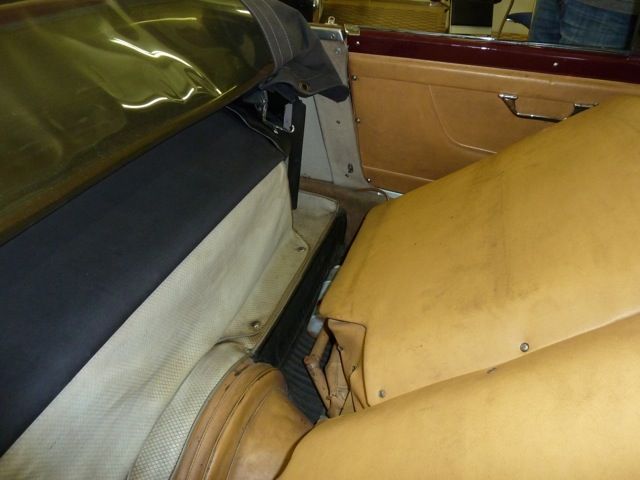

As it was originally. The full tank cover material is Resinflex. The hood is here just lying on top of it

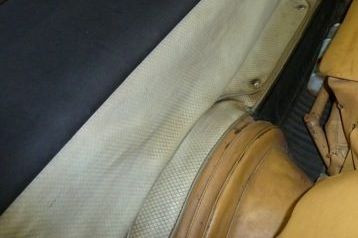

There is a bottom, and then comes the tank, with its 2 straps, then a tank cover. You can also see the sides, behind the doors, which are of another material, leatherette maybe, but it does not match the door panels. Certainly original, but not very nice to the eye.

Tan car interior detail showing fabric panel, leather seat, and dark trim.
Interior view of a convertible car, showing tan seats, black trim, and burgundy door.

The seat backs are also leatherette, not the leather used on the top.

Interior of a vintage car with tan carpet and a painted drivetrain tunnel; door panel removed.

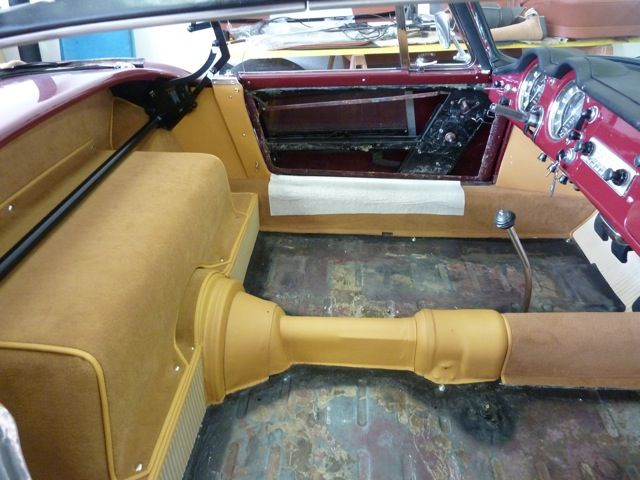

As our trimmer did it - It is non-original, but much nicer at least for the owner who retains this car

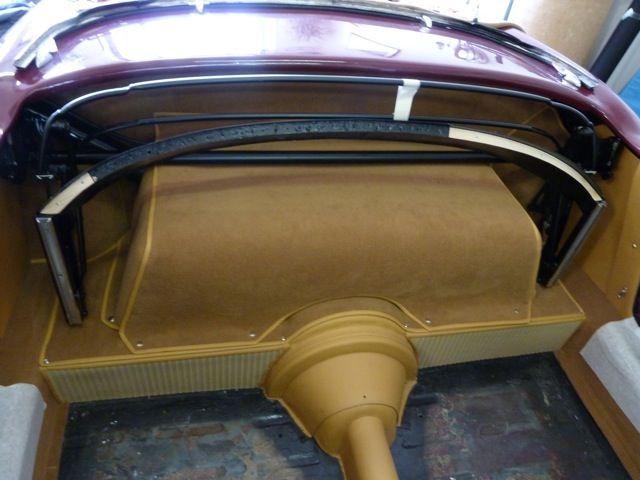

Interior of a vintage car with tan carpet and a dark-colored framework, viewed from the rear.

You see that the ribbed floor rubber is used on the vertical panel

Black convertible top with clear window on a classic car, tan seats.

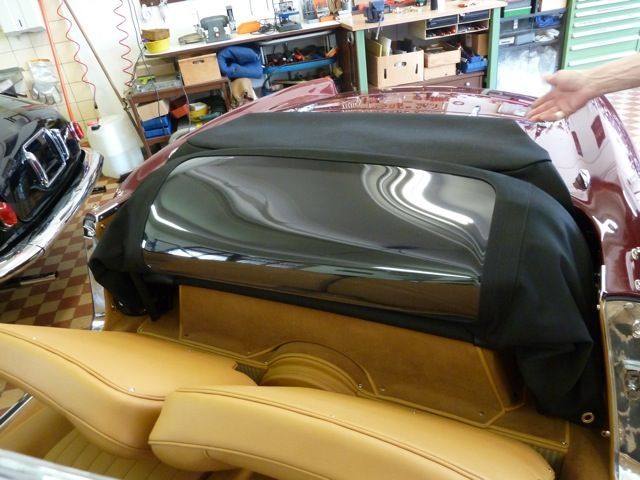

With seats folded back to erect the hood.

Tan leather seats in a maroon vintage convertible with a black top; indoors.

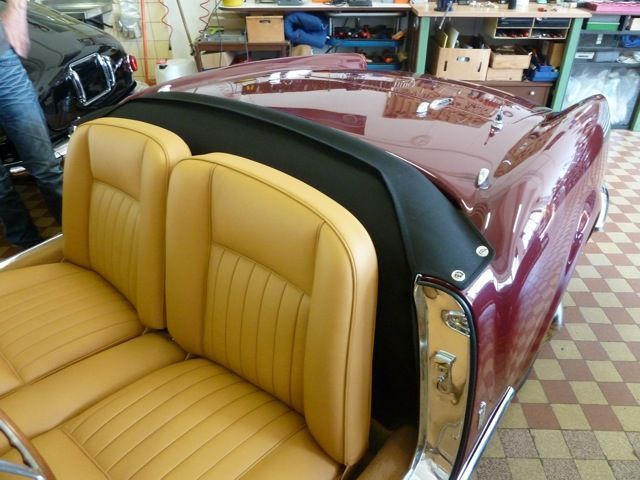

Those 5th series seats are pigs to do right.

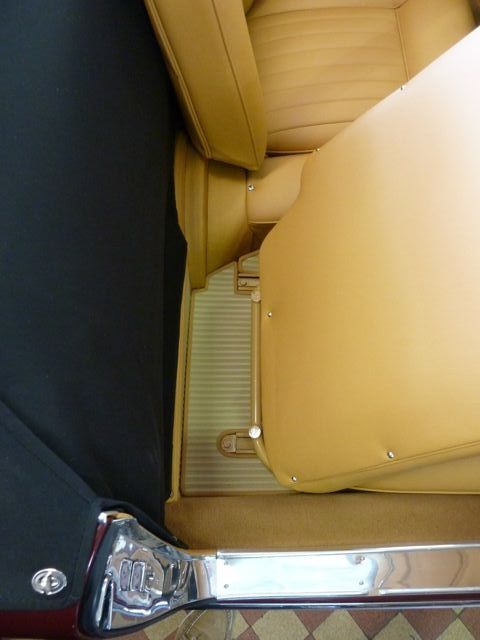

Interior car view of tan leather seats and a black sidewall. Beige floor mat visible.
