Bodyshell, Body Panels & Construction
See also
Main Data & Specifications plus Illustrations of Various Types for pictures of the exterior of the various models
Aurelia B10, B21 & B22

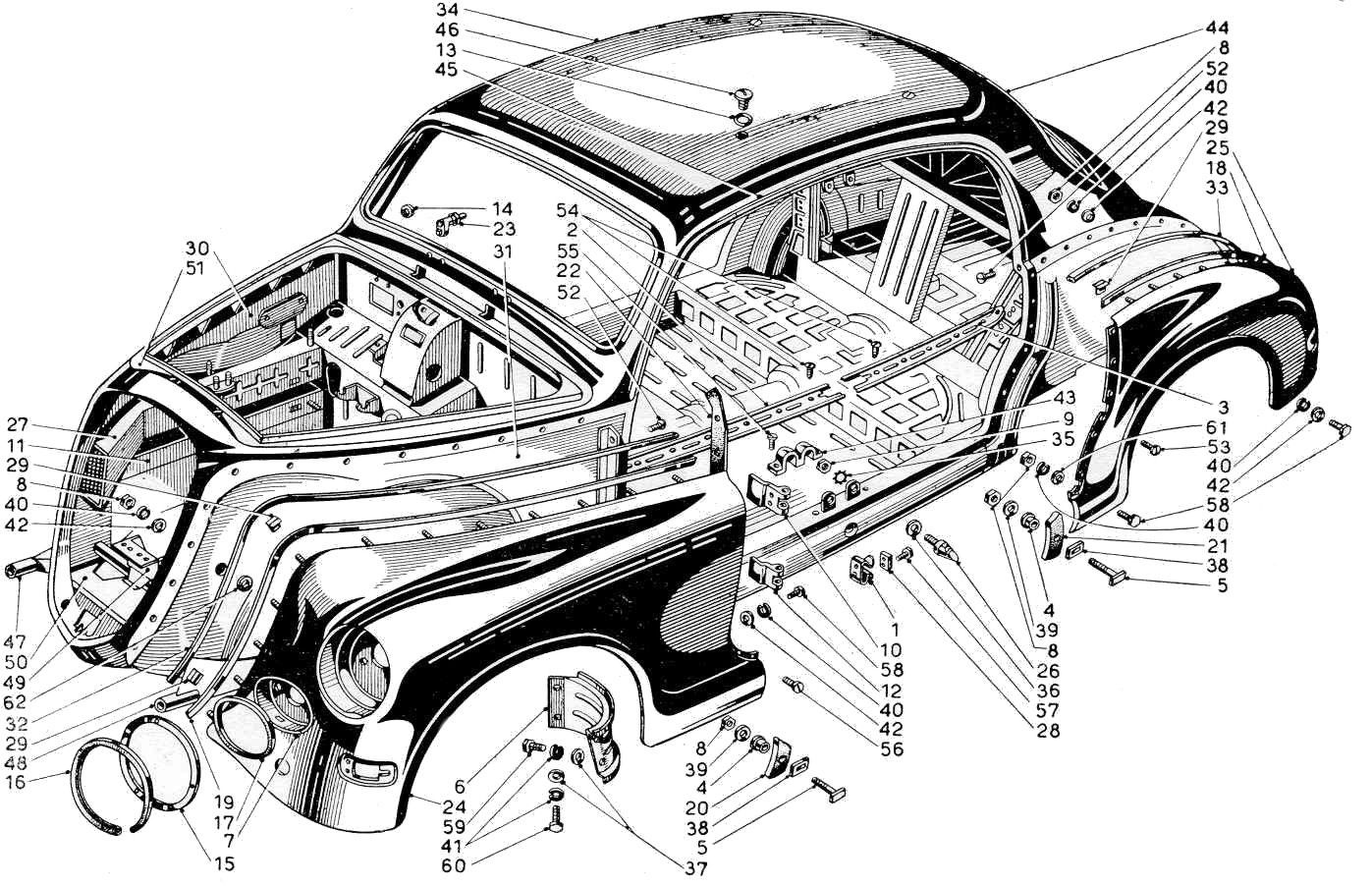

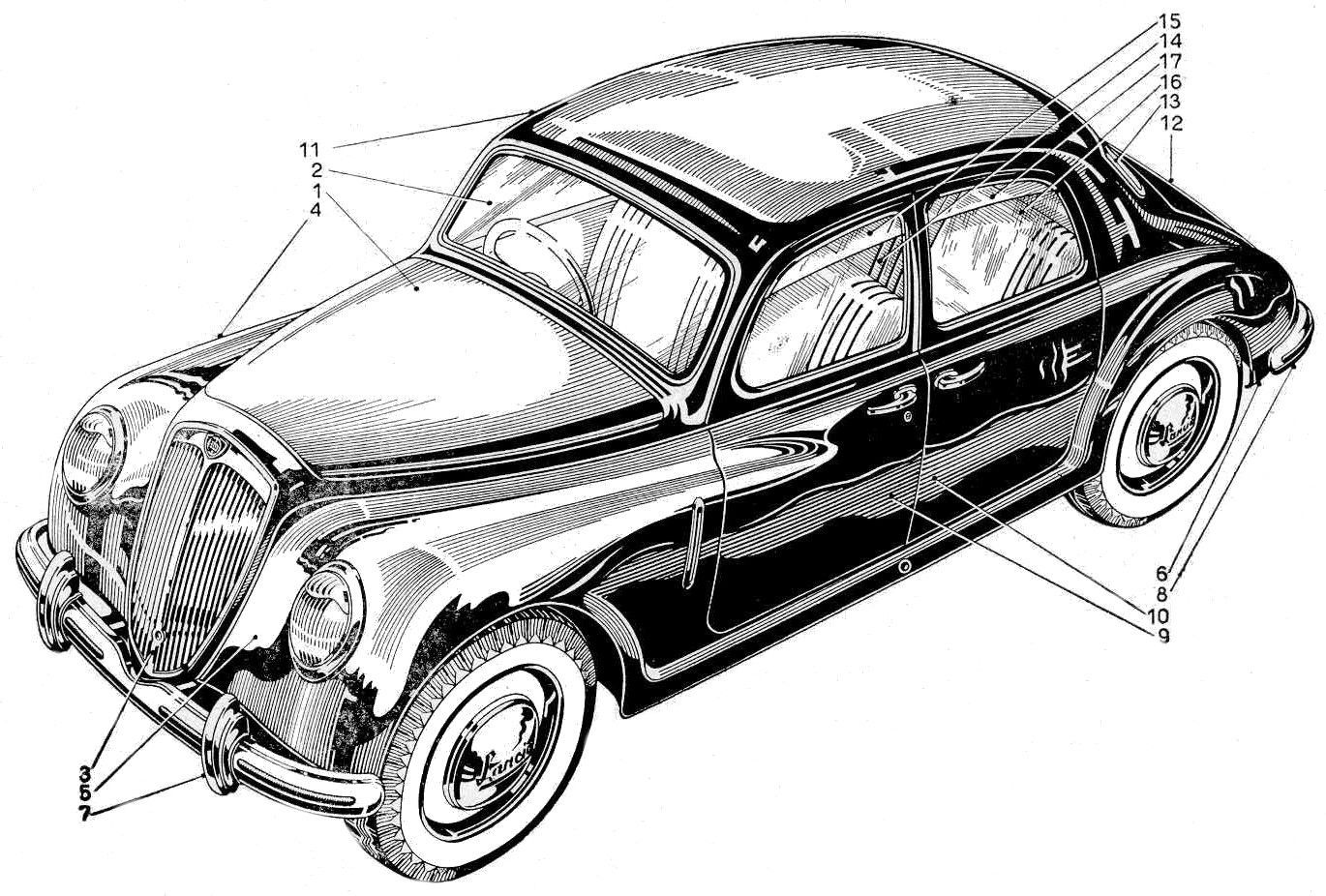

Series I B10, B21, B22 (Tav.58 –SI) – Exterior Panels
Series I B10, B21, B22 (Tav.59 –SI) – Wings & Other External Fittings
Aurelia B12

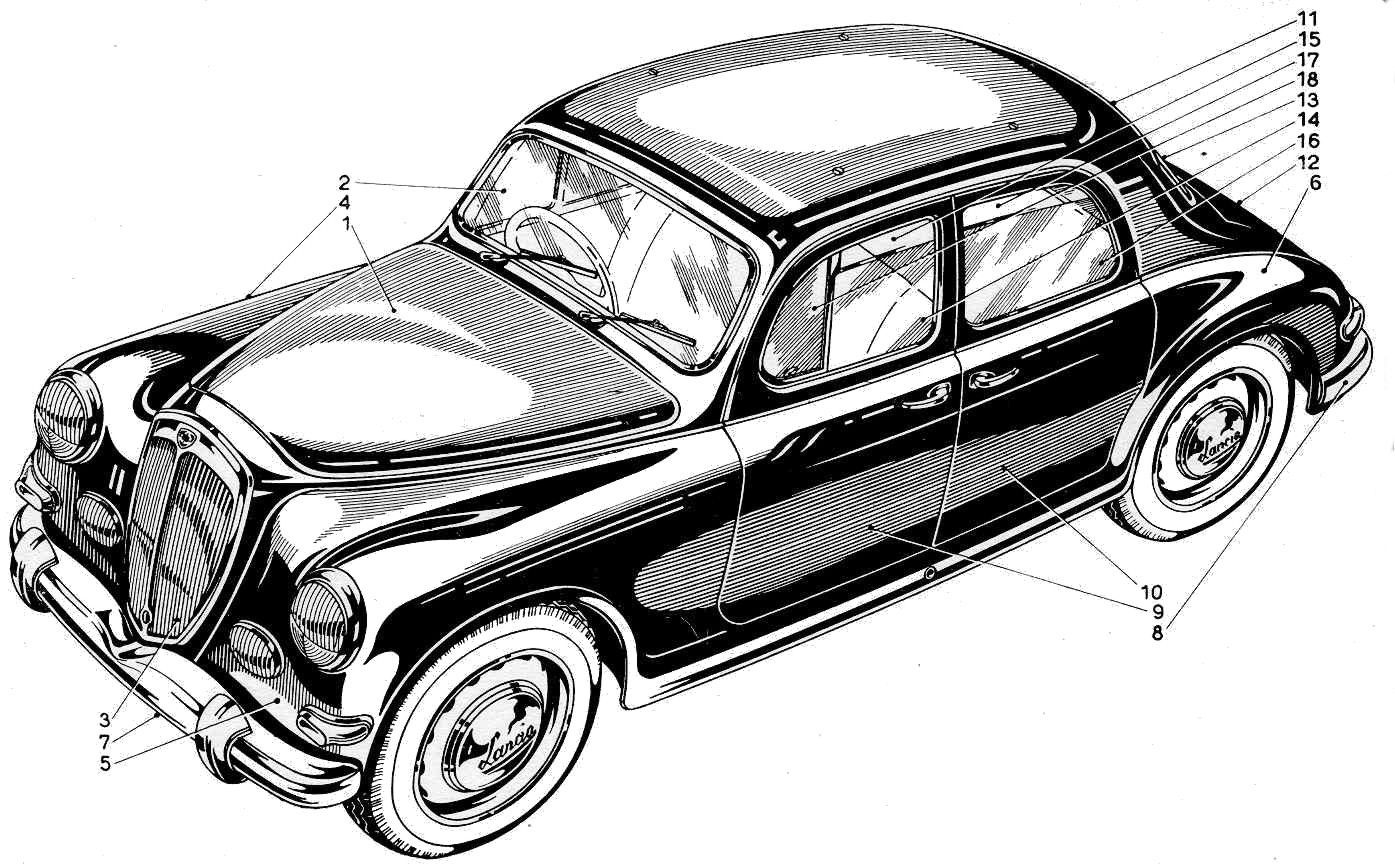

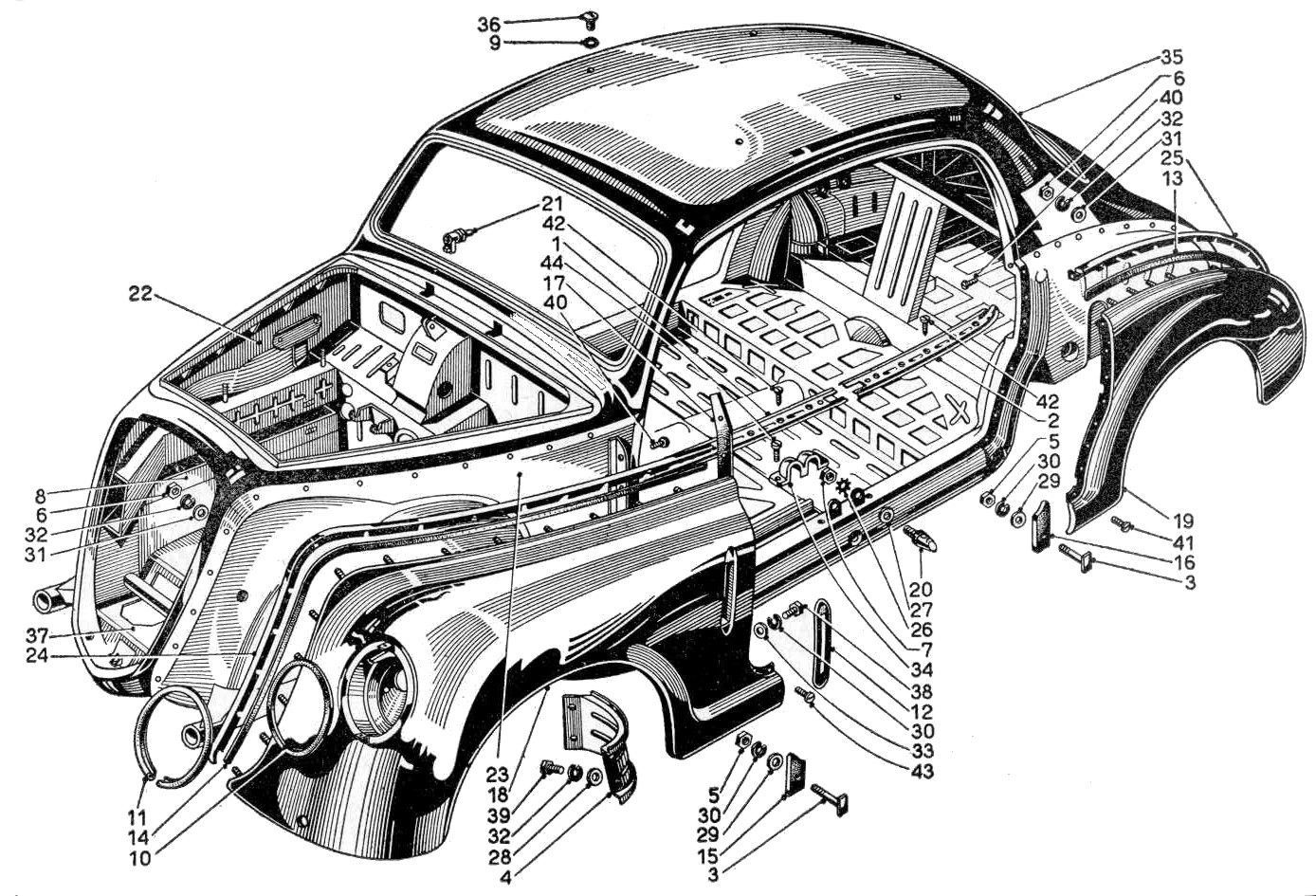

Series II B12 (Tav.59 –SII) – Exterior Panels
Series II B12 (Tav.59 –SII) – Wings & Other External Fittings
Aurelia B50 Series

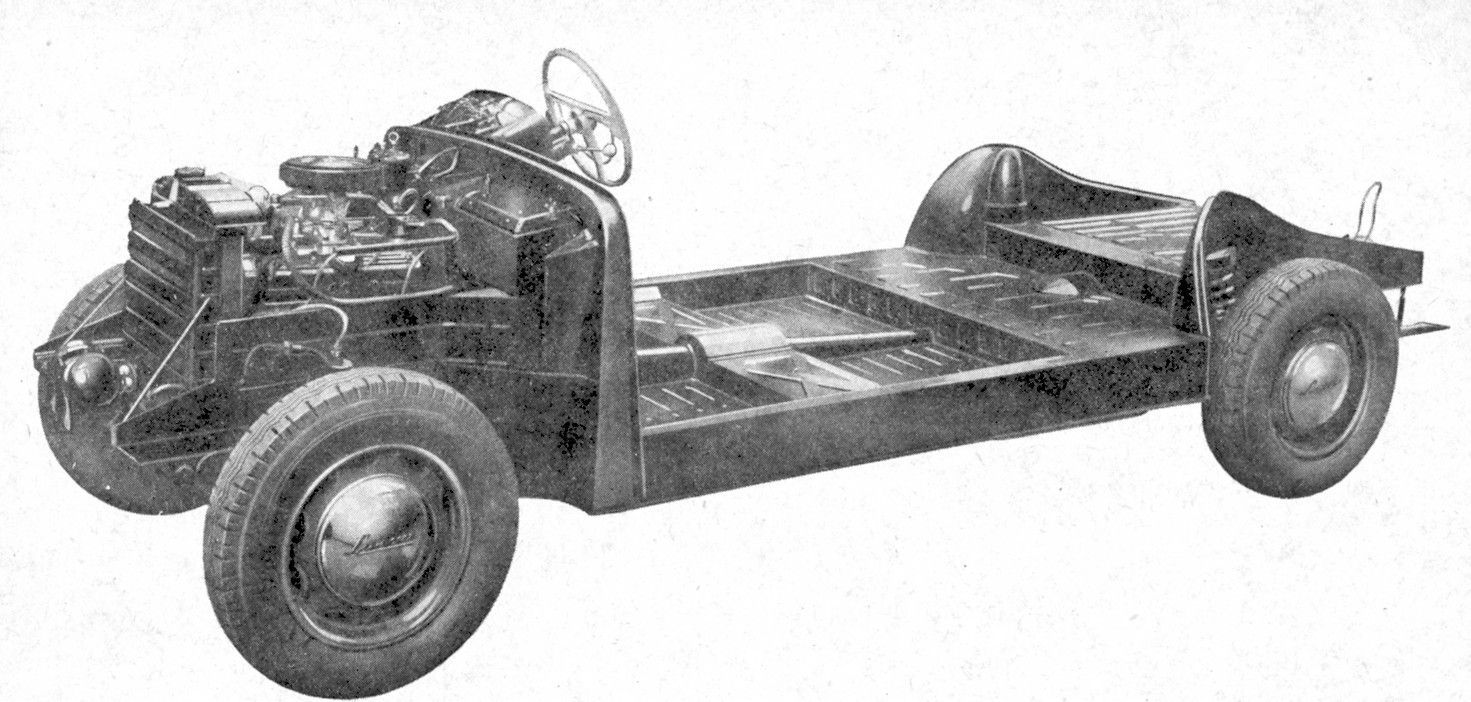

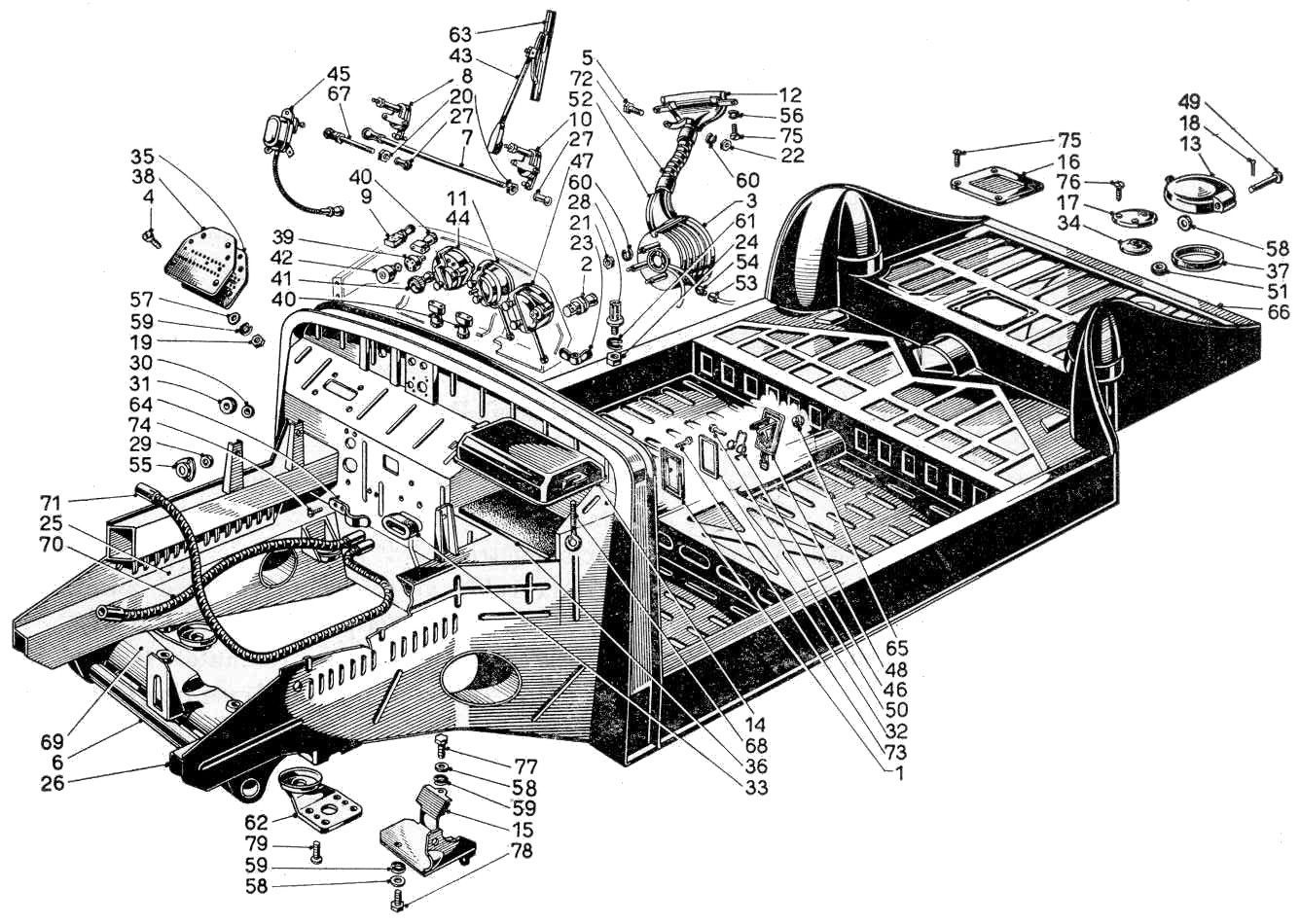

Series I B50 (Tav.71 –SI) – Chassis & Fittings
B50 Series Chassis (from SI SPC)

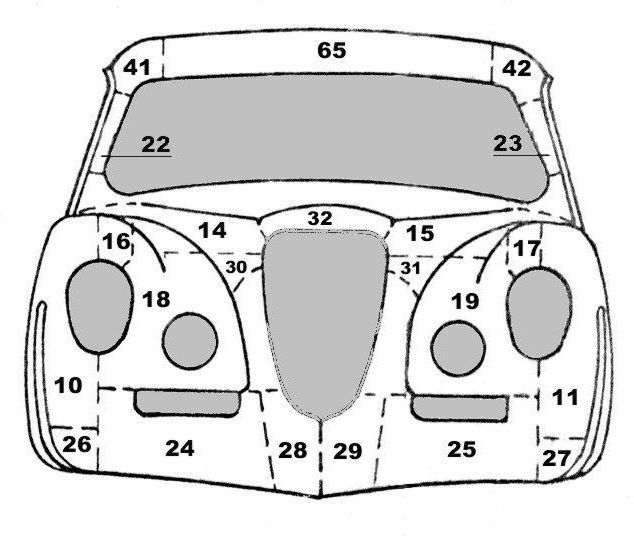

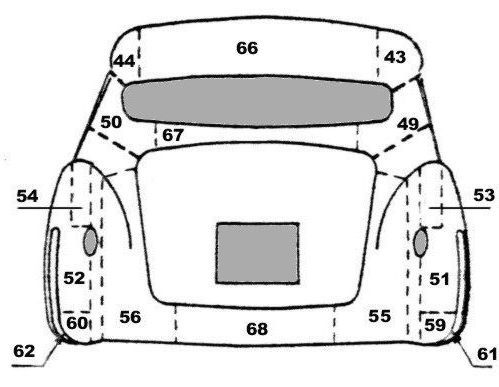

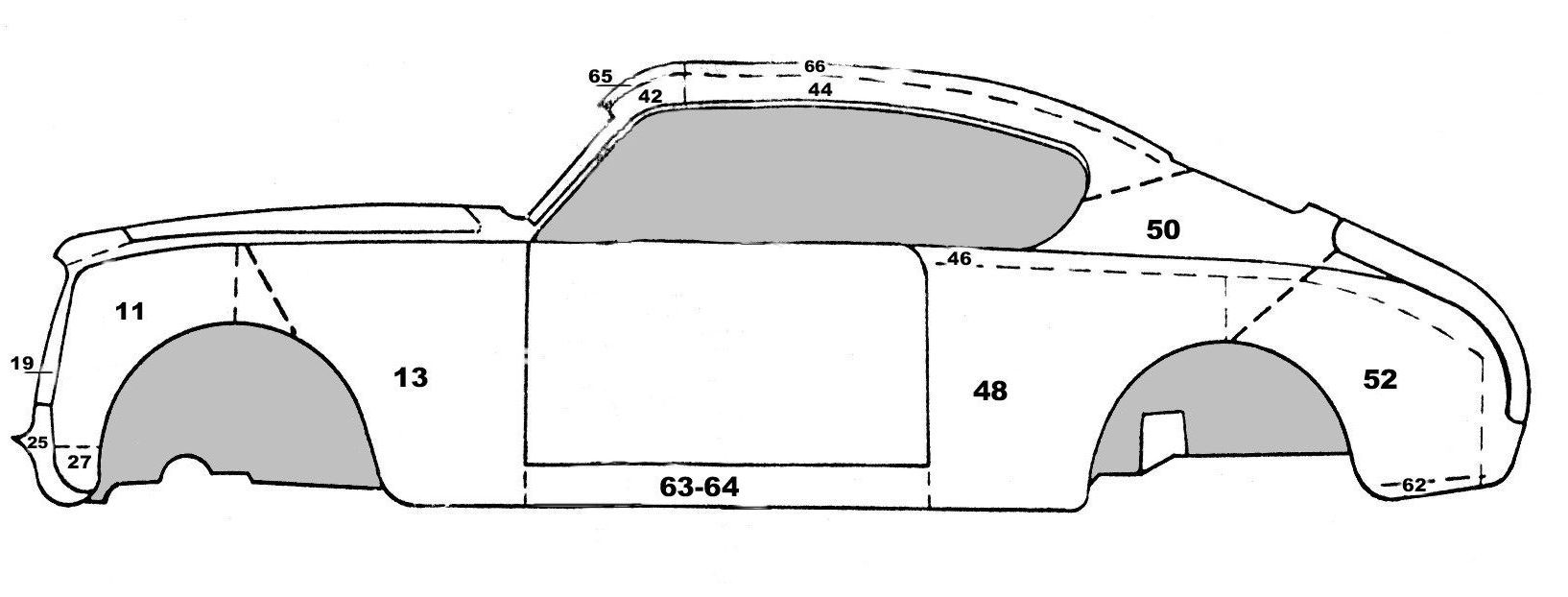

AURELIA GT. B20 up to car B20-2231 – Body Spare Parts Diagram – Sketch 185 I 1/3
AURELIA GT. B20 up to car B20-2231 – Body Spare Parts Diagram – Sketch 185 I 2/3
AURELIA GT. B20 up to car B20-2231 – Body Spare Parts Diagram – Sketch 185 I 3/3

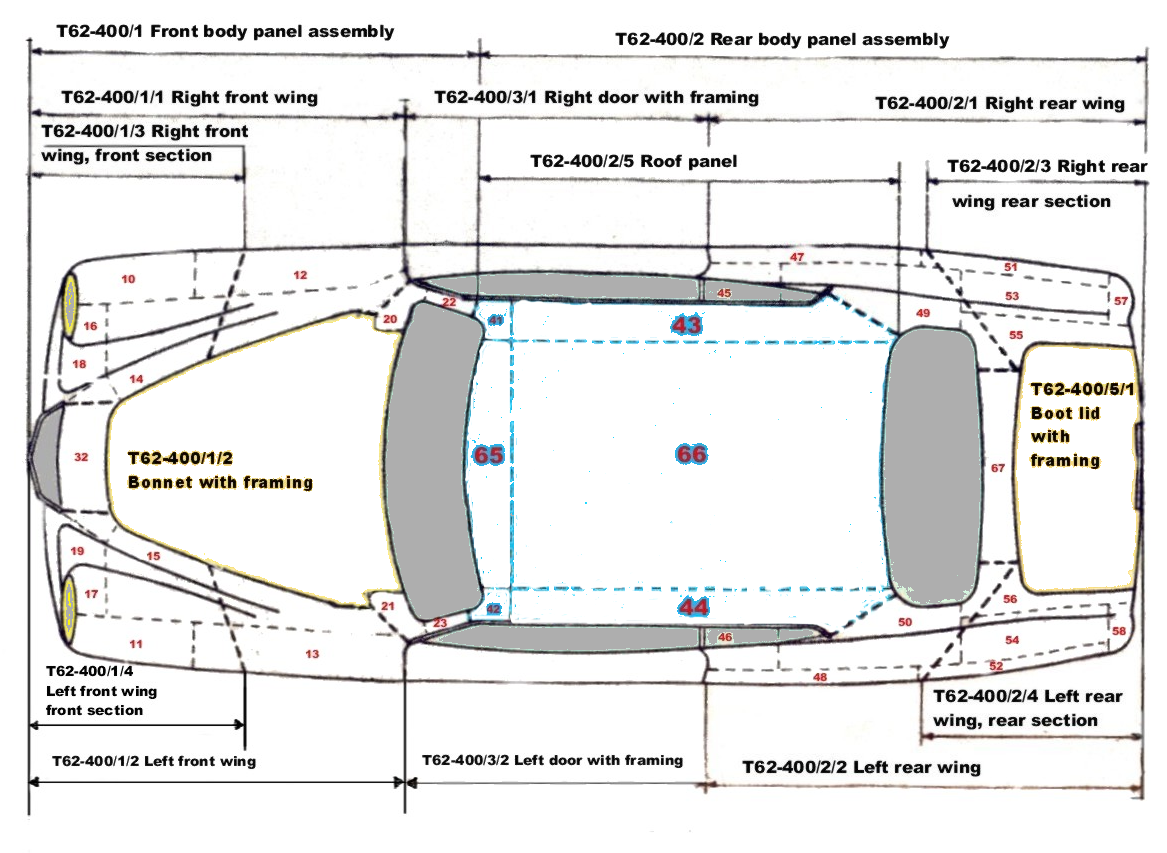

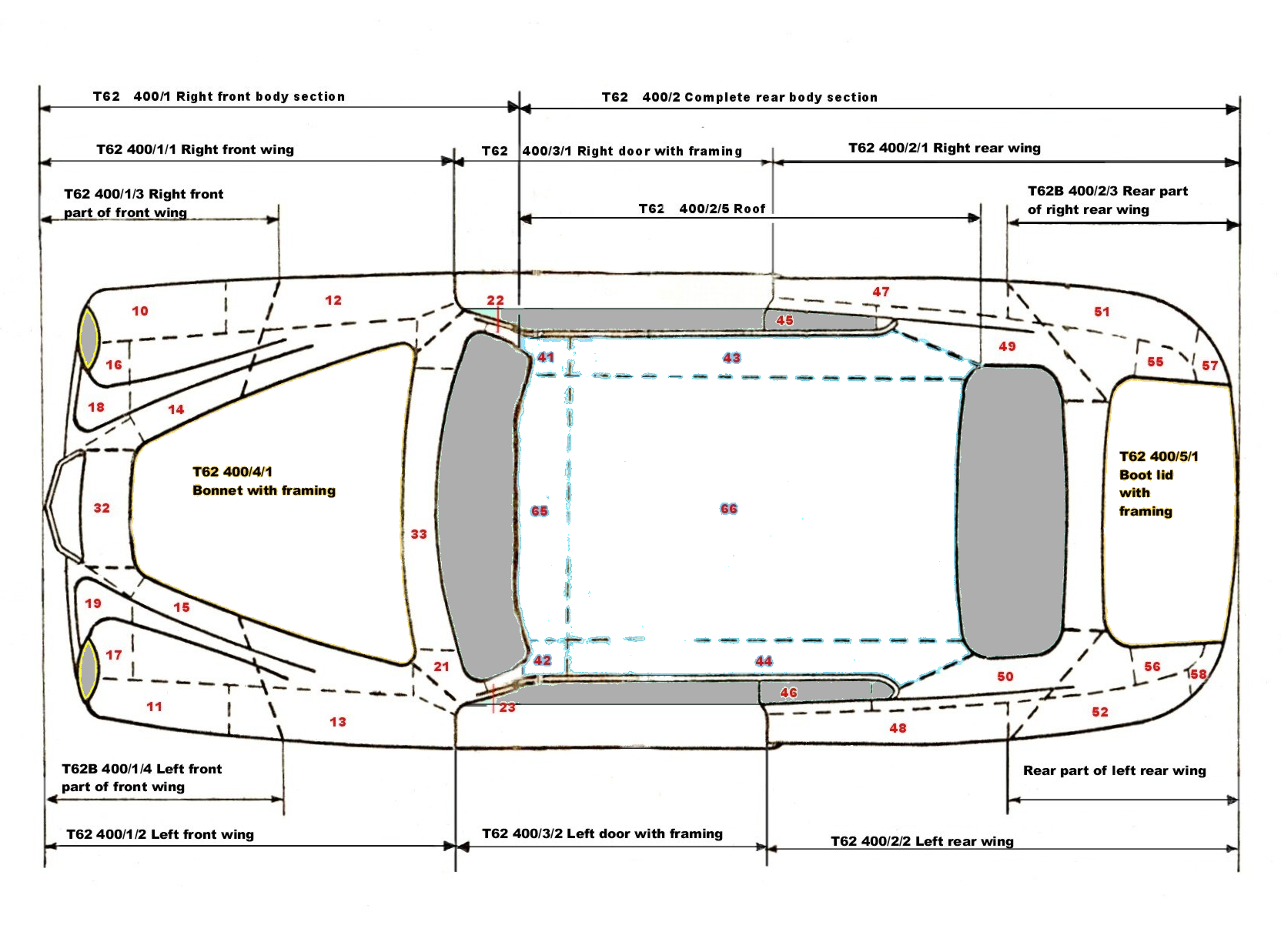

B20 1st Series up to car B20-1500
| Panel Part No. | Description |
|---|---|
| T62-400/1 | Front body panel assembly |
| T62-400/1/1 | Right front wing |
| T62-400/1/2 | Left front wing |
| T62-400/1/3 | Right front wing front portion |
| T62-400/1/4 | Left front wing front portion |
| T62-400/1/10, 11 etc. | Front body panel sections 10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33 |
| T62-400/2 | Rear body panel assembly |
| T62-400/2/1 | Right rear wing |
| T62-400/2/2 | Left rear wing |
| T62-400/2/3 | Right rear wing rear portion |
| T62-400/2/4 | Left rear wing rear portion |
| T62-400-2/5 | Roof panel |
| T62-400/2/41, 42 etc. | Rear body panel sections 41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-63-64-65-66-67-68 |
| T62-400/3/1 | Right door with framing |
| T62-400/3/2 | Left door with framing |
| T62-400/4/1 | Bonnet with framing |
| T62-400/5/1 | Boot lid with framing |
B20 2nd Series from car B20-1501 to 2231
| Panel Part No. | Description |
|---|---|
| T62A-400/1 | Front body panel assembly |
| T62A-400/1/1 | Right front wing |
| T62A-400/1/2 | Left front wing |
| T62A-400/1/3 | Right front wing front portion |
| T62A-400/1/4 | Left front wing front portion |
| T62A-400/1/10, 11 etc. | Front body panel sections 10-11-12-13-14-15-16-17-18-19-20-21-22-23-24-25-26-27-28-29-30-31-32-33 |
| T62A-400/2 | Rear body panel assembly |
| T62A-400/2/1 | Right rear wing |
| T62A-400/2/2 | Left rear wing |
| T62A-400/2/3 | Right rear wing rear portion |
| T62A-400/2/4 | Left rear wing rear portion |
| T62A-400-2/5 | Roof panel |
| T62A-400/2/41, 42 etc. | Rear body panel sections 41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-65-66-67-68 |
| T62-400/2/63, 64 | Rear body panel sections – outer sills 63-64 |
| T62A-400/3/1 | Right door with framing |
| T62A-400/3/2 | Left door with framing |
| T62A-400/4/1 | Bonnet with framing |
| T62A-400/5/1 | Boot lid with framing |

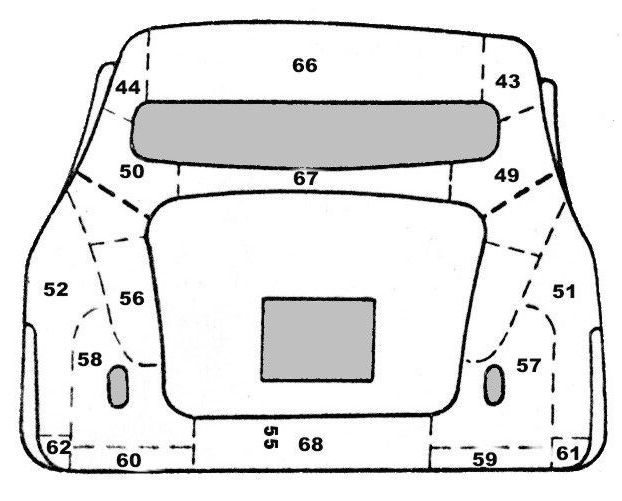

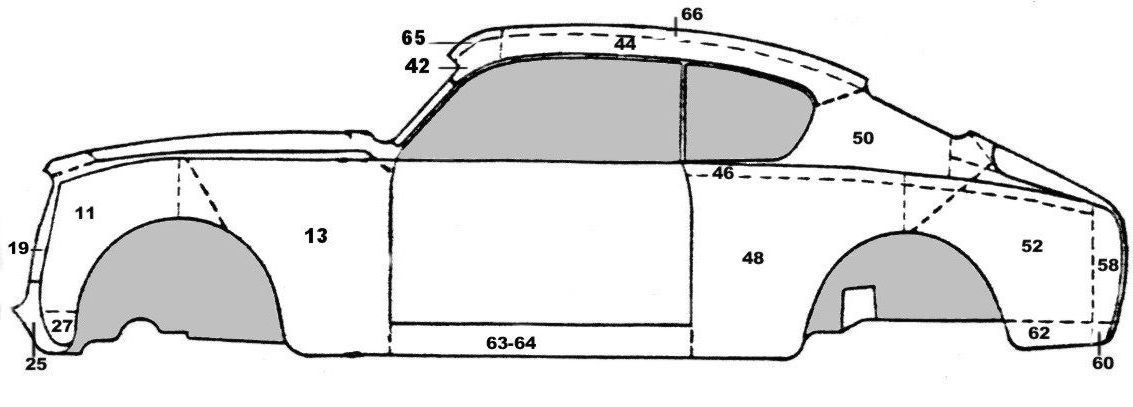

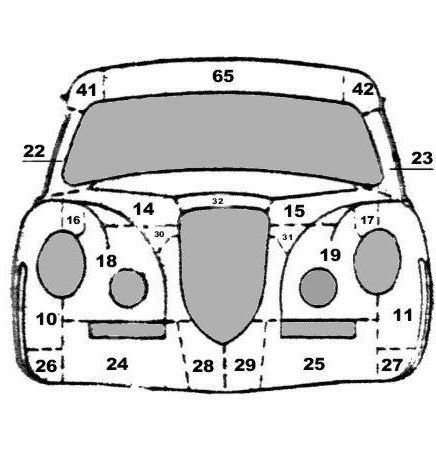

AURELIA GT. B20 from car B20-2232 – Body Spare Parts Diagram – Sketch 239 I 1/4
AURELIA GT. B20 from car B20-2232 – Body Spare Parts Diagram – Sketch 239 I 2 of 4
AURELIA GT. B20 from car B20-2232 – Body Spare Parts Diagram – Sketch 239 I 3 of 4
B20 3rd Series from car B20-2232 to 2951
| Panel Part No. | Description |
|---|---|
| T62B-400/1 | Front body panel assembly |
| T62B-400/1/1 | Right front wing |
| T62B-400/1/2 | Left front wing |
| T62B-400/1/3 | Right front wing front portion |
| T62B-400/1/4 | Left front wing front portion |
| T62B-400/1/10, 11 etc. | Front body panel sections 10-11-12-13-16-17-26-27 |
| T62A-400/1/14, 15 etc. | Front body panel sections 14-15-20-21-22-23-28-29-30-31-32-33 |
| T62B-400/1/18, 19 | Front body panel sections 18-19 |
| T62A-400/1/24, 25 | Front body panel sections 24-25 |
| T62B-400/2 | Rear body panel assembly |
| T62B-400/2/1 | Right rear wing |
| T62B-400/2/2 | Left rear wing |
| T62B-400/2/3 | Right rear wing rear portion |
| T62B-400/2/4 | Left rear wing rear portion |
| T62B-400-2/5 | Roof panel |
| T62B-400/2/41, 42 etc. | Rear body panel sections 41-42-43-44-45-46-47-48-49-50-51-52-53-54-55-56-57-58-59-60-61-62-65-66-67-68 |
| T62-400/2/63, 64 | Rear body panel sections – outer sills 63-64 |
| T62B-400/3/1 | Right door with framing |
| T62B-400/3/2 | Left door with framing |
| T62B-400/4/1 | Bonnet with framing |
| T62B-400/5/1 | Boot lid with framing |
B20 4th Series from car B20-2952 to 3696 & B20S-1001 to 1255
| Panel Part No. | Description | Chassis Nos. |
|---|---|---|
| T62C-400/1 | Front body panel assembly complete | 2952-3059 |
| T62D-400/1 | Front body panel assembly complete | 3060-3696 |
| T62B-400/1/1 | Right front wing | 2952-3059 |
| T62C-400/1/1 | Right front wing | 3060-3696 |
| T62B-400/1/2 | Left front wing | 2952-3059 |
| T62C-400/1/2 | Left front wing | 3060-3696 |
| T62B-400/1/3 | Right front wing front portion | 2952-3059 |
| T62C-400/1/3 | Right front wing front portion | 3060-3696 |
| T62B-400/1/4 | Left front wing front portion | 2952-3059 |
| T62C-400/1/4 | Left front wing front portion | 3060-3696 |
| T62B-400/1/10, 11 etc. | Front body panel sections 10-11-12-13-16-17-26-27 | |
| T62A-400/1/14, 15 etc. | Front body panel sections 14-15-20-21-22-23-28-29-30-31-32-33 | |
| T62B-400/1/18 etc. | Front body panel sections 18-19 | 2952-3059 |
| T62A-400/1/24 etc. | Front body panel sections 24-25 | 2952-3059 |
| T62C-400/1/18 etc. | Front body panel sections 18-19-24-25 | 3060-3696 |
| T62C-400/2 | Rear body panel assembly complete 4th series | |
| T62C-400/2/1 | Right rear wing 4th series | |
| T62C-400/2/2 | Left rear wing 4th series | |
| T62C-400/2/3 | Right rear wing rear portion 4th series | |
| T62C-400/2/4 | Left rear wing rear portion 4th series | |
| T62B-400-2/5 | Roof panel 4th series | |
| T62B-400/2/41 etc. | Rear body panel sections 41-42-43-44-45-46-47-48-49-50-51-52-55-56-59-60-61-62-65-66-67 | |
| T62C-400/2/57 etc. | Rear body panel sections 57-58-68 | |
| T62-400/2/63, 64 | Rear body panel sections – outer sills 63-64 | |
| T62C-400/3/1 | Right door with framing RHD | 2952-3351 |
| T62D-400/3/1 | Right door with framing RHD | 3352-3696 |
| T62C-400/3/2 | Left door with framing RHD | |
| T62S-400/3/1 | Right door with framing LHD | |
| T62S-400/3/2 | Left door with framing LHD | B20S-1001-1100 |
B20 5th & 6th Series from car B20-3696 to 4011 & B20S-1256 to 1860
| Panel Part No. | Description |
|---|---|
| T62D-400/1 | Front body panel assembly complete |
| T62C-400/1/1 | Right front wing |
| T62C-400/1/2 | Left front wing |
| T62C-400/1/3 | Right front wing front portion |
| T62C-400/1/4 | Left front wing front portion |
| T62B-400/1/10 etc. | Front body panel sections 10-11-12-13-16-17-26-27 |
| T62A-400/1/14 etc. | Front body panel sections 14-15-20-21-22-23-28-29-30-31-32-33 |
| T62C-400/1/18 etc. | Front body panel sections 18-19-24-25 |
| T62D-400/2 | Rear body panel assembly complete 5-6th series |
| T62D-400/2/1 | Right rear wing |
| T62D-400/2/2 | Left rear wing |
| T62C-400/2/3 | Right rear wing rear portion |
| T62D-400/2/4 | Left rear wing rear portion |
| T62C-400-2/5 | Roof panel |
| T62B-400/2/41 etc. | Rear body panel sections 41-42-43-44-45-46-47-48-51-52-55-56-59-60-61-62-65 |
| T62C-400/2/57 etc. | Rear body panel sections 57-58 |
| T62D-400/2/43 etc. | Rear body panel sections 43-44-49-50-66-67-68 |
| T62-400/2/63, 64 | Rear body panel sections – outer sills 63-64 |
| T62D-400/3/1 | Right door with framing RHD |
| T62C-400/3/2 | Left door with framing RHD |
| T62S-400/3/1 | Right door with framing LHD |
| T62SA-400/3/2 | Left door with framing LHD |
| T62C-400/4/1 | Bonnet with framing |
| T62D-400/5/1 | Boot lid with framing |
Part T62A-400/1/33 is listed the above tables but does not appear on the diagrams. My guess is that is a small panel at the centre front of the car – to be confirmed.
B20 Panel Compatibility Table
T62 parts are B20 1st series in origin, T62A from 2nd series, T62B from 3rd series, T62C & T62D from 4th series & T62S etc. for other variations.
Apart from the outer sills, parts T62-400/2/63 & 64, which are common to all series, the 1st series B20 cars had no panels identical to later cars. However, a number of panels were unchanged from the 2nd series onwards including 12 sections surrounding the radiator grille, bonnet opening & windscreen pillars. The following table shows the compatibilities.
| Panel Part No. | Description | Chassis Nos. |
|---|---|---|
| T62B-400/1 | Front body panel assembly complete - 3rd series | 2232-2951 |
| T62C-400/1 | Front body panel assembly complete - early 4th | 2952-3059 |
| T62D-400/1 | Front body panel assembly complete - late 4th, 5th, 6th series | 3060-4011 |
| T62A-400/1/14 etc. | Front body panel sections 14-15-20-21-22-23-28-29-30-31-32-33 - 2nd to 6th series | 1501-4011 |
| T62A-400/1/24 etc. | Front body panel sections 24-25 - 2nd, 3rd& early 4th | 1501-3059 |
| T62B-400/1/10 etc. | Front body panel sections 10-11-12-13-16-17-26-27 - 3rd to 6th | 2232-4011 |
| T62B-400/1/18 etc. | Front body panel sections 18-19, 3rd& early 4th | 2231-3059 |
| T62C-400/1/18 etc. | Front body panel sections 18-19-24-25 - late 4th, 5th& 6th | 3060-4011 |
| T62B-400/1/1 | Right front wing complete – 3rd& early 4th series | 2232-3059 |
| T62C-400/1/1 | Right front wing complete – late 4th, 5th& 6th series | 3060-4011 |
| T62B-400/1/3 | Right front wing front portion – 3rd& early 4th | 2232-3059 |
| T62C-400/1/3 | Right front wing front portion – late 4th, 5th& 6th | 3060-4011 |
| T62B-400/1/2 | Left front wing – 3rd& early 4th | 2232-3059 |
| T62C-400/1/2 | Left front wing – late 4th, 5th& 6th | 3060-4011 |
| T62B-400/1/4 | Left front wing front portion – 3rd& early 4th | 2232-3059 |
| T62C-400/1/4 | Left front wing front portion – late 4th, 5th& 6th | 3060-4011 |
| T62B-400/2 | Rear body panel assembly complete 3rd series | 2232-2951 |
| T62C-400/2 | Rear body panel assembly complete 4th series | 2952-3696 |
| T62D-400/2 | Rear body panel assembly complete 5-6th series | 3697-4011 |
| T62B-400/2/41 etc. | Rear body panel sections 41-42-43-44-45-46-47-48-51-52-55-56-59-60-61-62-65 – 3rd to 6th series | 2232-4011 |
| T62D-400/2/43 etc. | Rear body panel sections 43-44-49-50-66-67-68 - 5th& 6th | 3697-4011, S1001-1860 |
| T62B-400/2/49 etc. | Rear body panel sections 49-50-66-67 - 3rd& 4th series | 2232-3696 |
| T62C-400/2/57 etc. | Rear body panel sections 57-58 – 4th to 6th series | 2952-4011 |
| T62B-400/2/57 etc. | Rear body panel sections 57-58-68 – 3rd series | 2232-2951 |
| T62C-400/2/68 | Rear body panel sections 68 – 4th series only – the rear valance containing hole for reversing light | 2952-3696 |
| T62-400/2/63, 64 | Side body panel sections – outer sills 63-64 | All B20 cars |
| T62B-400/2/1 | Right rear wing 3rd series | 2232-2951 |
| T62C-400/2/1 | Right rear wing 4th series | 2952-3696 |
| T62D-400/2/1 | Right rear wing 5-6th series | 3697-4011 |

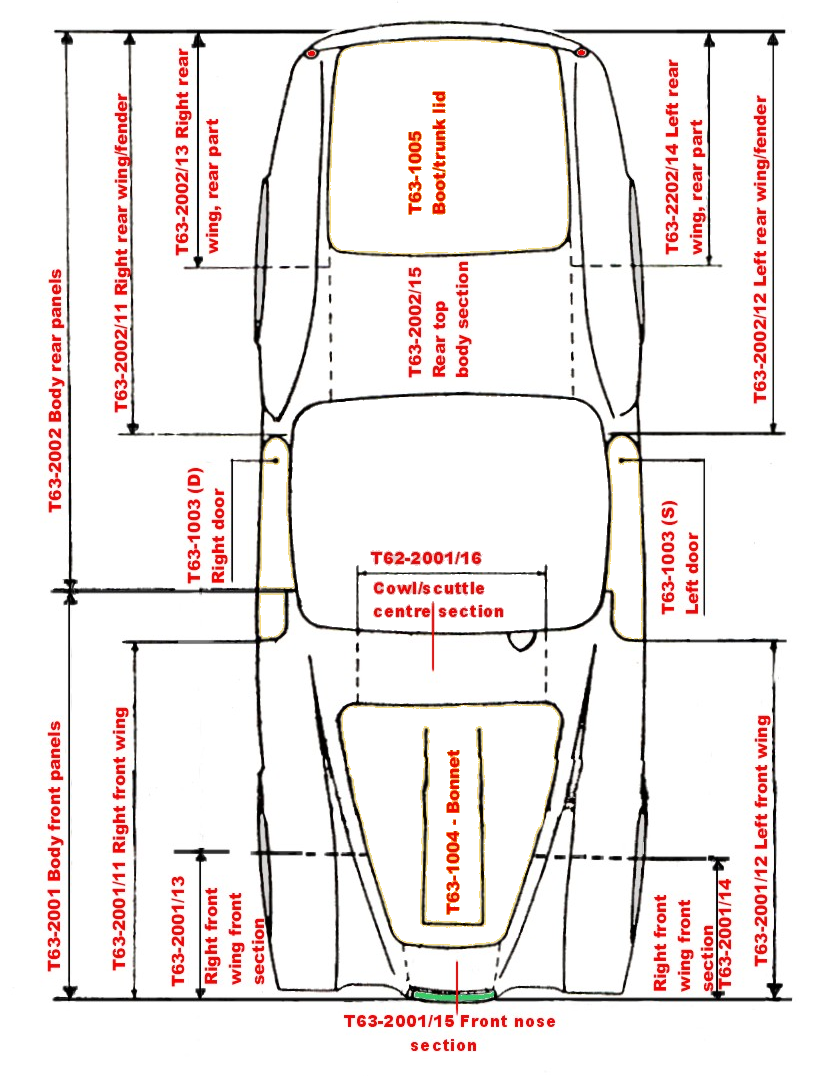

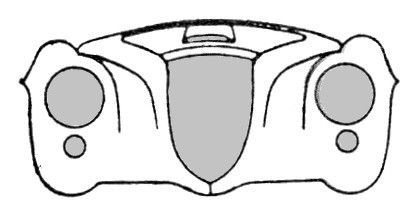

AURELIA B24 Spider & Convertible – Body Spare Parts Diagram – Sketch 399 I 1/2
AURELIA B24 Spider & Convertible – Body Spare Parts Diagram – Sketch 399 I 2/2
| Panel Part No. for Spider B24-1001 to 1059 & B24S-1001 to 1181 | Description | Panel Part No. for Convertible B24S-1182 to 1702 |
|---|---|---|
| T63-2001 | Front body panel assembly RHD | T63II-2001 |
| T63S-2001 | Front body panel assembly LHD | T63IIS-2001 |
| T63-2001/11 | Right front wing | T63II-2001/11 |
| T63-2001/12 | Left front wing | T63II-2001/12 |
| T63-2001/13 | Right front wing front portion | T63II-2001/13 |
| T63-2001/14 | Left front wing front portion | T63II-2001/14 |
| T63-2001/15 | Front nose section | T63II-2001/15 |
| T63-2001/16 | Front body cowl/scuttle section RHD | T63II-2001/16 |
| T63S-2001/16 | Front body cowl/scuttle section LHD | T63IIS-2001/16 |
| T63-2002 | Rear body panel assembly | T63II-2002 |
| T63-2002/11 | Right rear wing | T63II-2002/11 |
| T63-2002/12 | Left rear wing | T63II-2002/12 |
| T63-2002/13 | Right rear wing rear portion | T63II-2002/13 |
| T63-2002/14 | Left rear wing rear portion | T63II-2002/14 |
| T63-2002/15 | Rear top body section | T63II-2002/15 |
| T63-2002/16 | Rear apron/valance | T63-2002/16 |

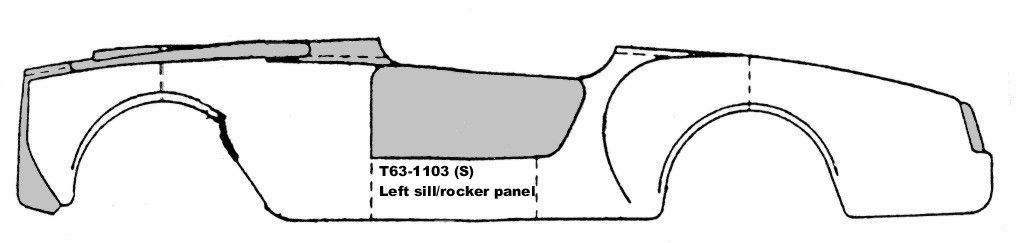

| T63-1103 (D) | Right rocker panel/sill | T63II-1103 (D) |
| T63-1103 (S) | Left rocker panel/sill | T63II-1103 (S) |
| T63-1003 (D) | Right door | T63II-1003 (D) |
| T63-1003 (S) | Left door | T63II-1003 (S) |
| T63-1004 | Bonnet/hood | T63II-1004 |
| T63-1005 | Boot/trunk lid | T63II-1005 |
