4. Front Suspension  /  Tool List and Illustrations

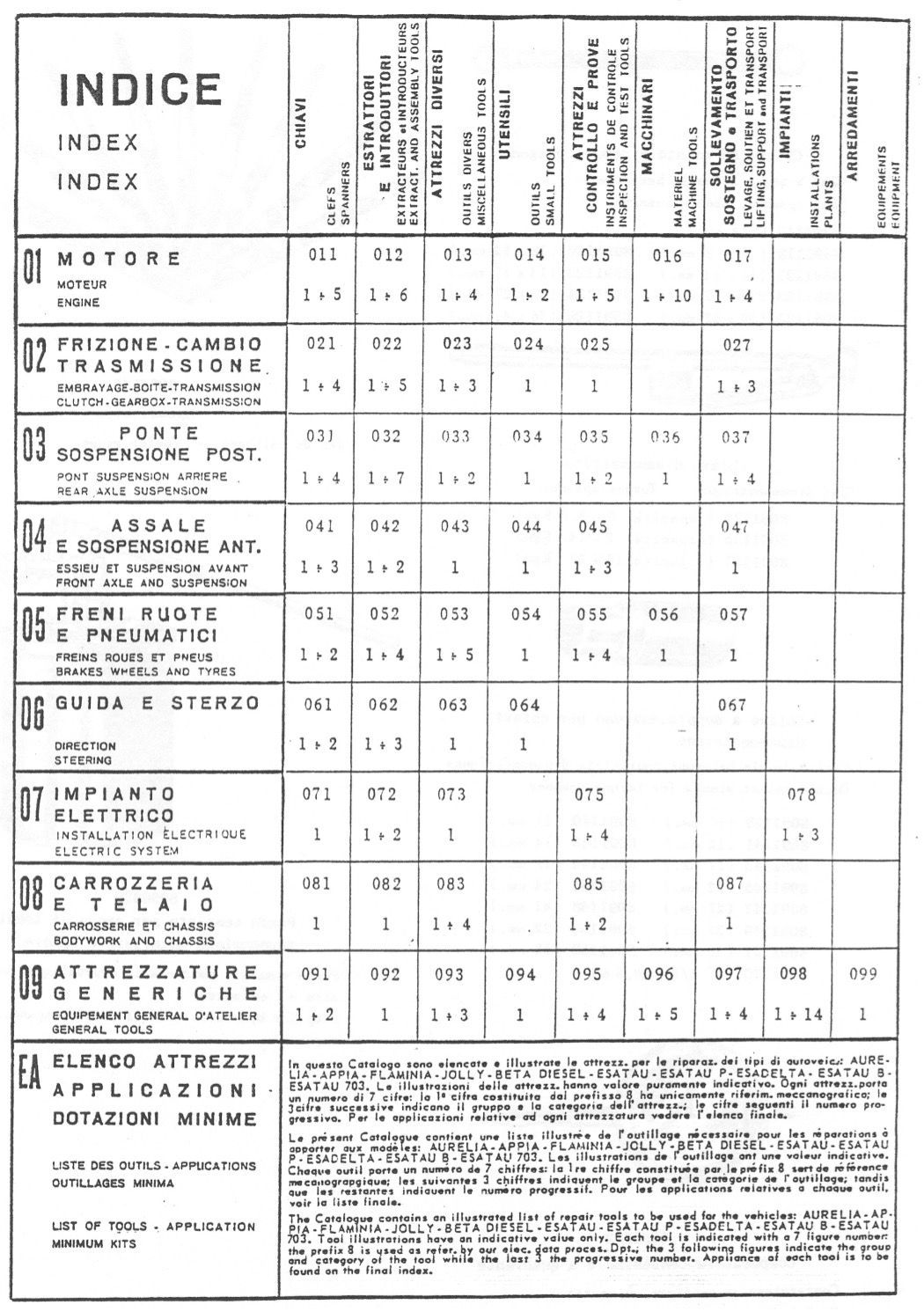

A full list of tools & illustrations is available in the publication Repair Tool Catalogue for Repair Workshops, Lancia & C., Torino, SAT Stampato 8798851 - Quarta edizione (I-1961-2000). This publication can be supplied but is already available on CD from the viva-lancia.com website.

A black and white page with the word indice on it

Amongst many desirable special tools the following may be needed for maintenance & overhaul.


The tools mentioned in Section 00.6 on the tightening of the cylinder heads are described below.

8021070 Wrench - cylinder head (Sketch 416) From B20 n3697, B20S n1256, B24 n1060 & B24S 1182
8041122 Spanner (Sketch 416). From B20 n3697 * B20S n1256
8091134 0 to 3.5 kg or 0 to 34 N.m. torque wrench - cylinder head (Sketch 416)
8091135 2 to14 kg or 20 to 137 N.m. torque wrench - cylinder head (Sketch 416)
8091137 8 to 30 kg or 78 to 294 N.m. torque wrench - cylinder head (Sketches 387, 416)
8091139 10mm Bihex. socket (Sketch 416)
8091140 11mm Bihex. socket Sketch 416)
8091142 14mm Bihex. socket for brake back plates (Sketch 416)
8091143 17mm Bihex. socket (Sketch 416)
8091147 Fixture to reassemble rear hubs 27mm (Sketch 416)
8091148 41mm Bihex. socket (Sketch 416)
8091149 30mm Bihex. socket (Sketch 416)
Note 1 After tightening the nuts to the required torque, bring one slot of the nut in line with the first available cotter pin hole.
Note 2 This torque applies to wrench 8021070 only (effective torque = 108.5 lbs. ft or 147.1 N.m.)
Note 3 The tightening of the screws and nuts with torque spanner should be done with dry threads and seats, which should be thoroughly clean.

Other Tools of use on Engine as follows:

Tool Type - Application Size Reference and Section in Manual
Spanner 10x11 mm
Socket 21 mm
Socket 14 mm
Piston ring installer 60 to 100 mm
Reamer 21.5 to 23.75 mm
Reamer 19.75 to 21.5
Feeler gauges
Piston ring gap gauges Between 72 & 79 mm
Water tightness of block Sketch 478
Fuel level checking fixture Sketch 33 & 1123
Carburettor checks - Except B20 series 4-6, B24 Sketch 33
Carburettor checks - Except B20 & B24 Sketch 33
Carburettor checks - B20 series 1 & 2 only Sketch 33
Carburettor checks - B22 & B20 series 4-6, B24 Sketch 33
Fixture for carburettor air leaks Sketch 1123
Bolt for 8015350 Sketch 33, 1123
Carburettor checking fixture Sketch 1123
Container for carburettor checks Sketch 33
Adapter Sketch 1123
Carburettor jet delivery Sketch 1123
Outfit for carburettor checking Sketch 1123
Piston ring wall pressure Sketch 125, 222, 262, 274, 334, 335
Portable borer Sketch 478
Portable borer Sketch 478
See tool 8016300 Grinding tool - B20/B24 5th-6th series 59-85 mm Sketch 478
