Factory Publications
Parts Books: 'Catalogo Parti de Ricambio'

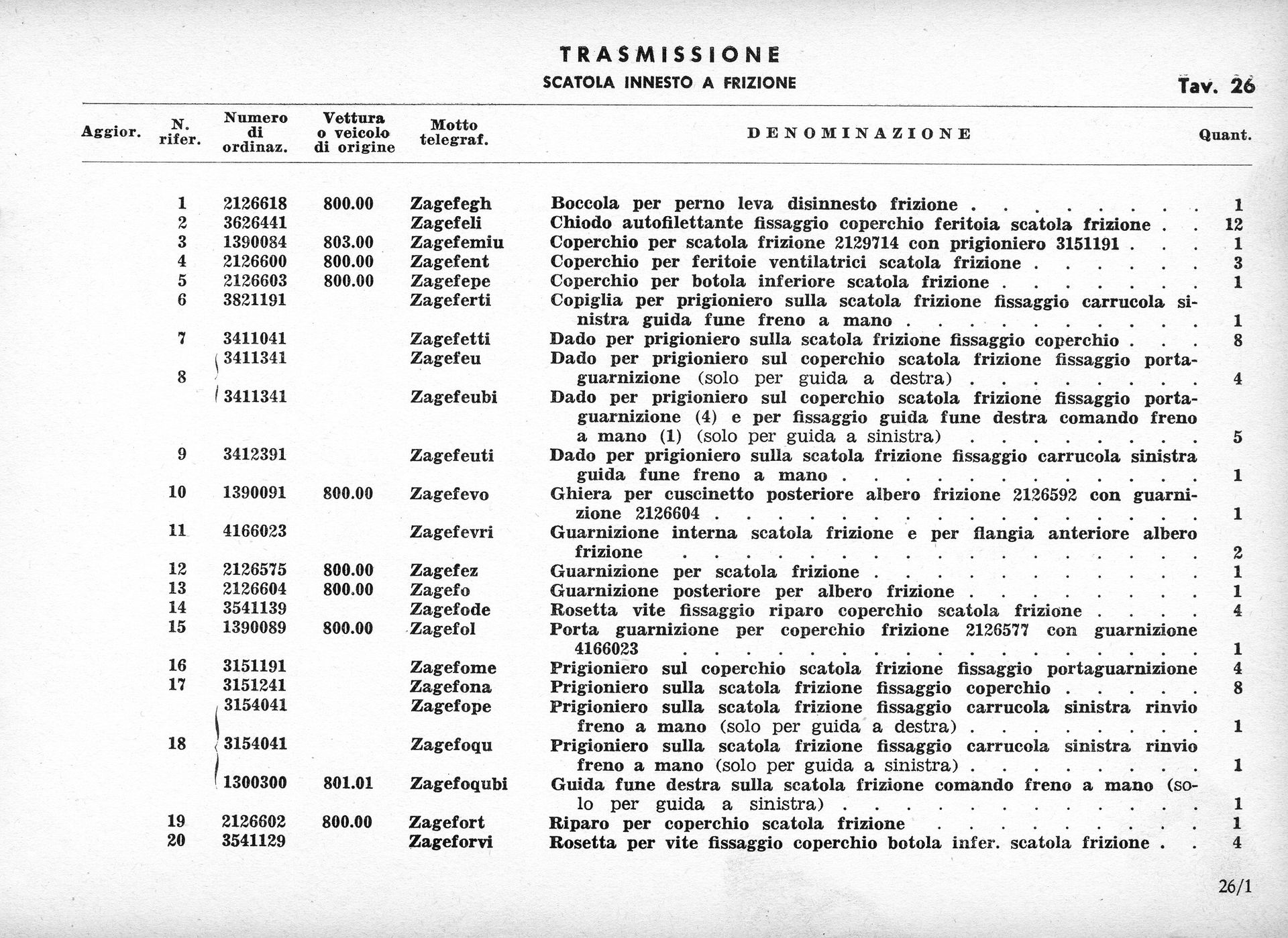

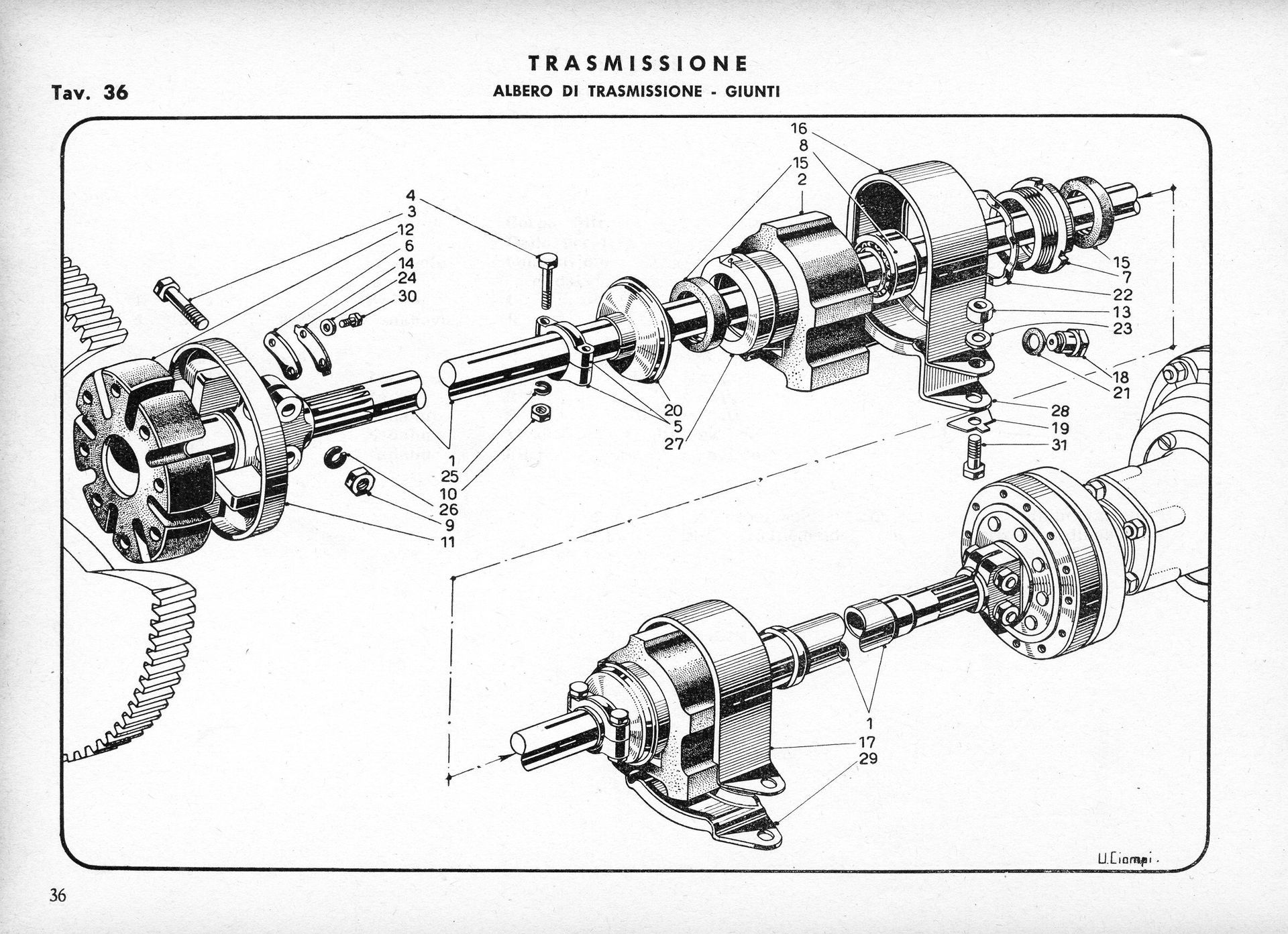

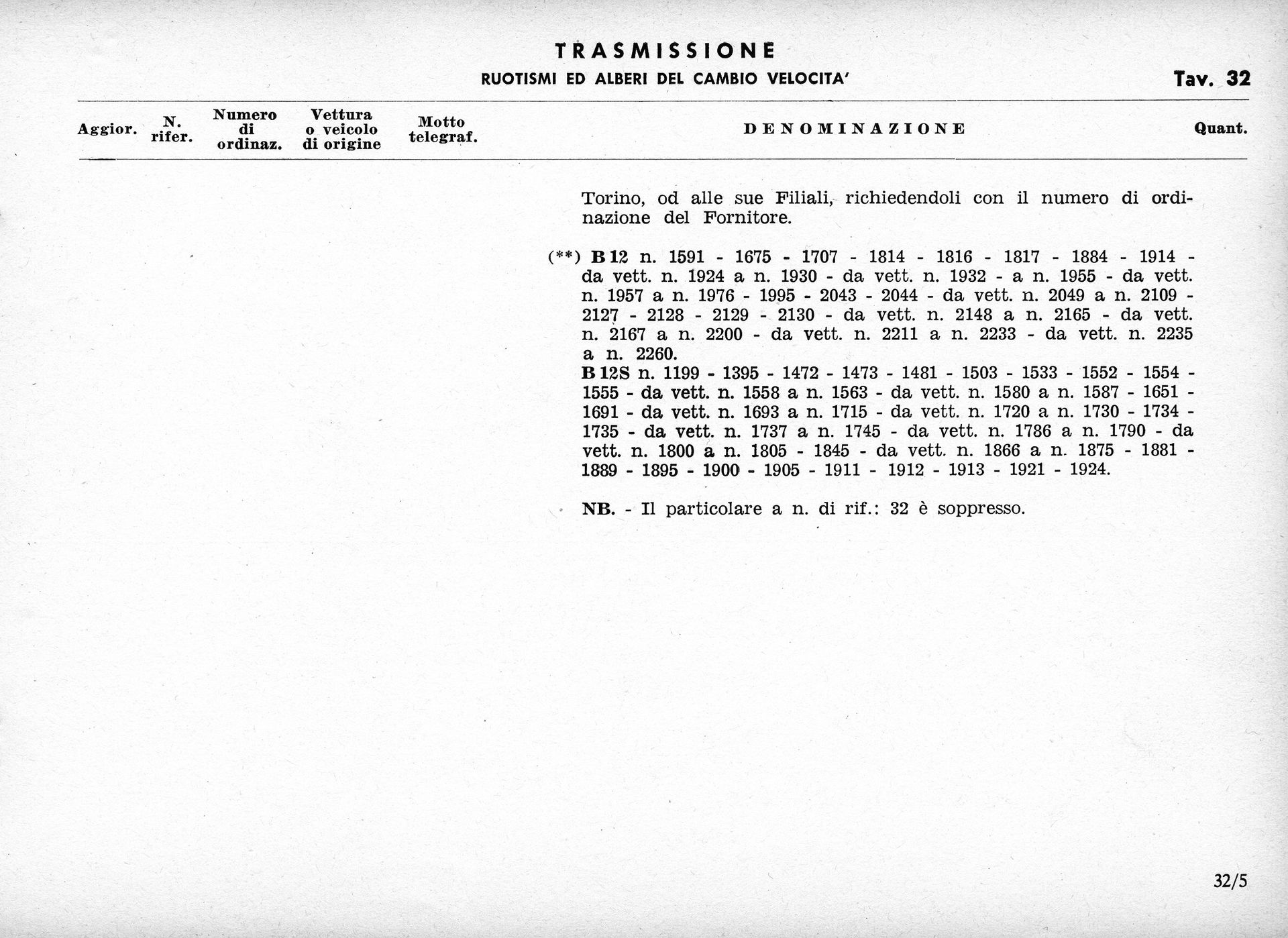

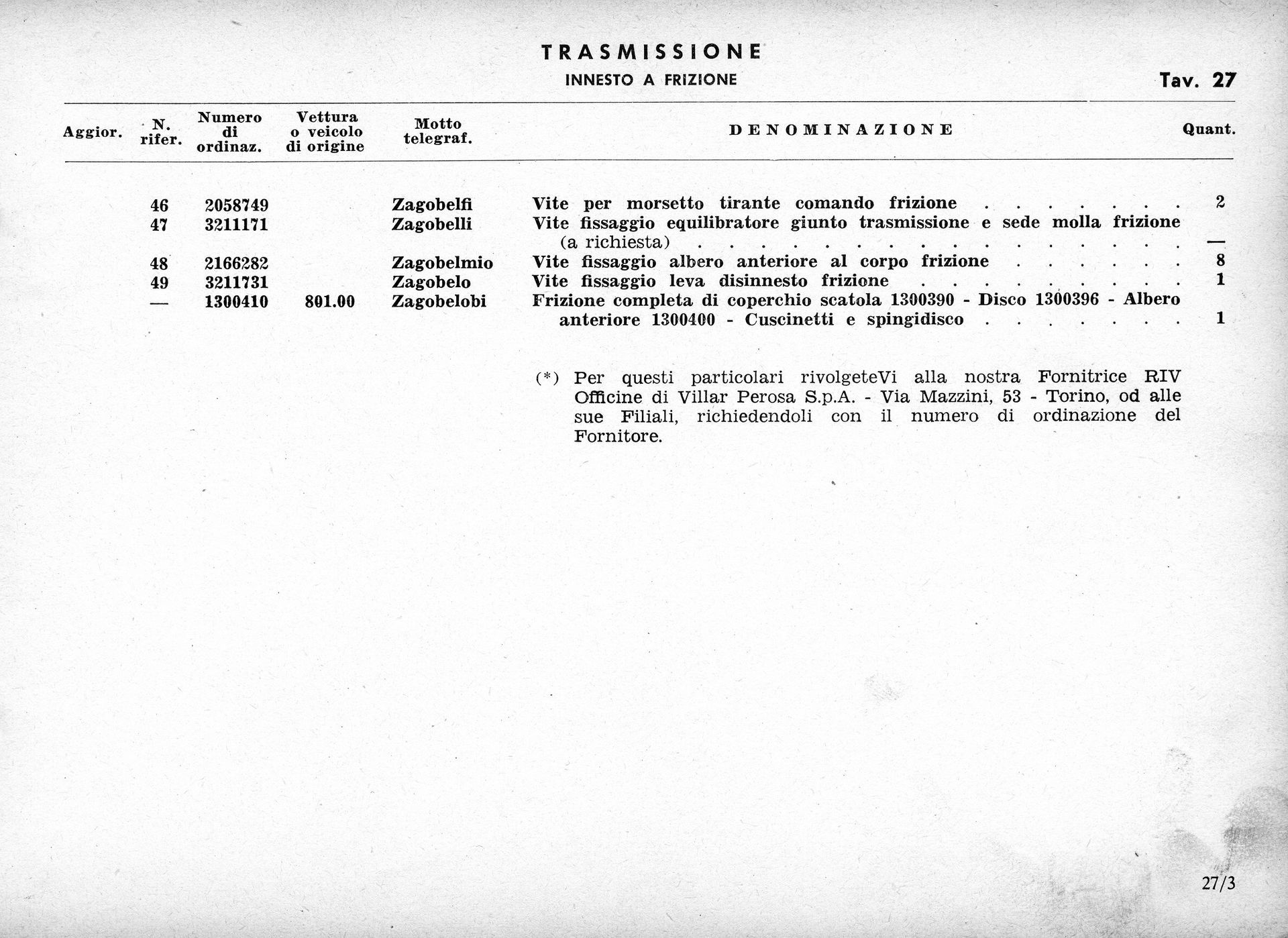

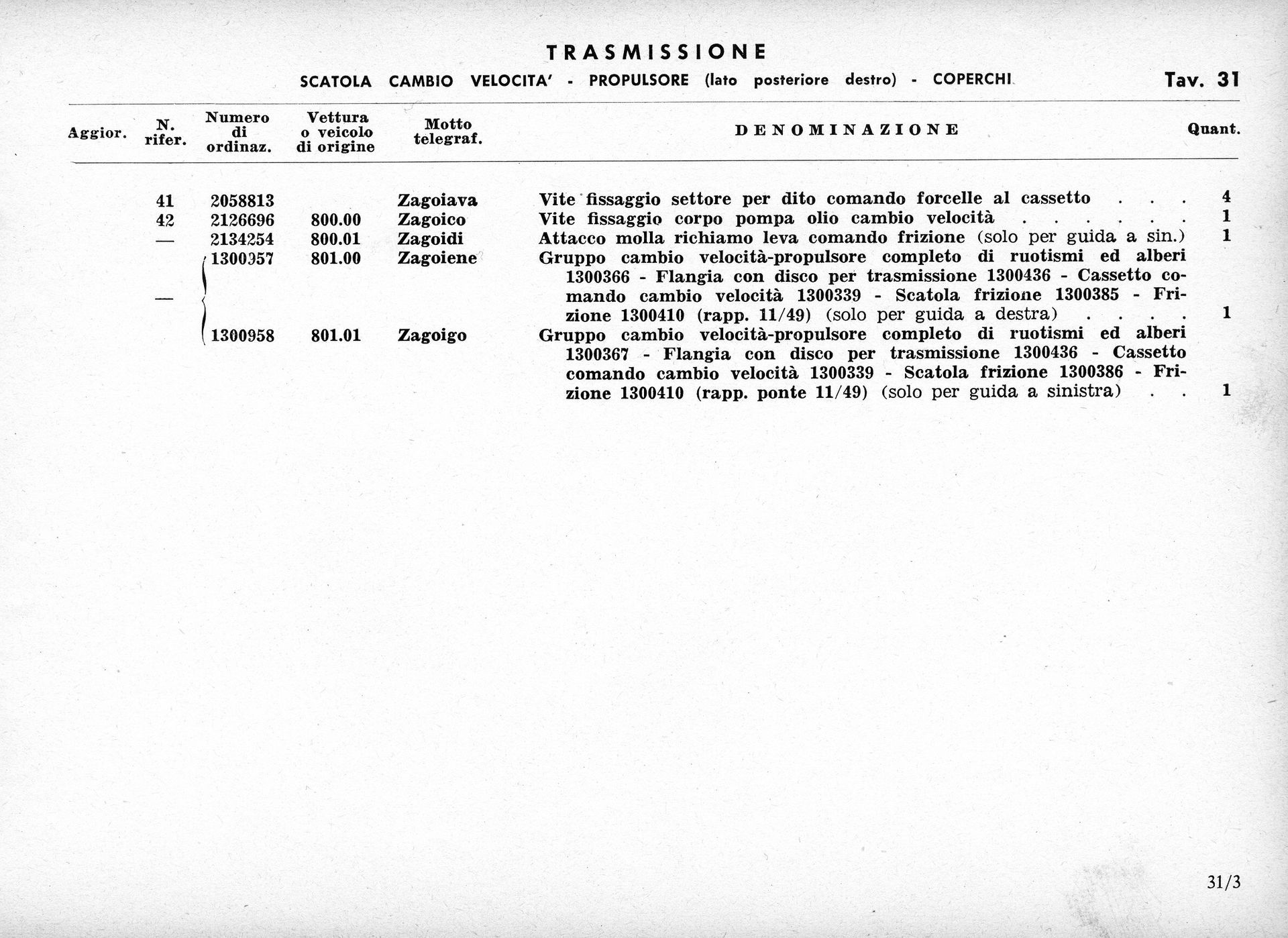

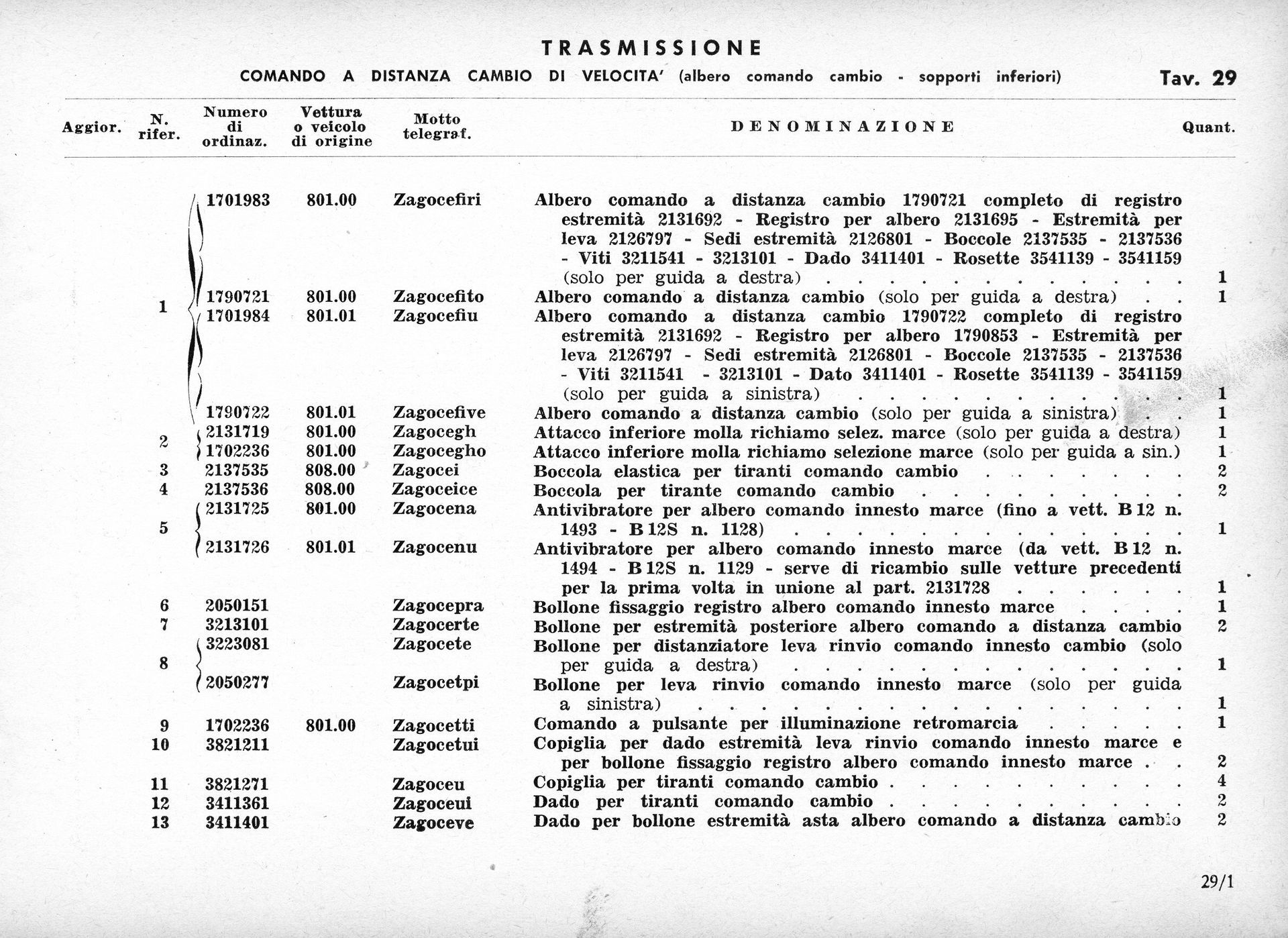

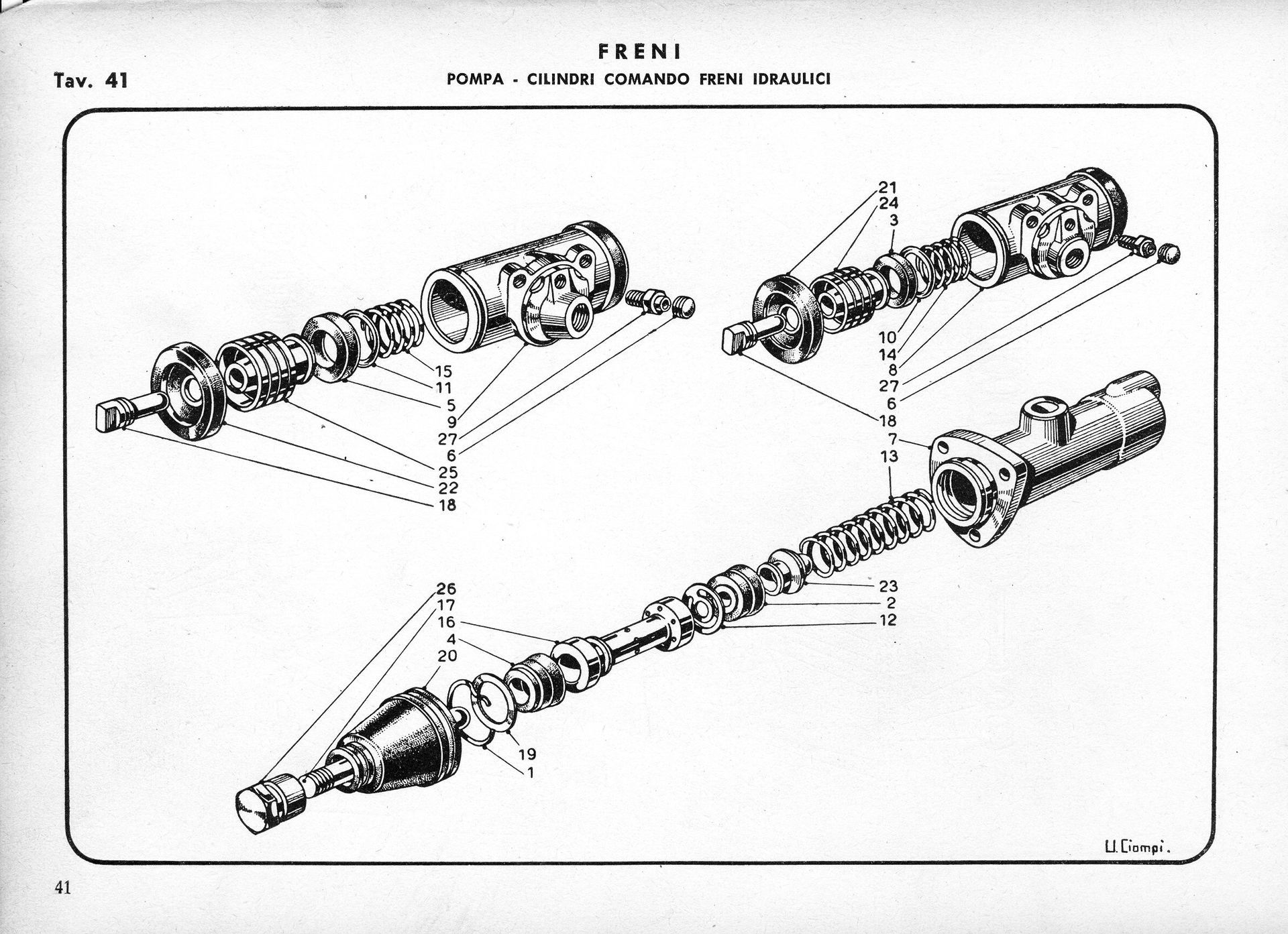

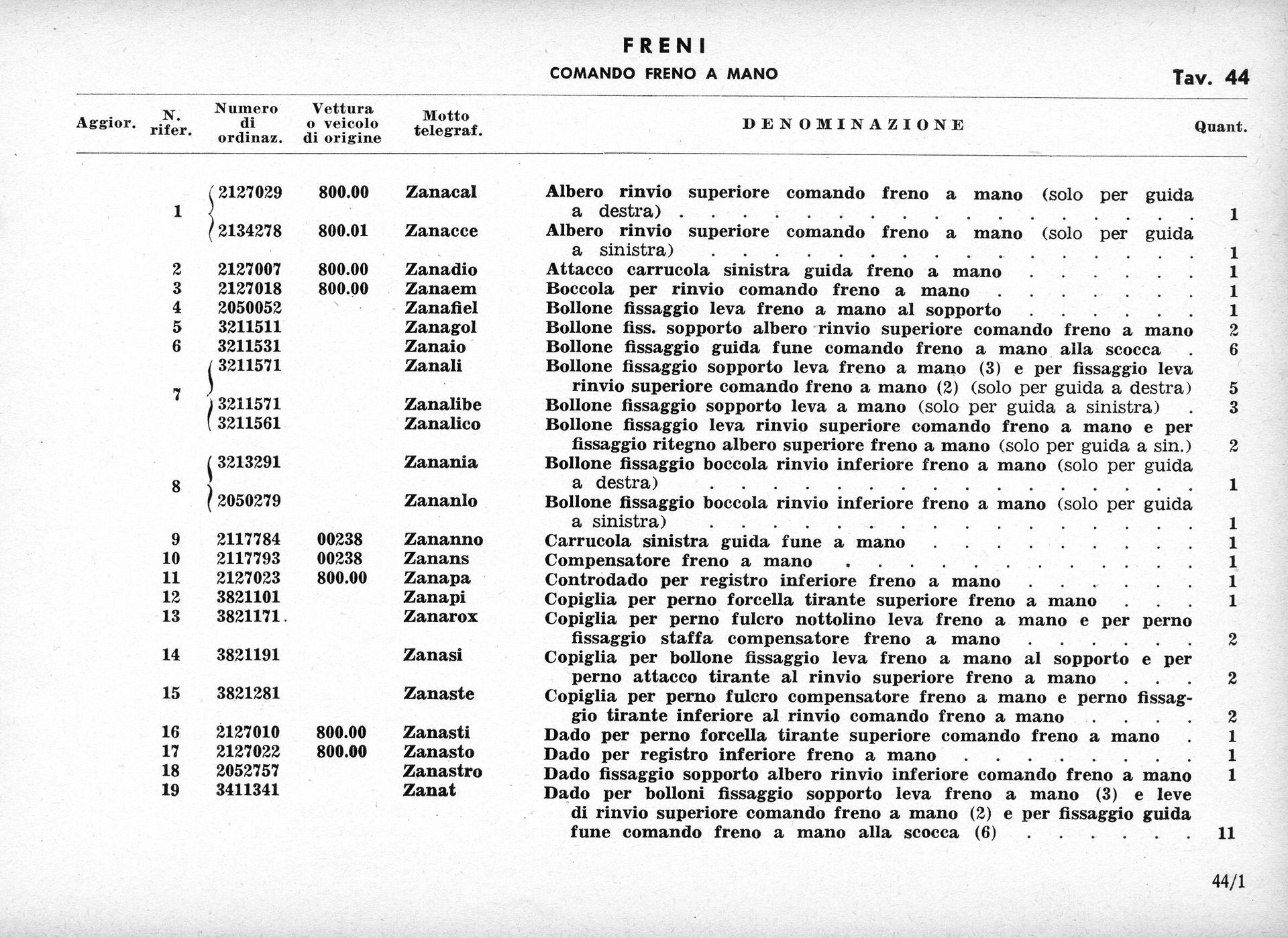

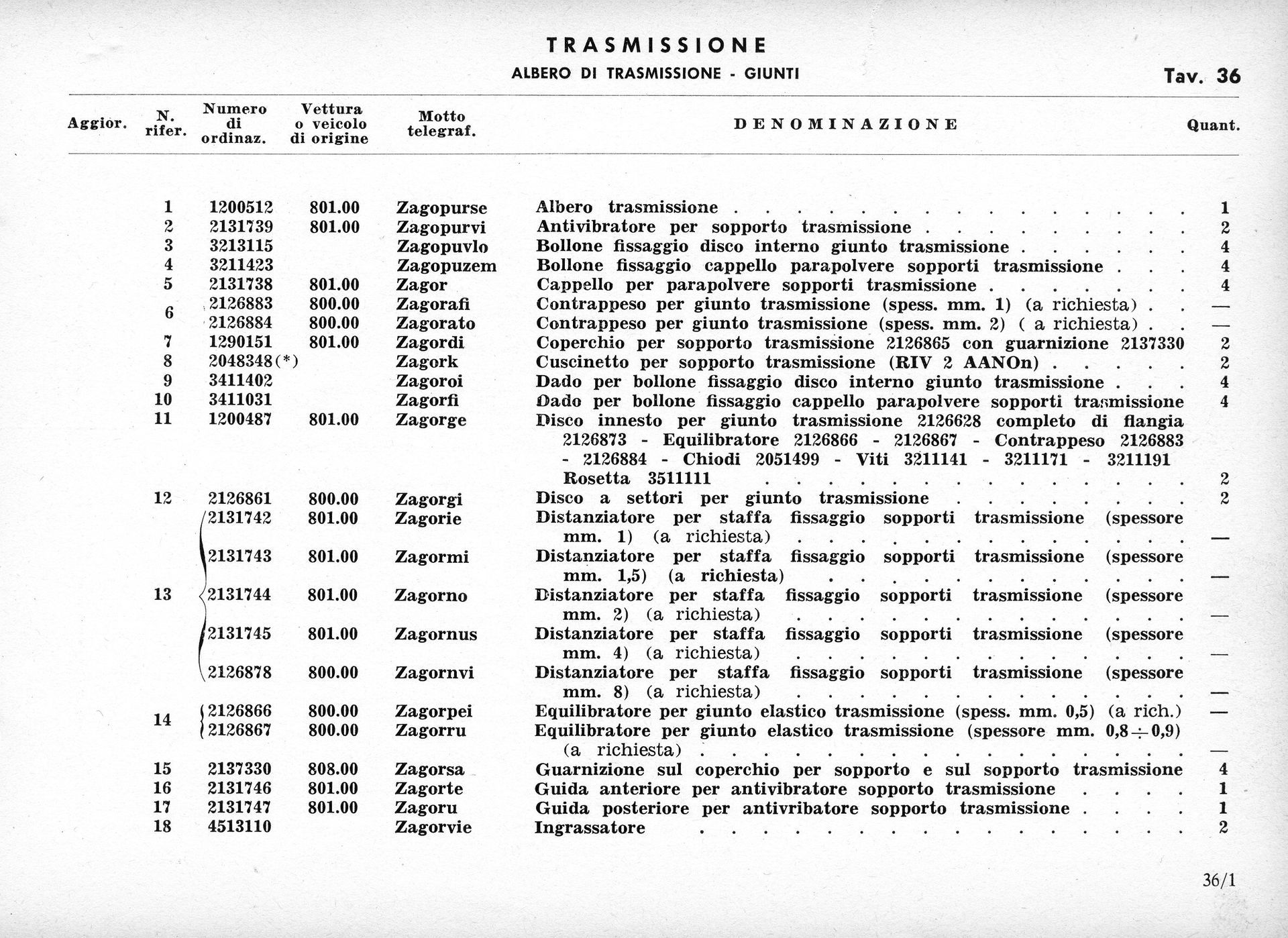

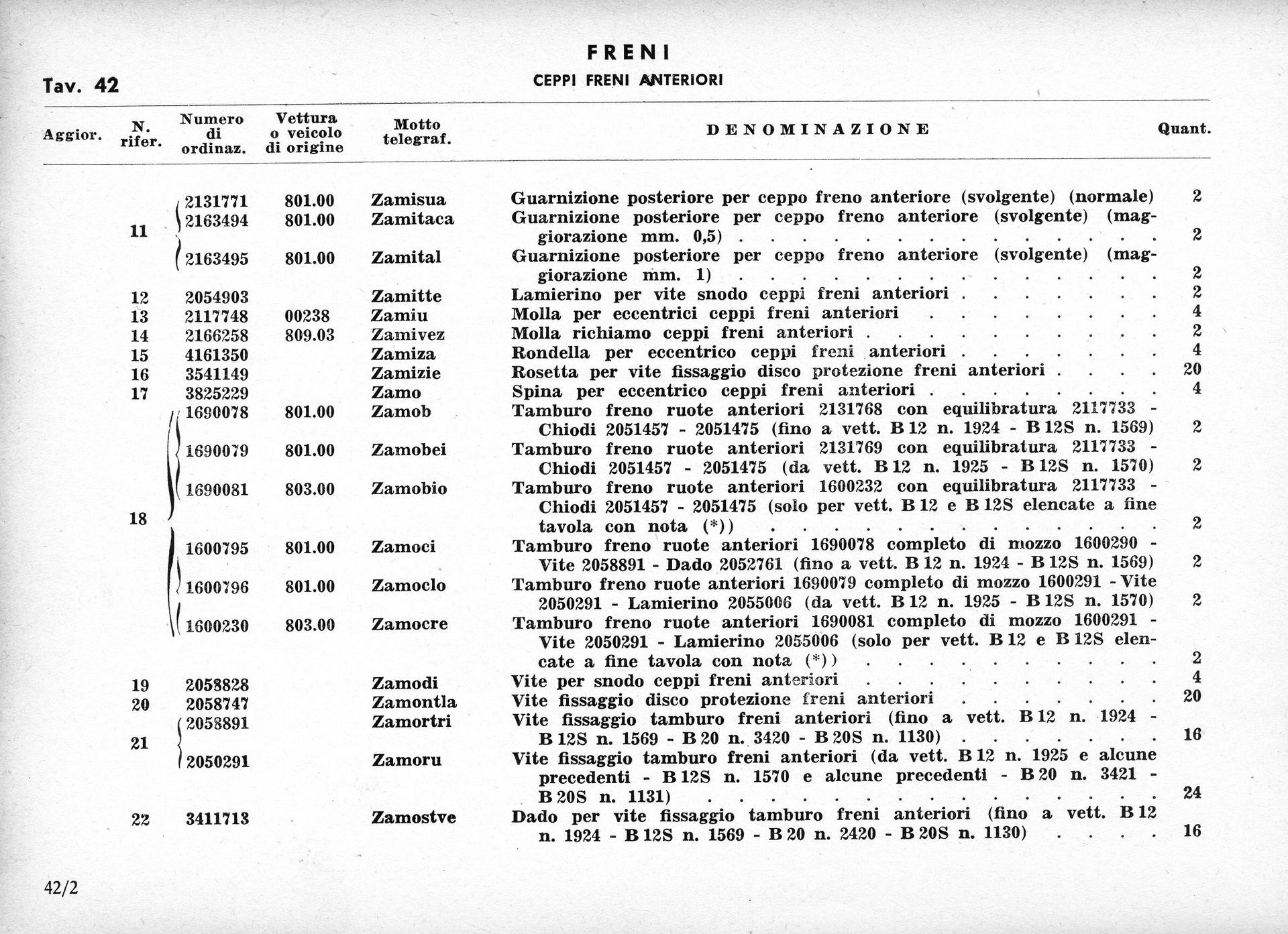

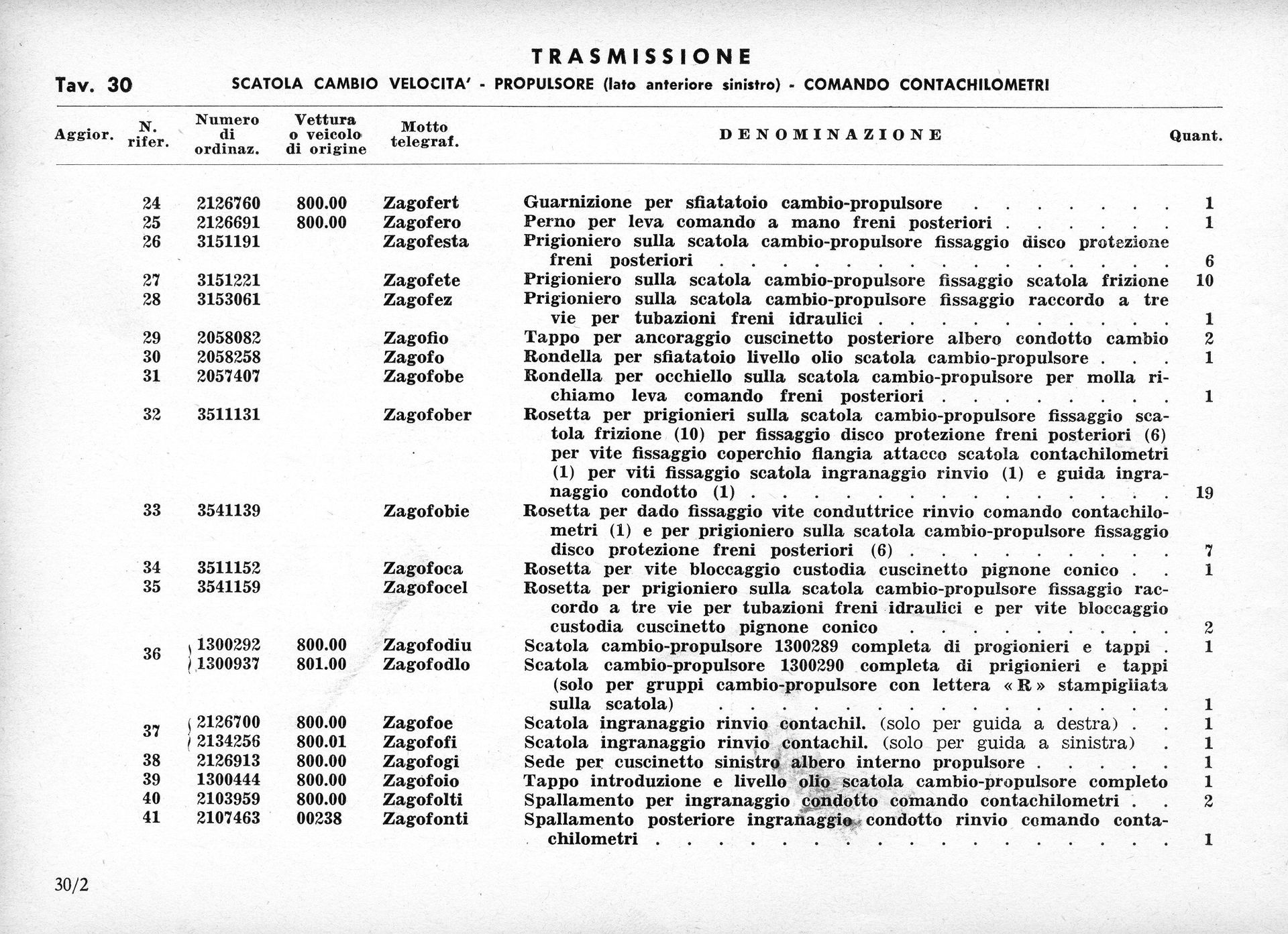

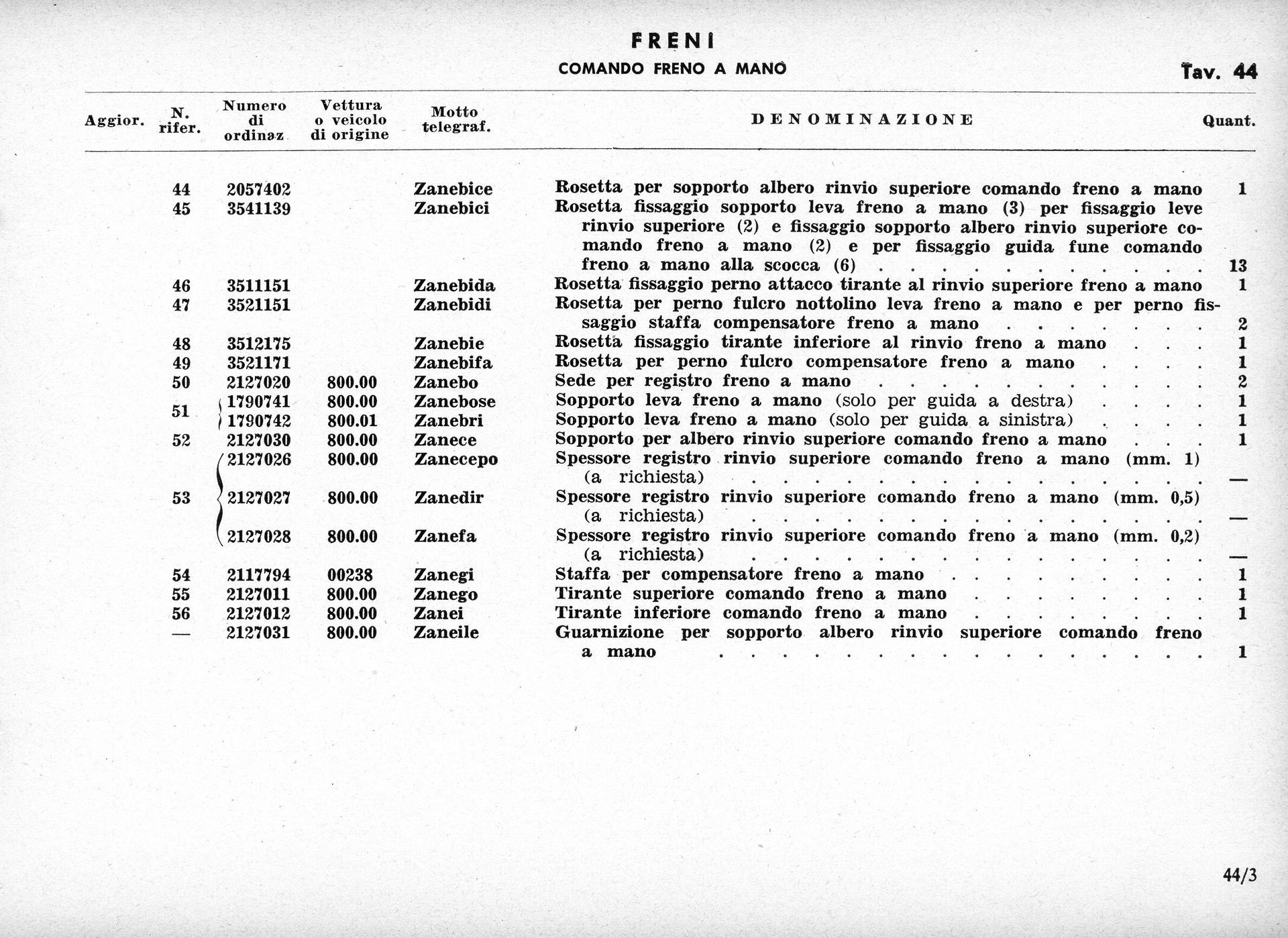

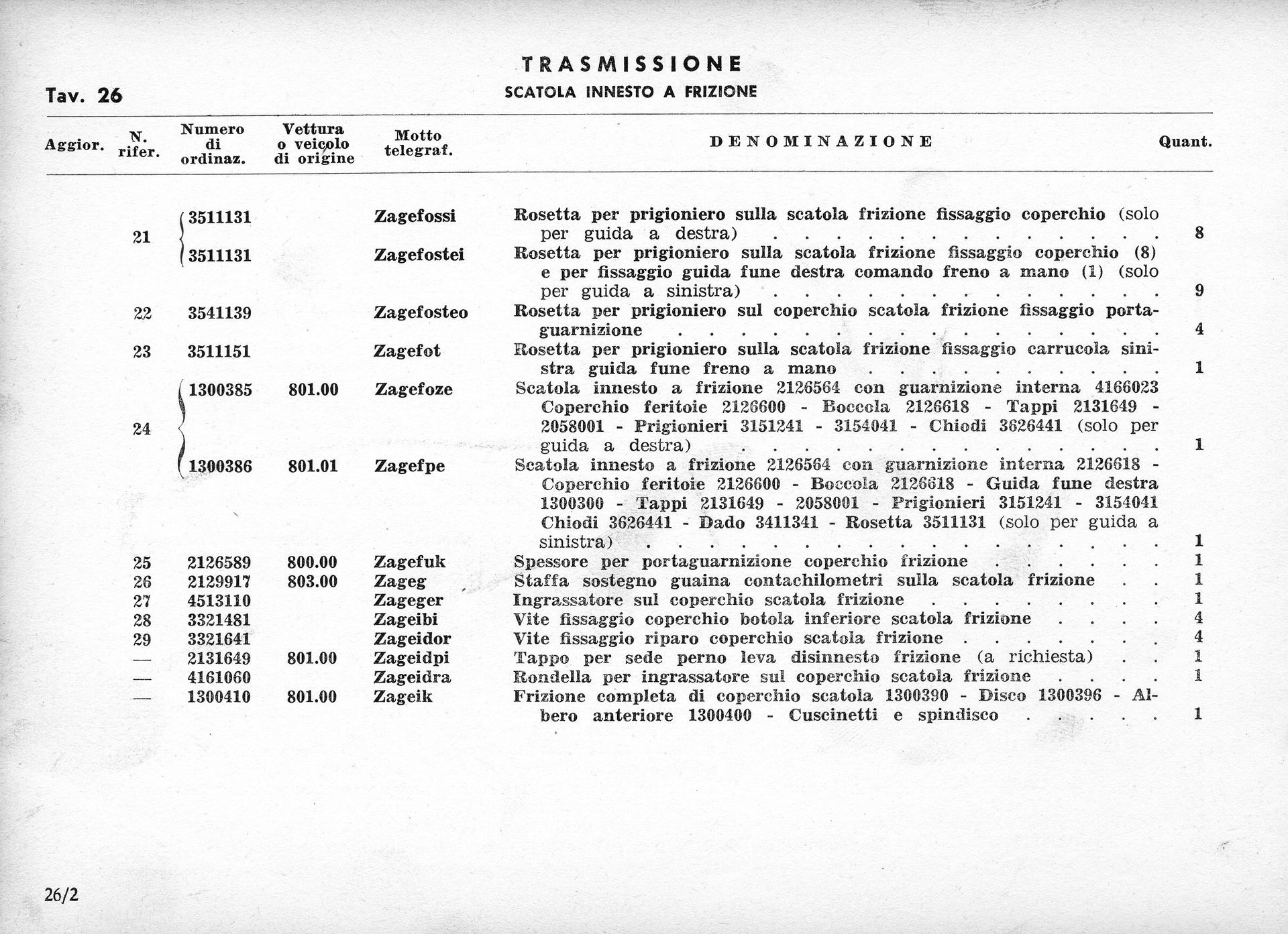

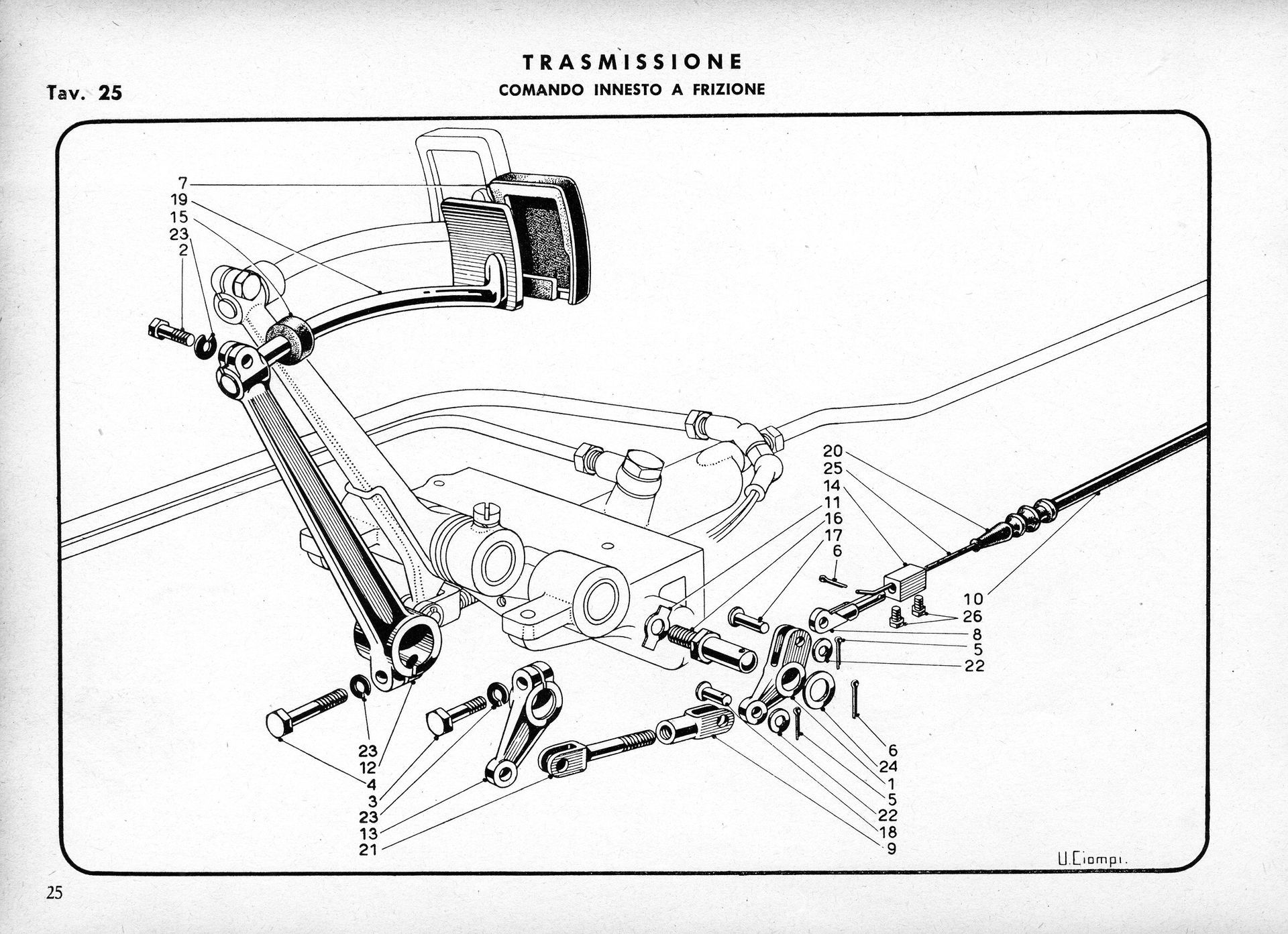

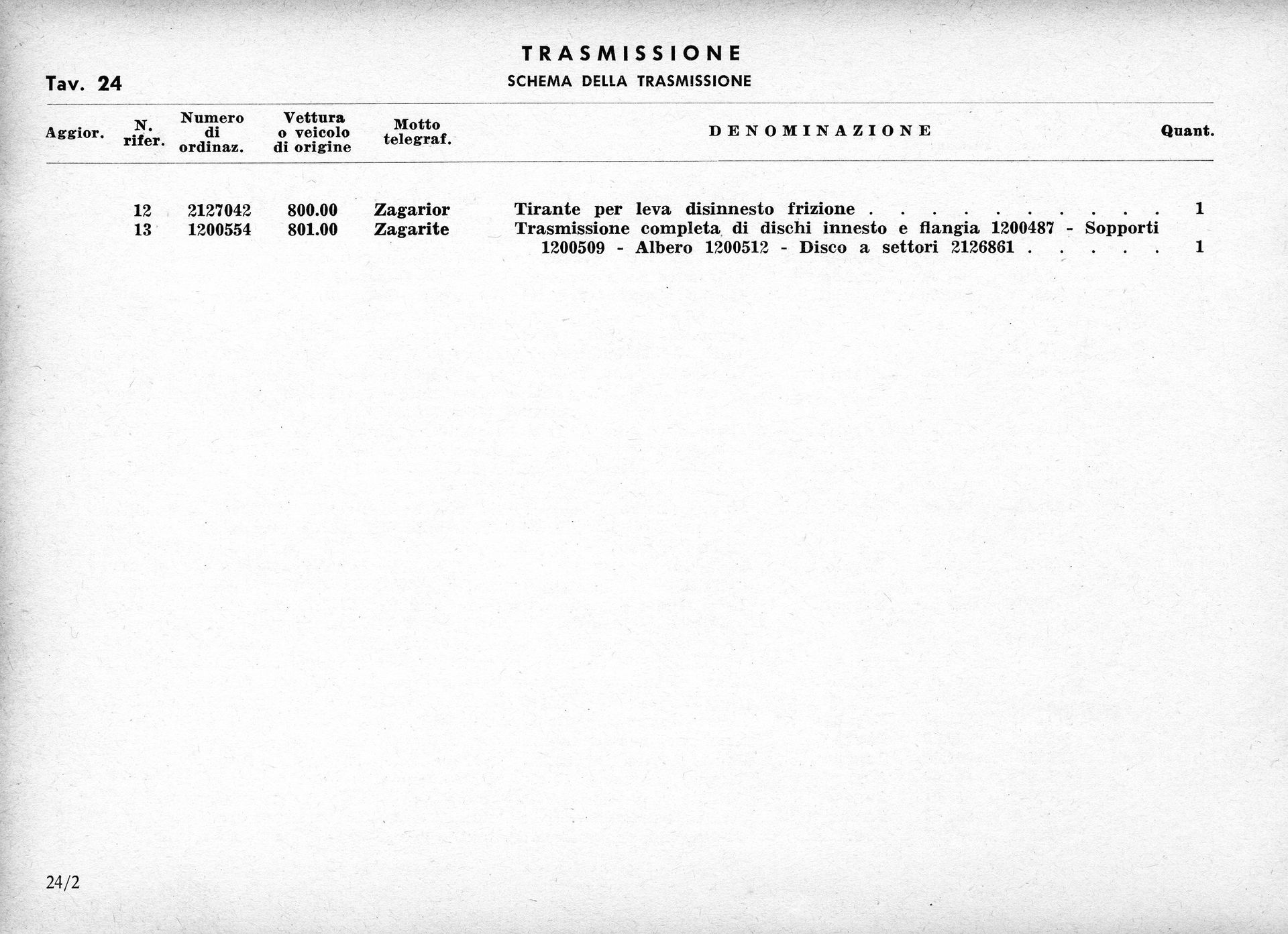

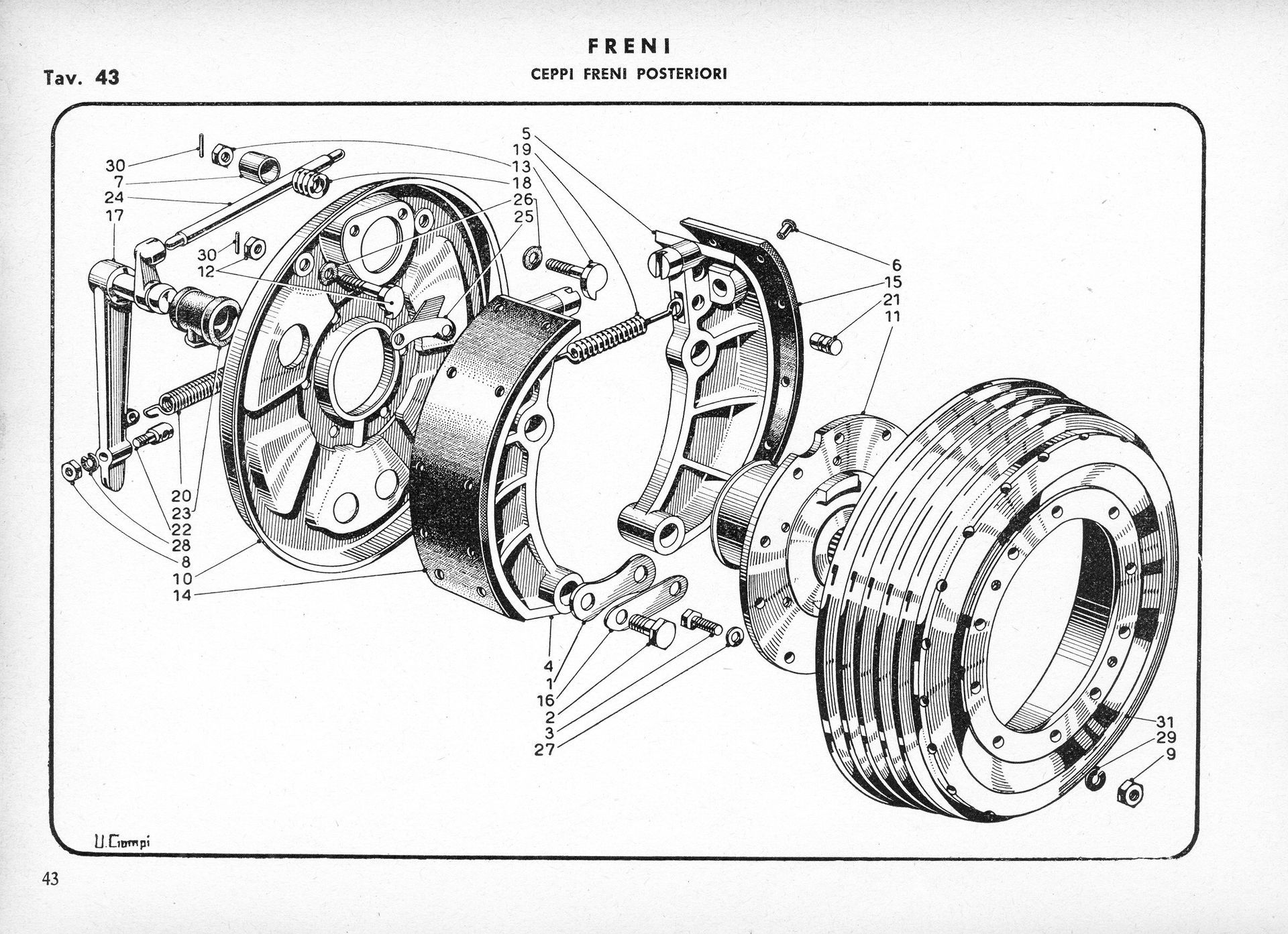

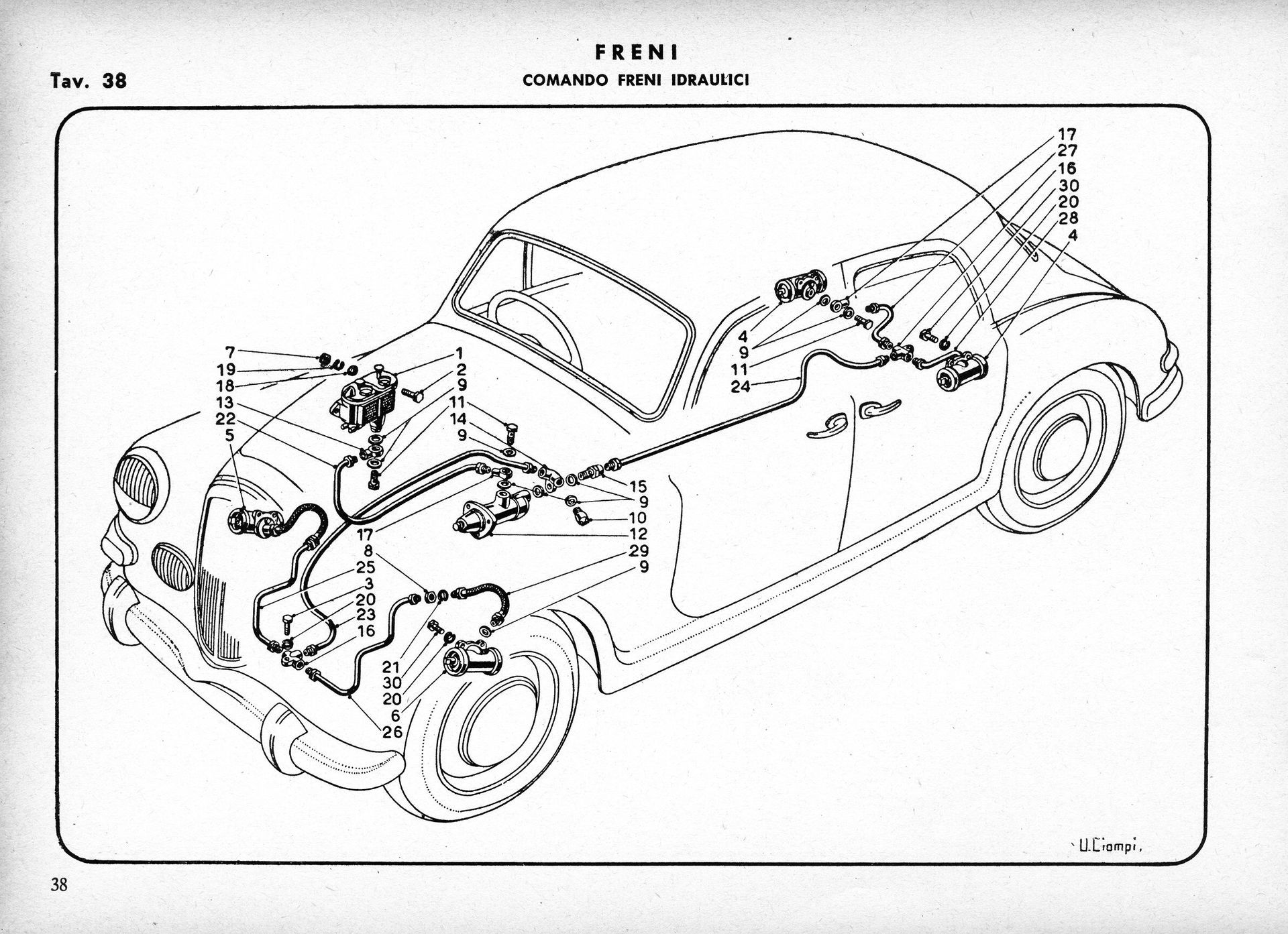

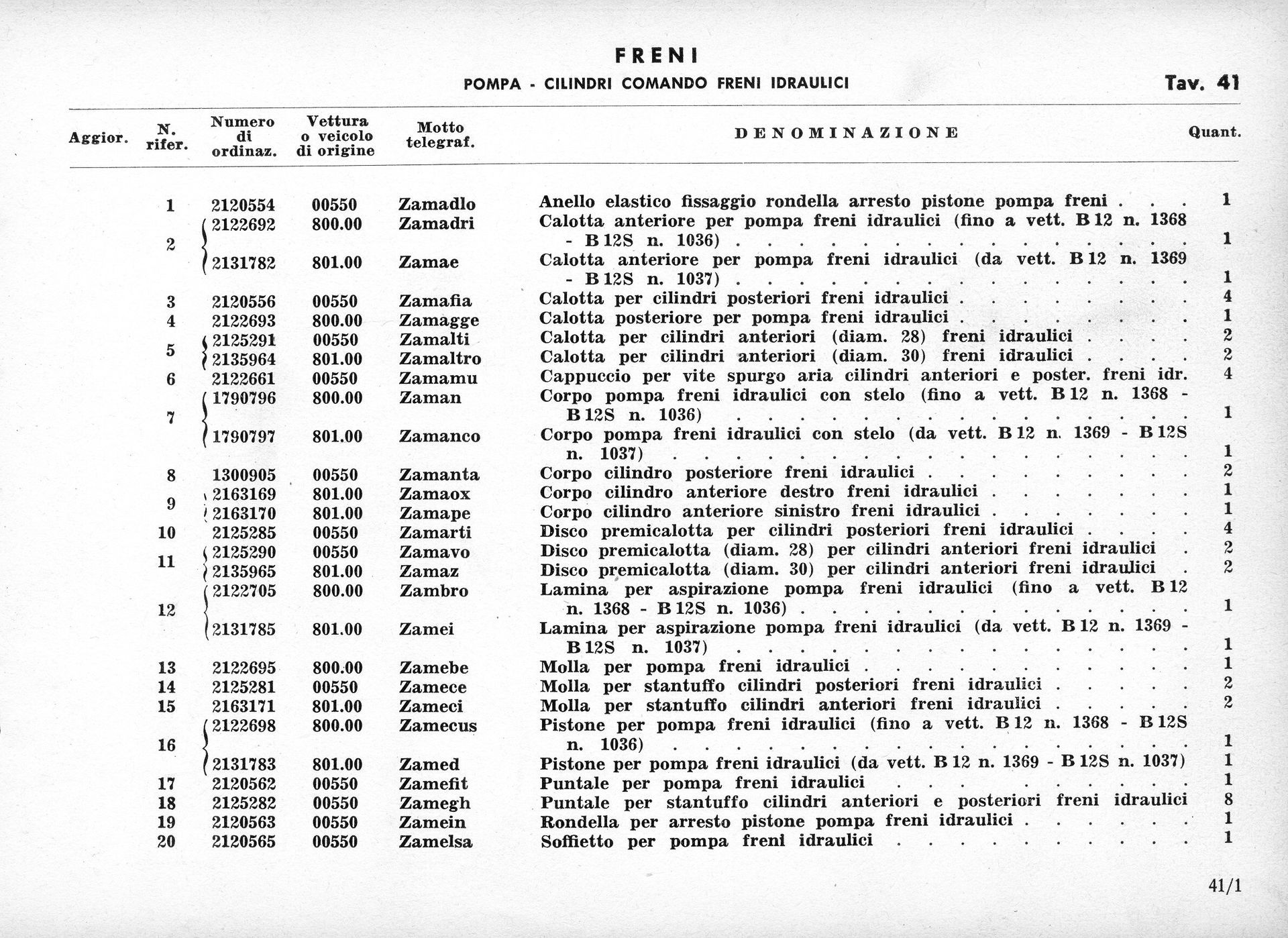

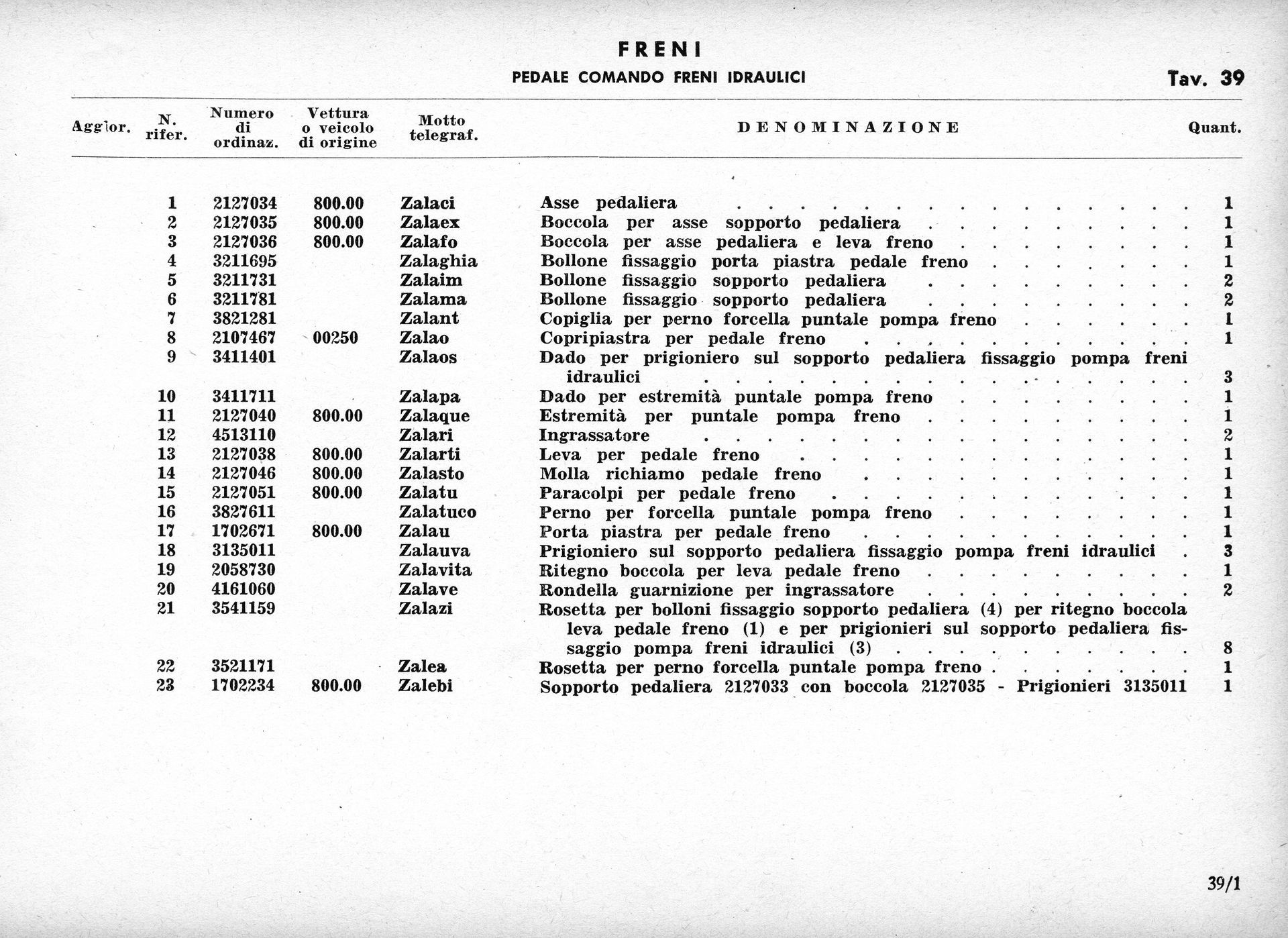

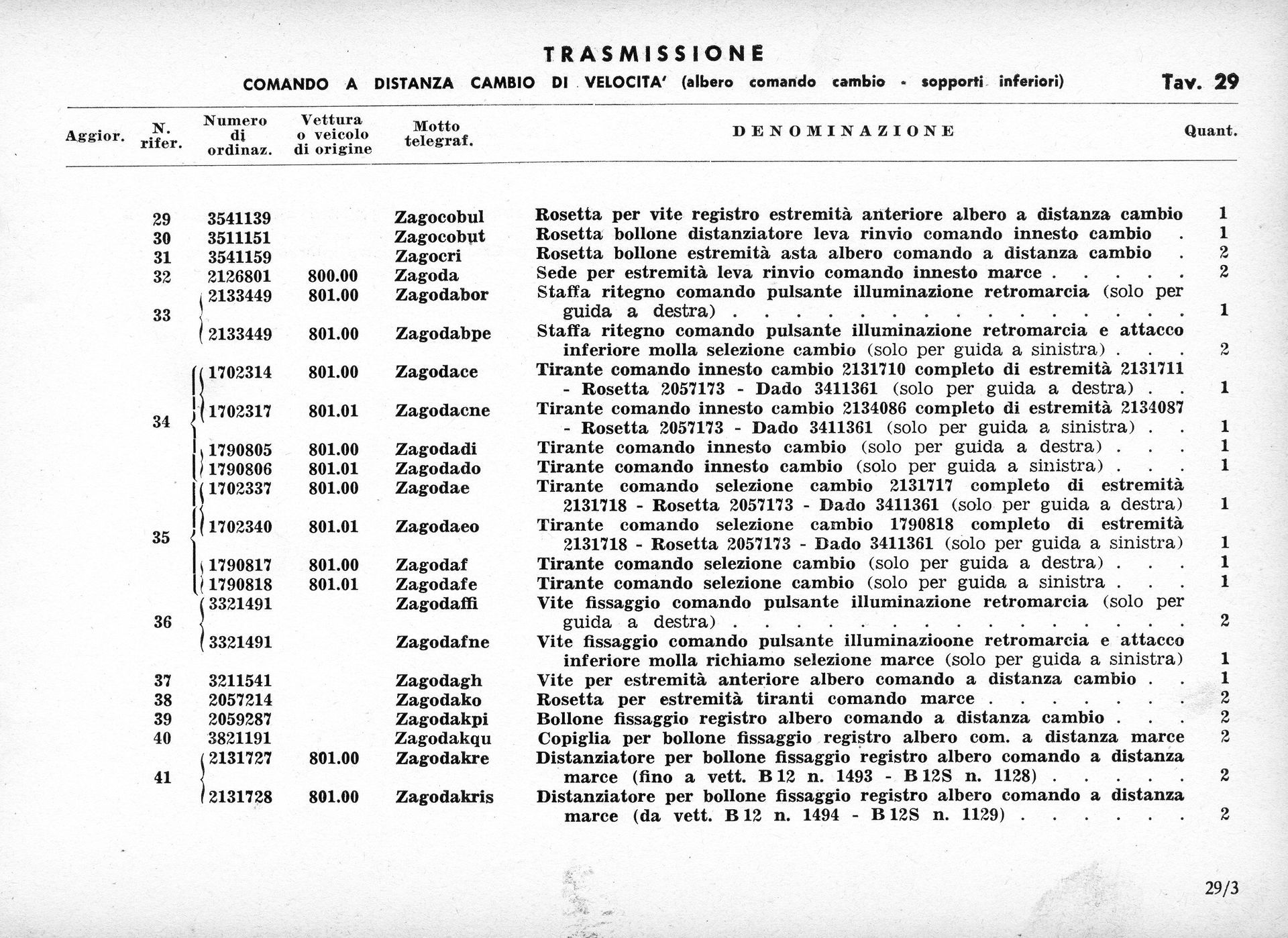

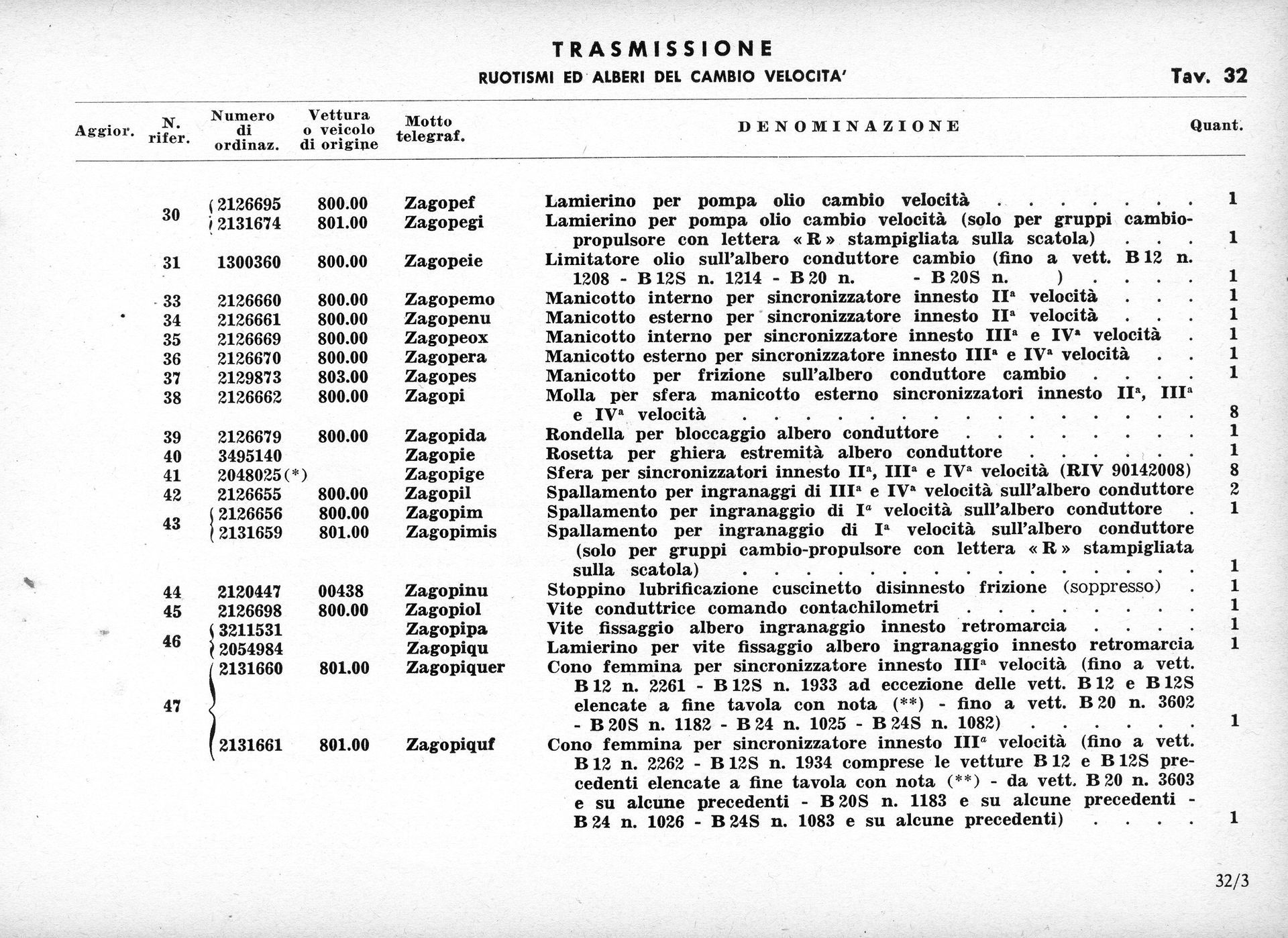

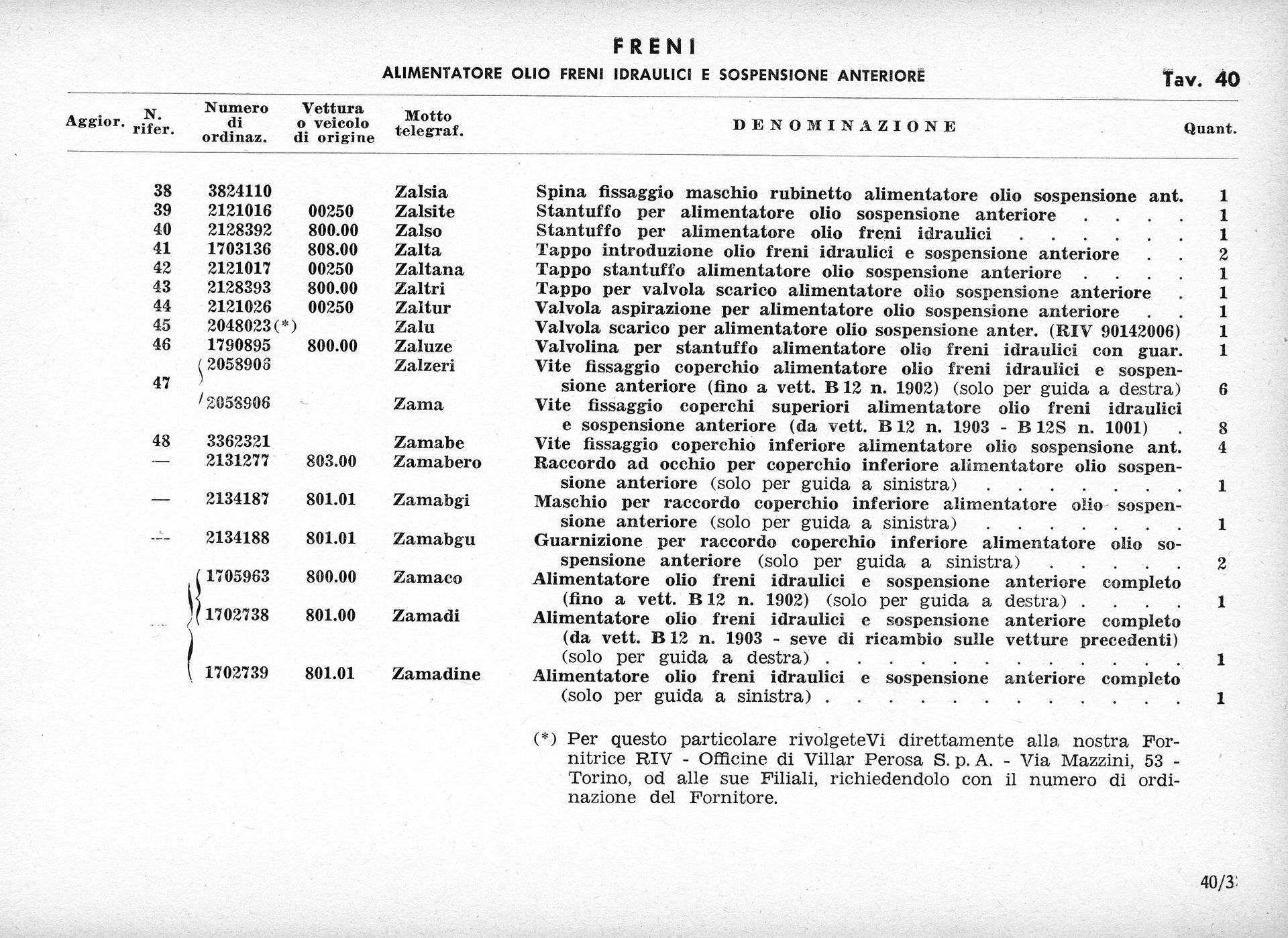

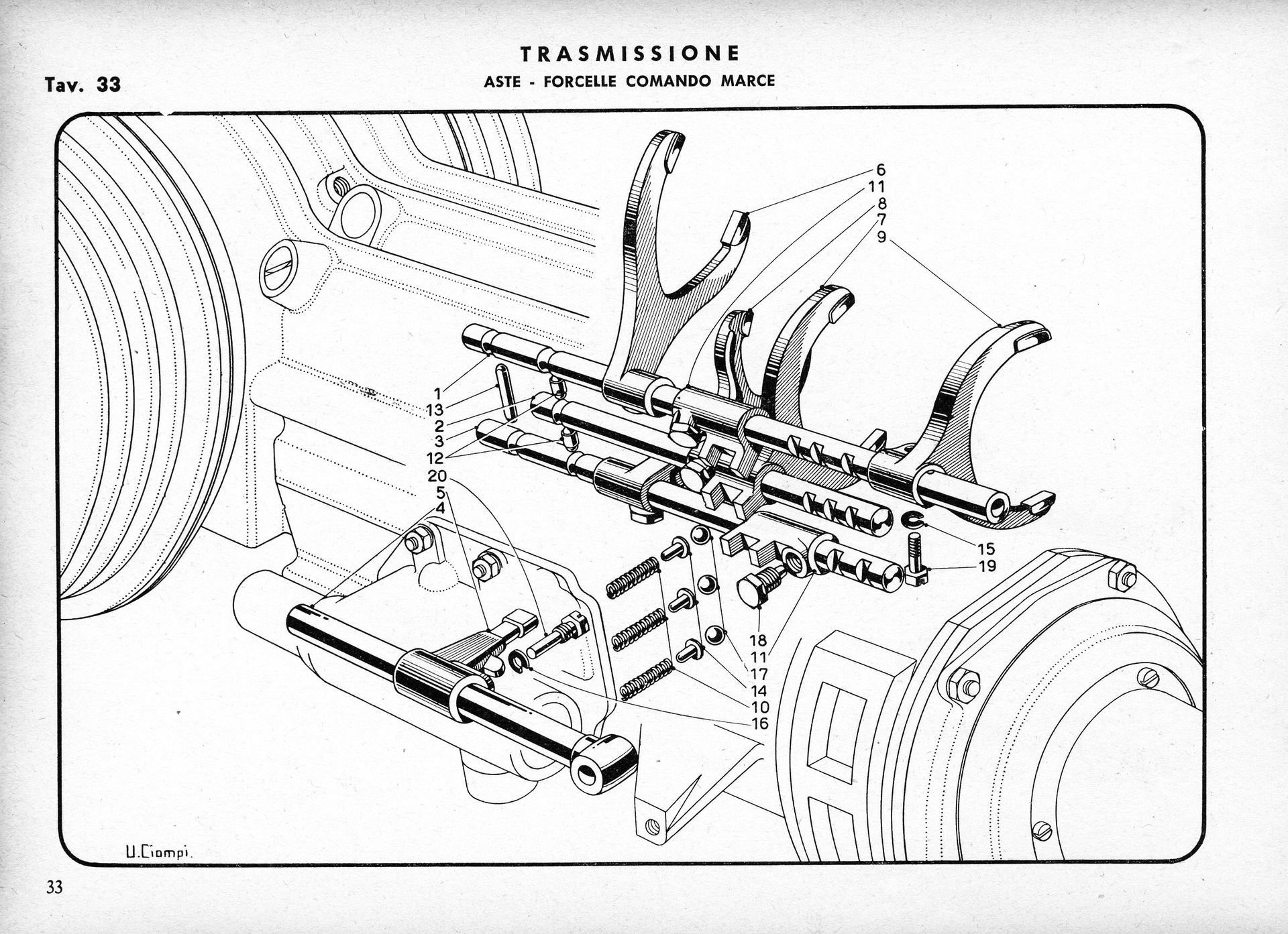

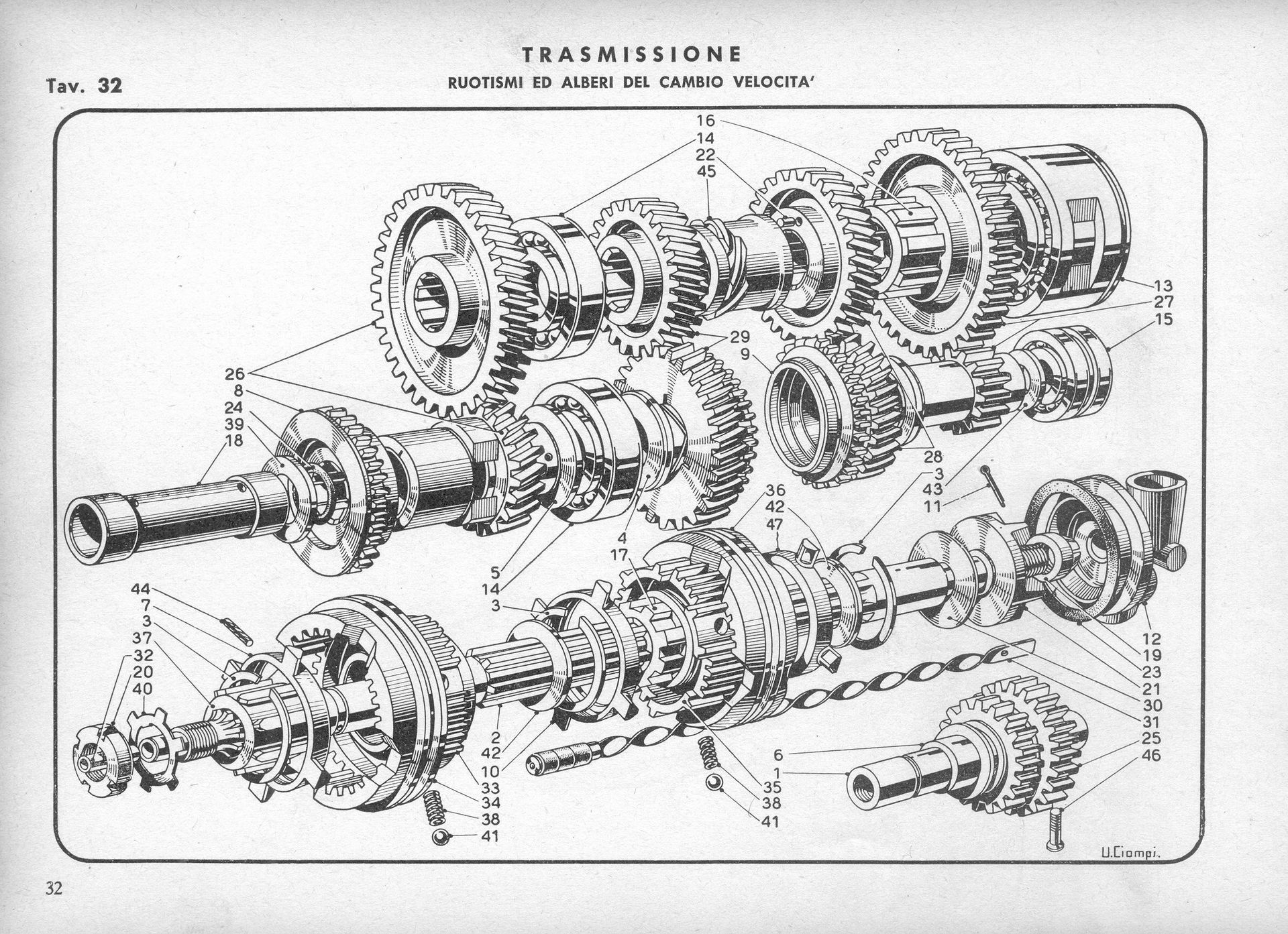

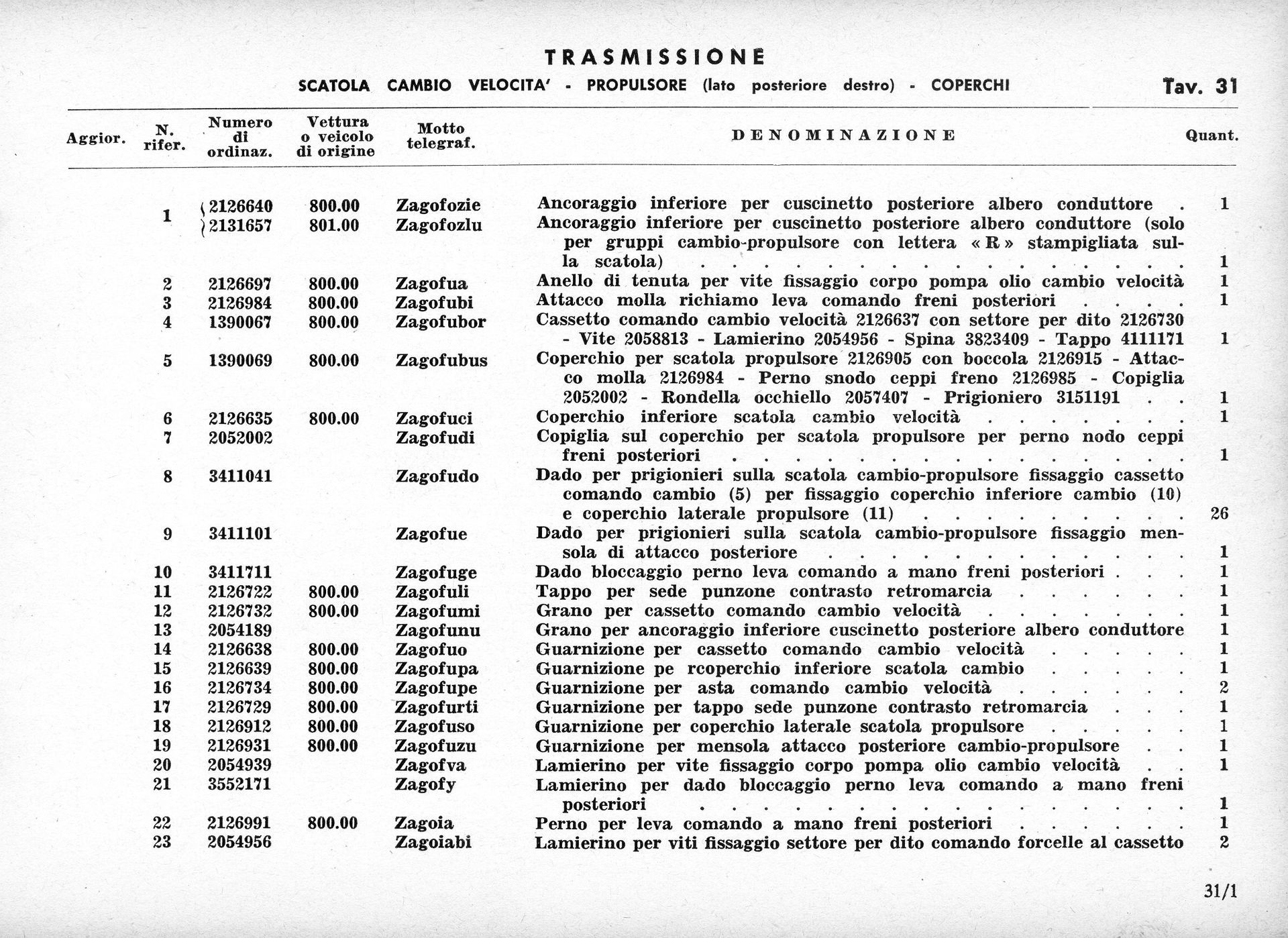

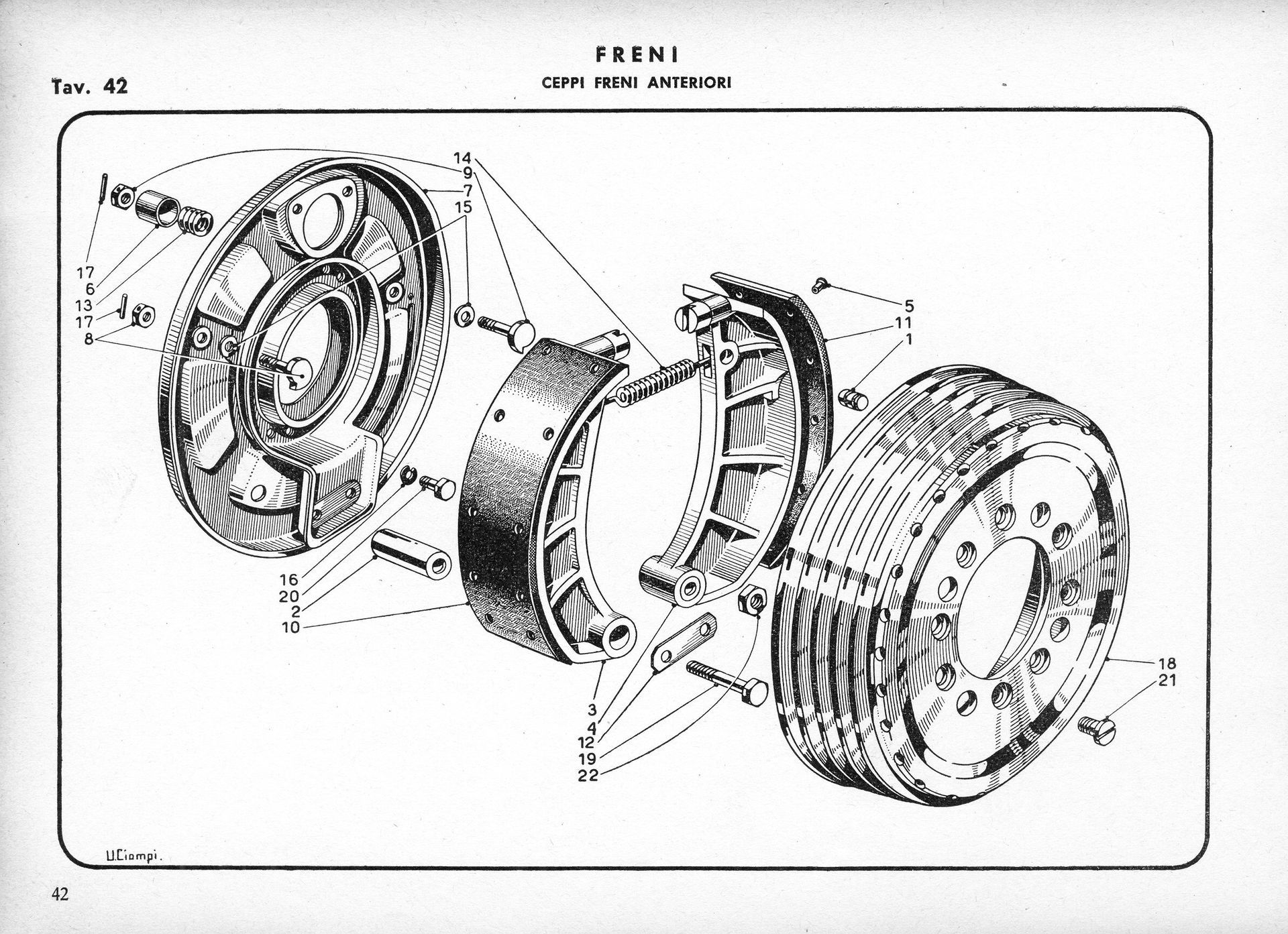

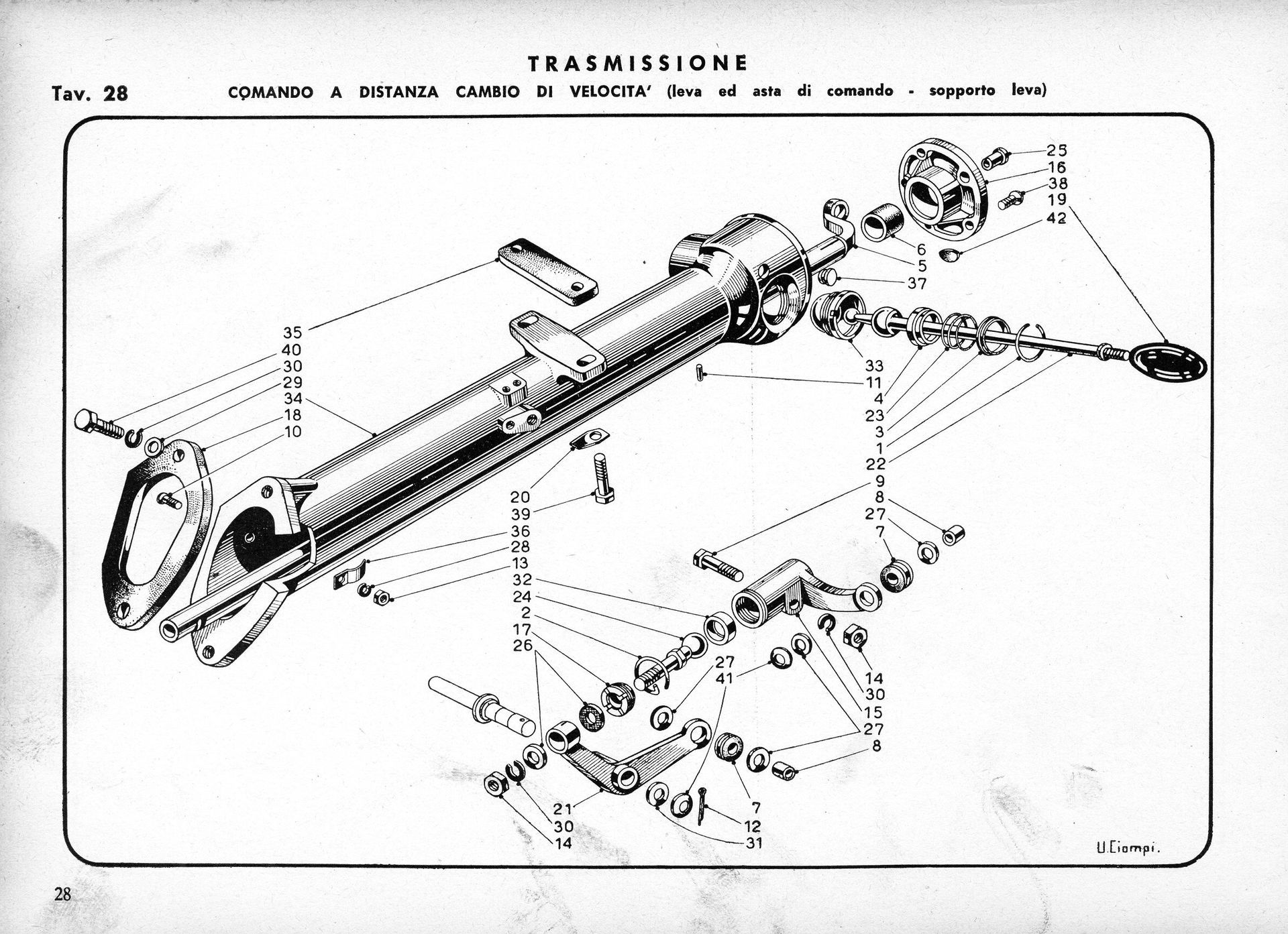

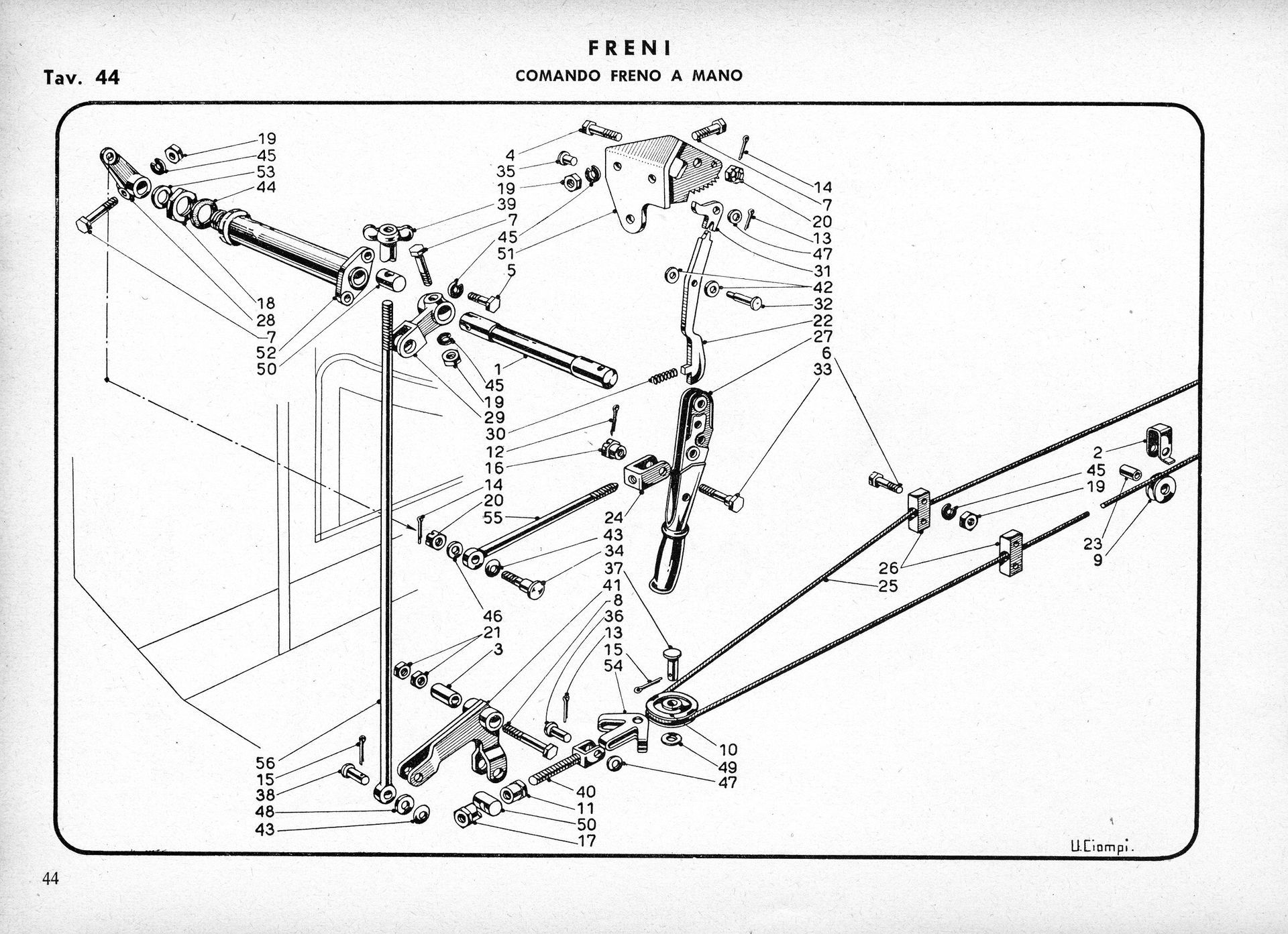

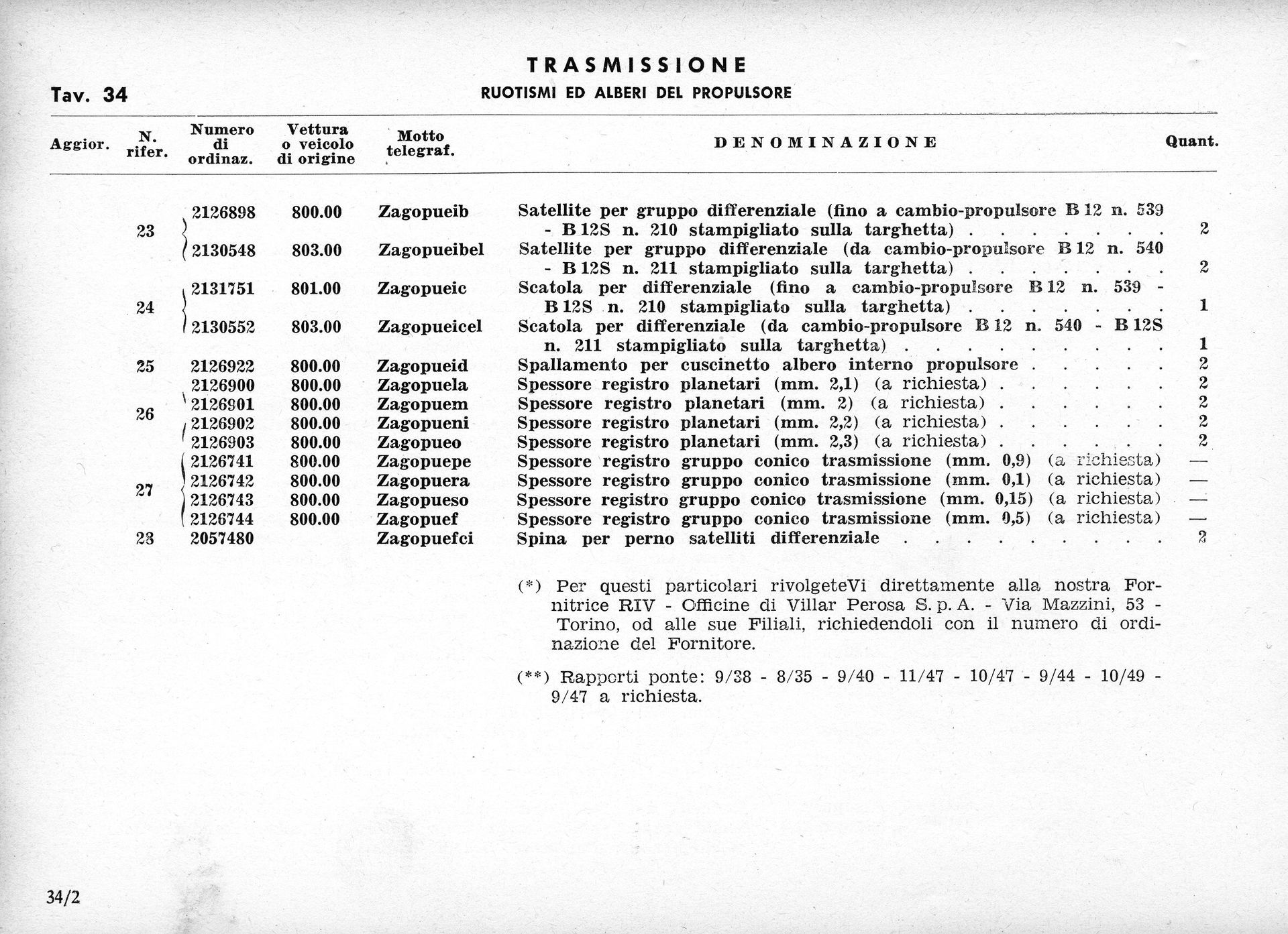

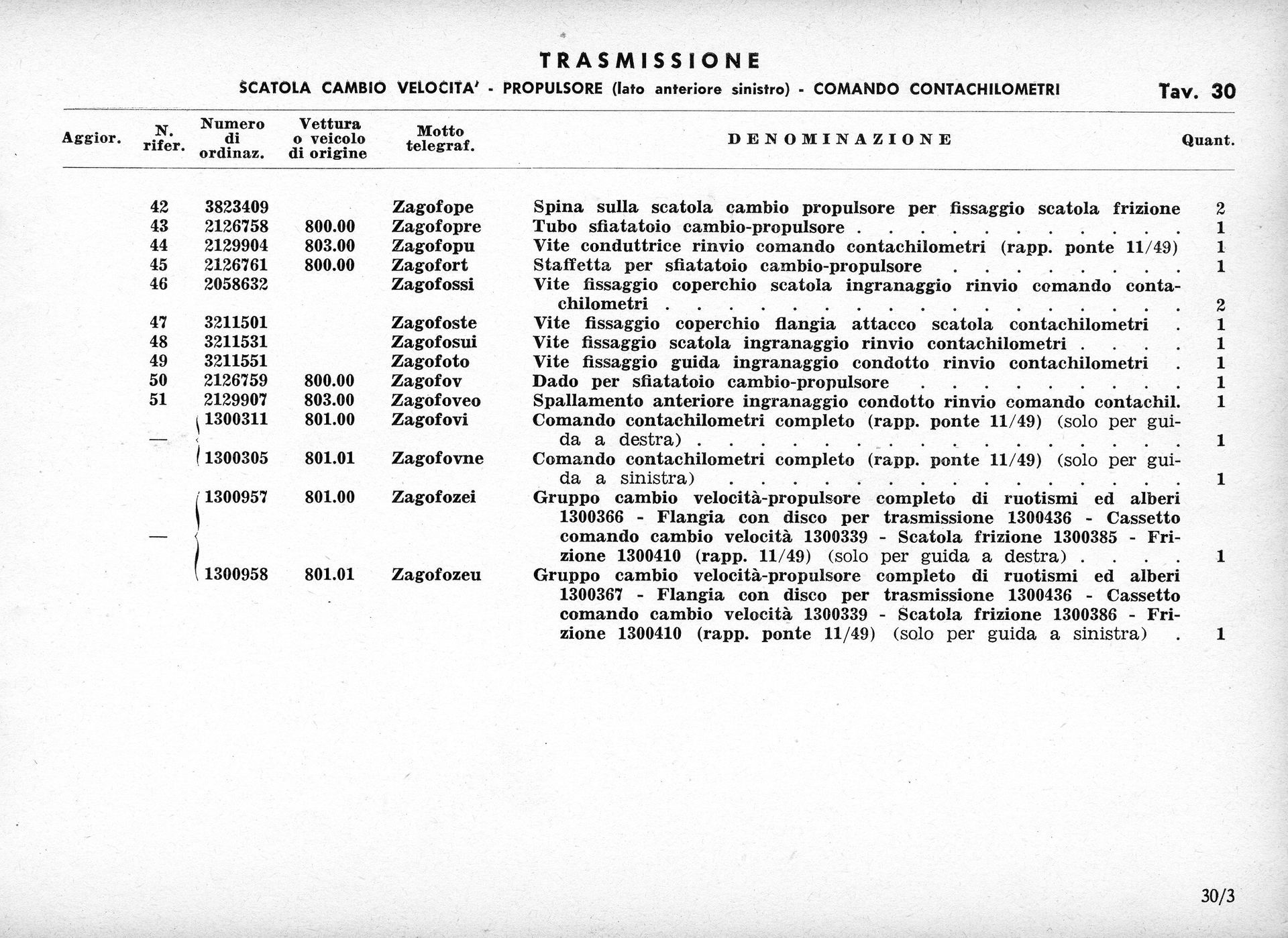

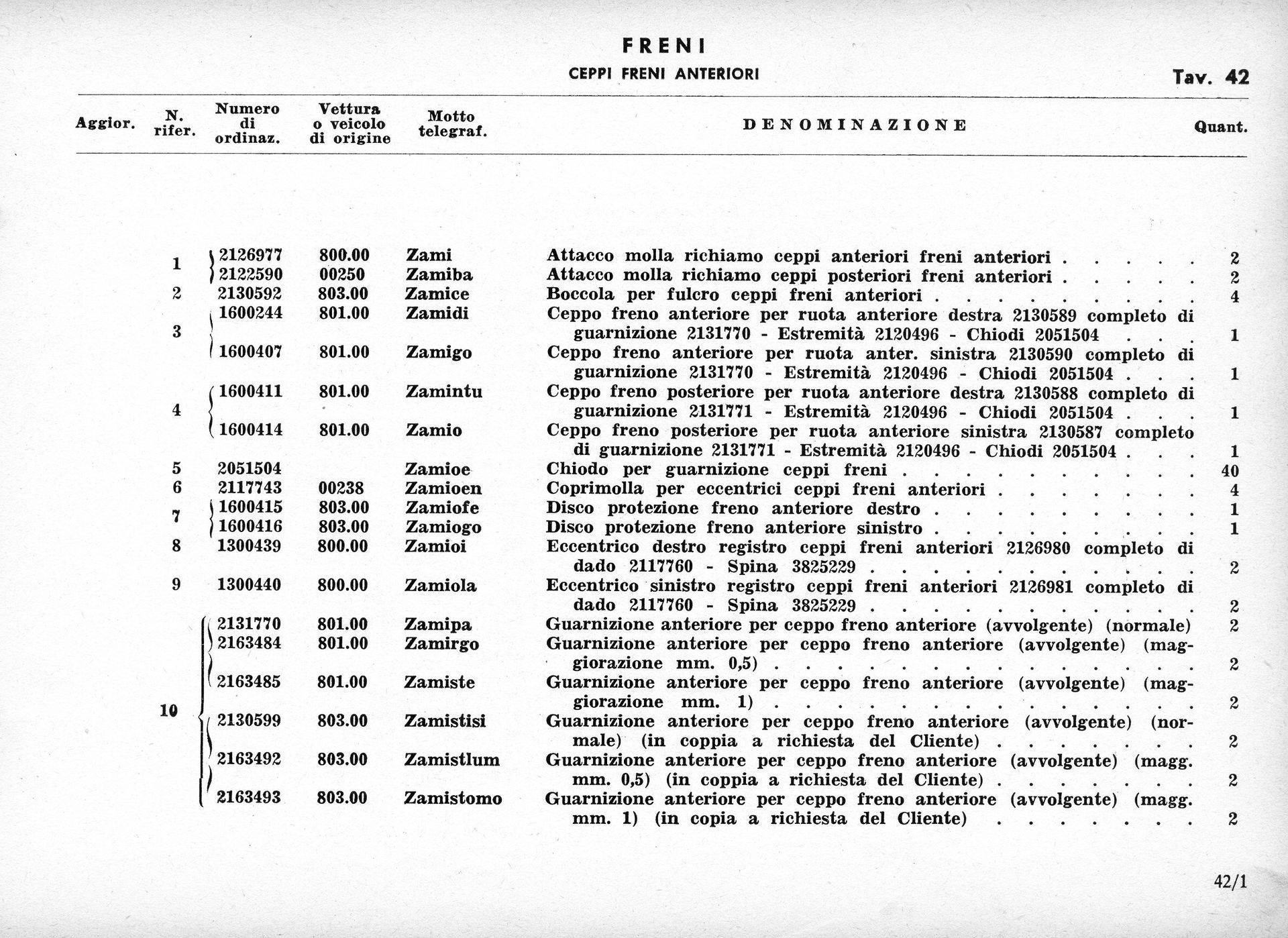

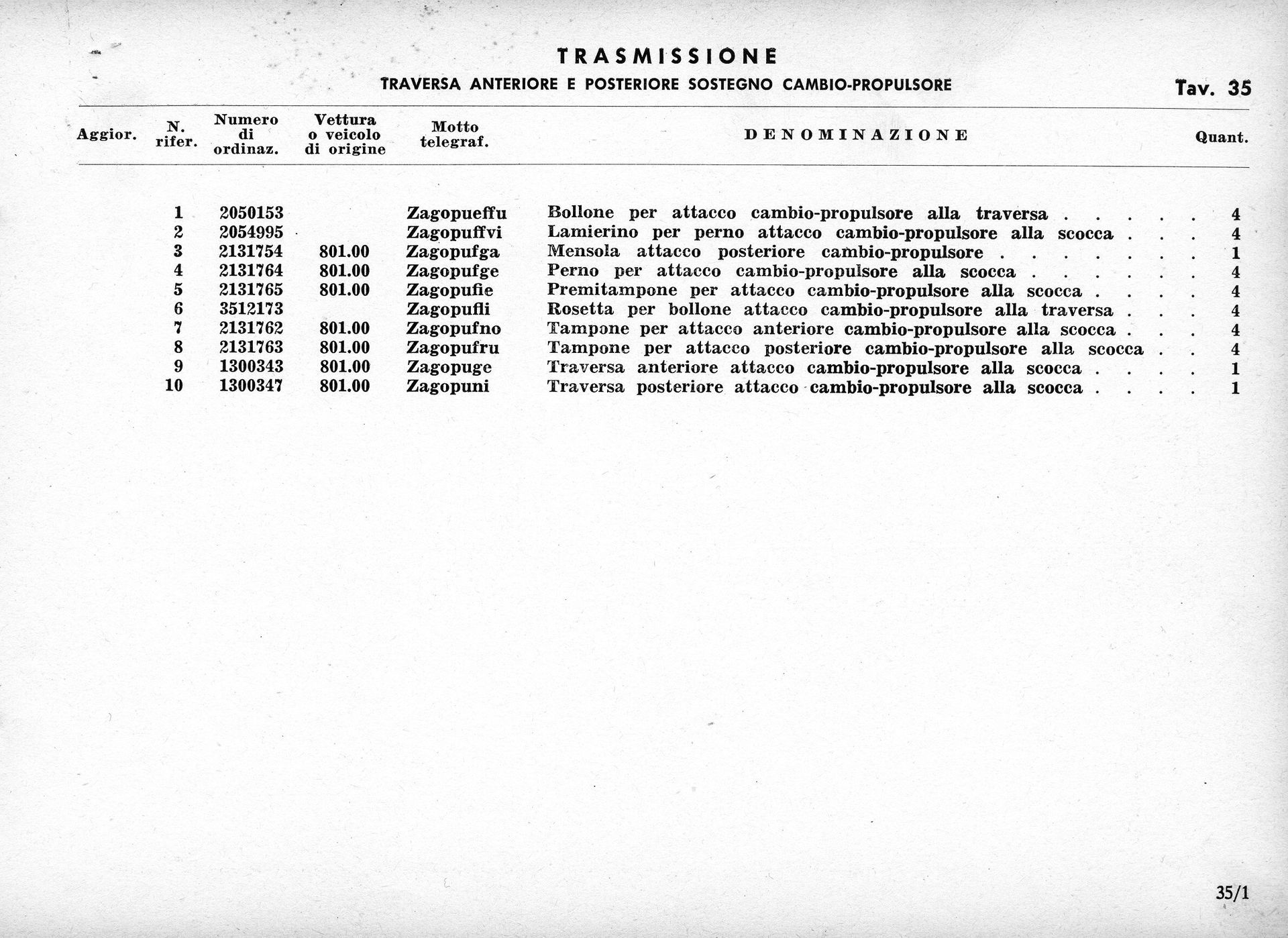

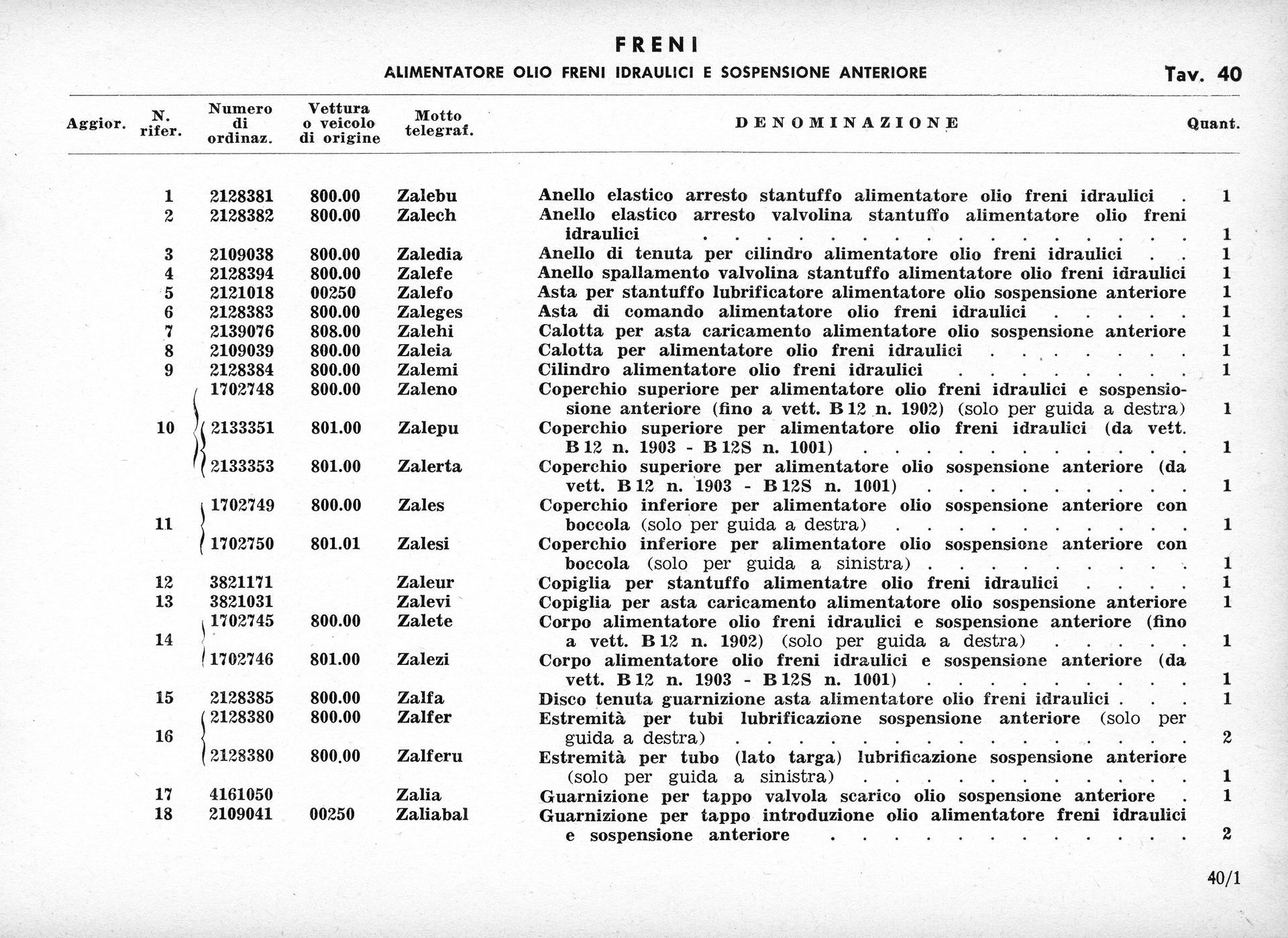

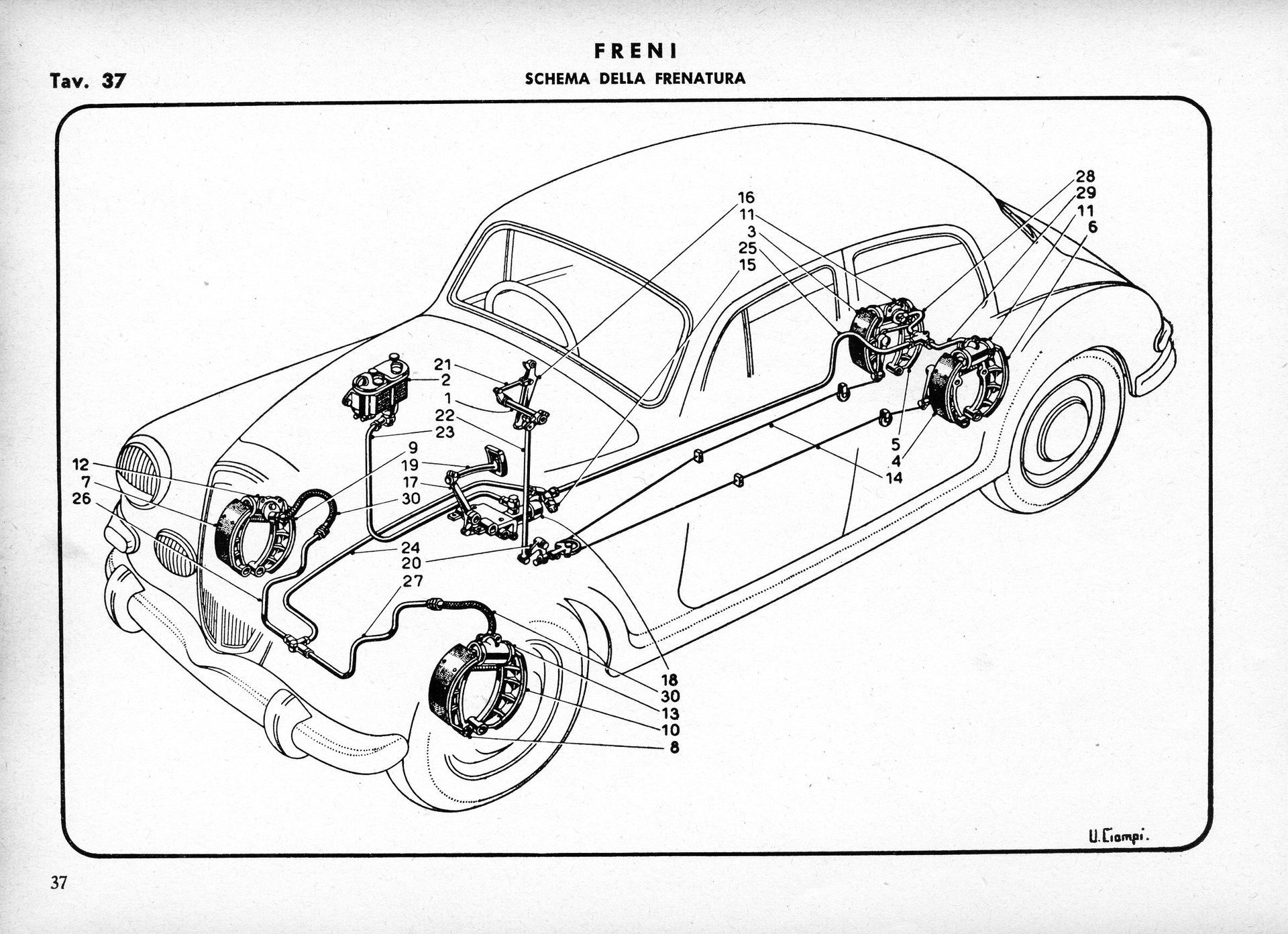

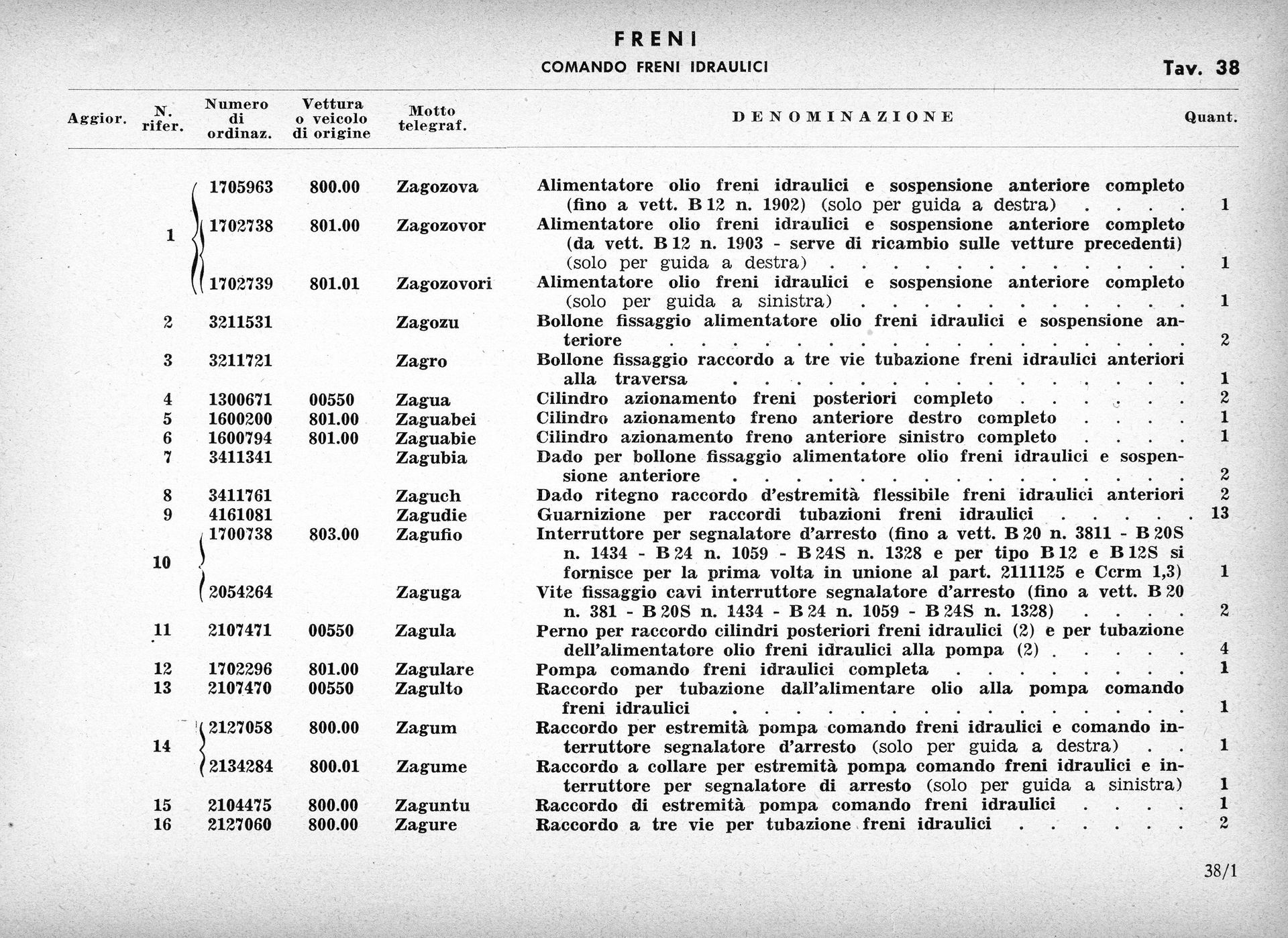

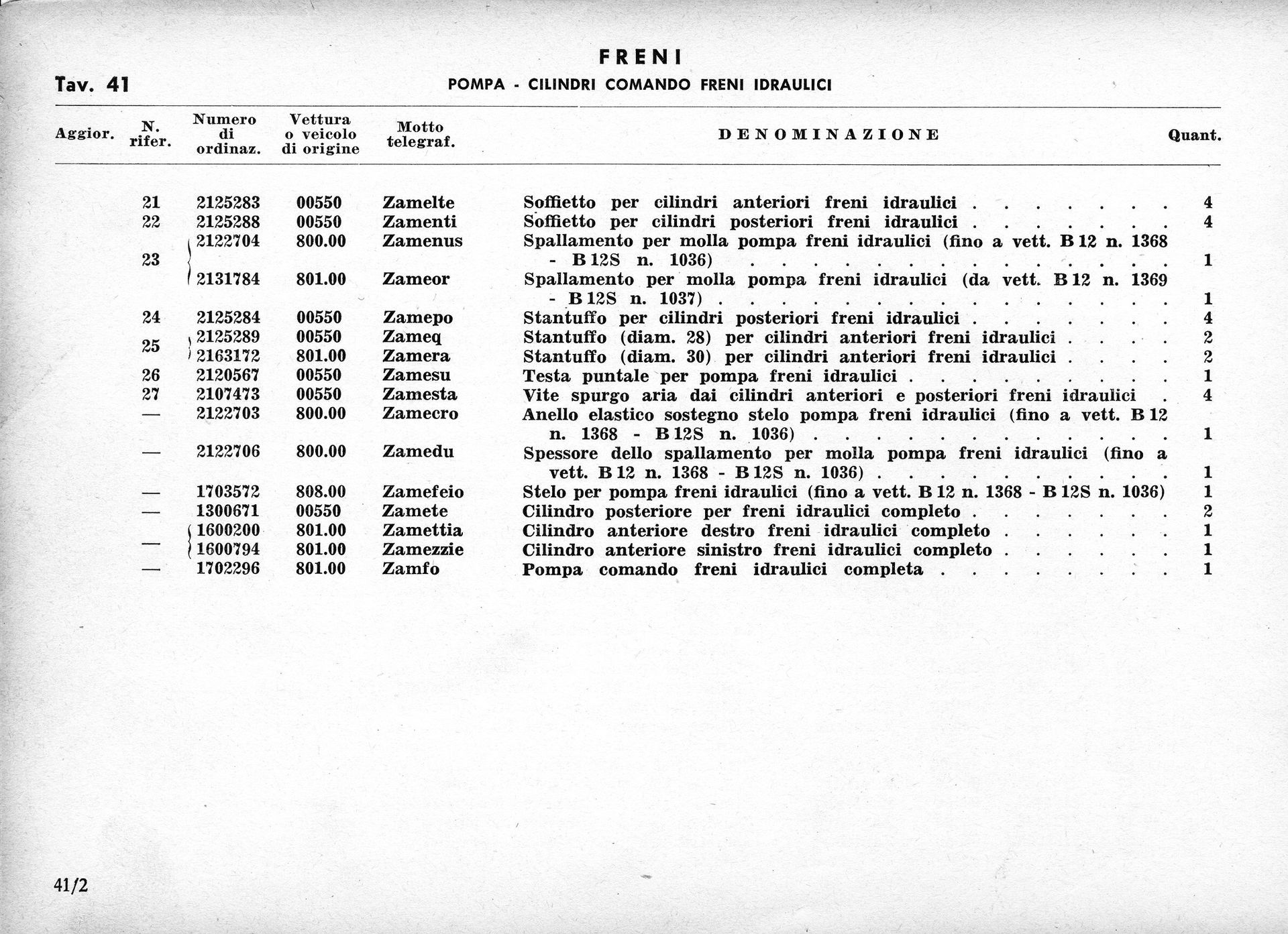

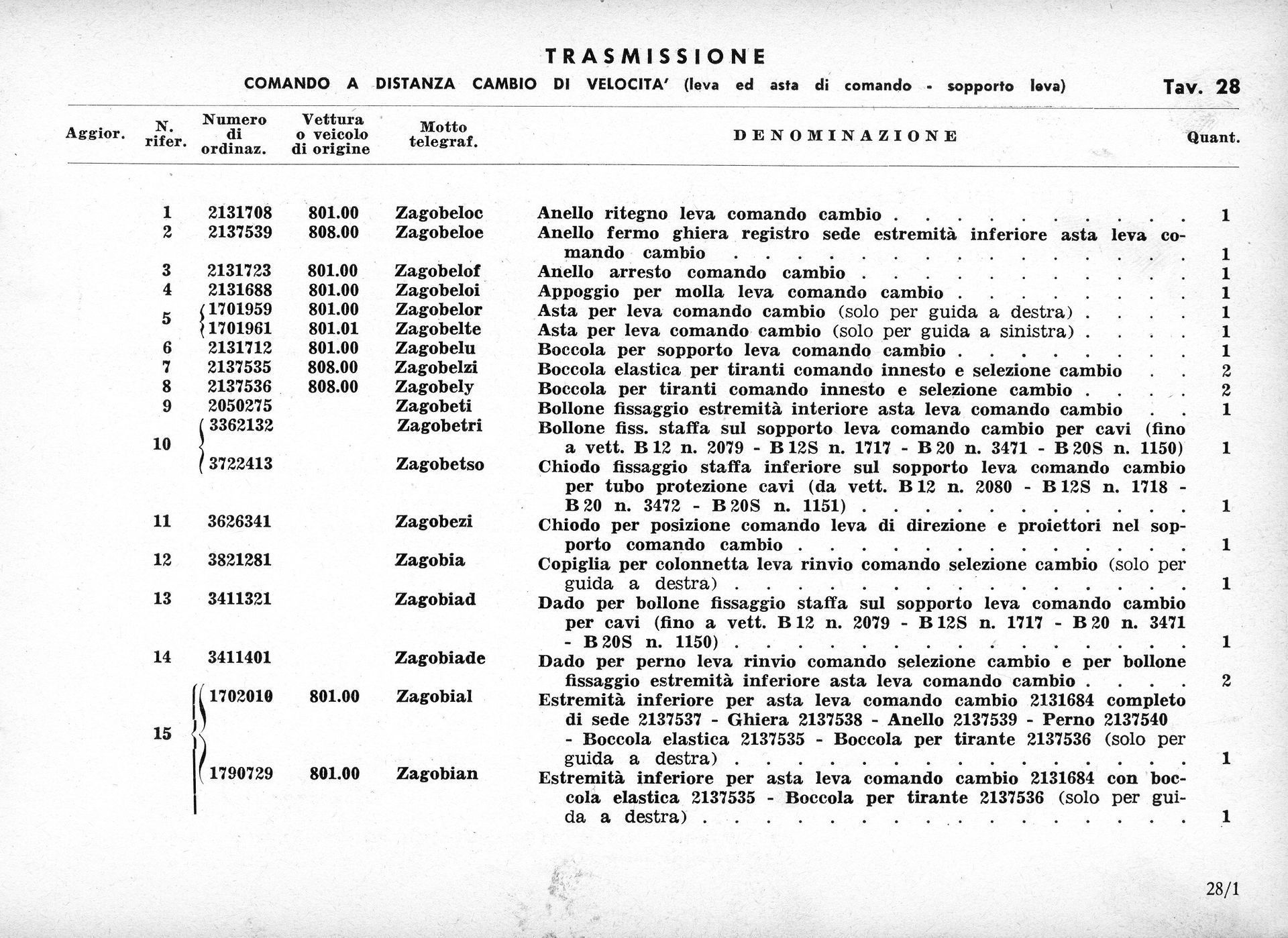

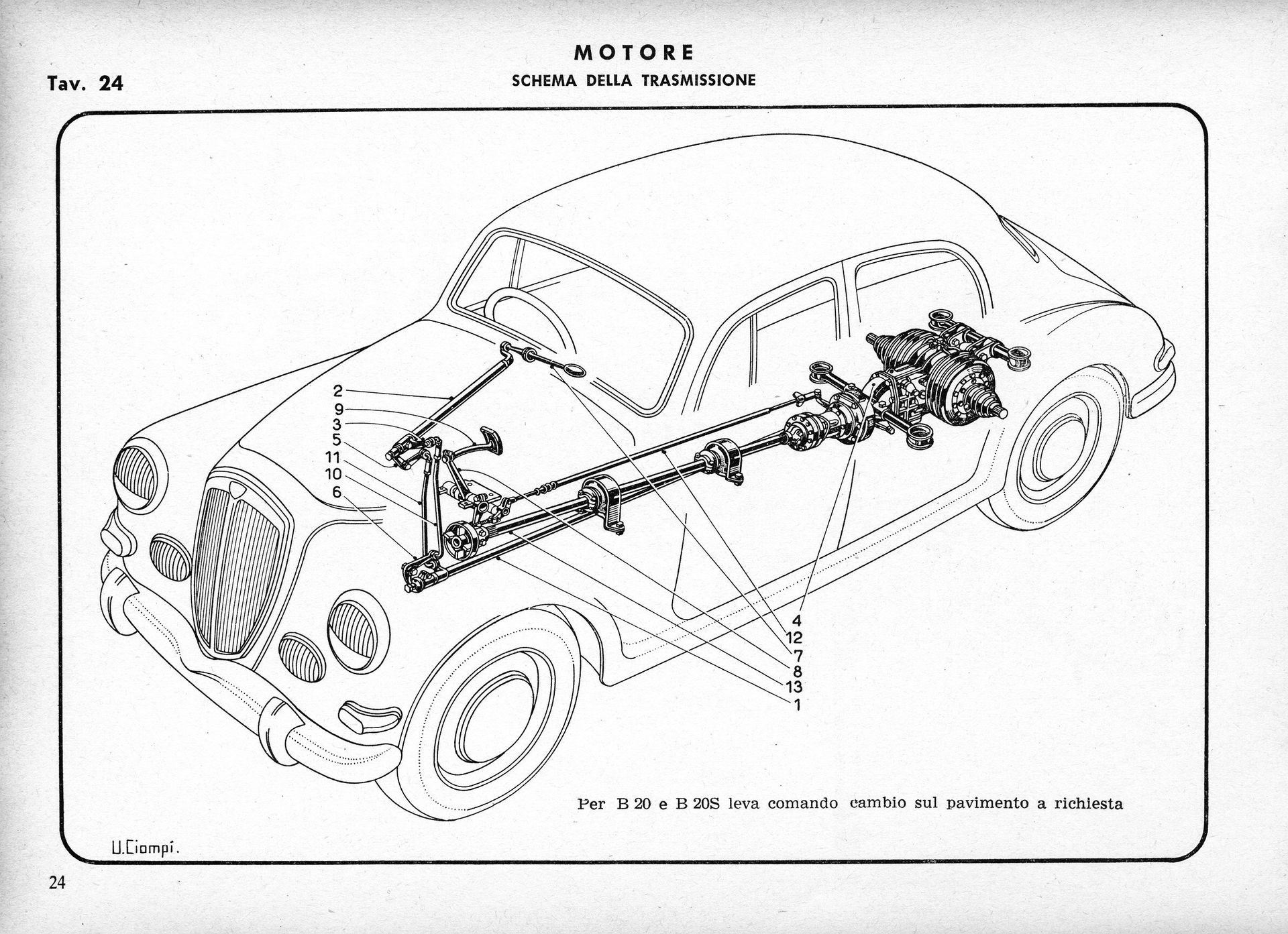

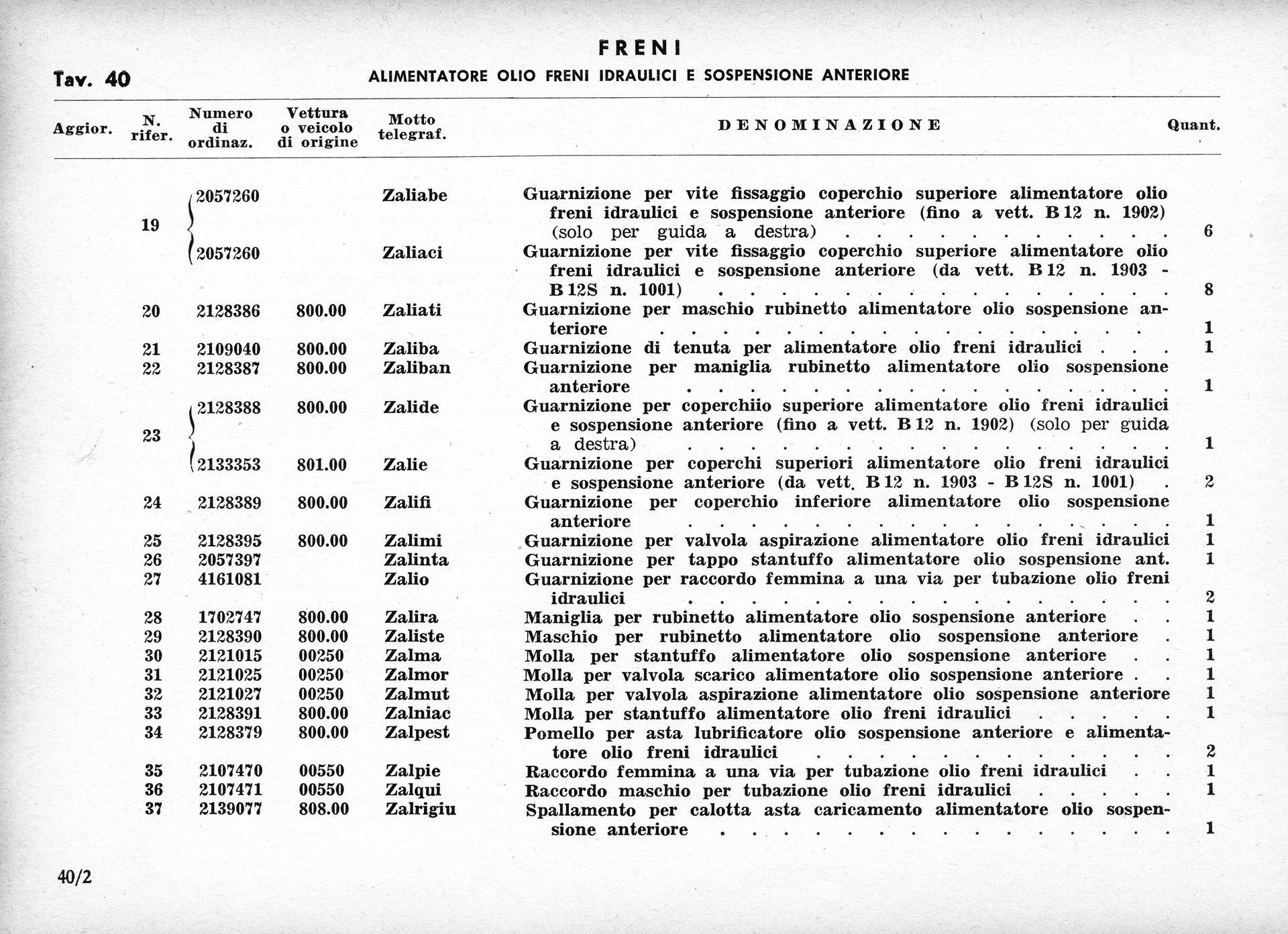

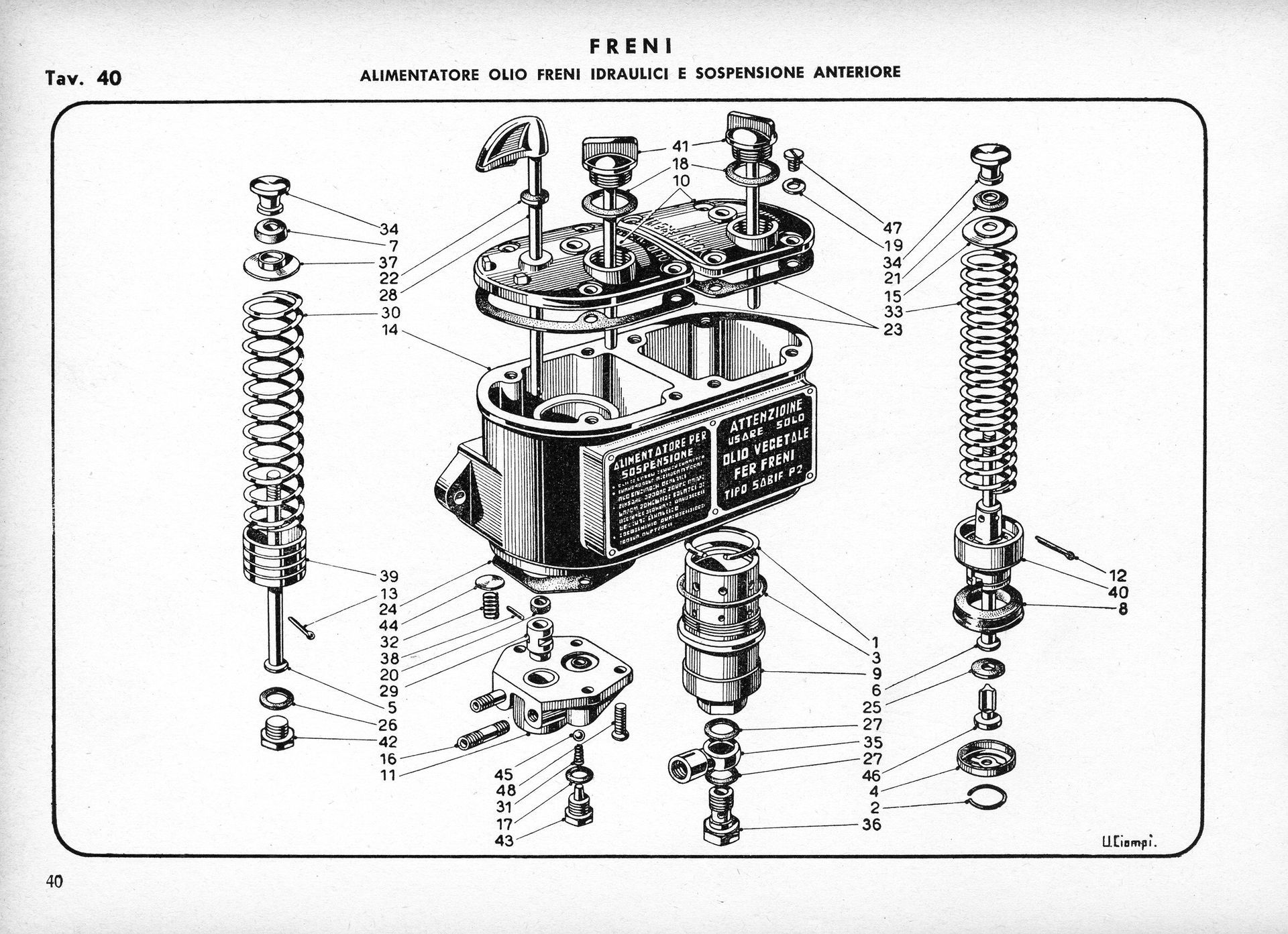

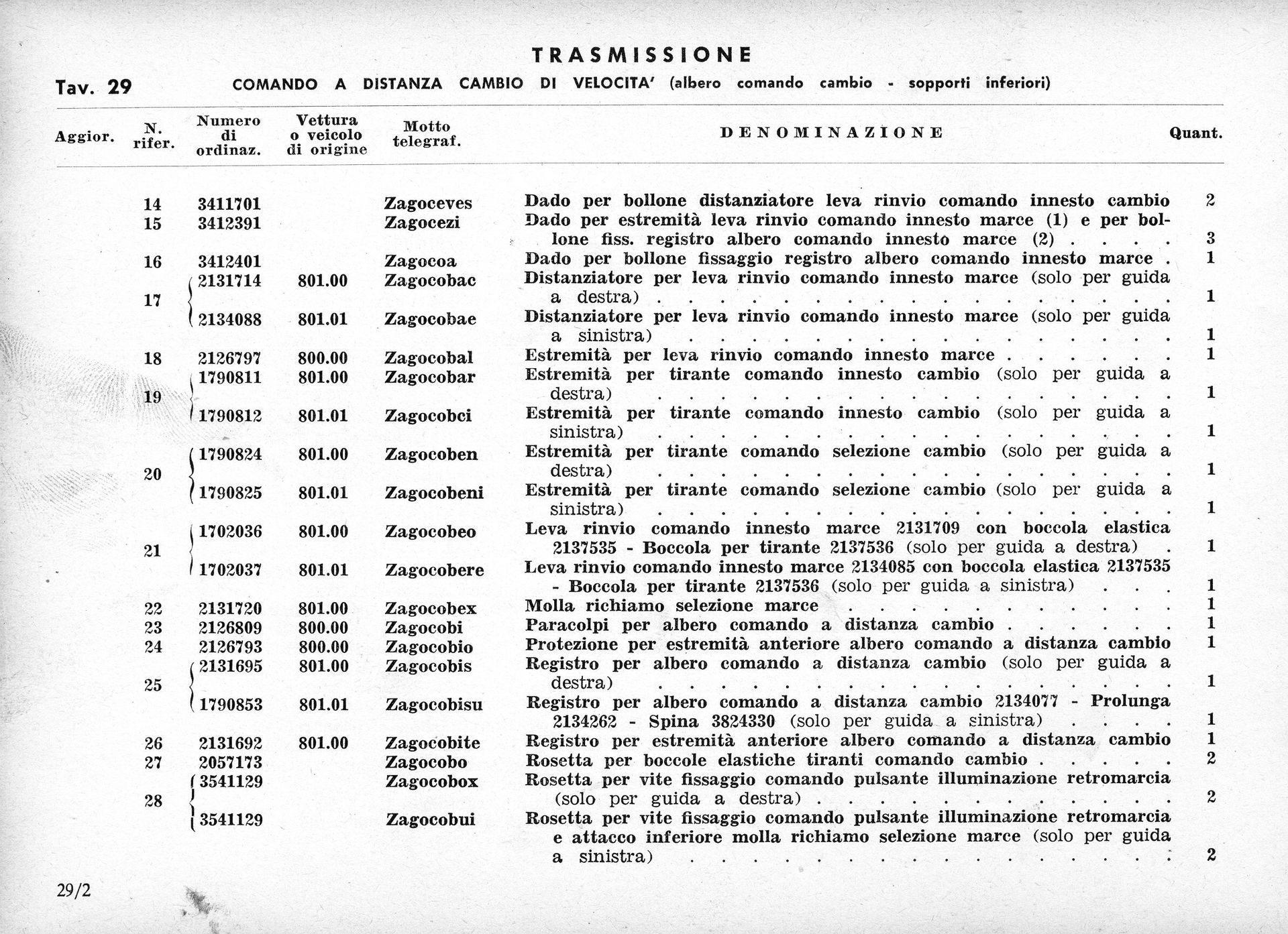

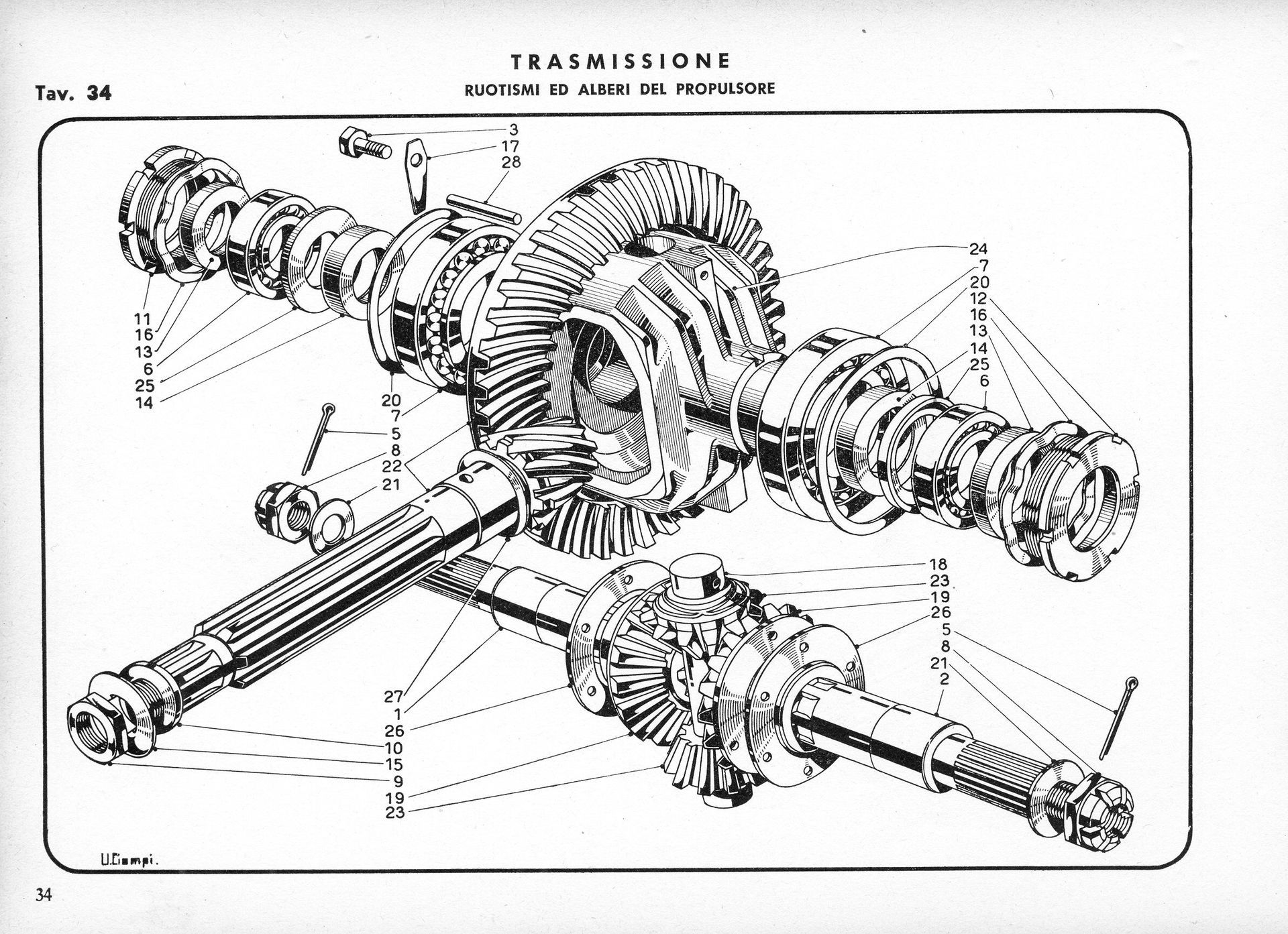

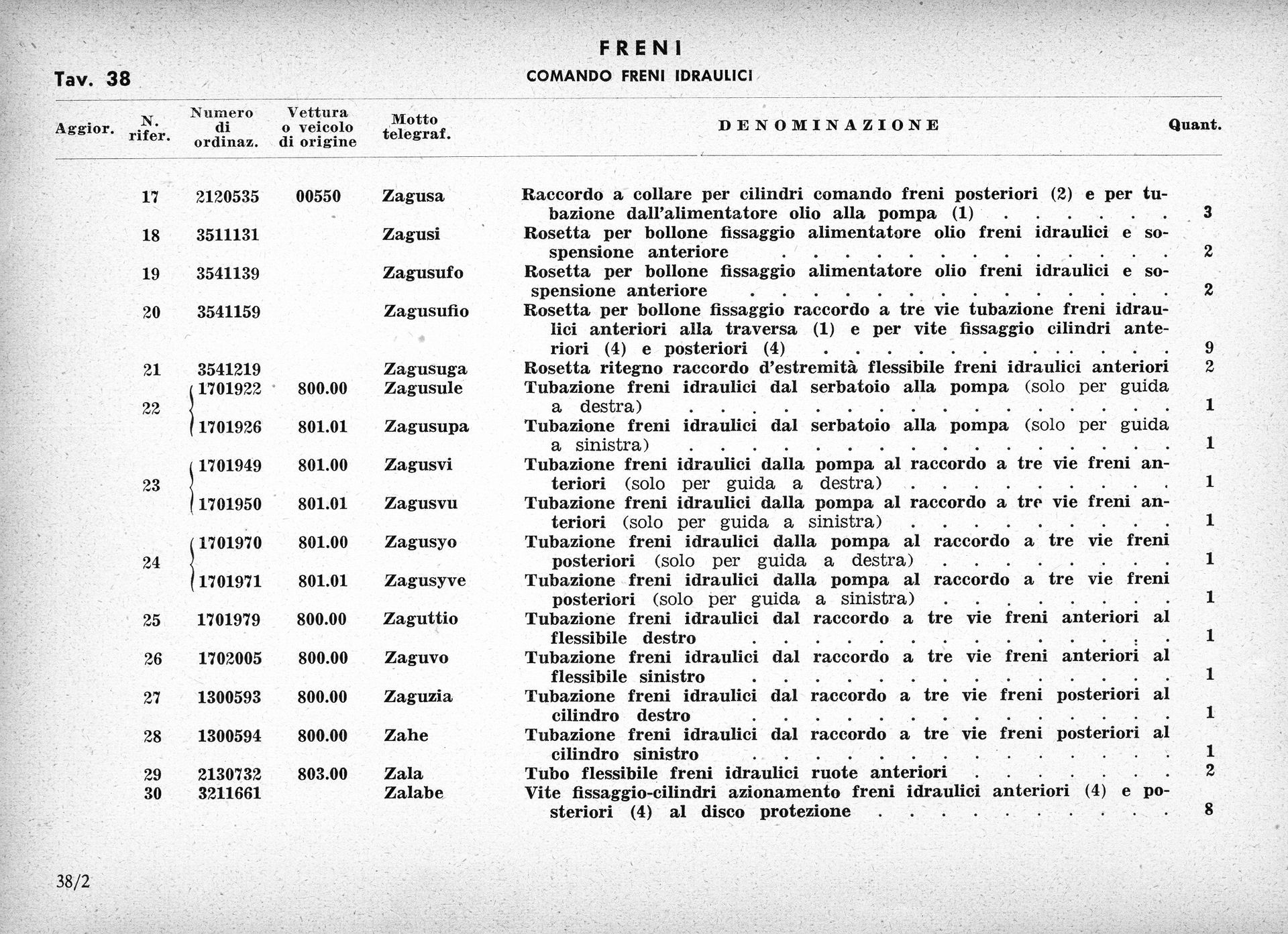

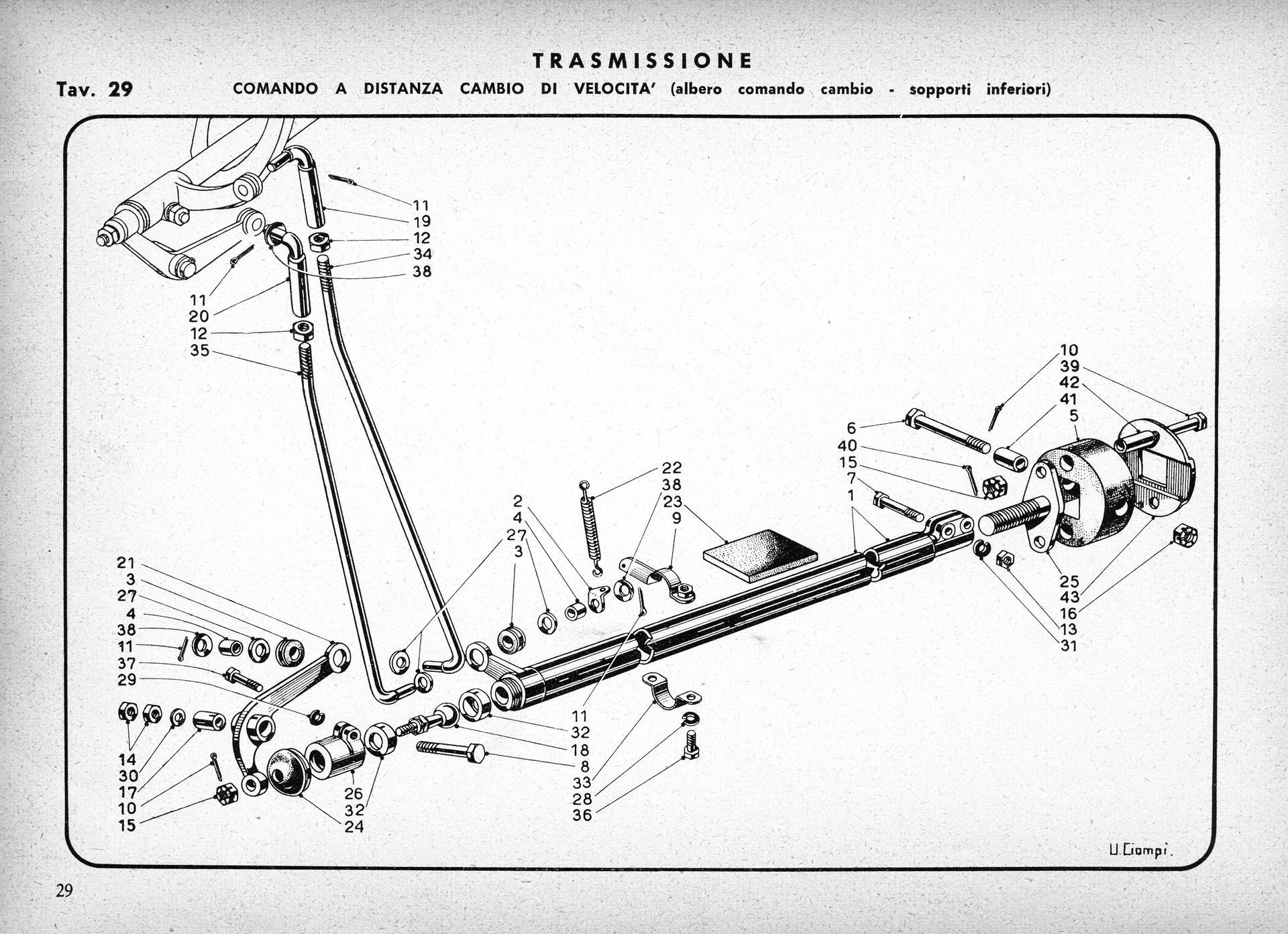

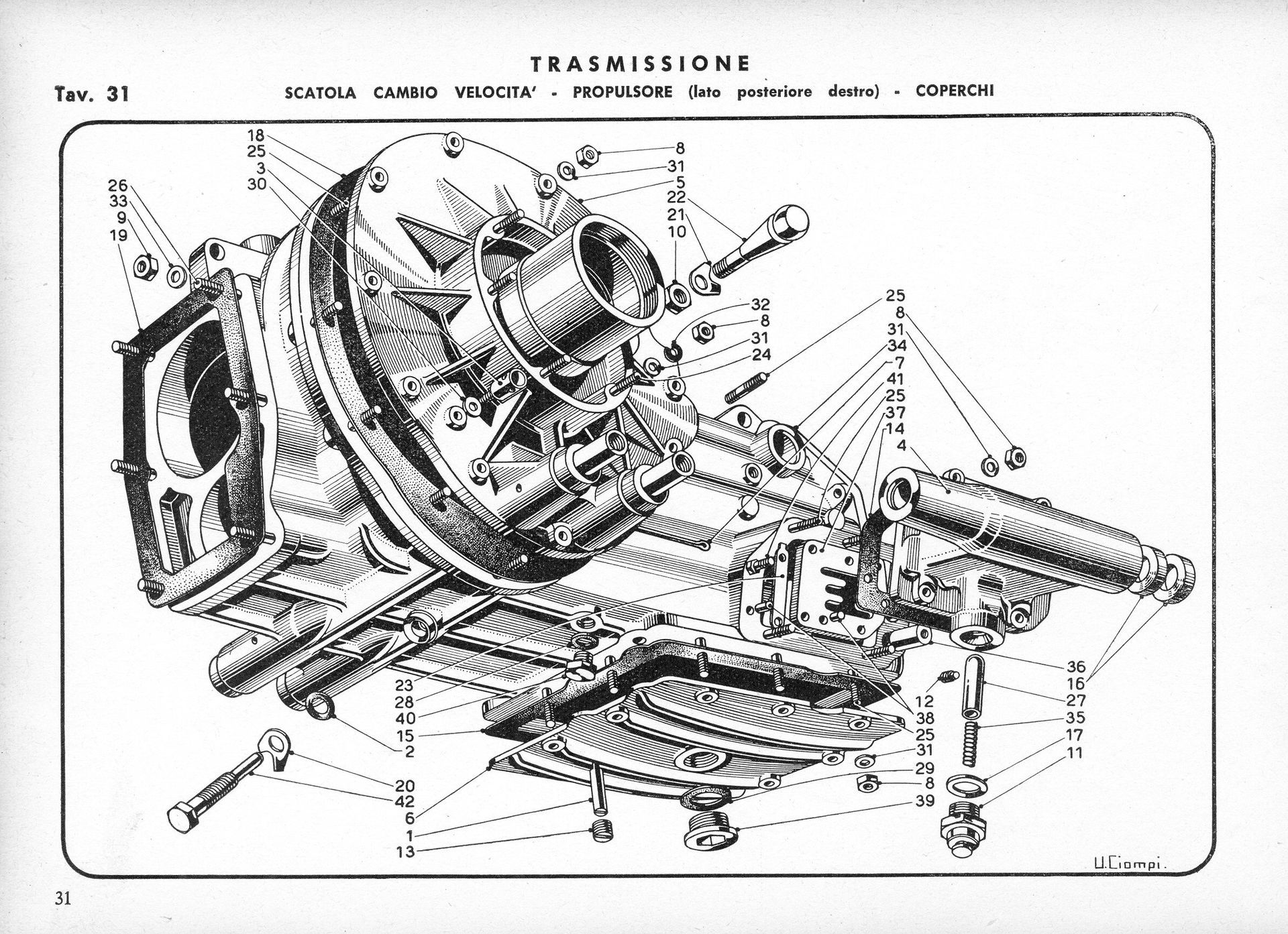

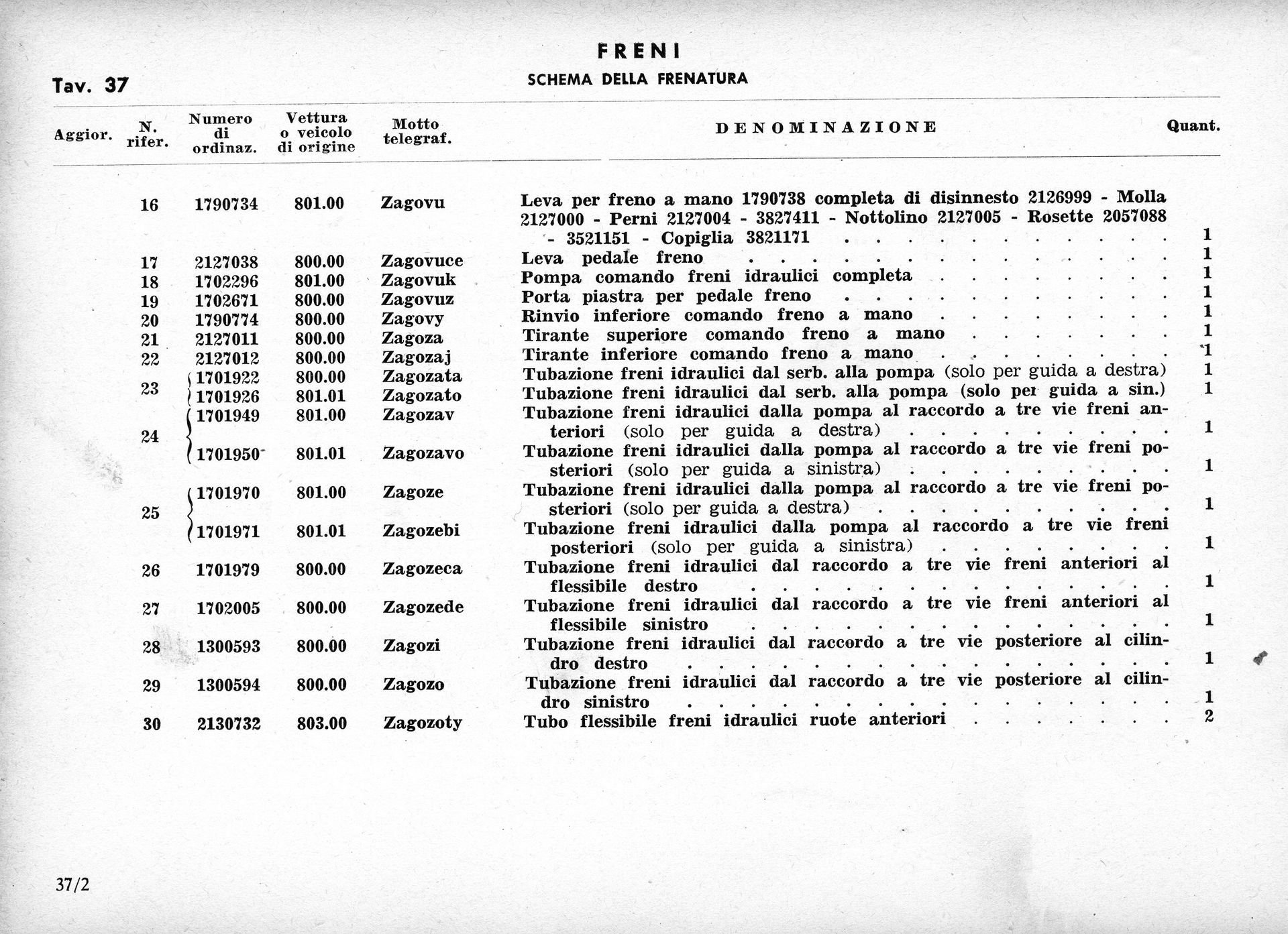

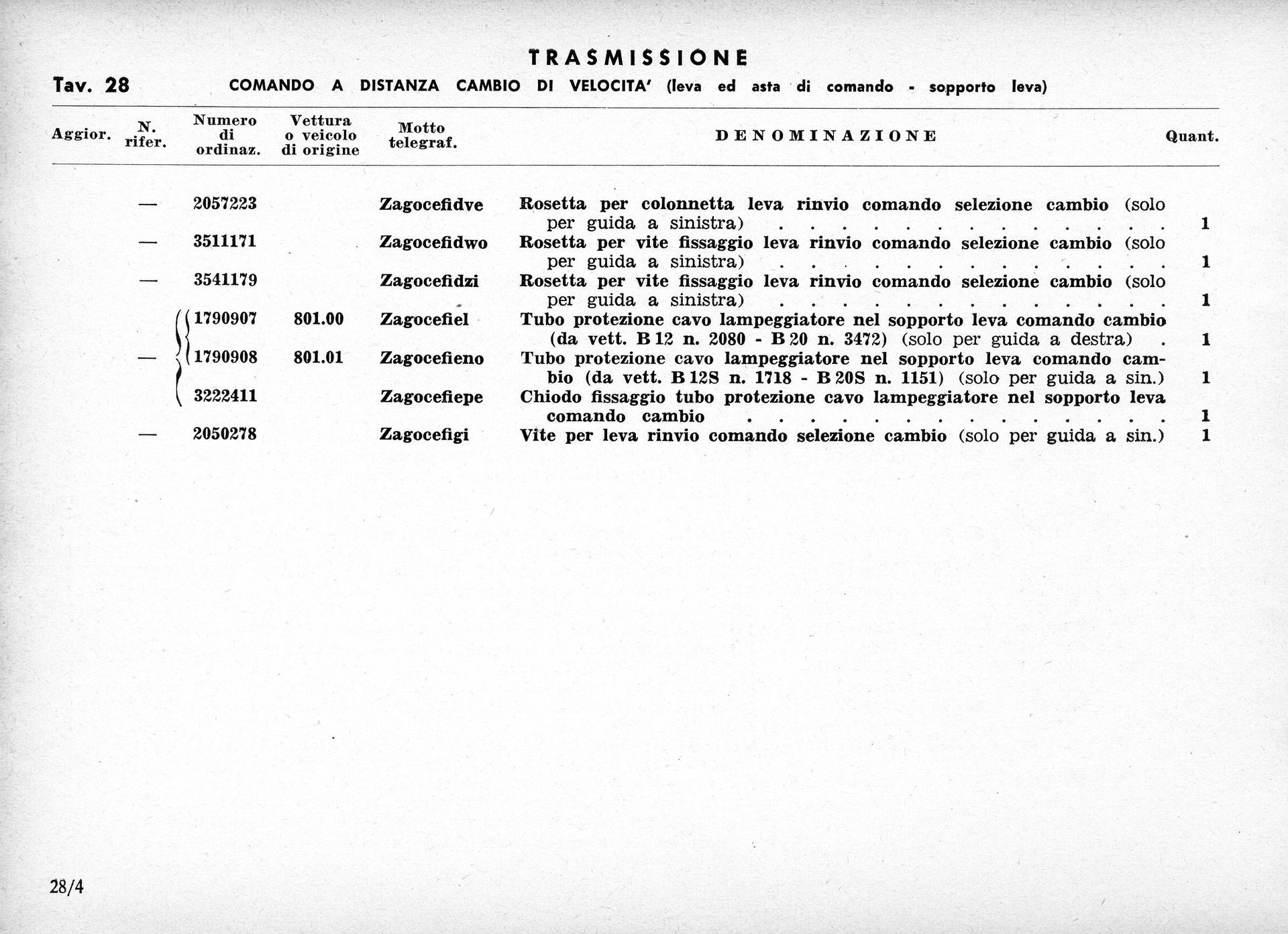

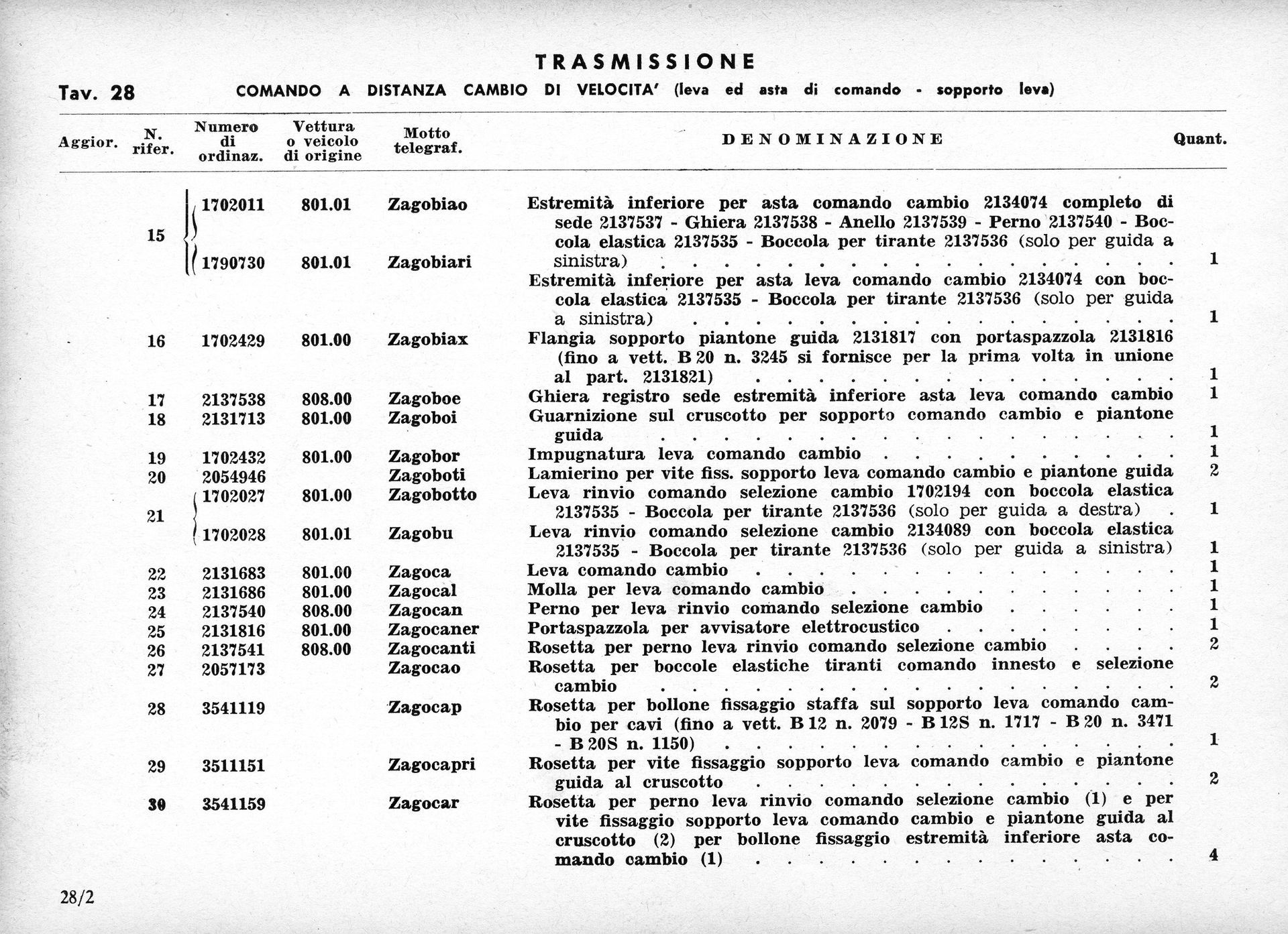

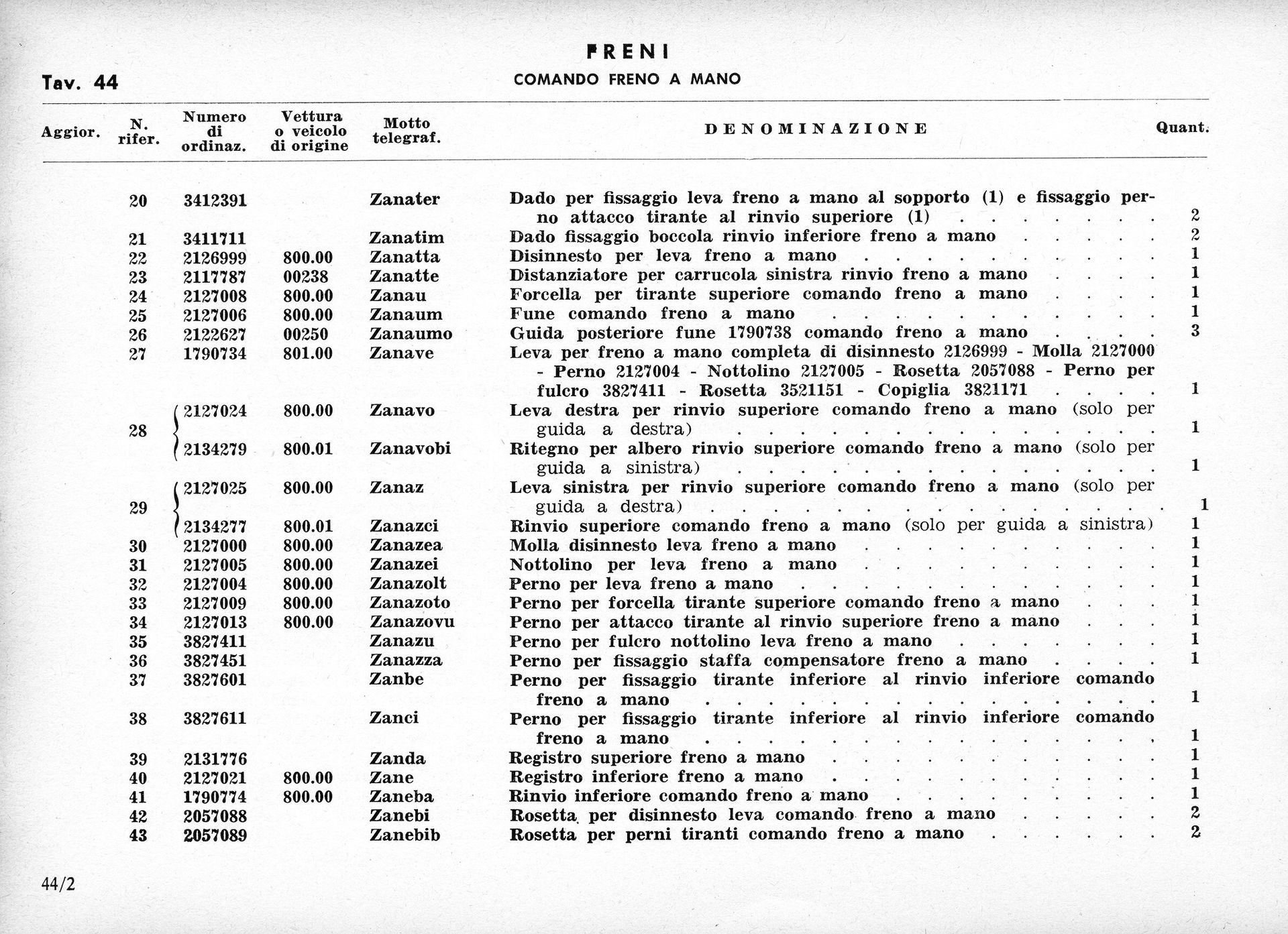

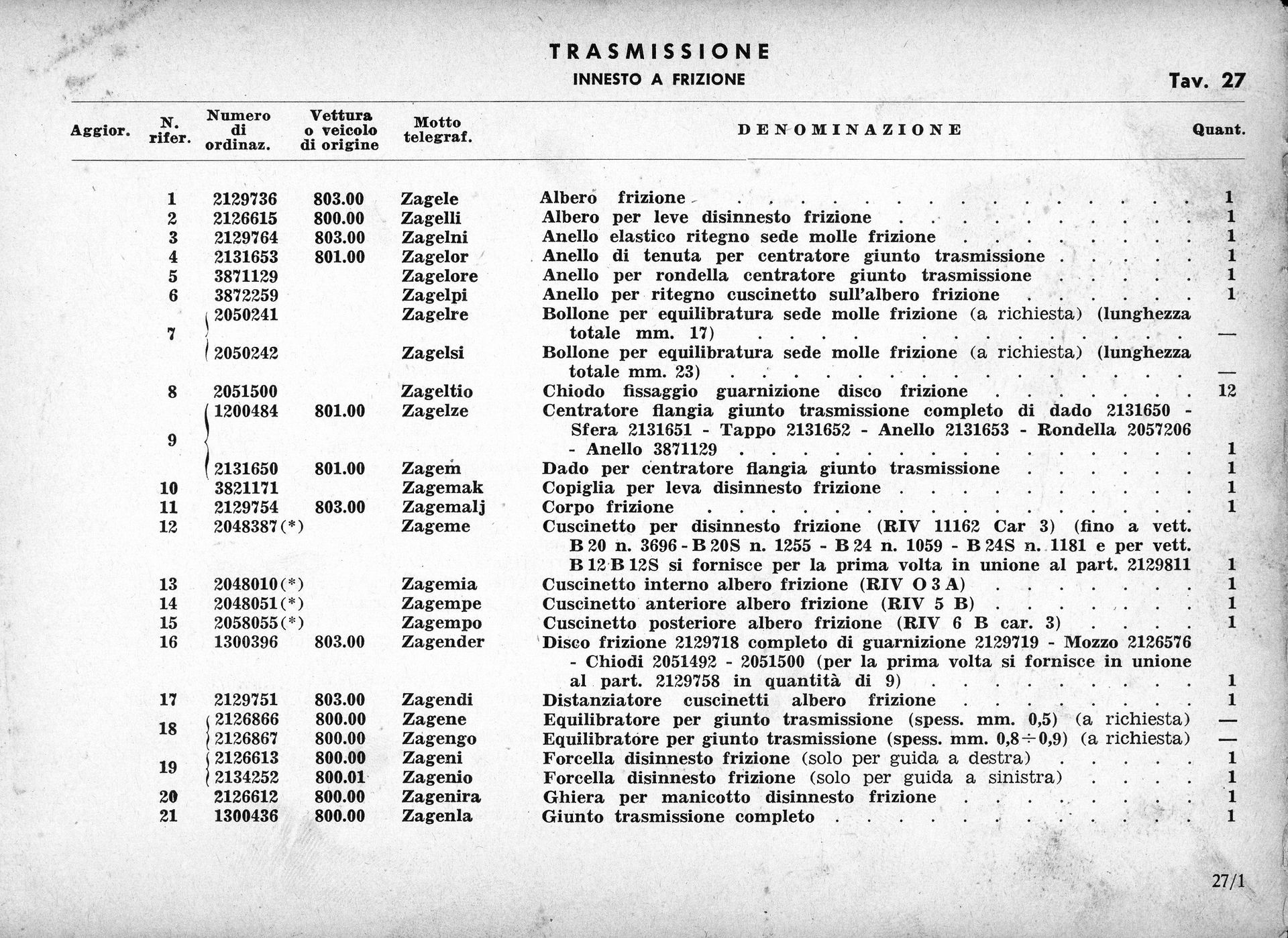

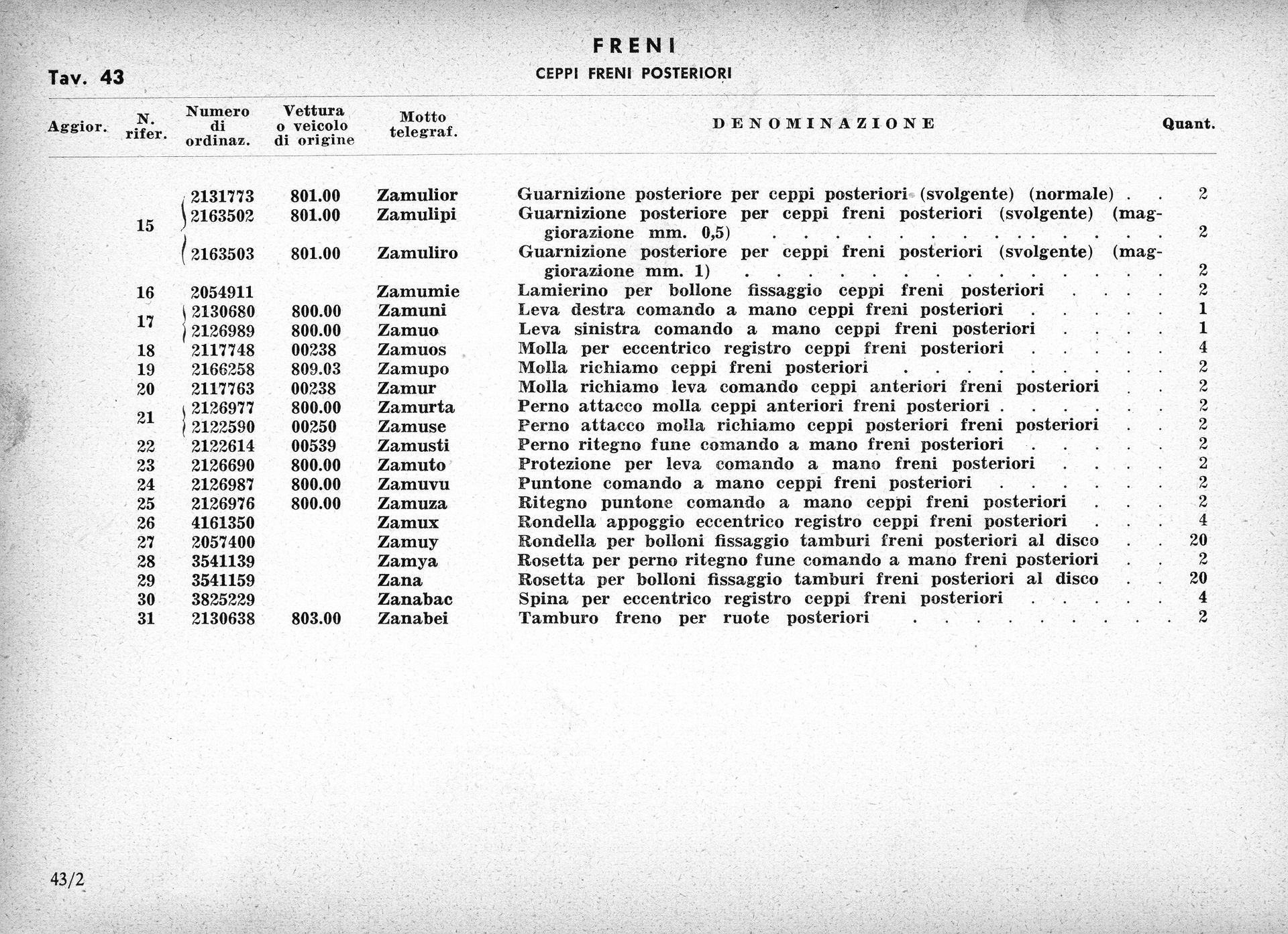

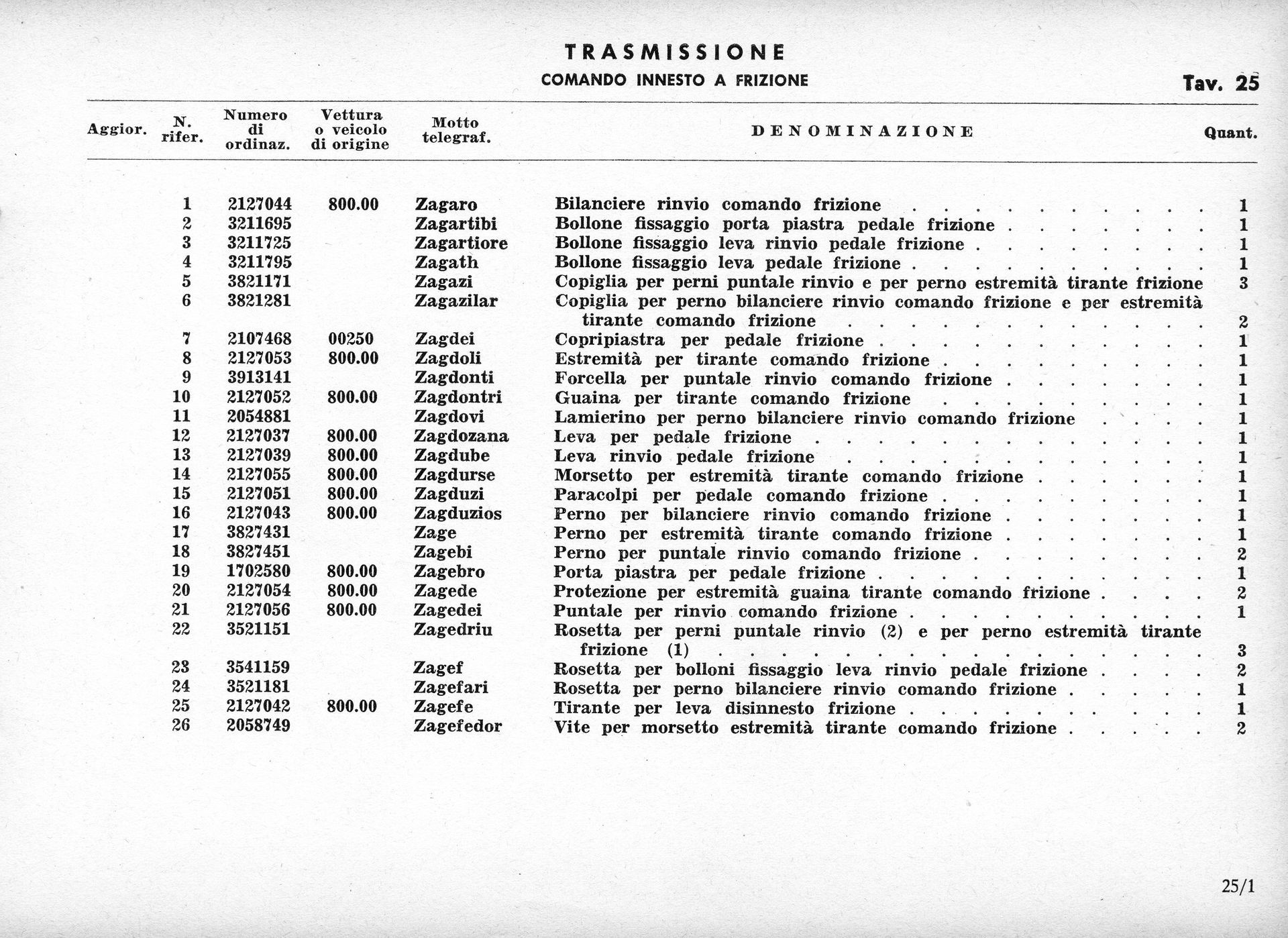

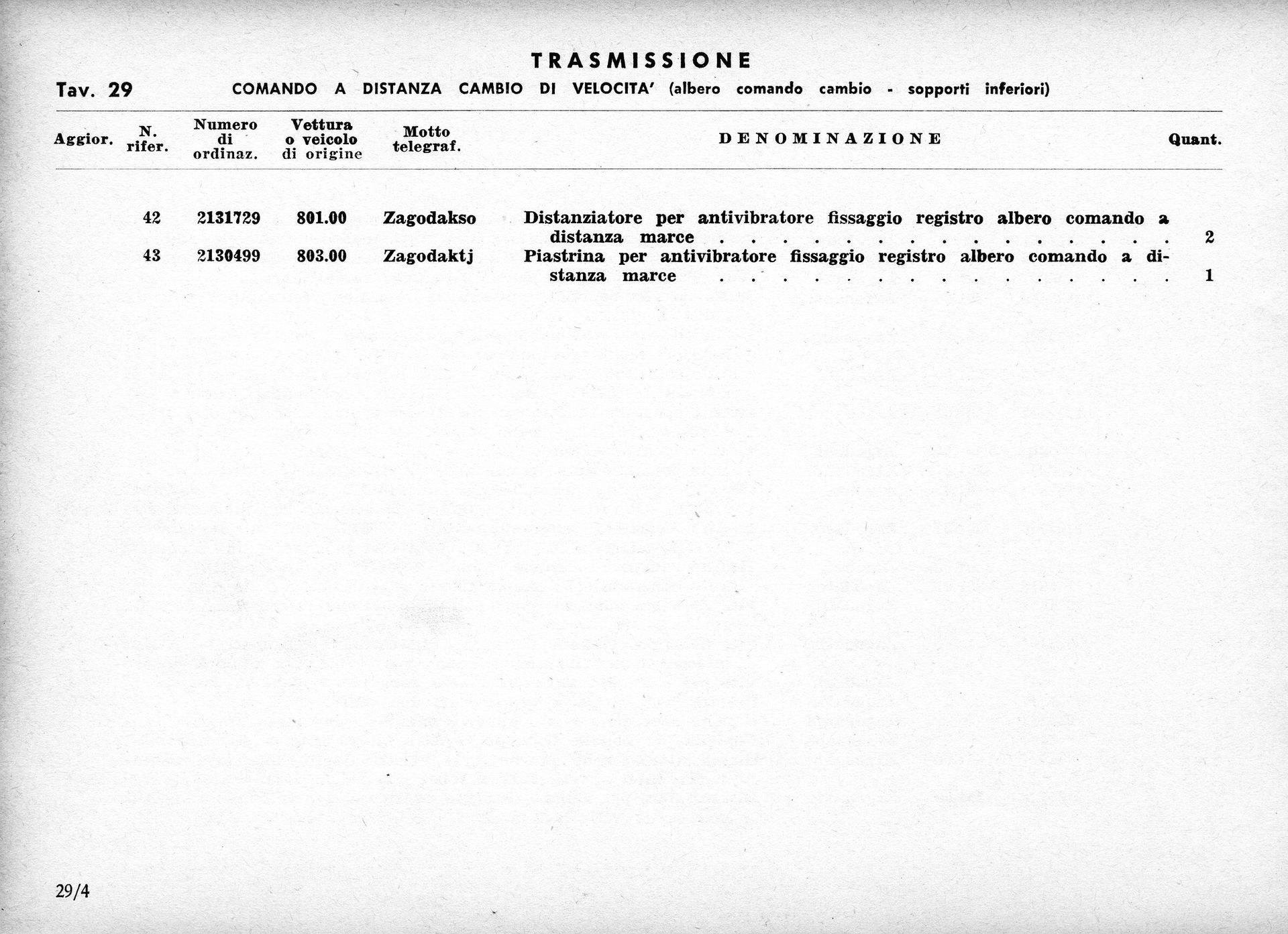

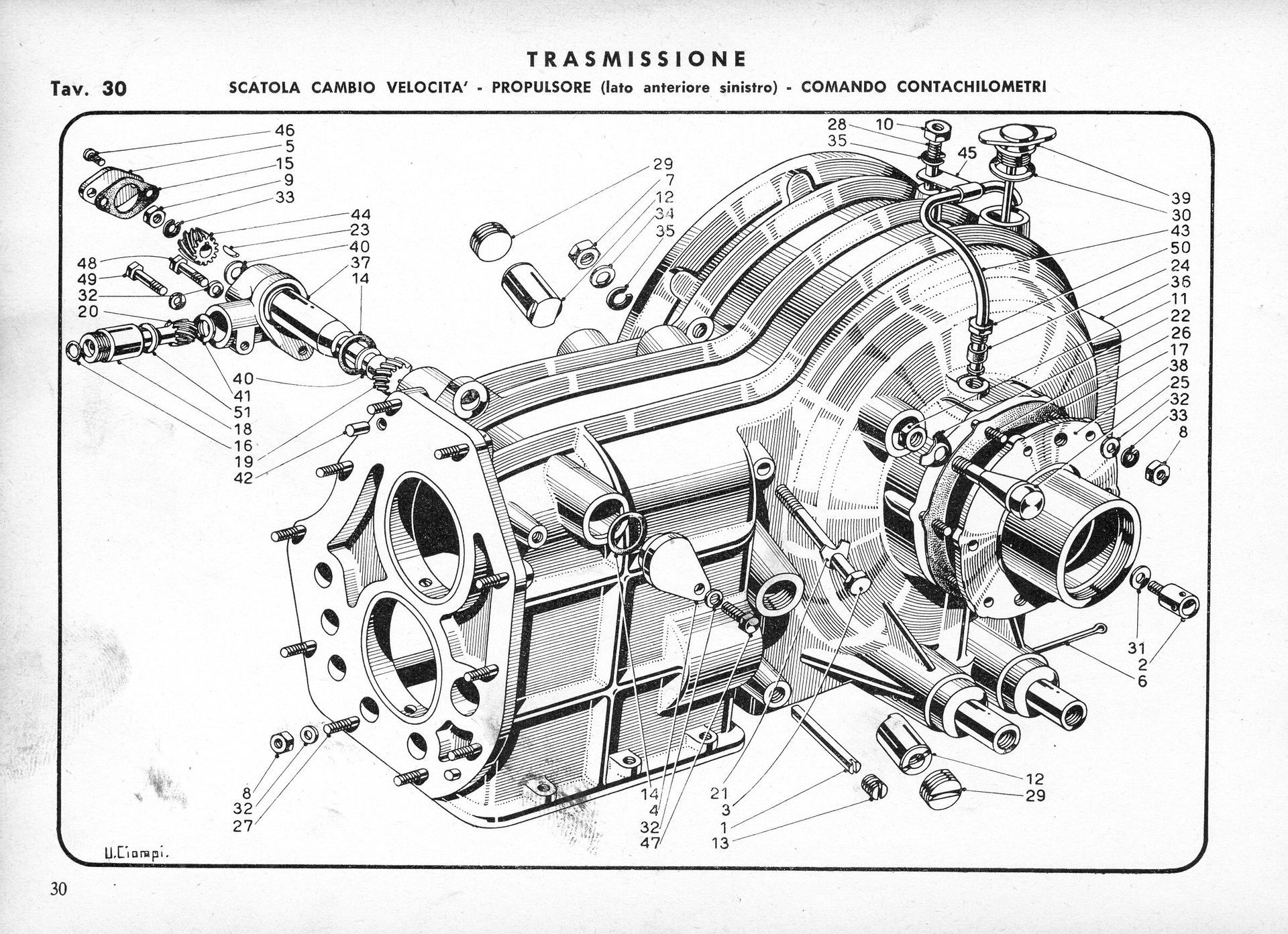

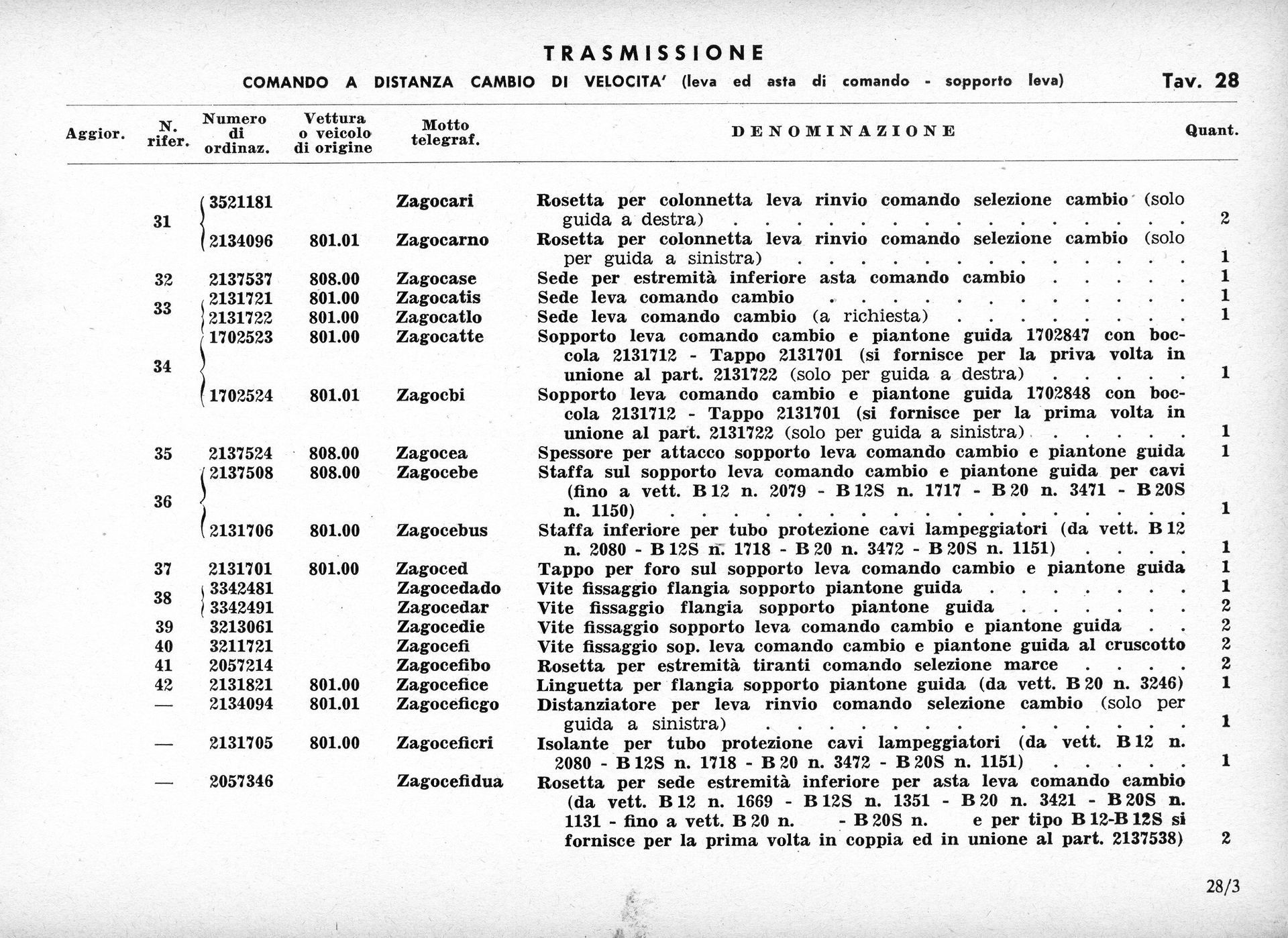

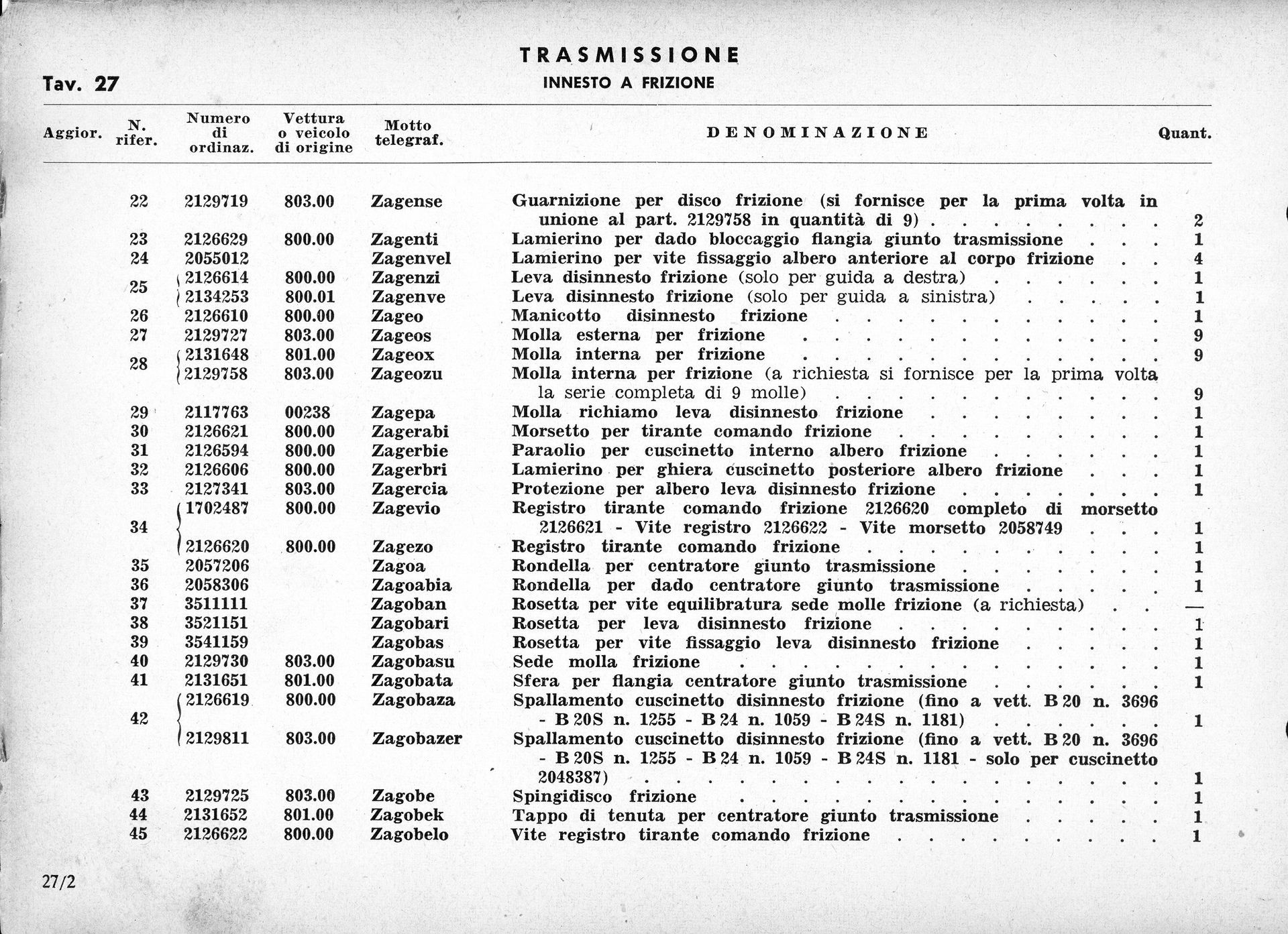

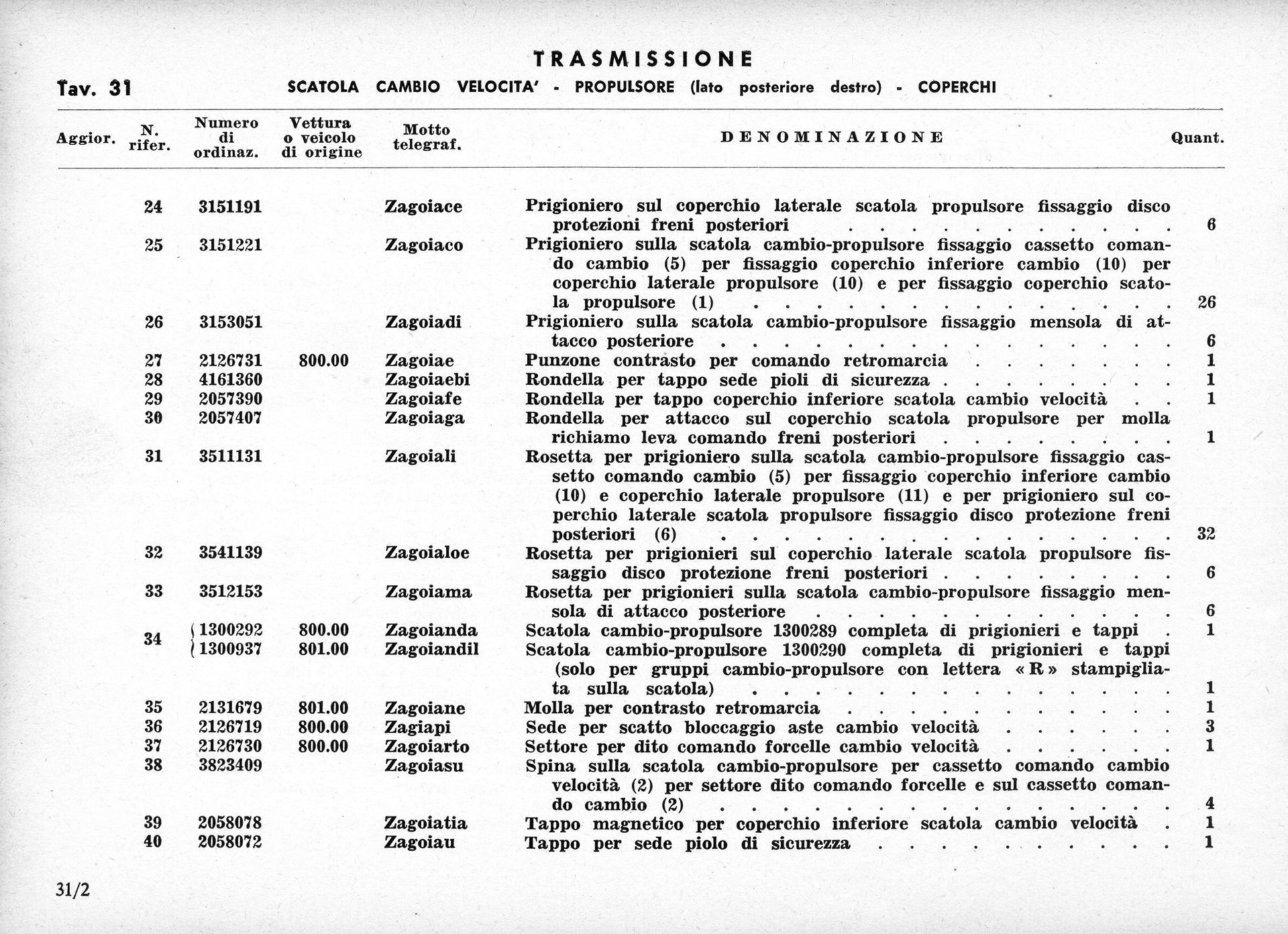

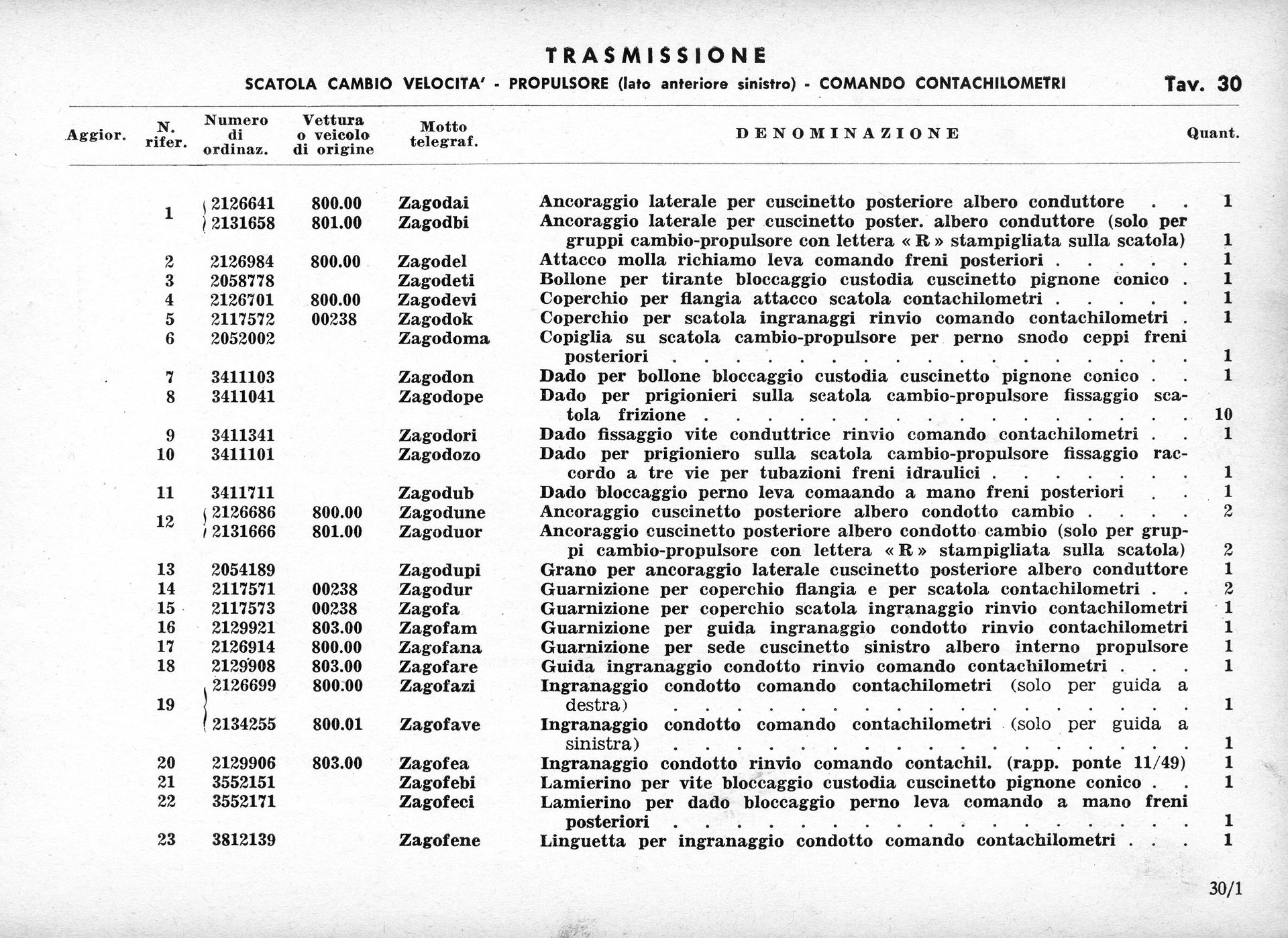

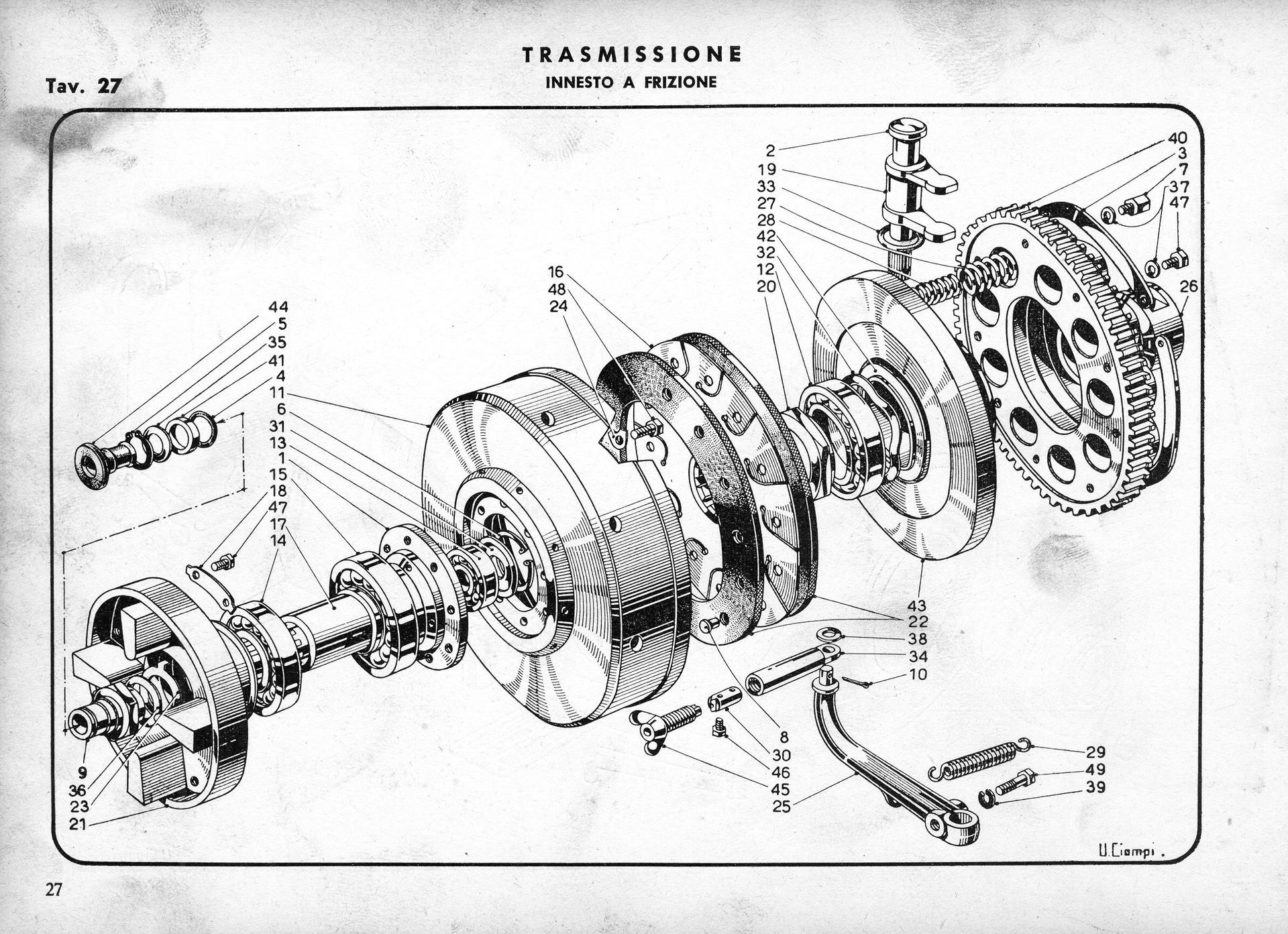

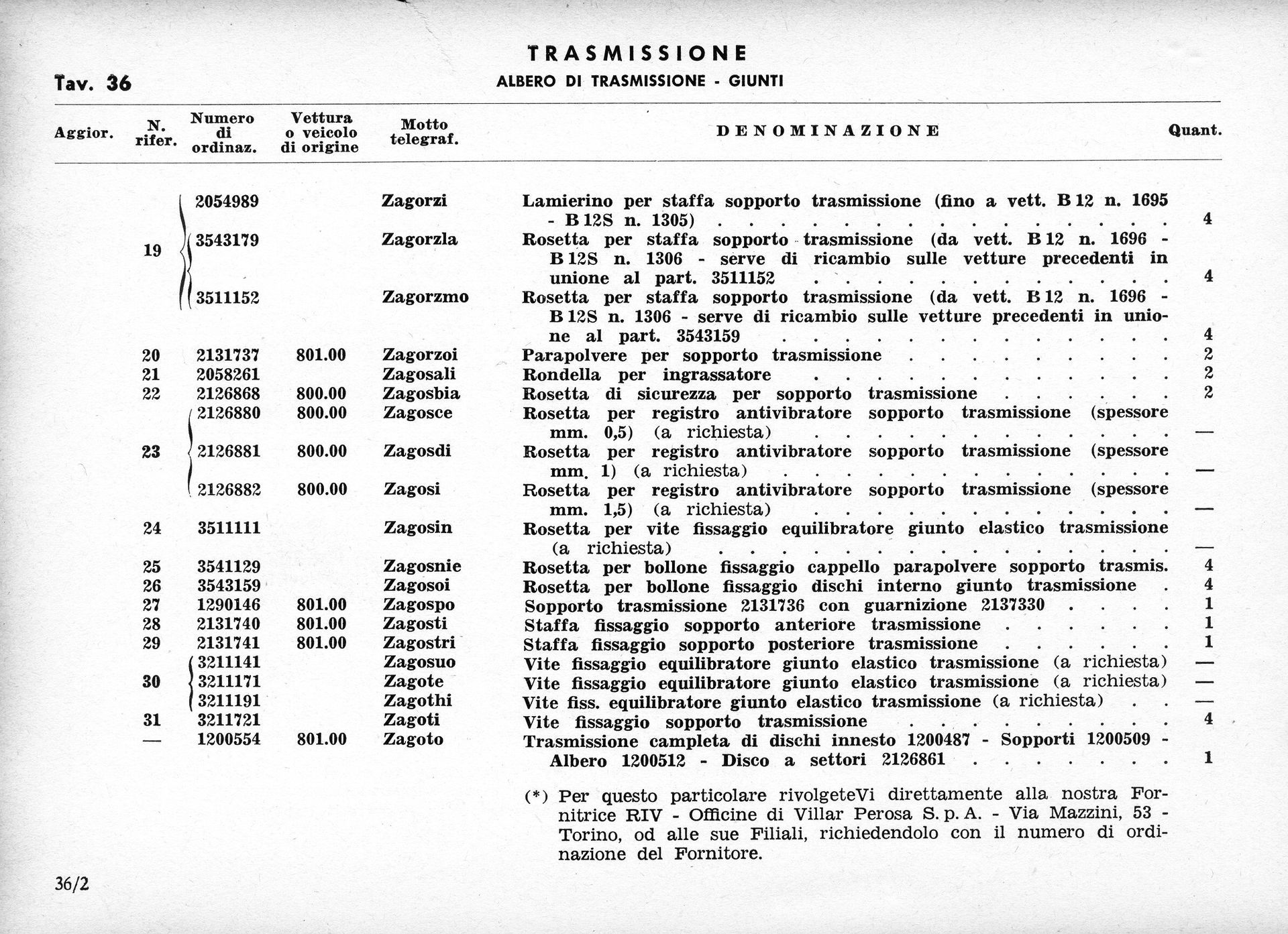

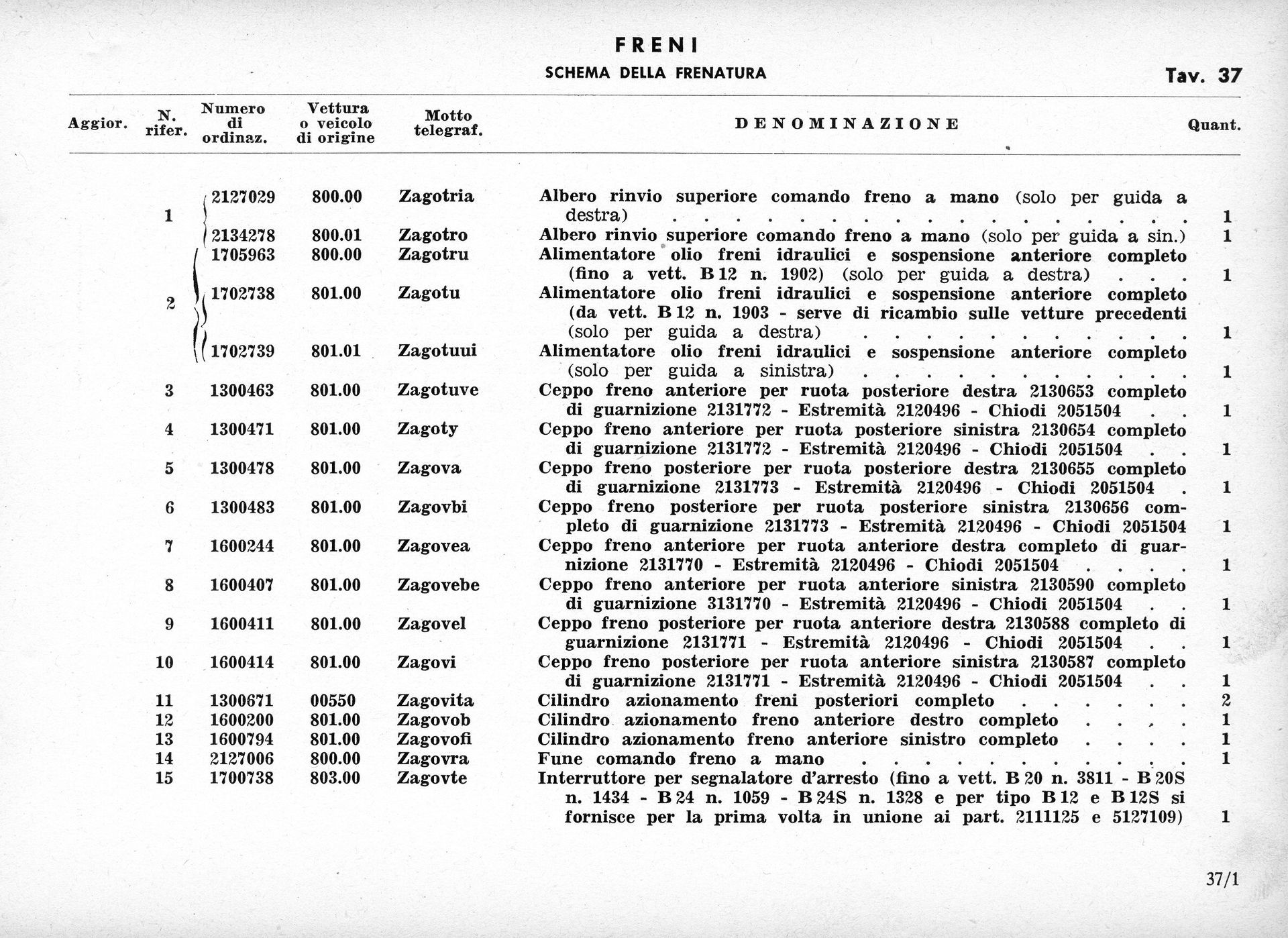

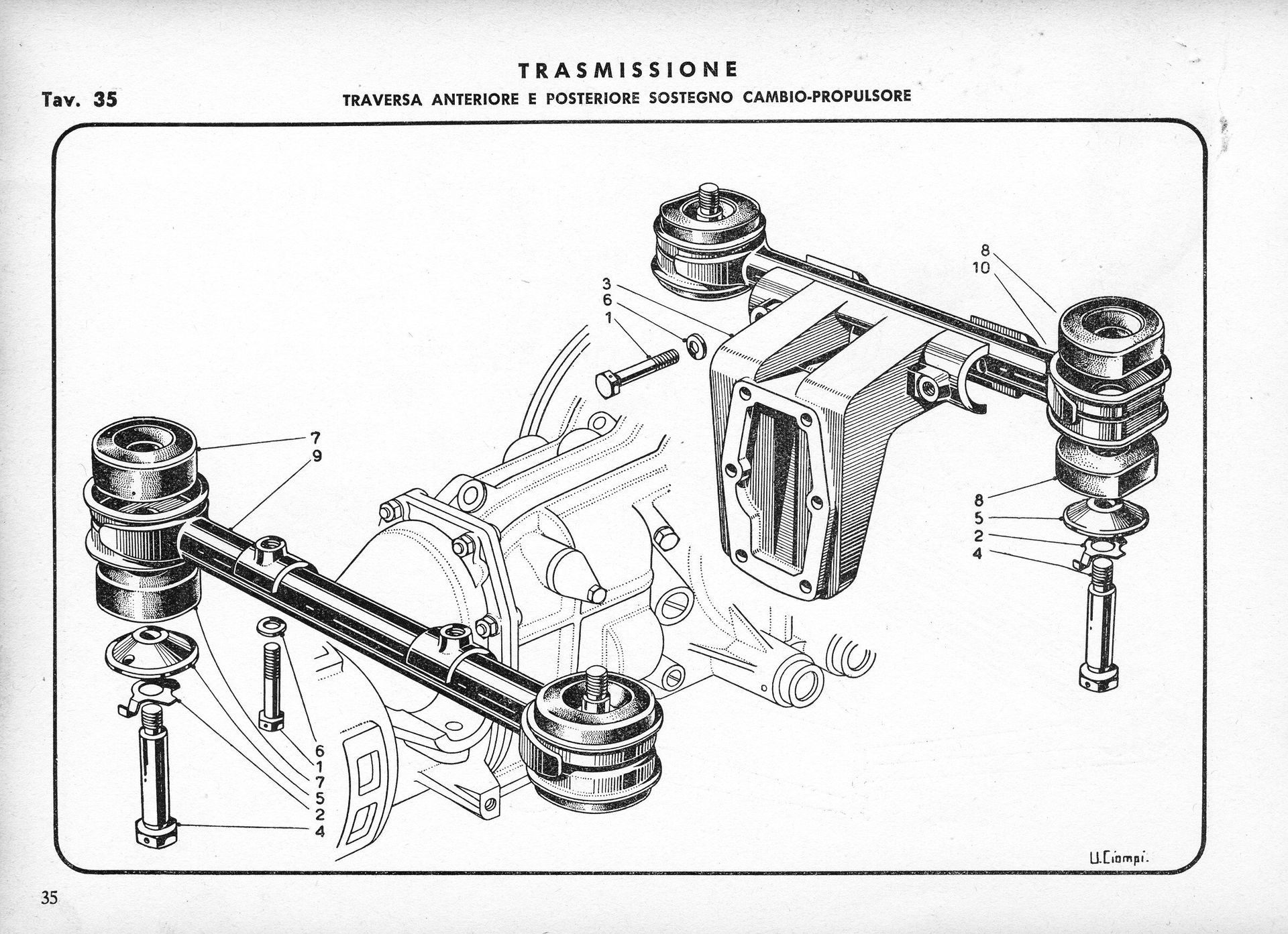

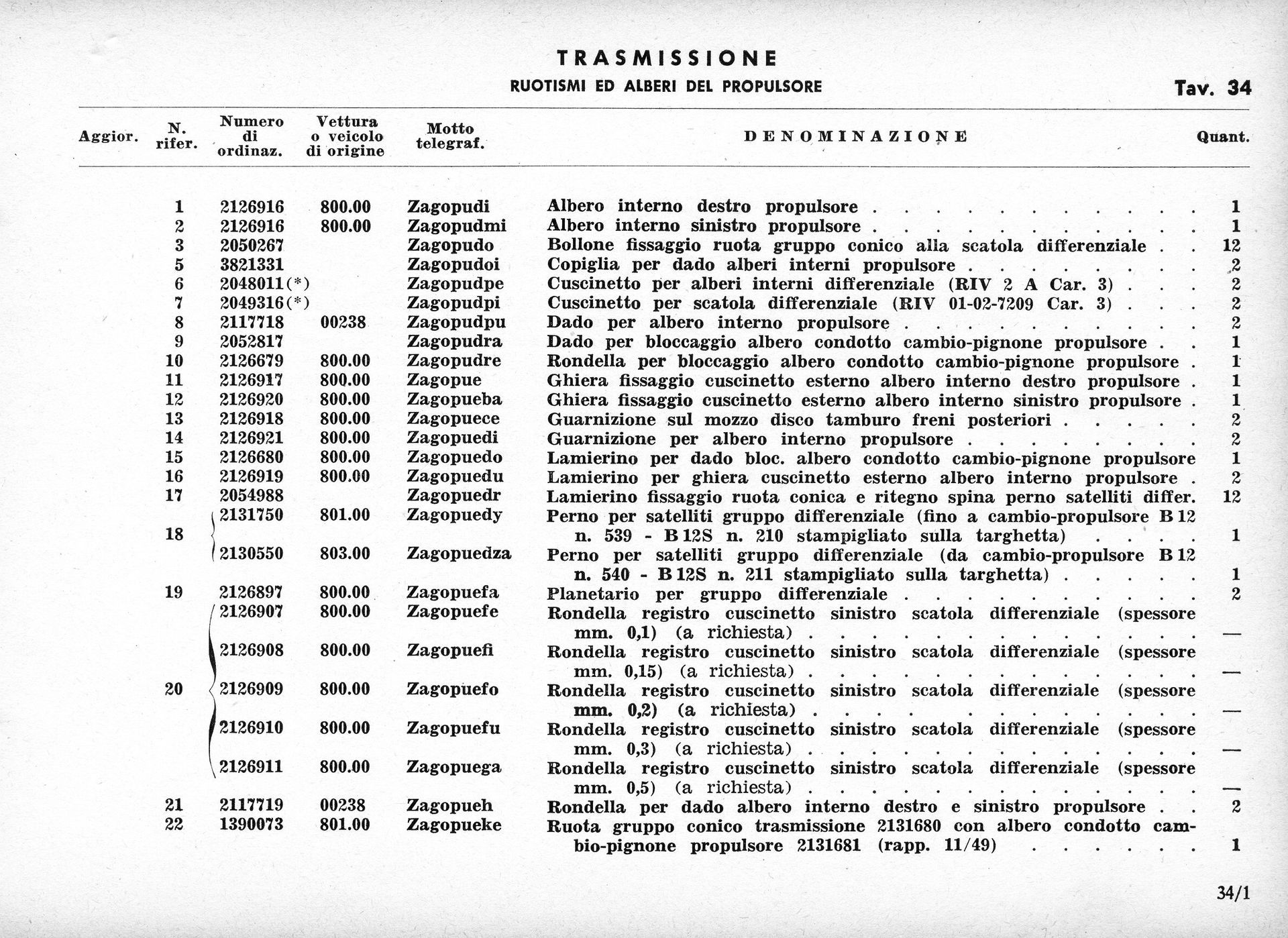

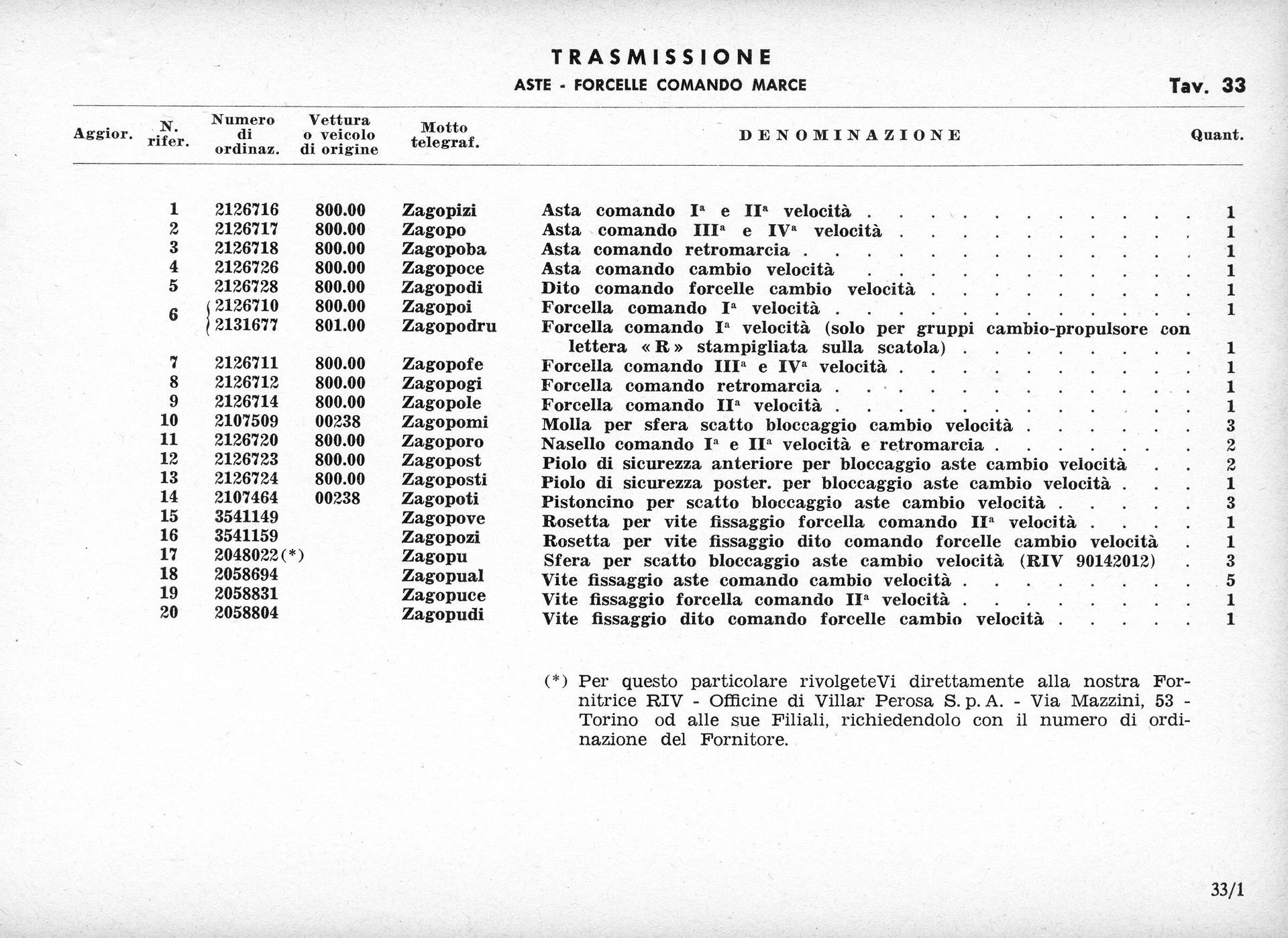

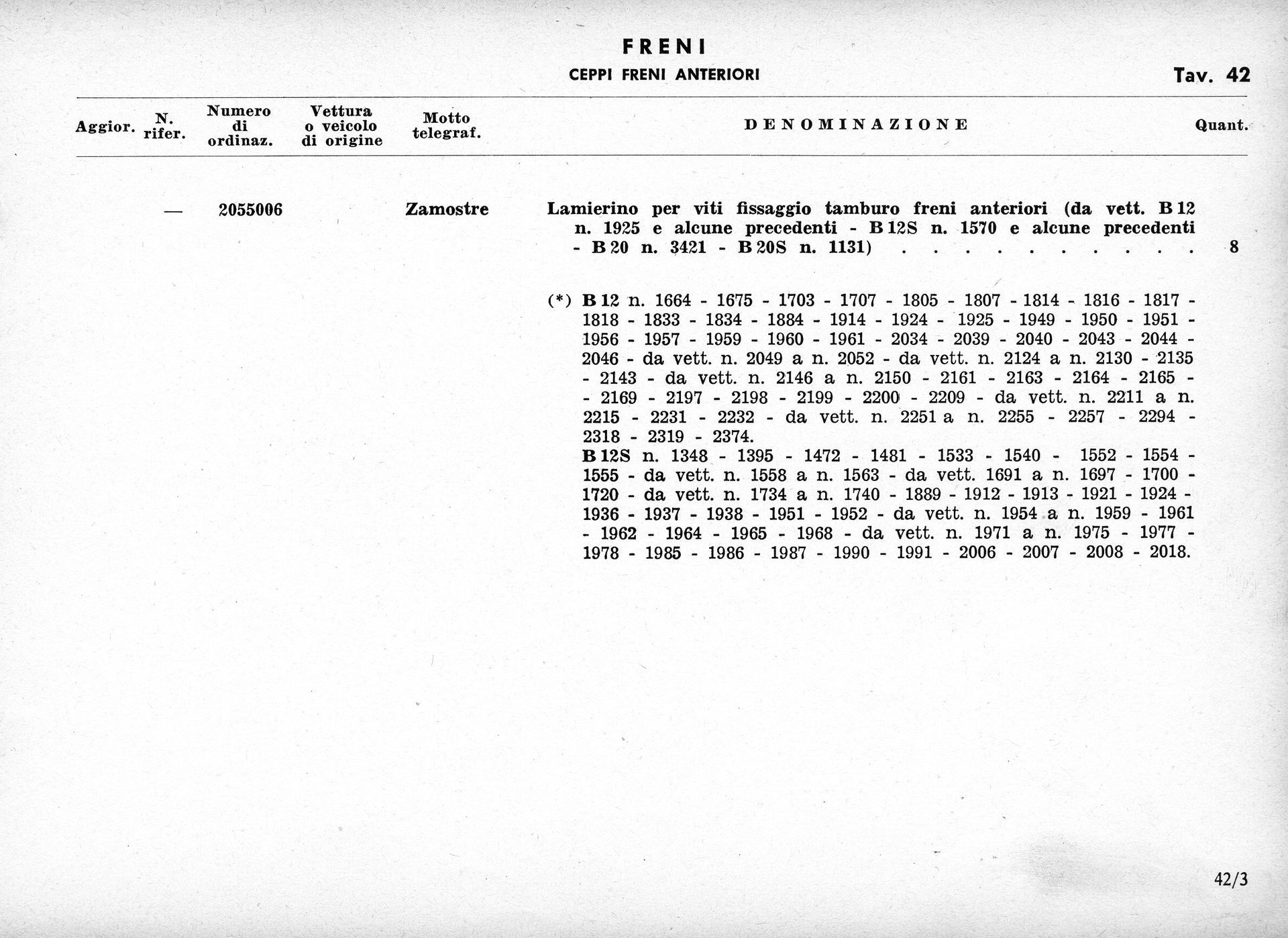

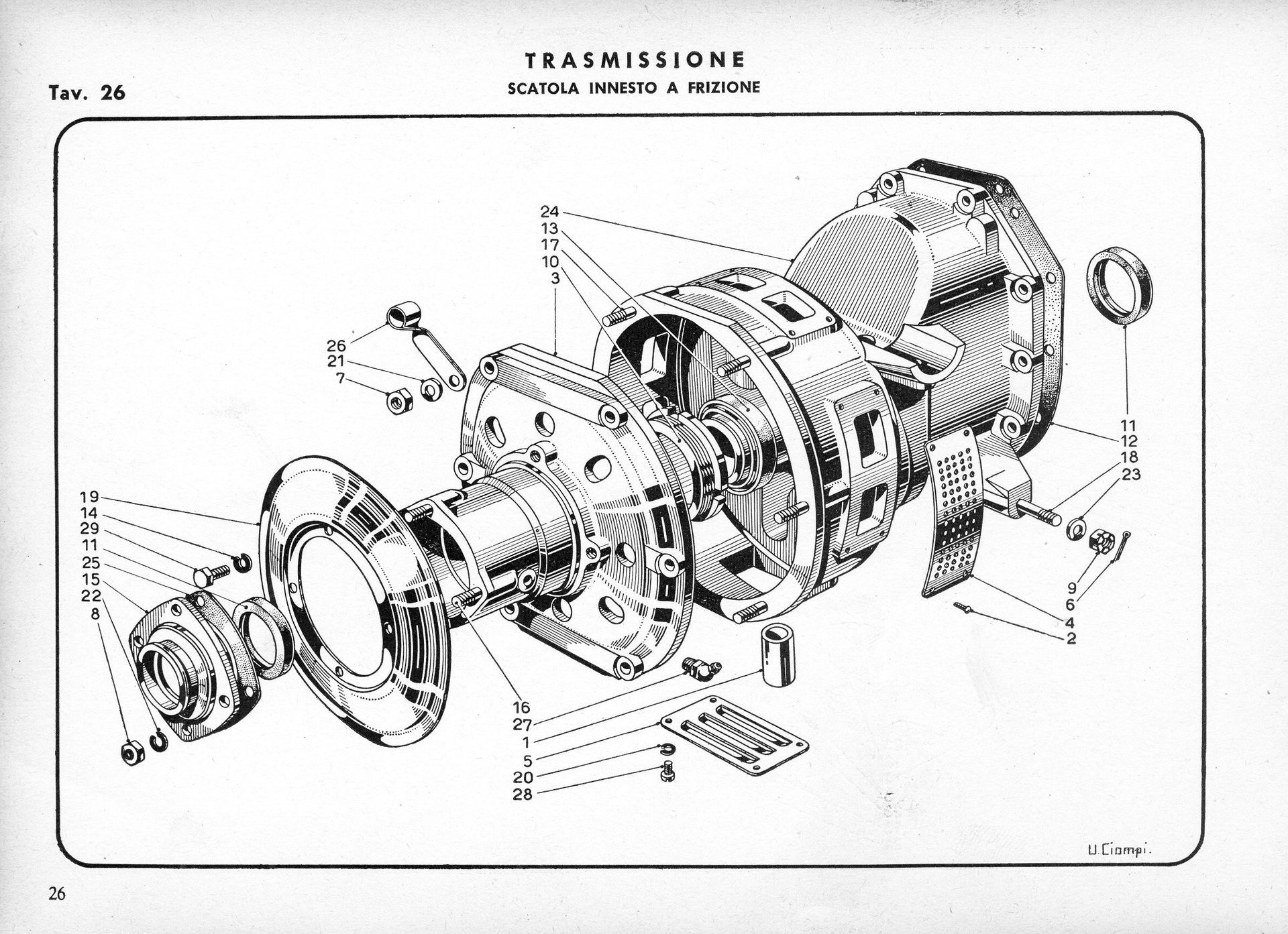

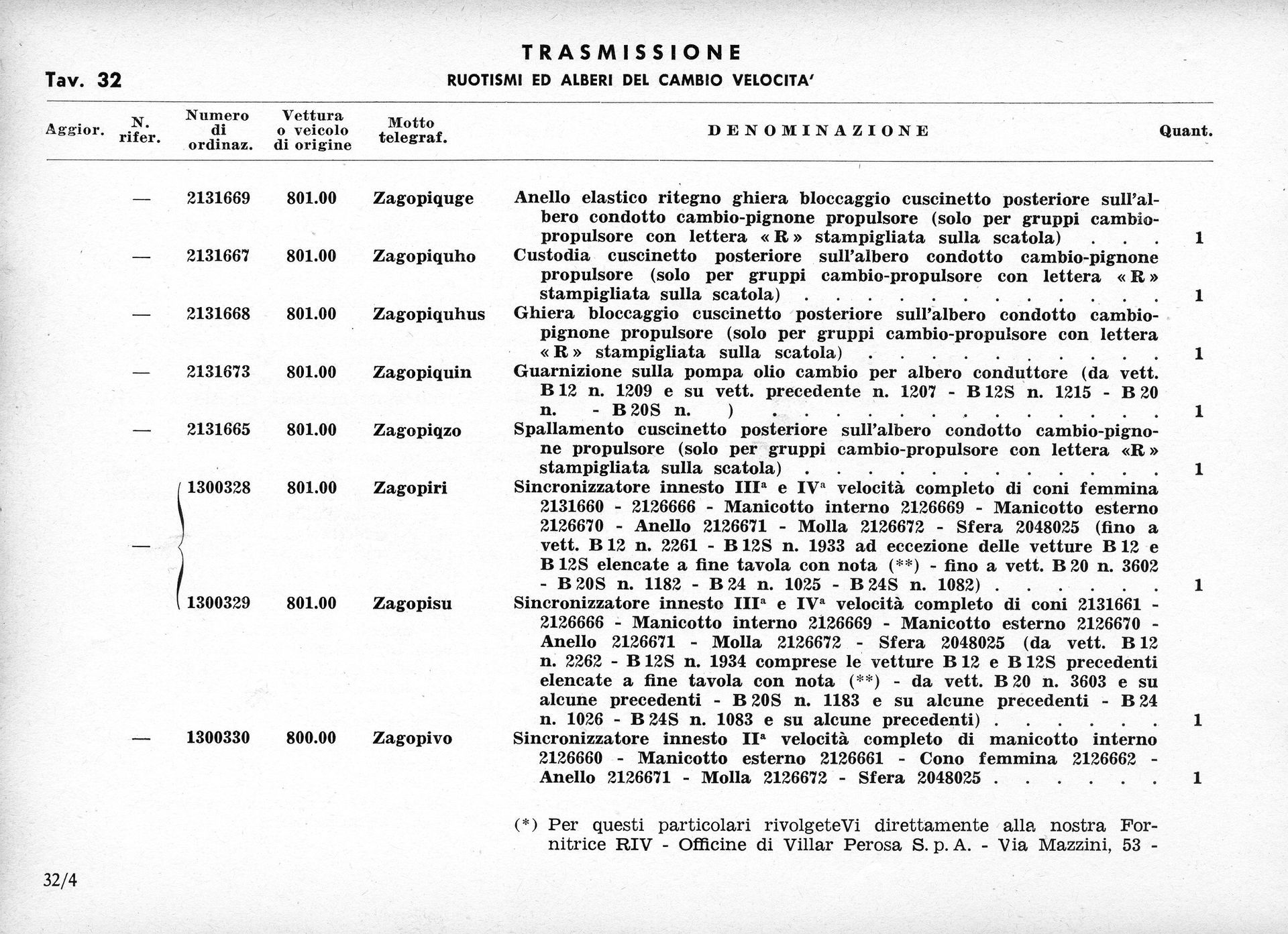

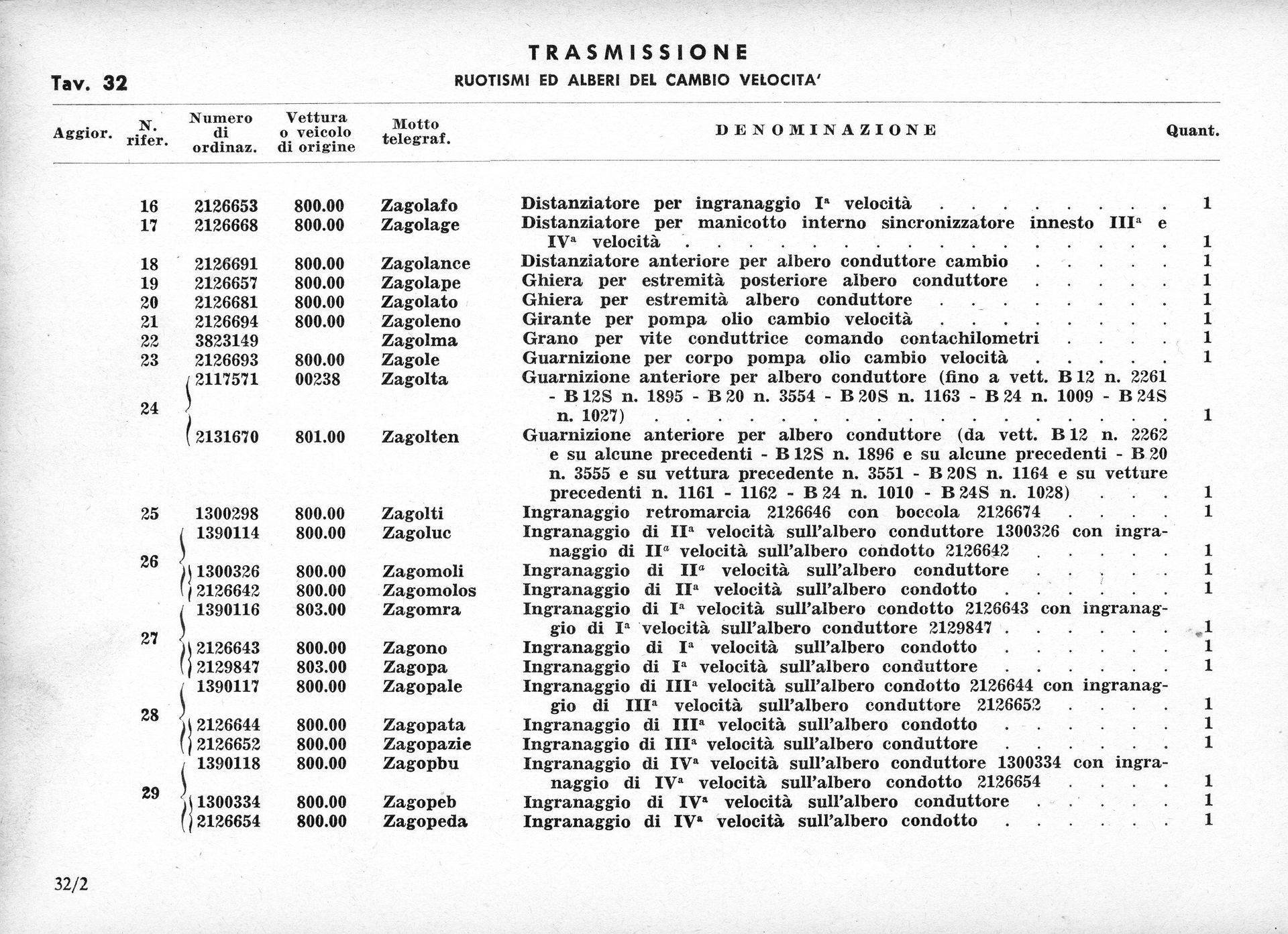

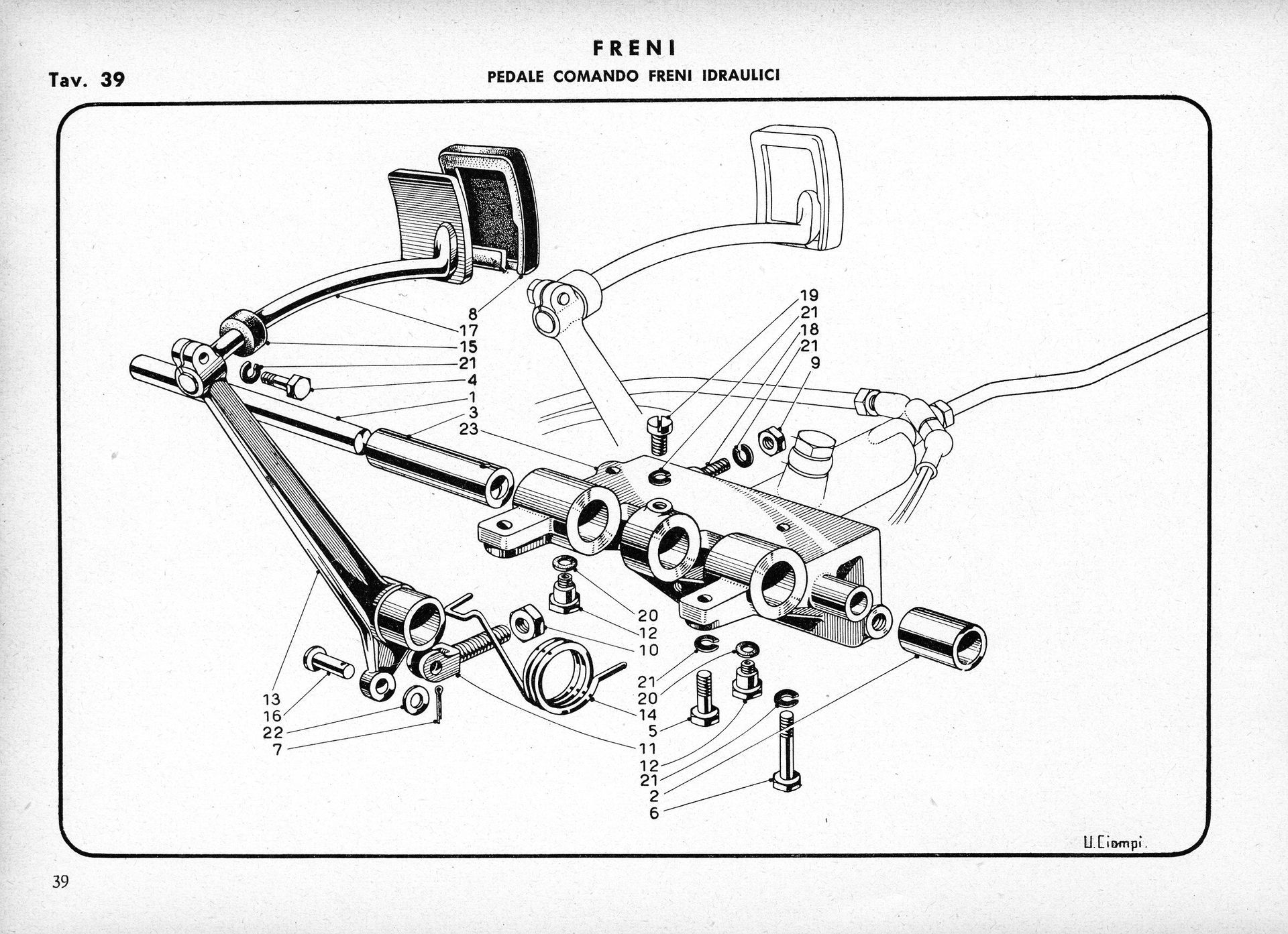

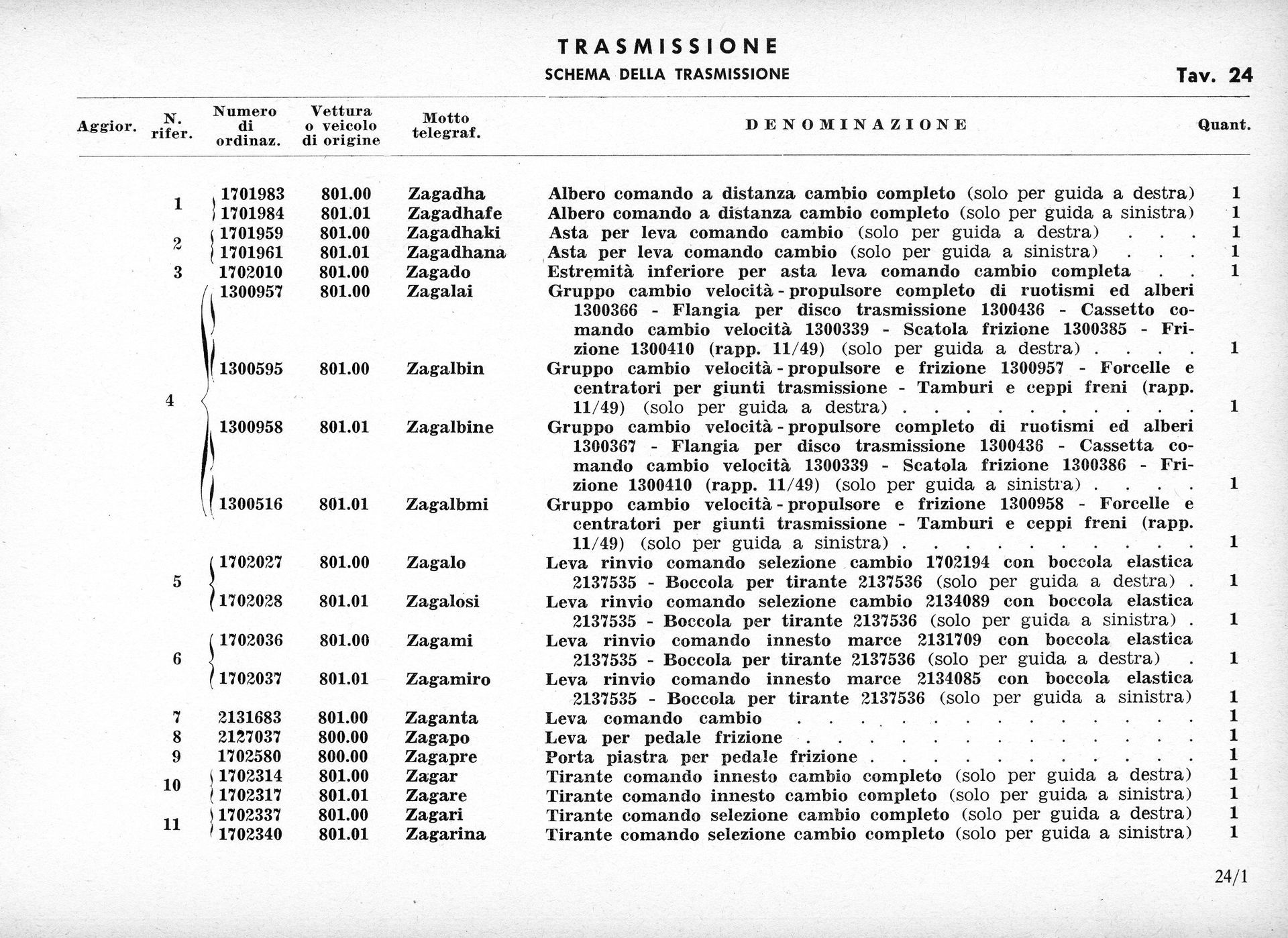

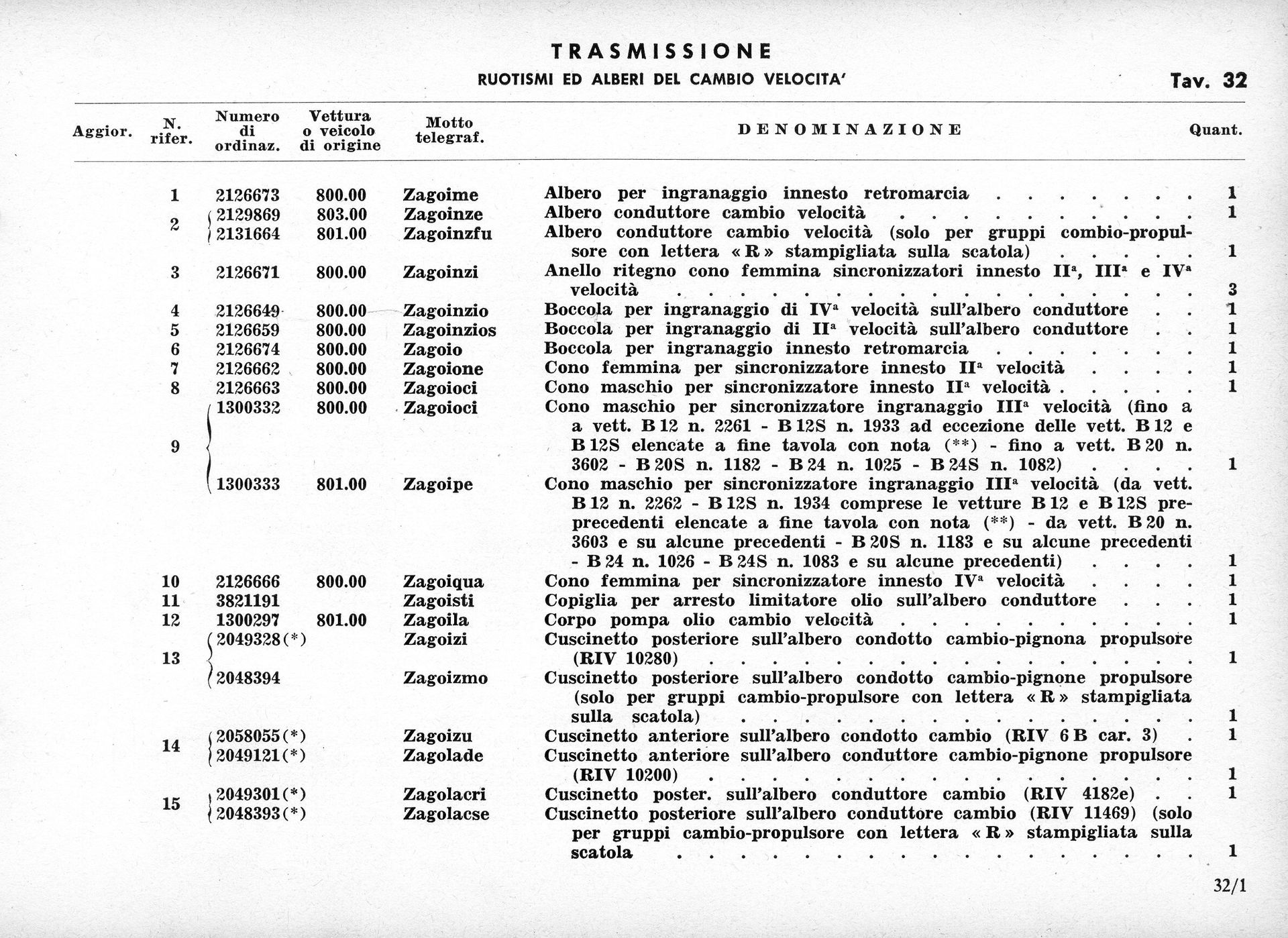

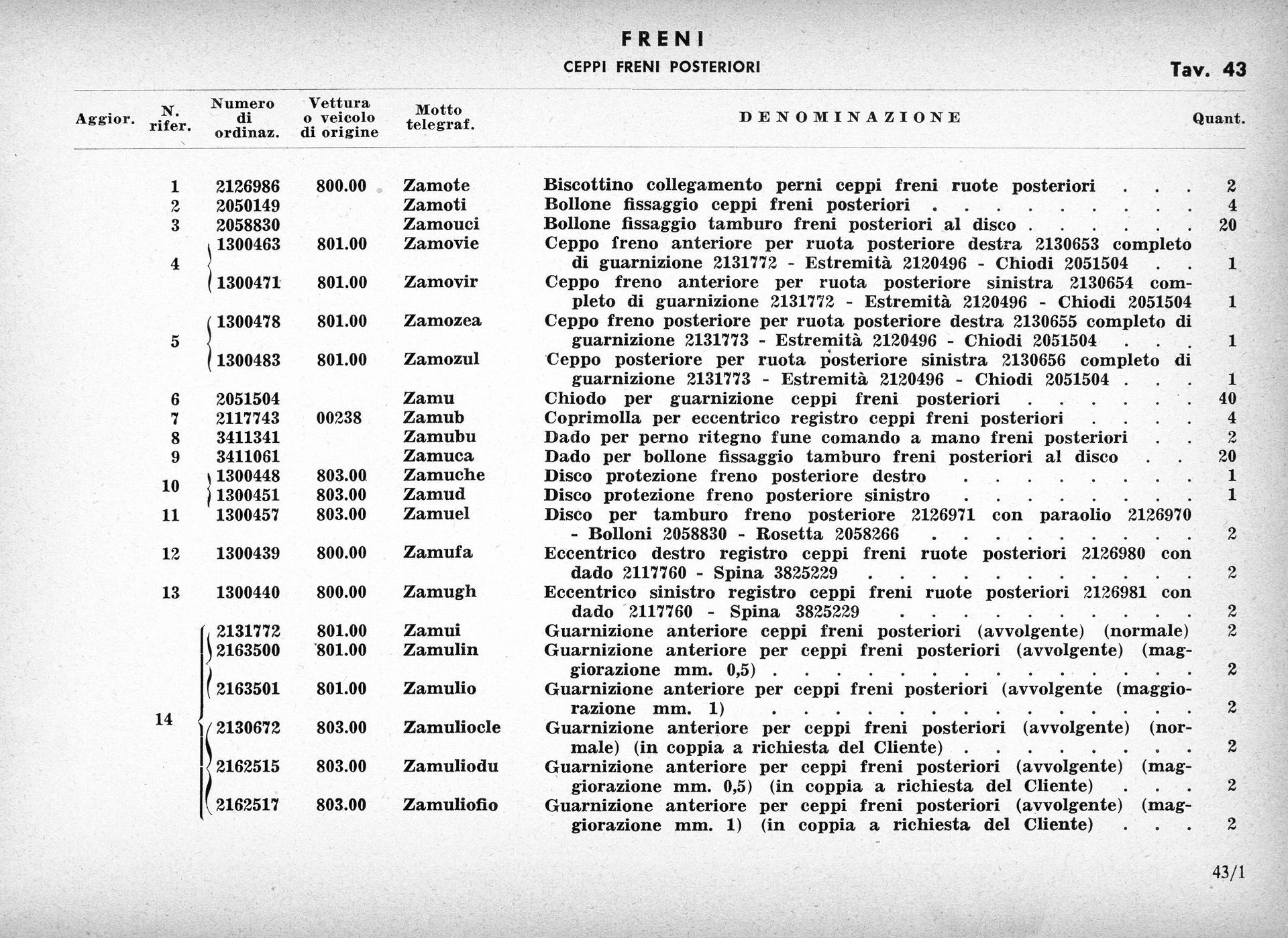

1959 Stampato n. 8798512 (ex 004-111) (VIII-1959 - 700) - Transmission - Brakes
1959 - Stampato n. 8798512 (ex 004-111) (VIII-1959 - 700)
